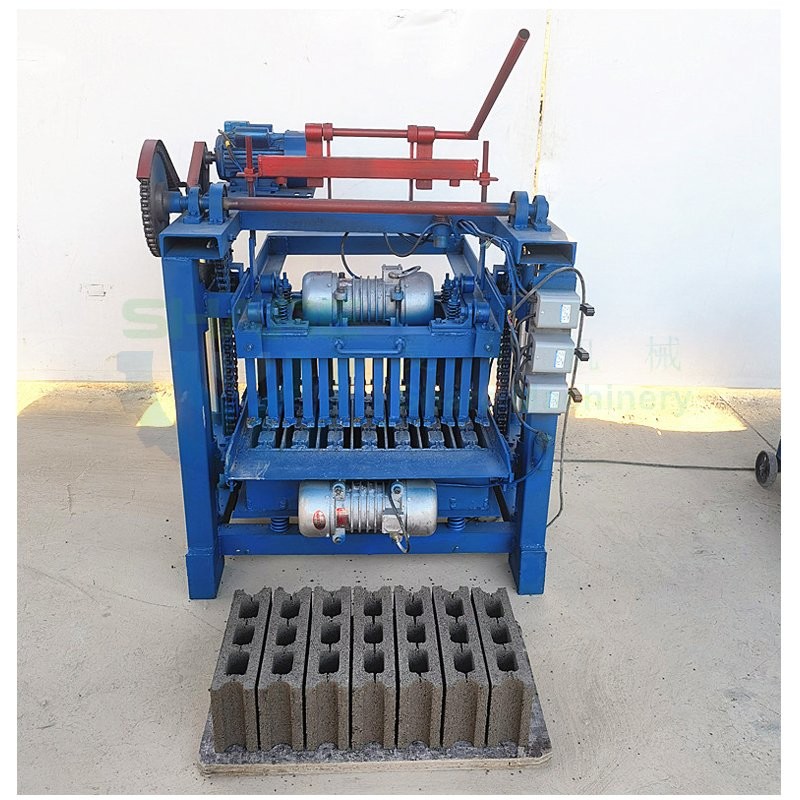

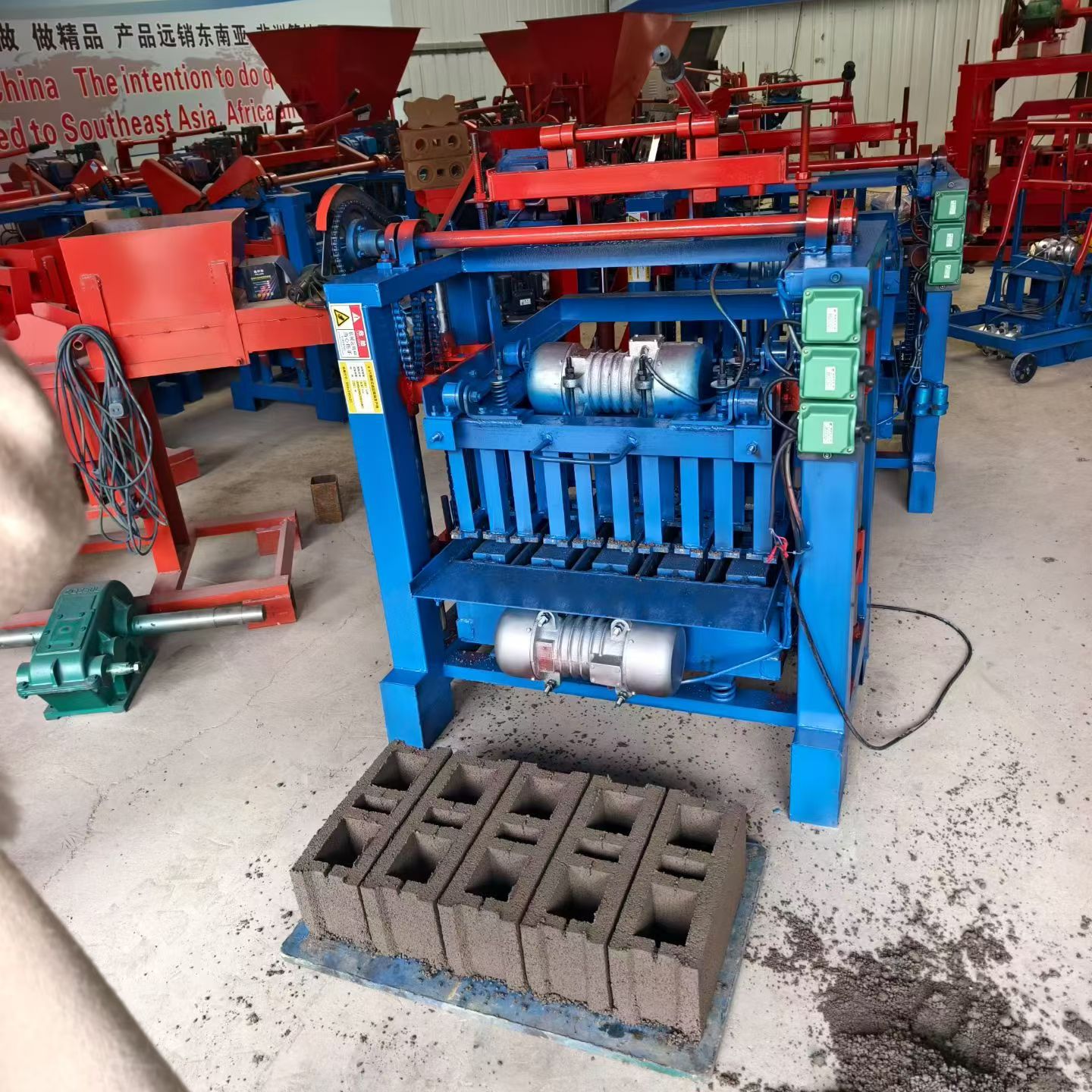

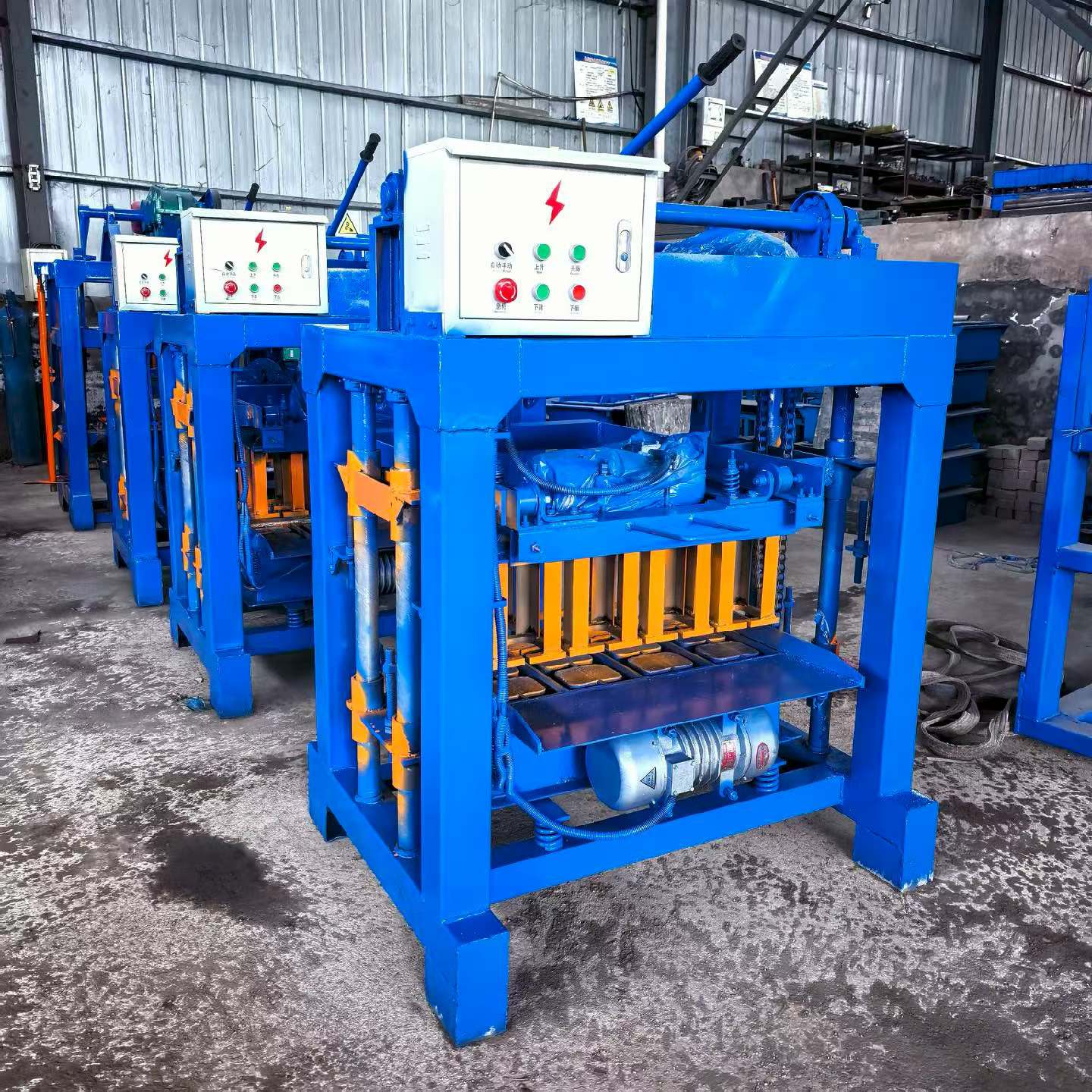

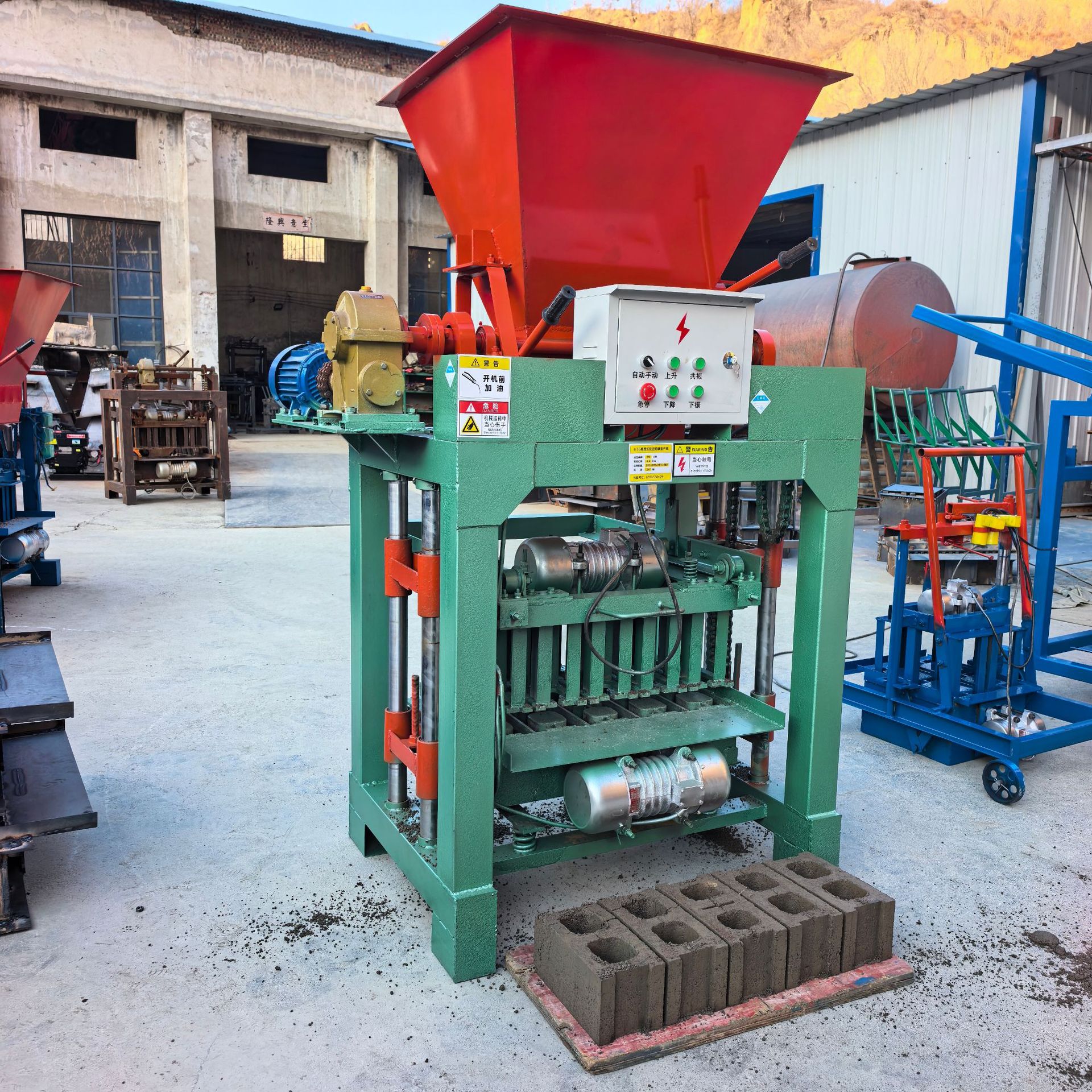

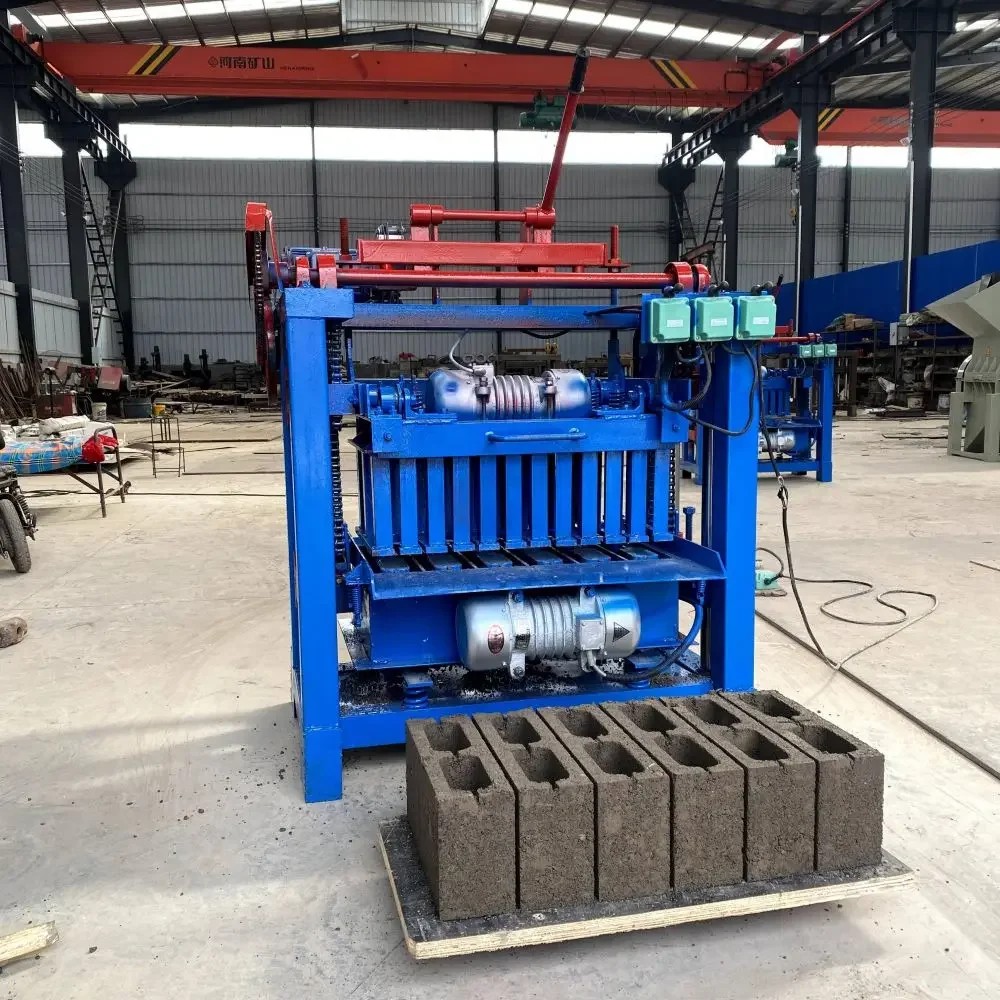

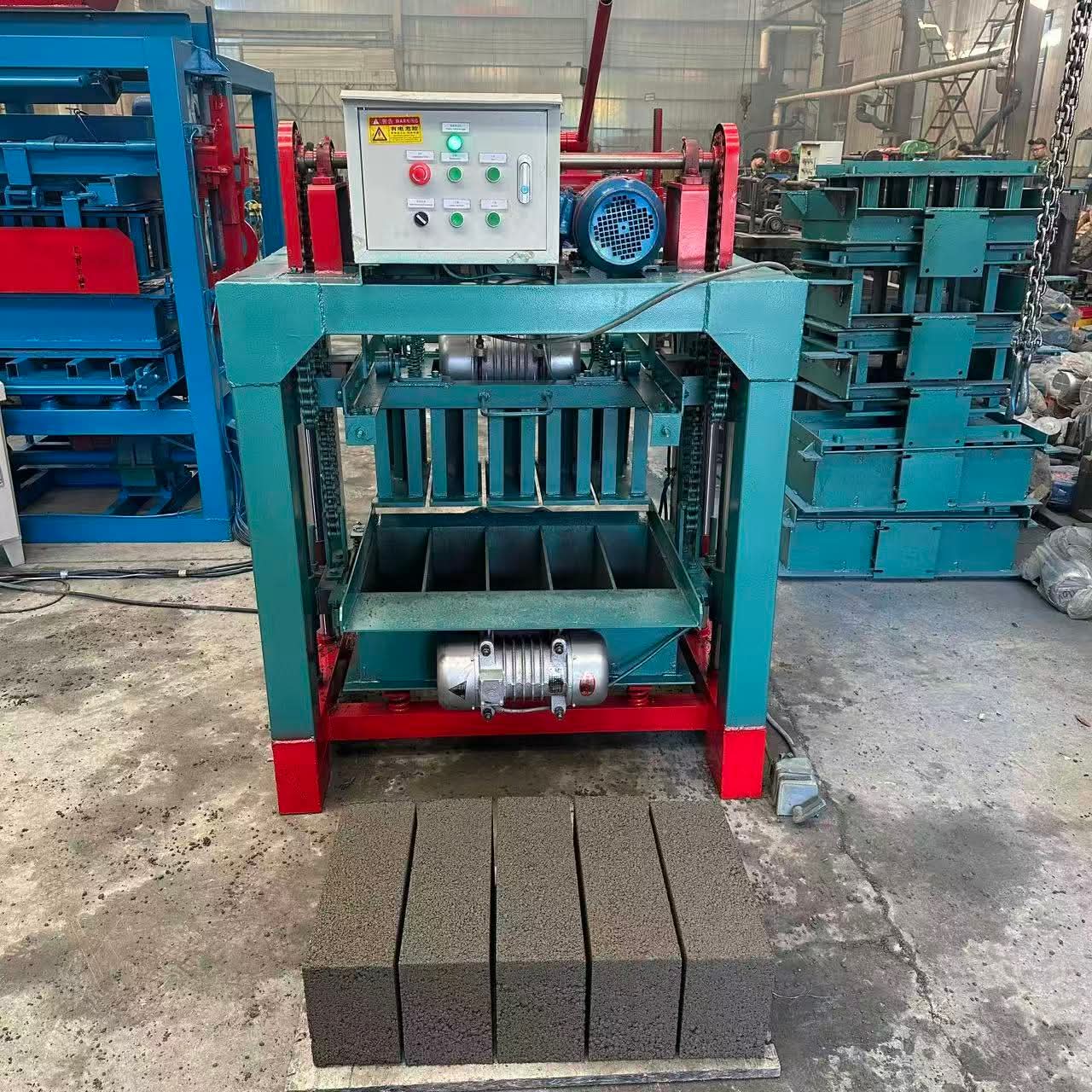

QT4-35 Full Set Semi-automatic Block making machine

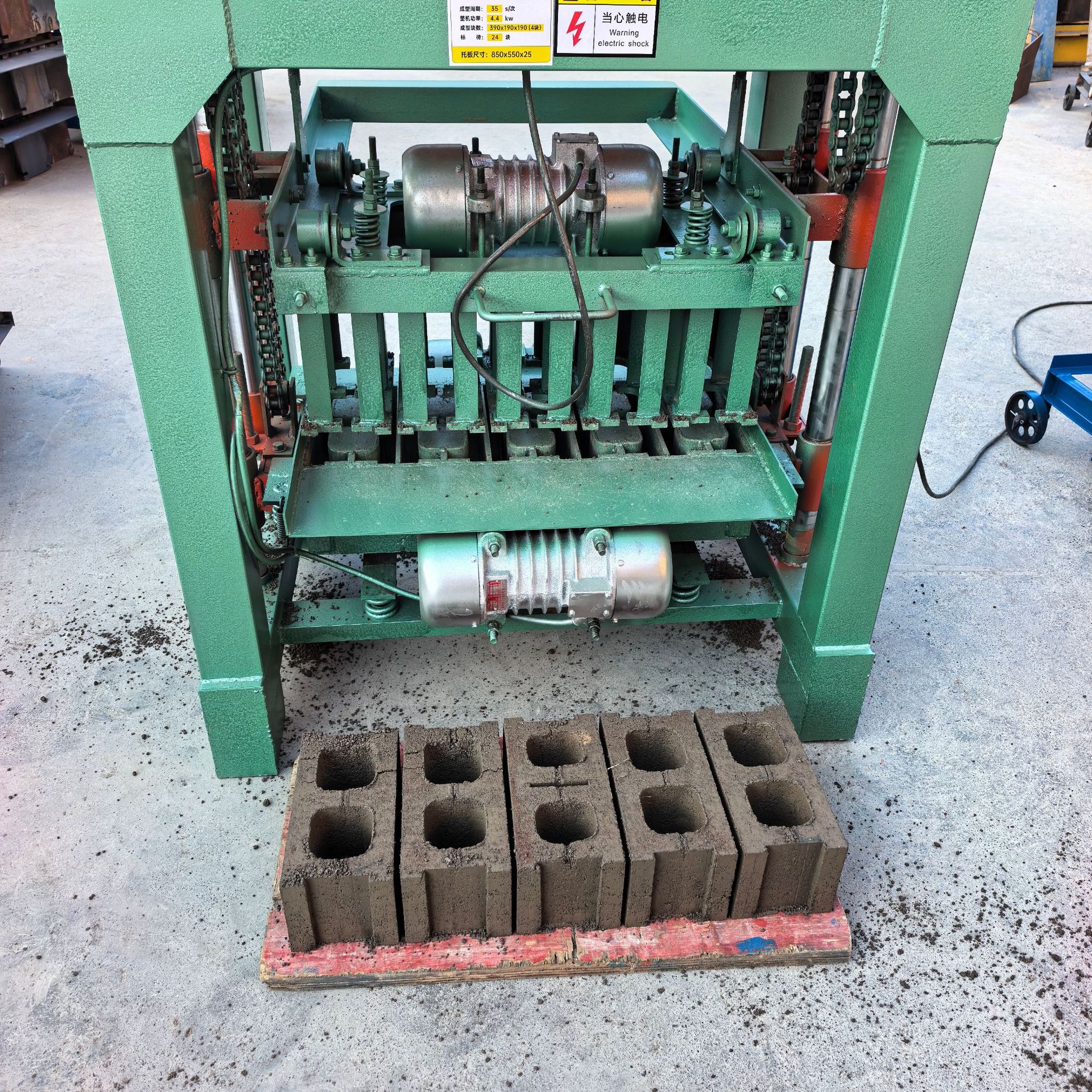

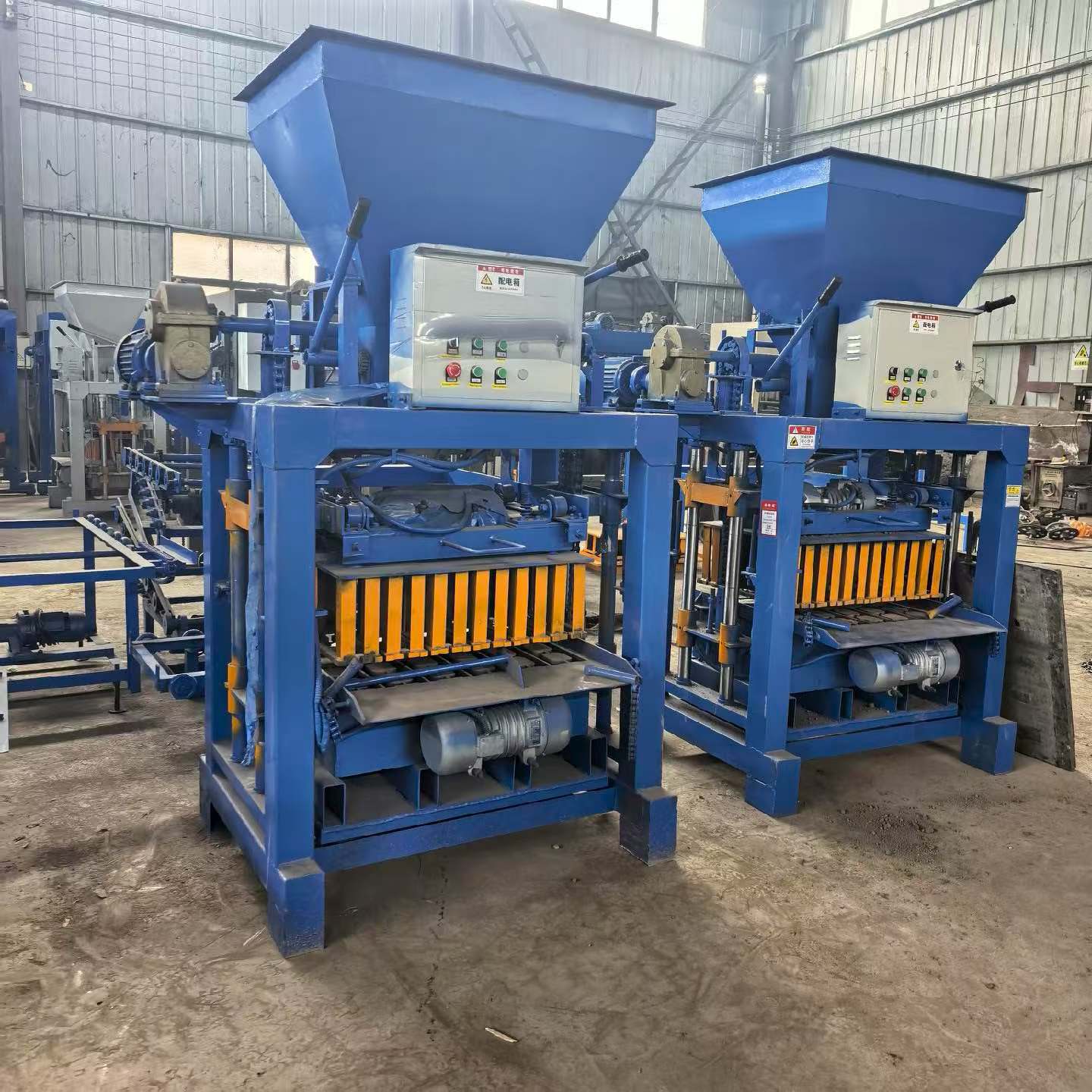

The QT4-35A is a semi-automatic, mobile concrete block making machine designed for small to medium construction projects, capable of producing hollow, solid, paver, and interlocking blocks using river sand, gravel, and cement.
It operates with a strong vibration system (twice-vibration), requiring only 1–2 operators and providing high-density blocks at a fast rate.
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
New Products
Product Details
Key Technical Details (QT4-35A)
- Production Capacity:3000-5500 standard blocks
- Cycle Time: 40 seconds per cycle.
- Total Power:8KW.
- Dimensions (Host Machine):1300x1300x1500mm
- Machine Weight:700 kg.
- Vibration Method:Vertical vibration with upper die pressurized vibration.
Features & Advantages

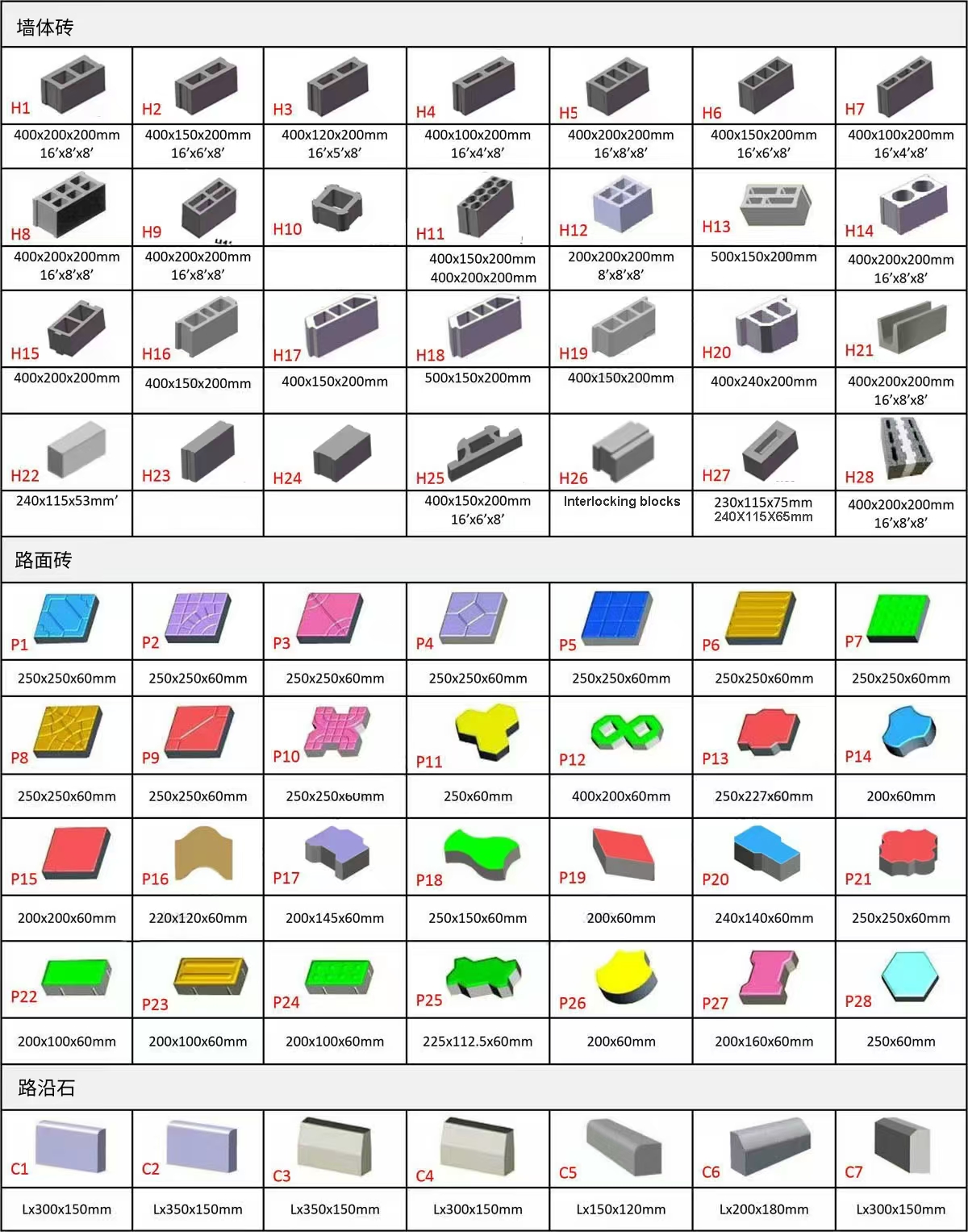

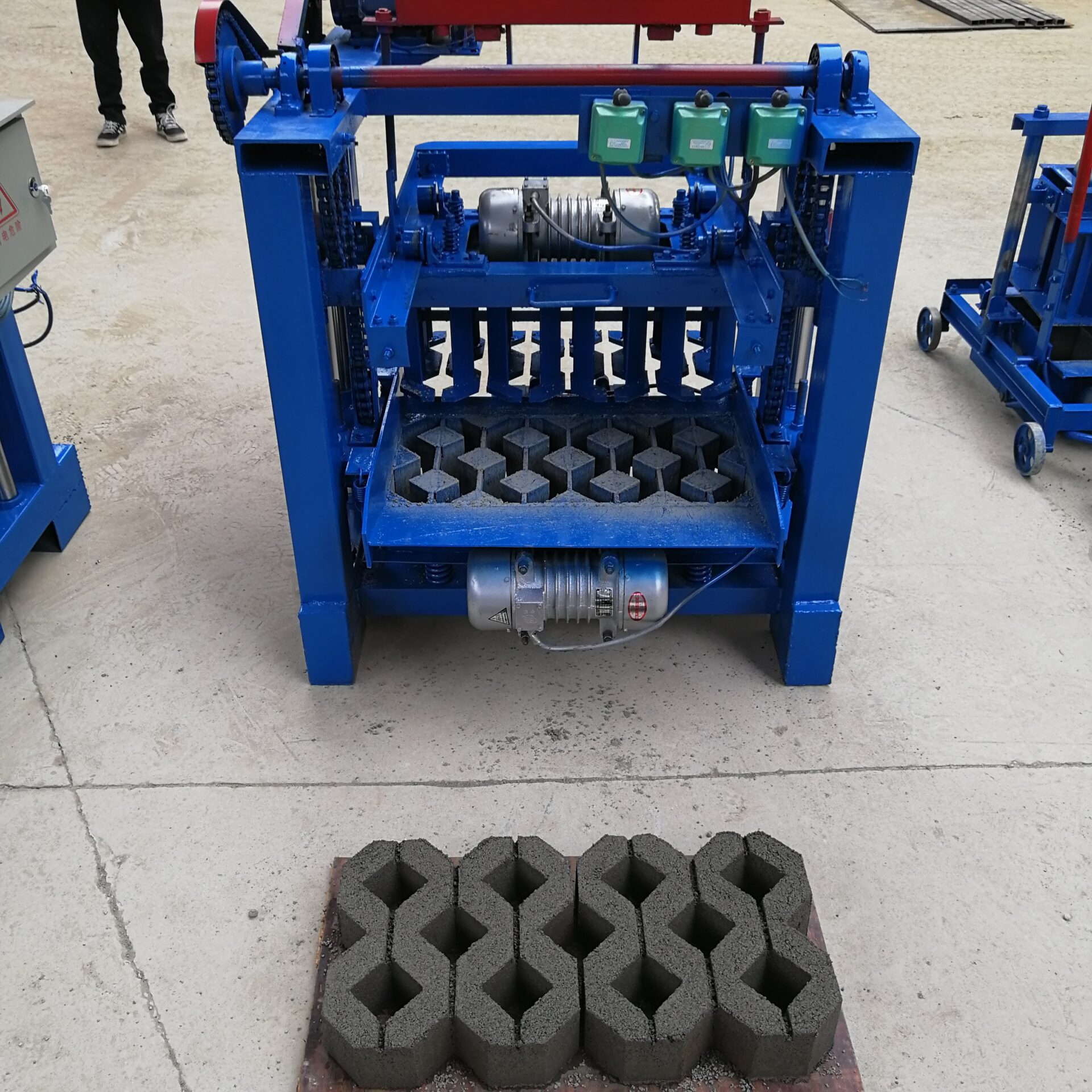

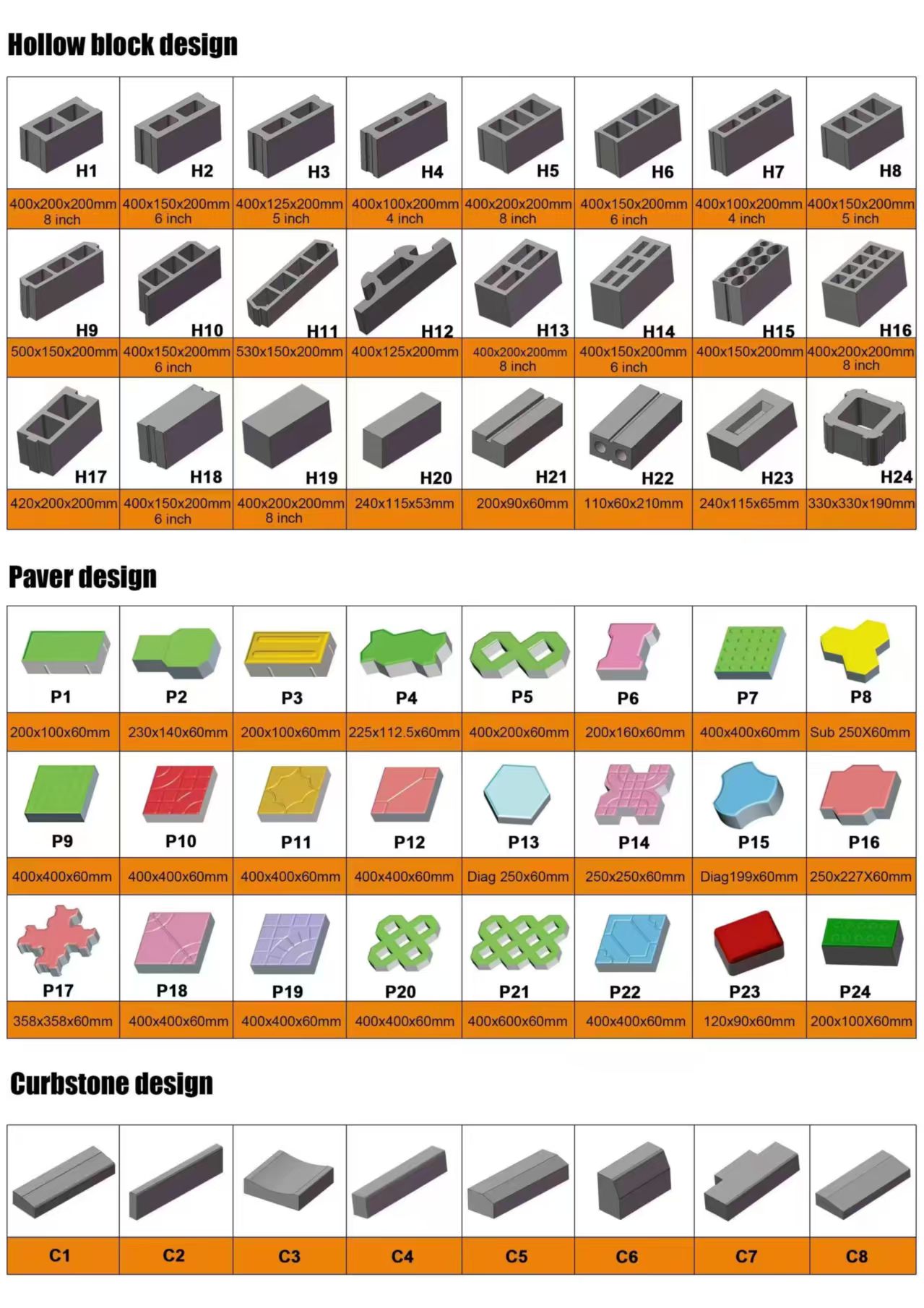

- Versatility:Changes molds to produce different types and sizes of bricks.
- Structure:Uses four-column guidance for stable operation and a strong motor for higher density blocks.
- Efficiency:Features “twice-vibration” of the molding core for improved block density and strength.
- Cost-Effective:Economical, easy to operate, and suitable for sites with limited space (approx. (60m² only needed)

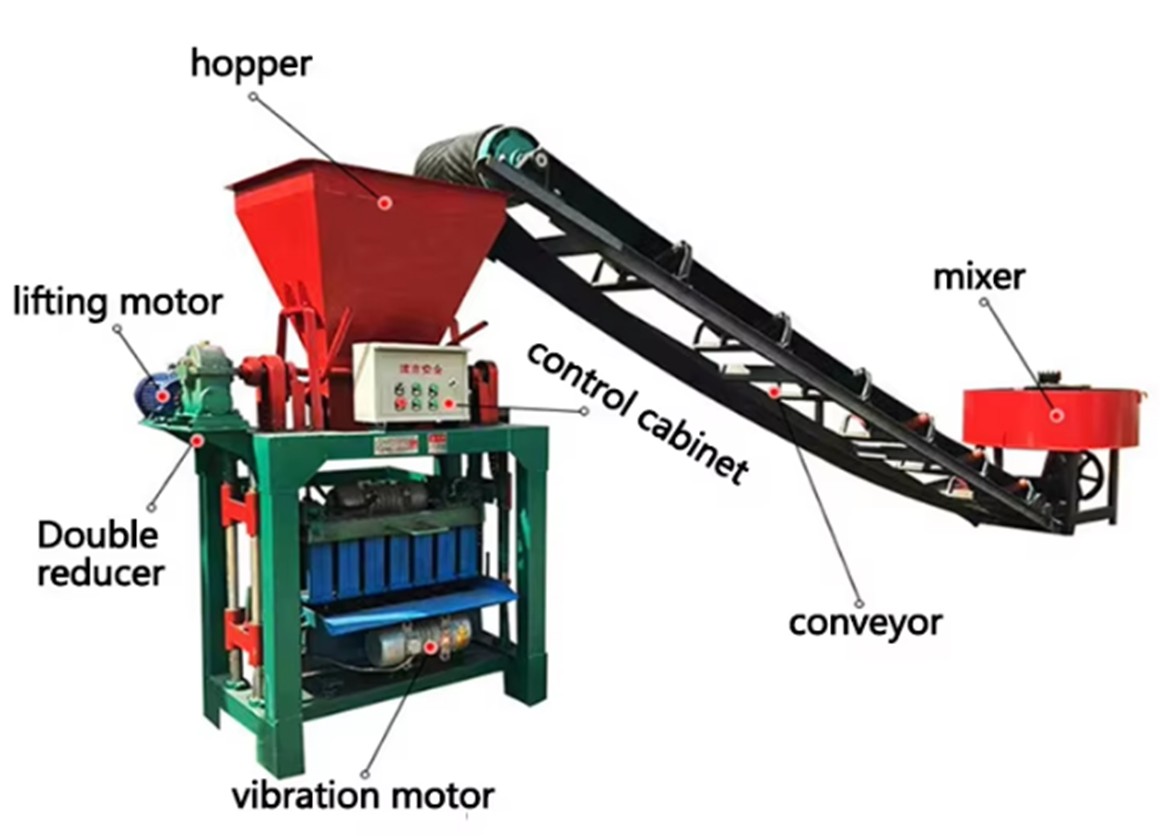

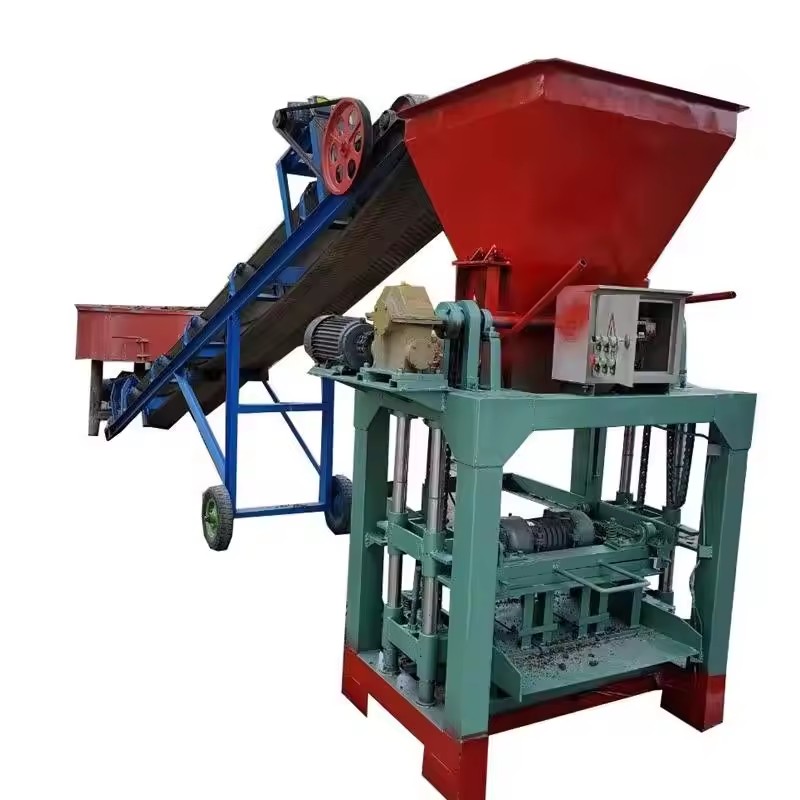

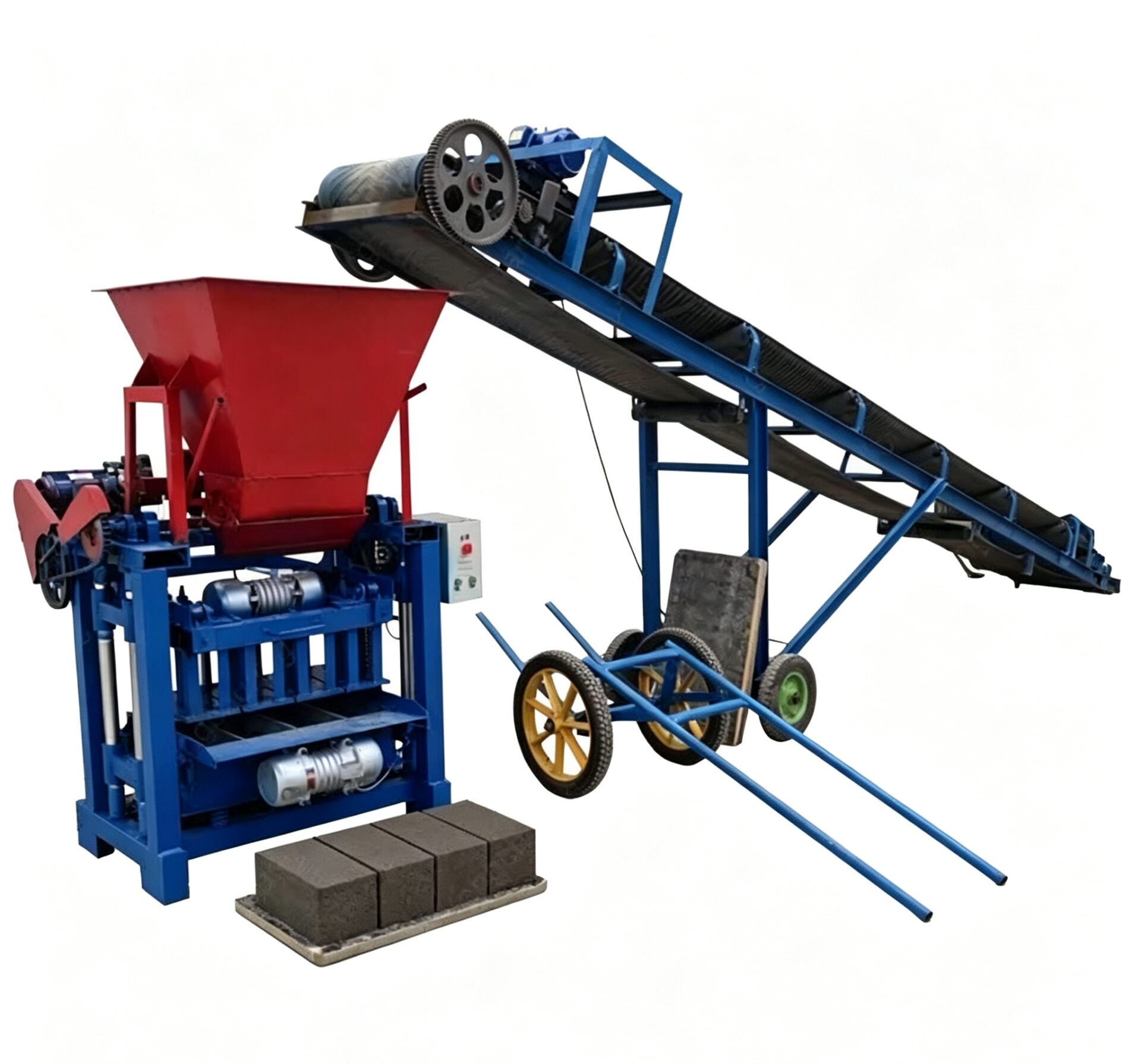

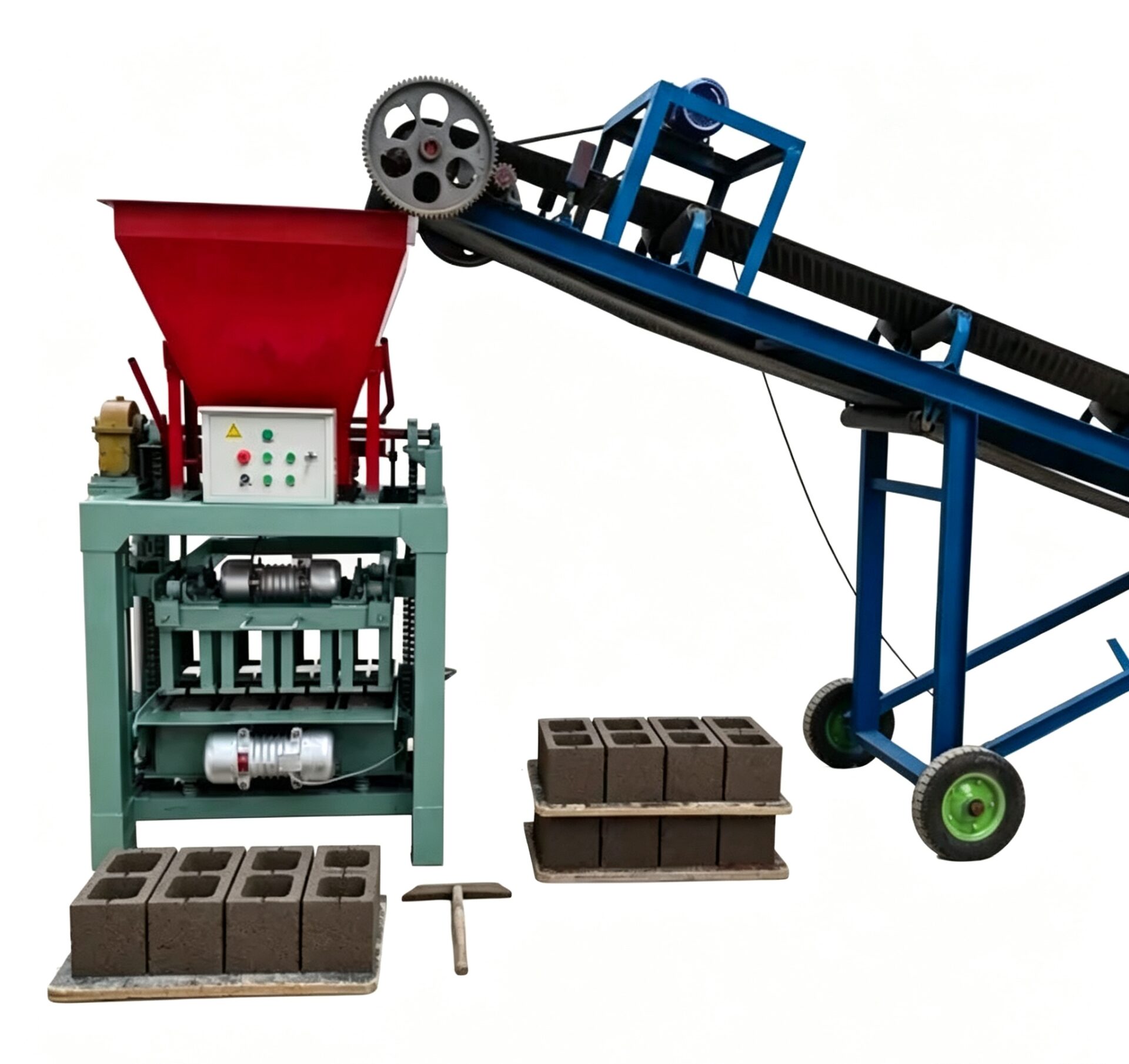

Standard Components
- Main Forming Machine (QT4-35A)

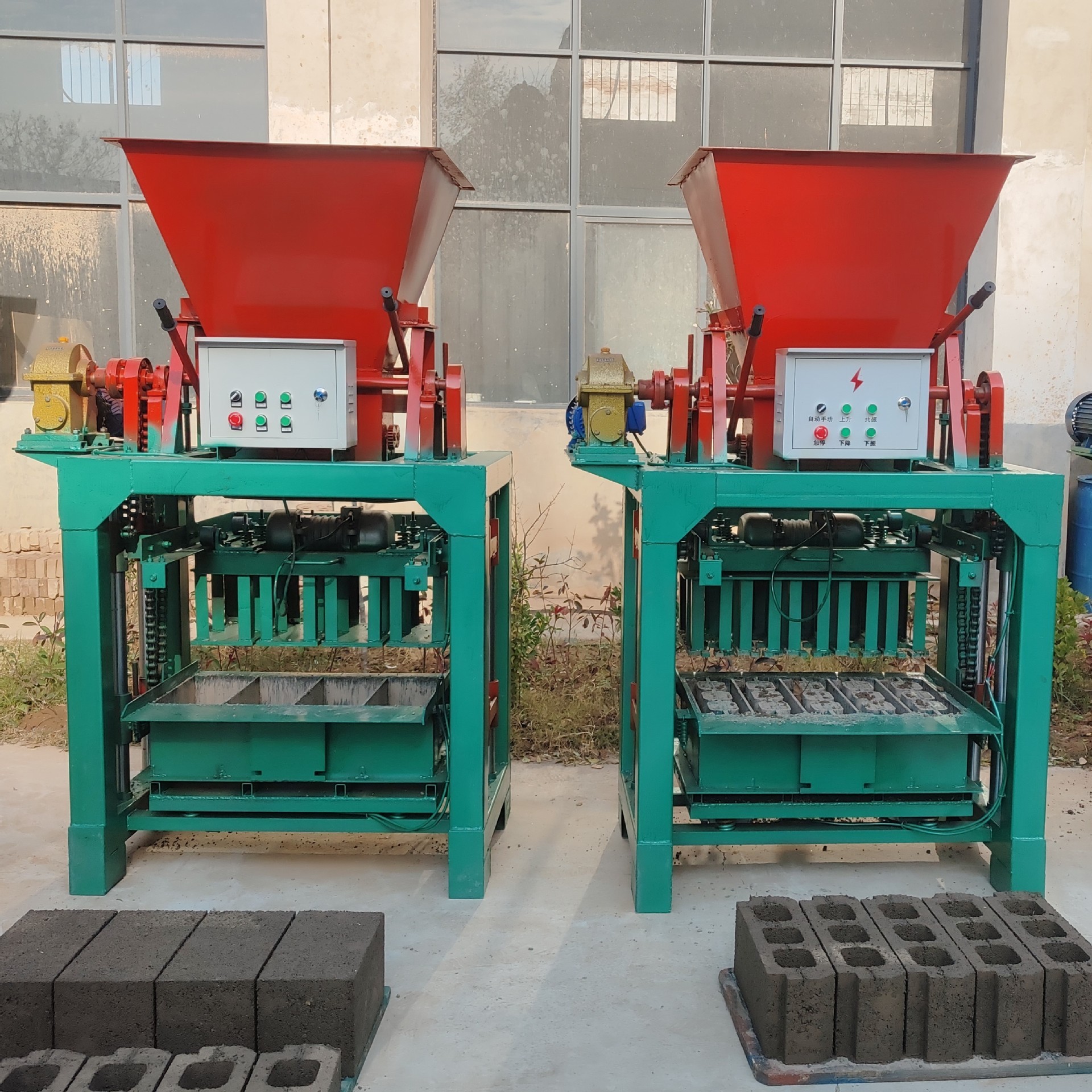

- Optional Mixer (often JQ350)
- Optional Belt Conveyor
| Technical Specifications | |
| Model | QT4-35A Semi automatic |
| Machine Total power | 4.8KW |
| Overall dimensions(mm) | 1200*1400*2100mm ; 3.52CBM |
| Weights (kg) | 700KG |
| Electrical voltage | 220V-380V |
| Human labor requirement | The machine can be easily operated by 1-2 people only. |
|

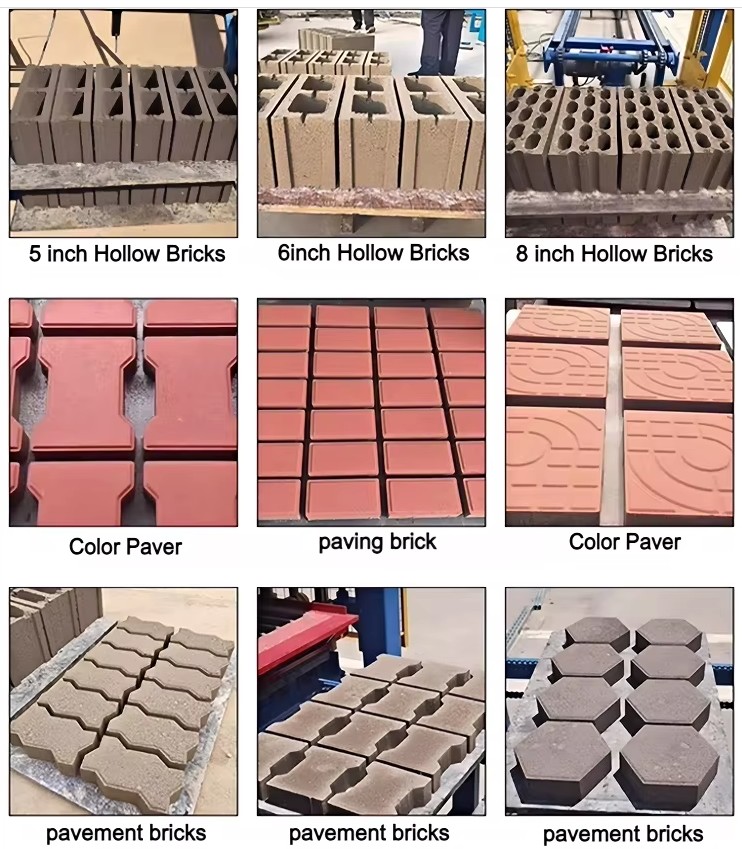

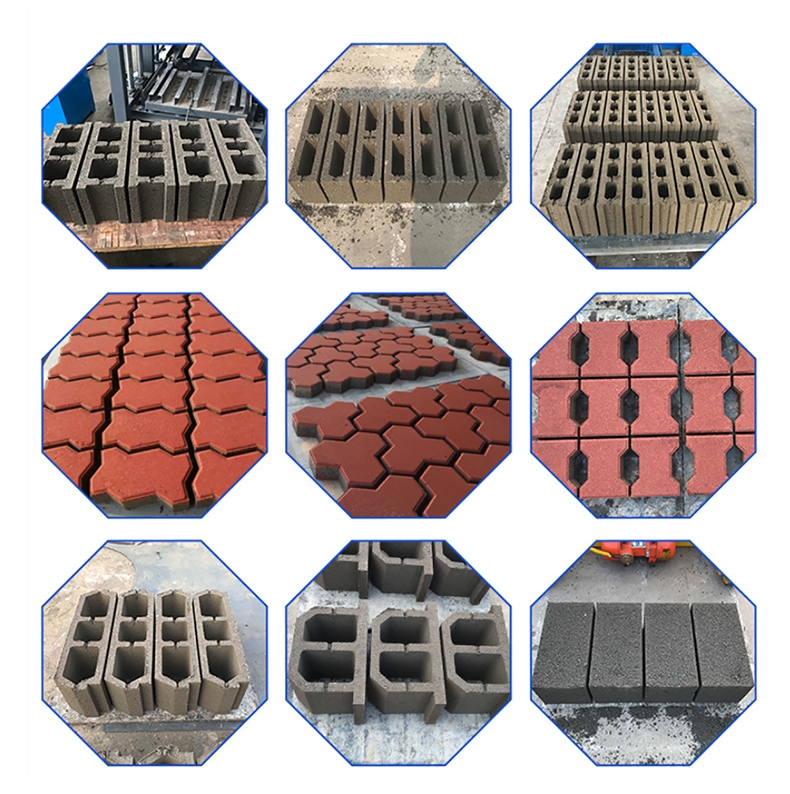

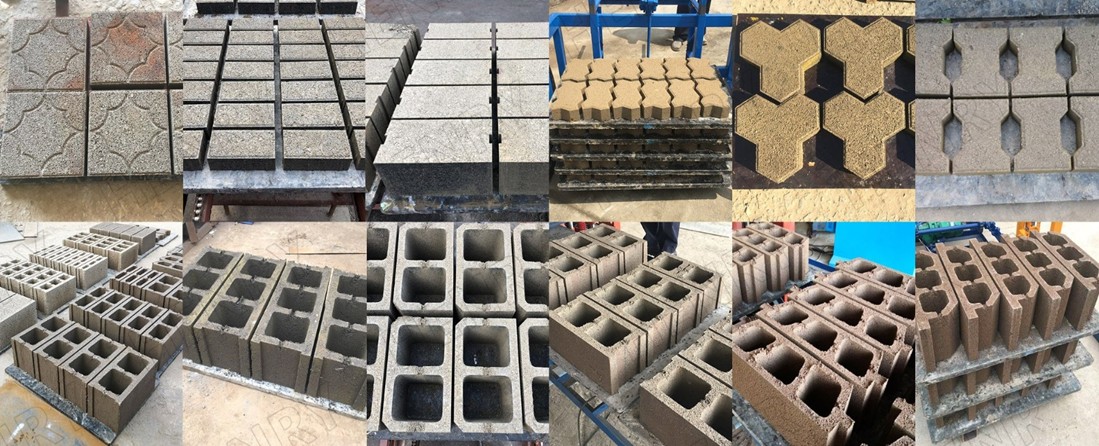

Number of bricks produced (commonly used) |
Hollow bricks 400*200*200 (4 bricks/batch)
Hollow bricks 400*125*200 (5 bricks/batch) Hollow bricks 400*100*200 (7 bricks/batch) Standard bricks 240*115*50 (20 bricks/batch) |
| Human labor requirement | The machine can be easily operated by 2 people only. |
| Molding cycle | 40 seconds |
|
After-sales service |
1.Year warranty for the full set machine
2.Provide machine installation video 3.24h/7 online technical support whenever needed via WhatsApp or Wechat. |
