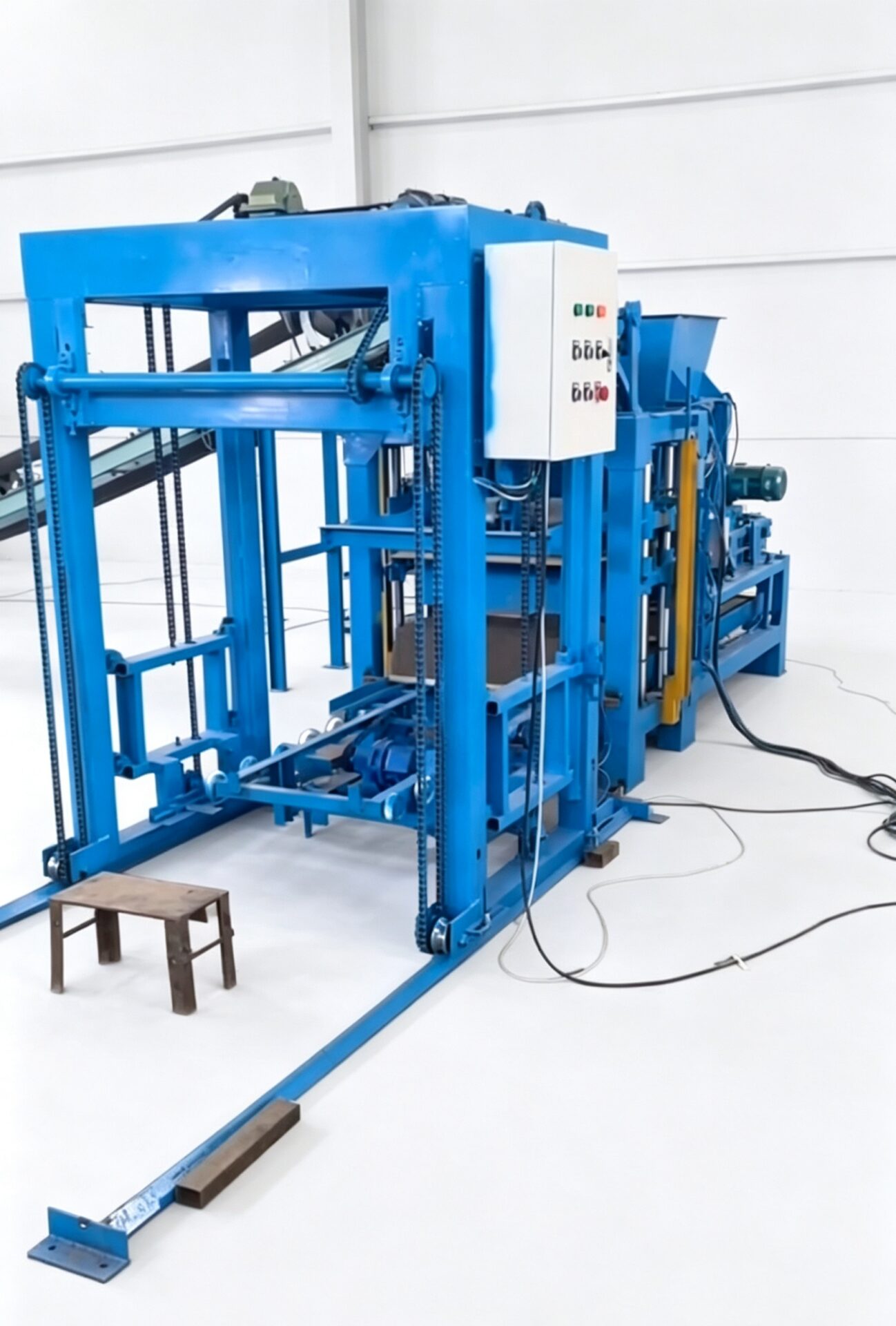

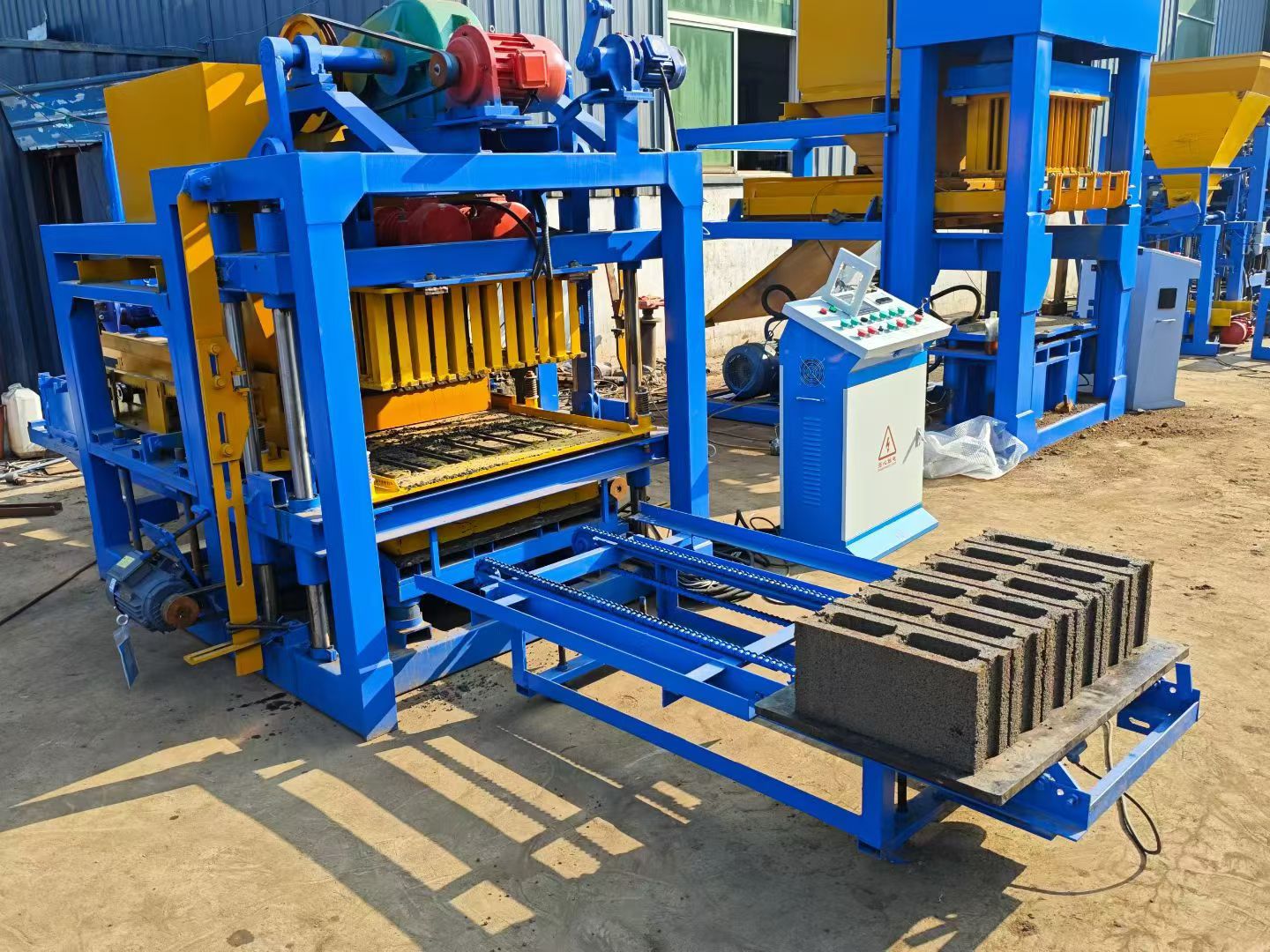

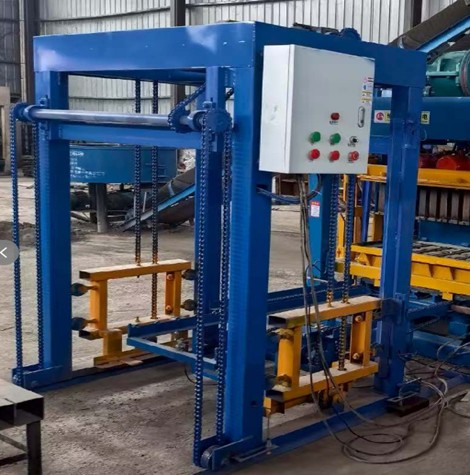

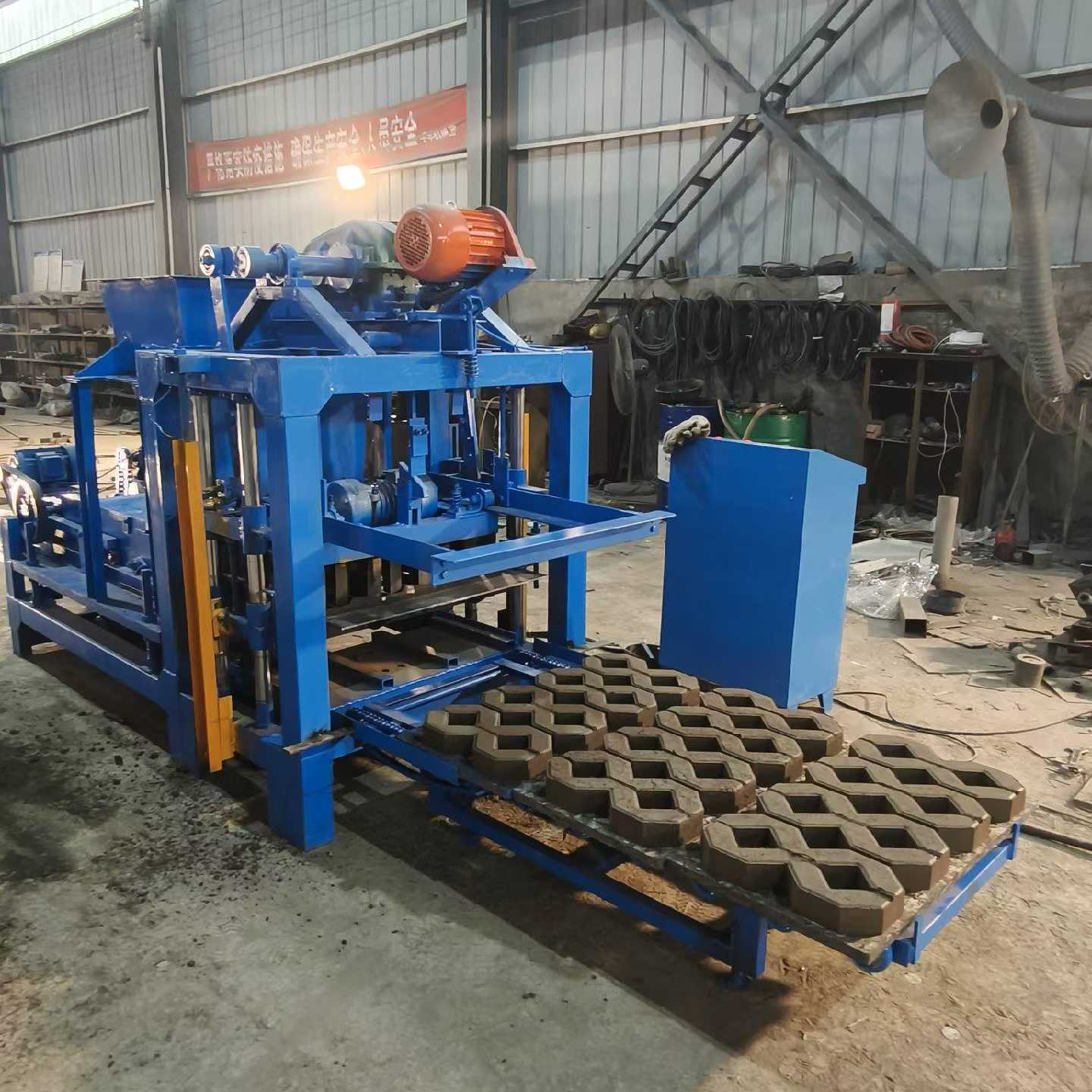

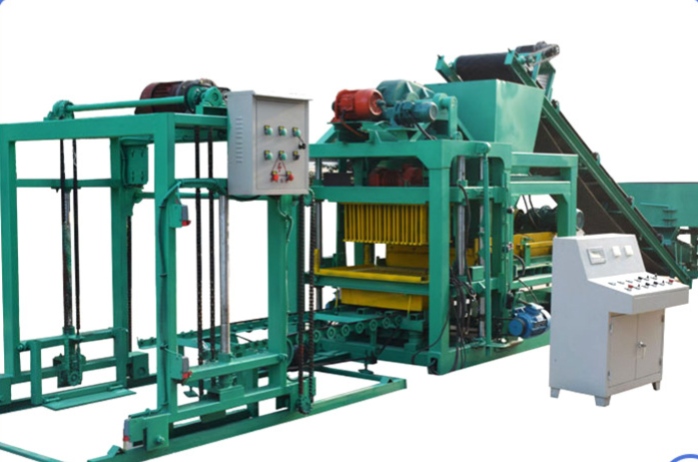

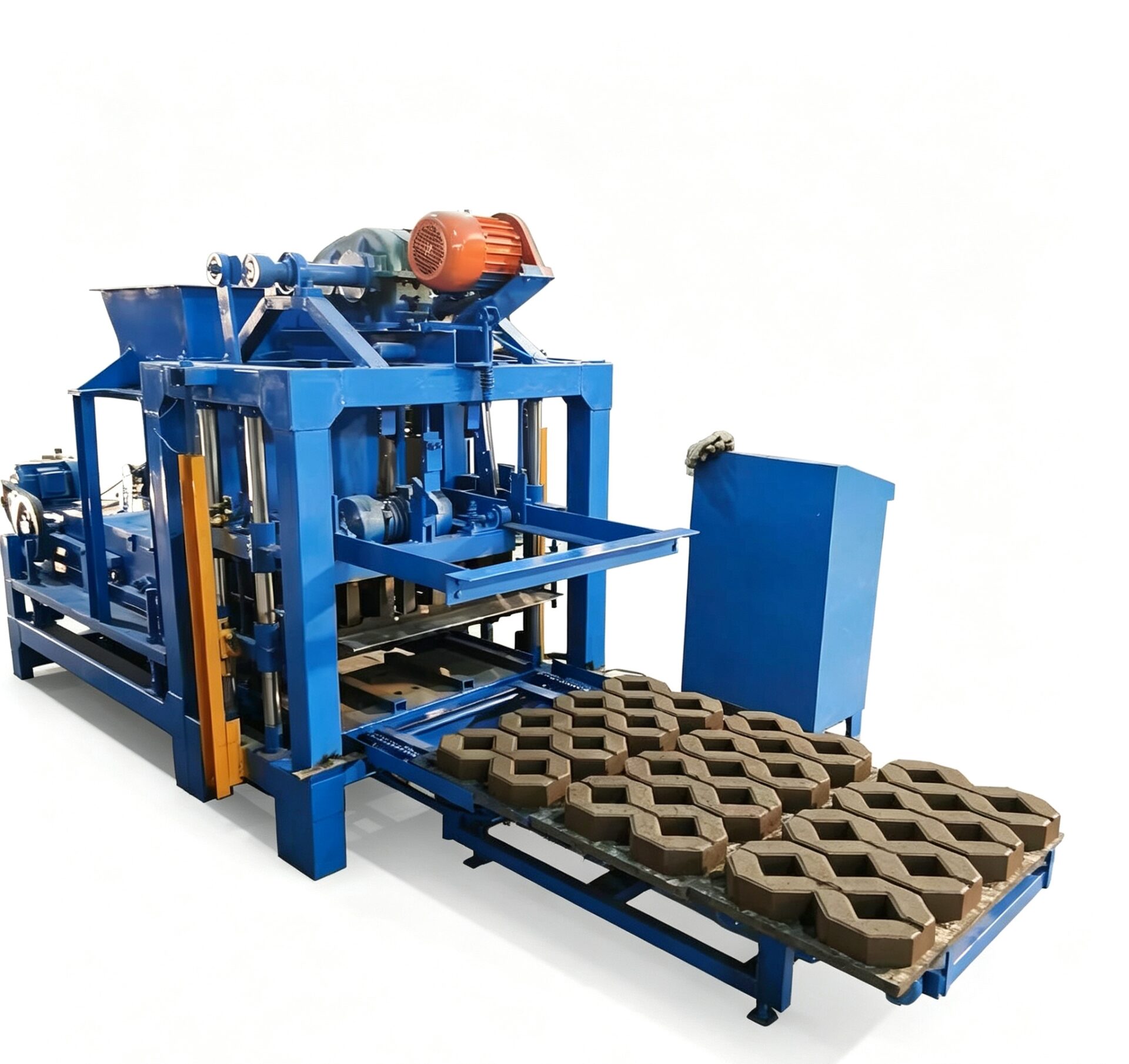

QT4-25 Fully automatic Block making machine

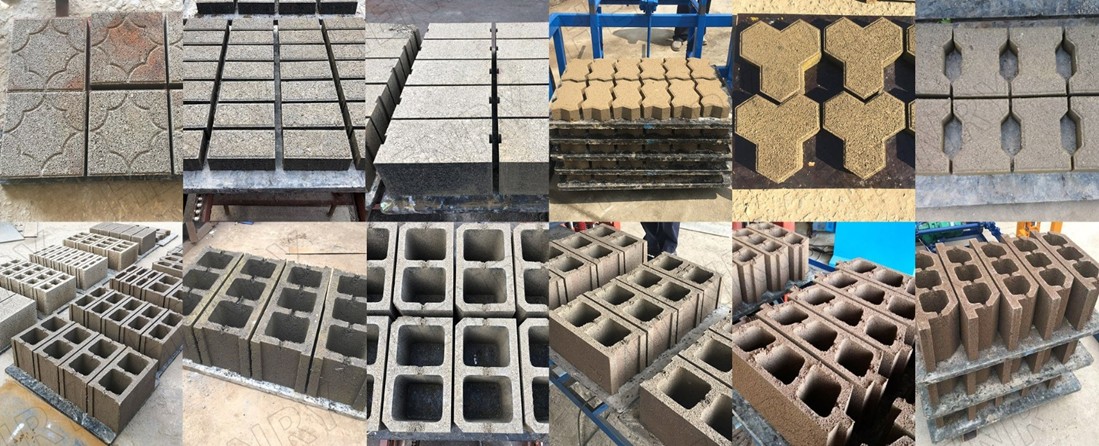

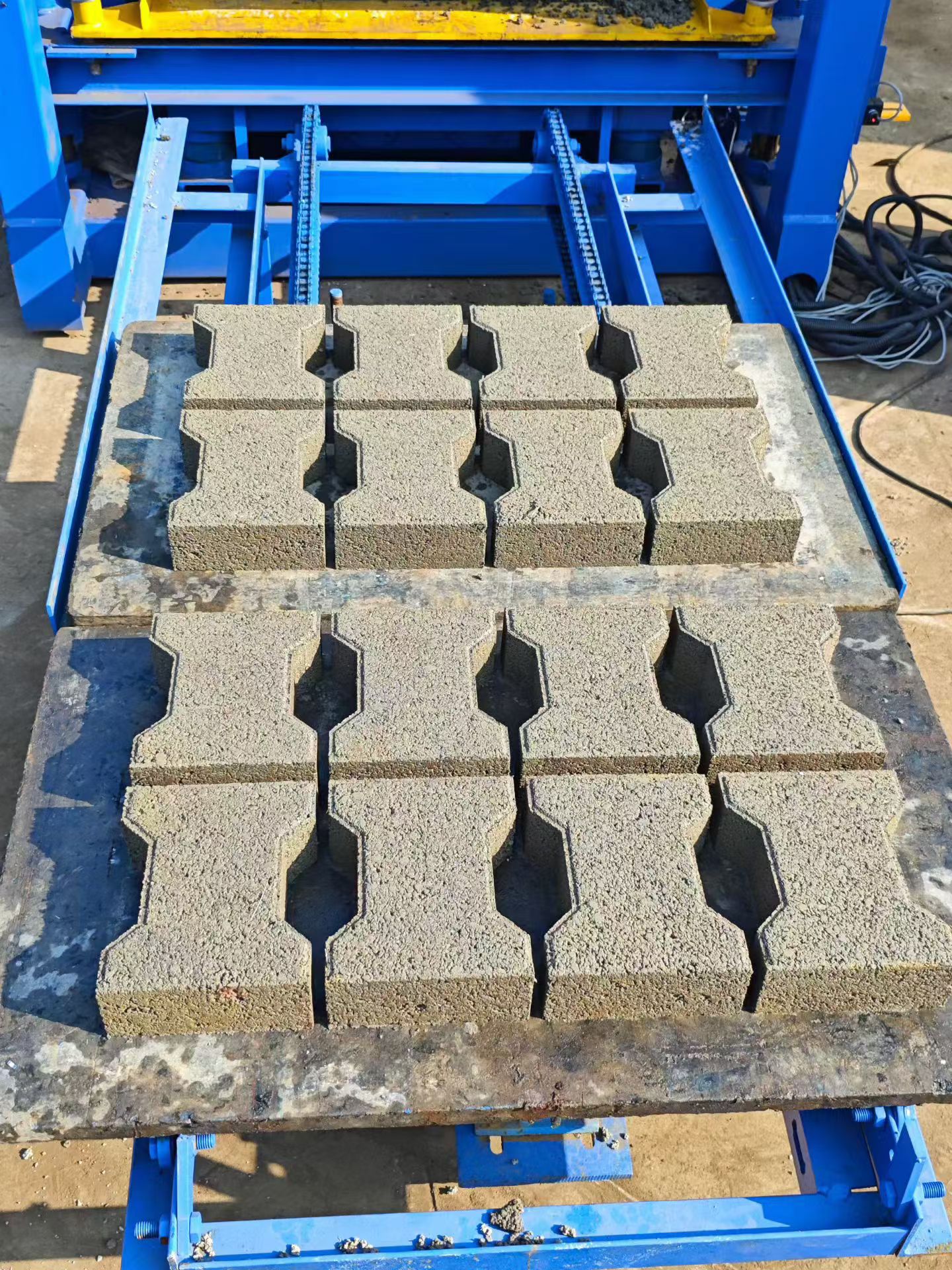

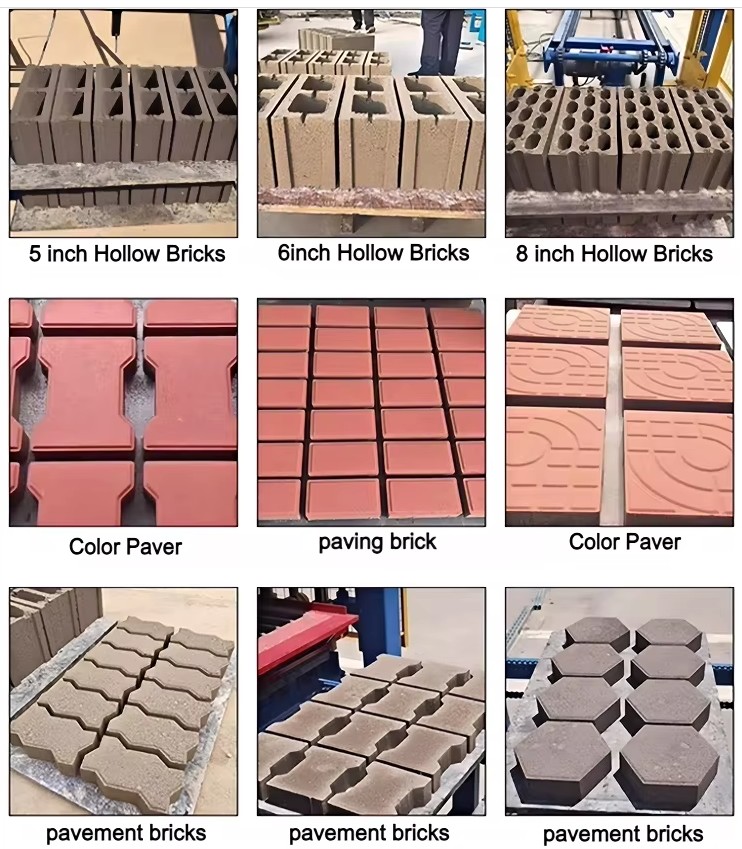

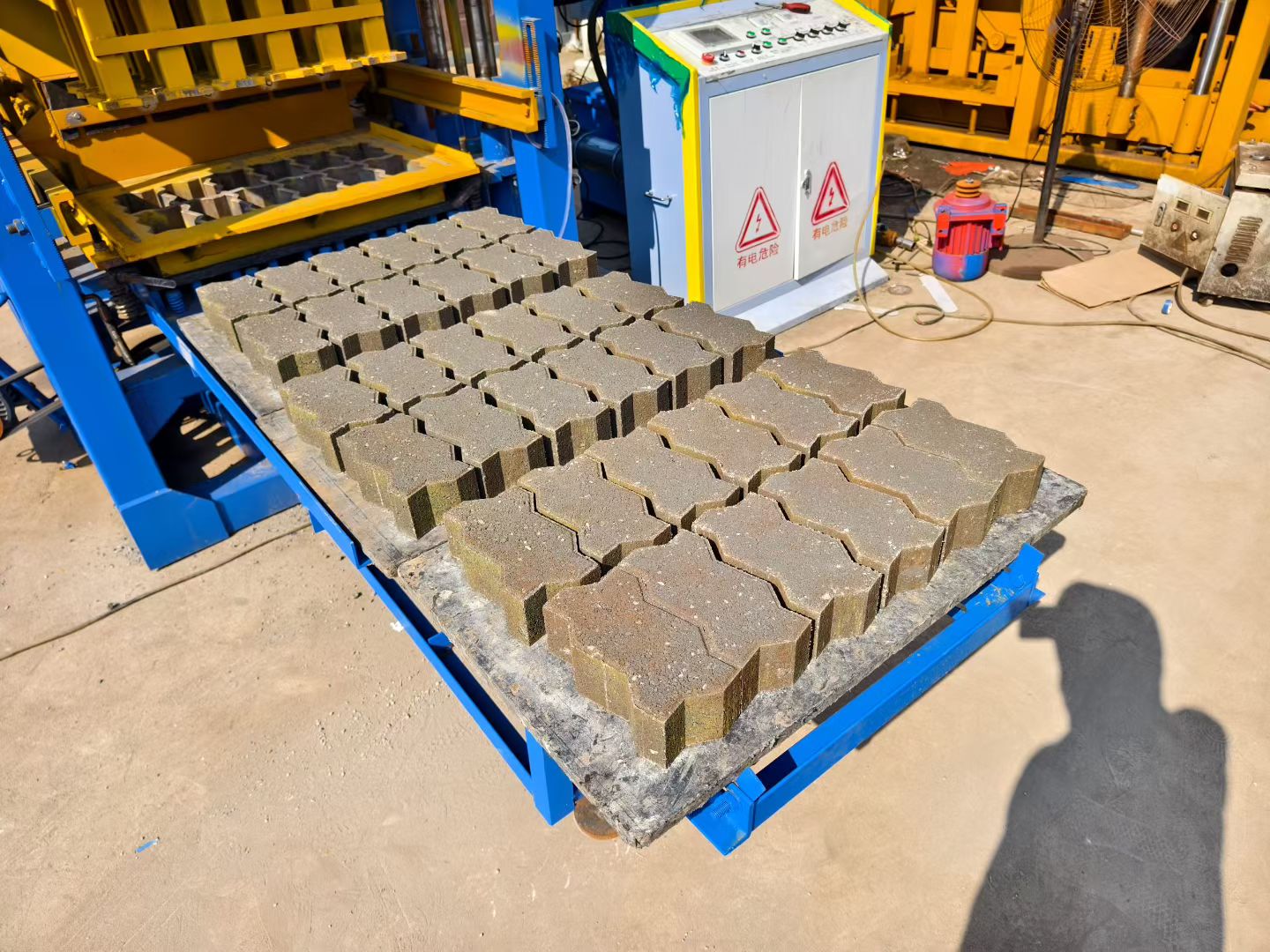

The QT4-25 block making machine is a fully automatic medium-scale production unit designed to produce hollow blocks, solid bricks, paving stones, and curbstones.
It offers high efficiency with a, cycle time of roughly 15–20 seconds, producing approximately 500–900 blocks per hour, ideal for small-to-medium construction businesses.
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
New Products
Product Details
Key Features and Technical Data

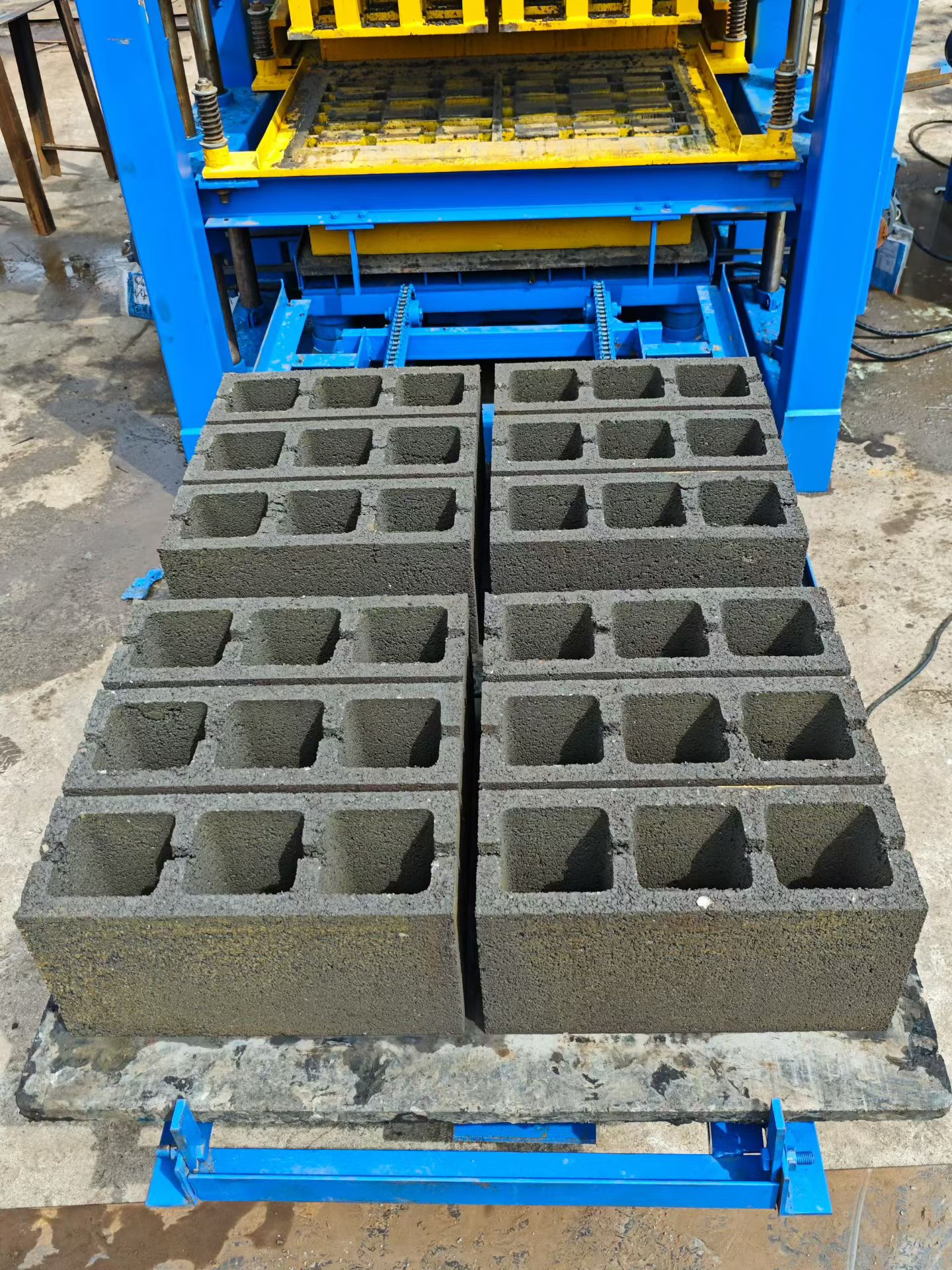

- Production Capacity:Produces 4 pieces of standard 400X200X200mm hollow blocks per mold.
- Automation:Features PLC control for automatic material feeding, pallet supply, and block discharging.
- Vibration System:Employs combined table and mold vibration, resulting in high-density blocks.
- Power Consumption:Generally operates at 18–25KW and utilizes 3-phase electricity.

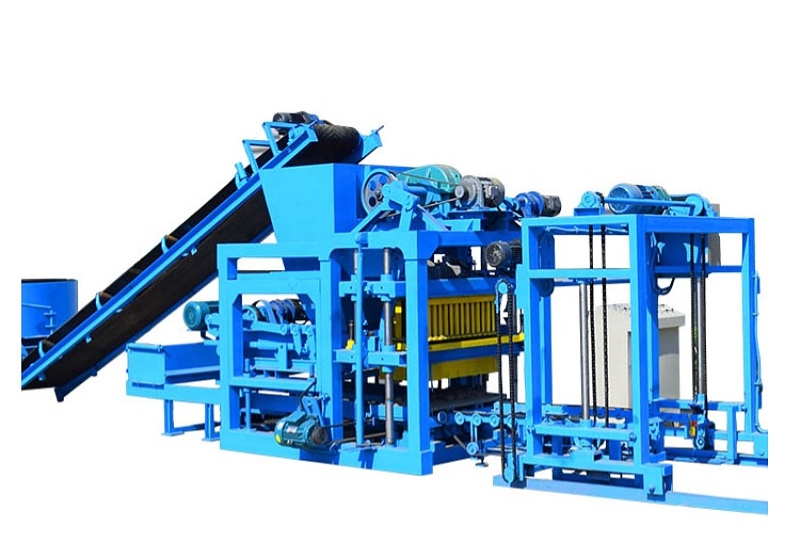

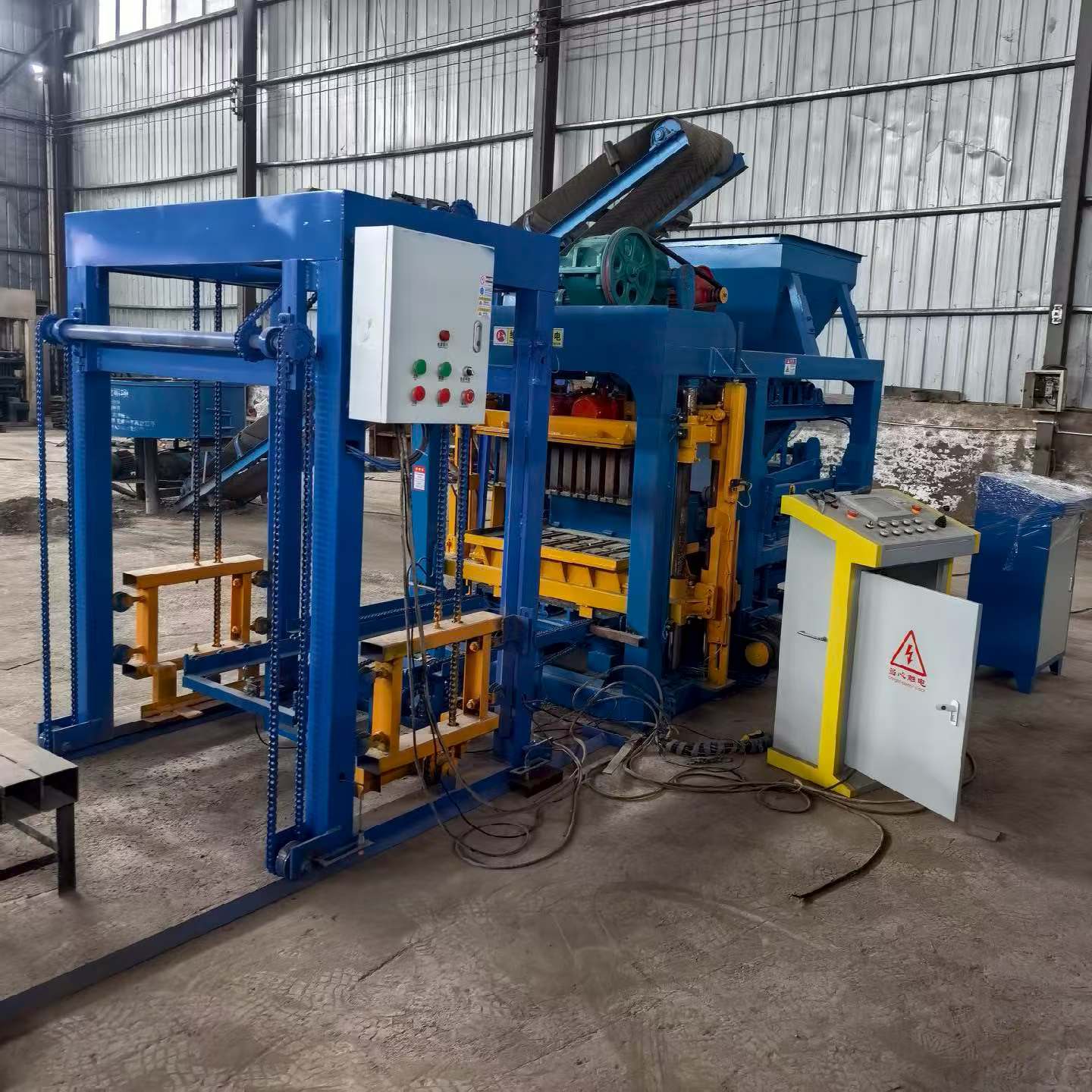

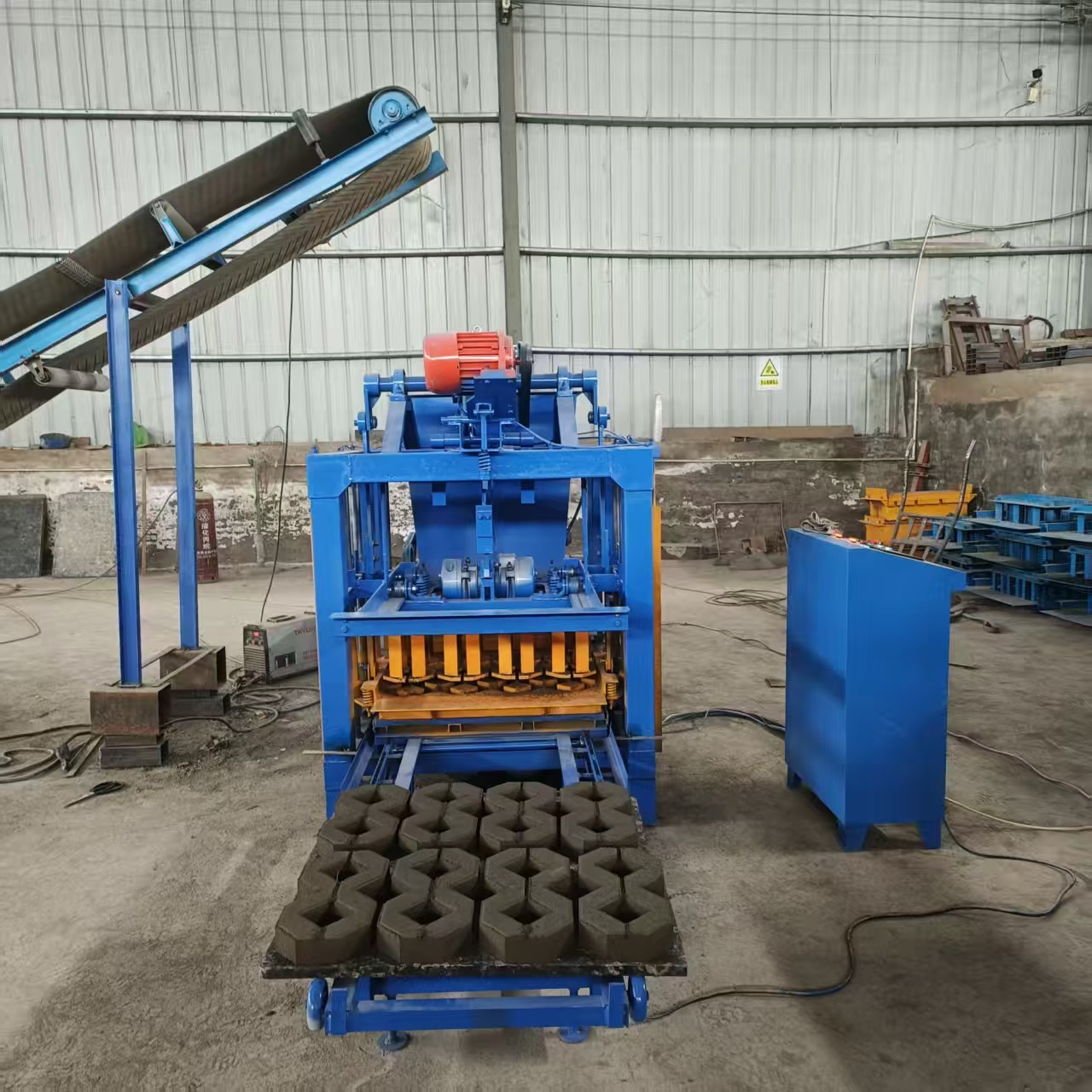

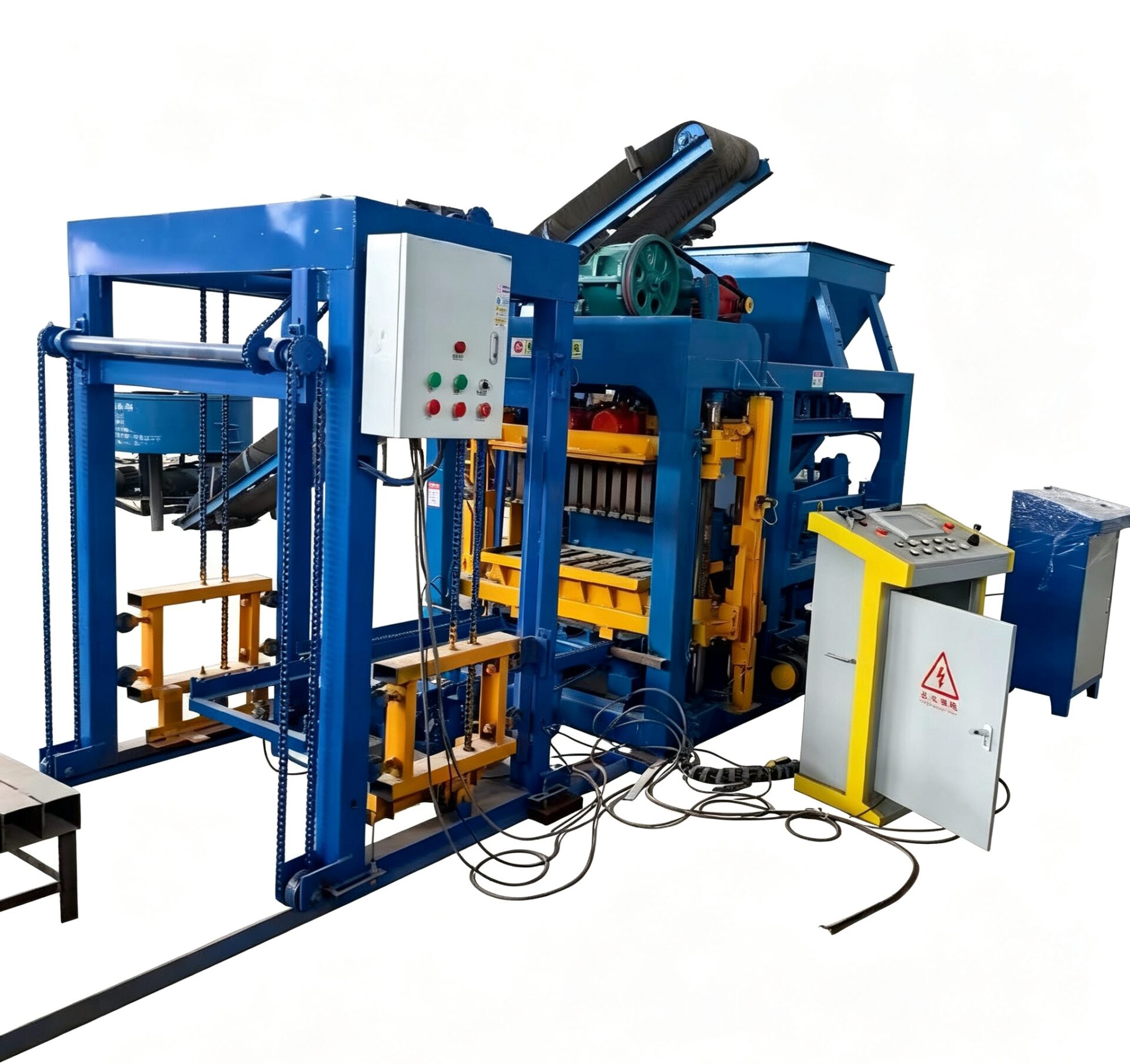

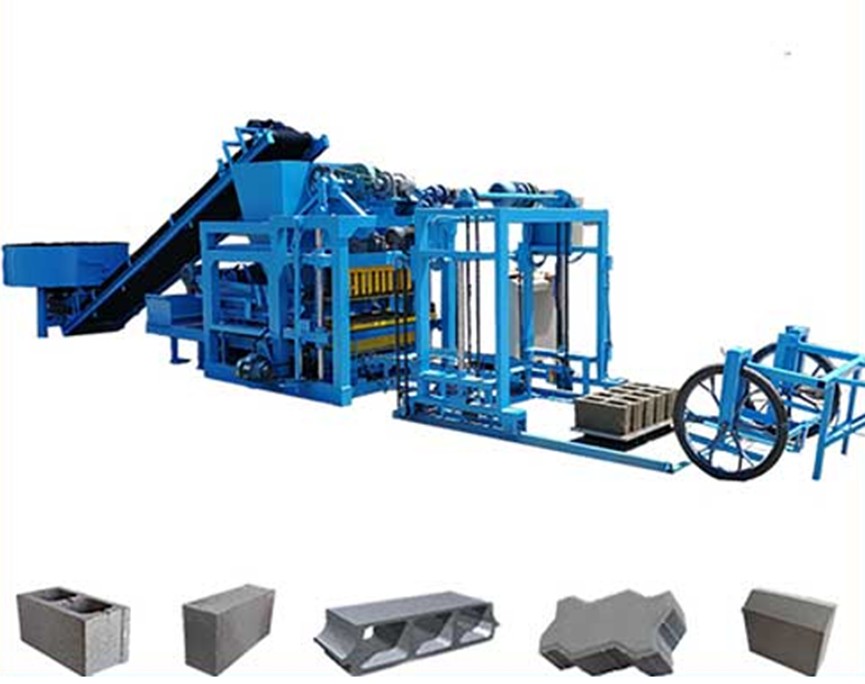

- Production Line:Includes the block machine, 6-meter conveyor, JQ500 mixer, and PLC control cabinet.
Advantages

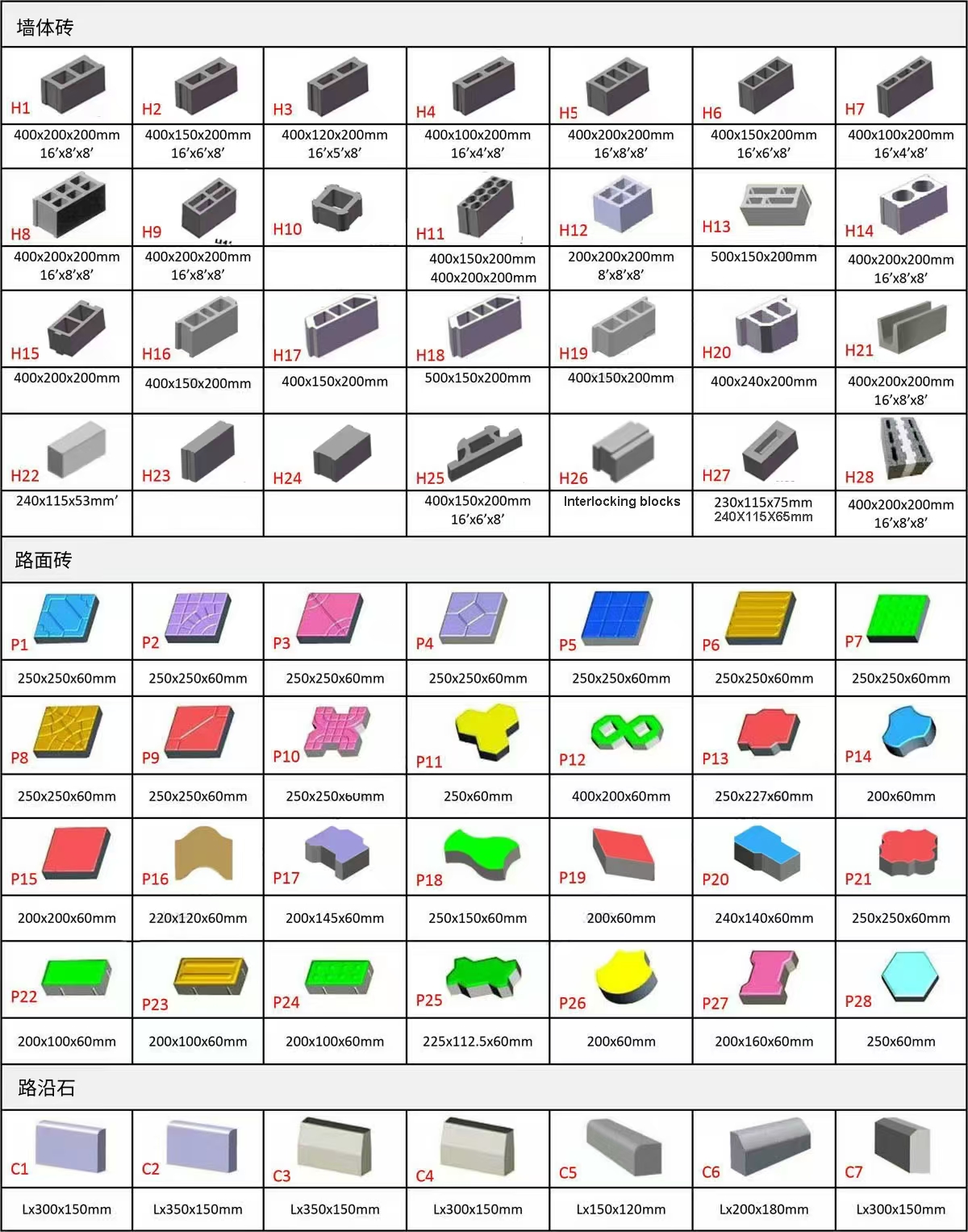

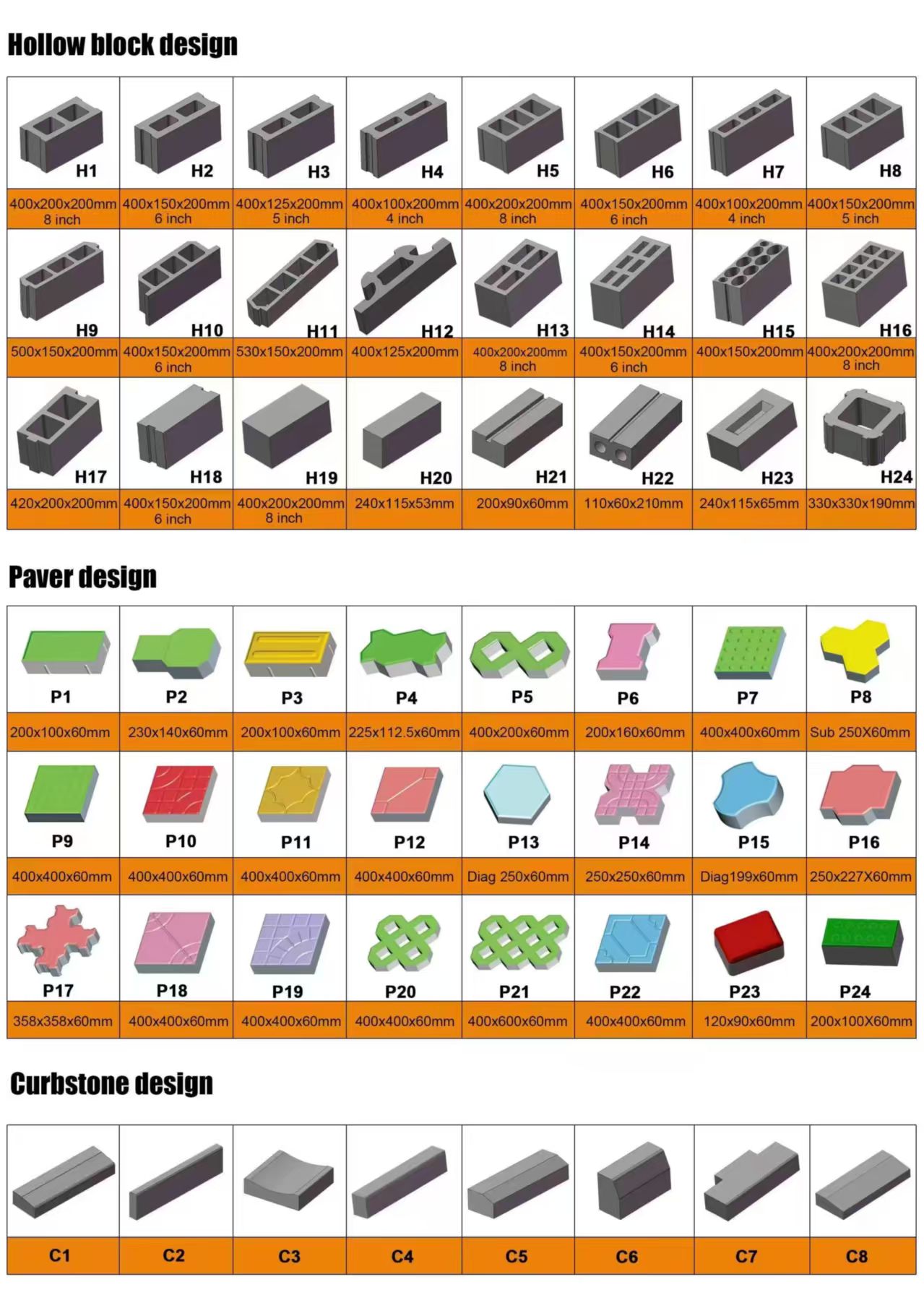

- Versatility:Capable of producing various block types by changing the molds.
- Efficiency:High-speed, consistent production.
- Strength:Uses superior vibration to create high-strength products.
Operational Requirements
- Pallets:Uses 850 x 550 x 25 mm pallets.
- Raw Materials:Cement, sand, aggregate, fly ash, gravel.
- Site:Requires flat, concrete ground for the machine set.
- Human labor :the machine can be easily operated by 1-2 people only
| Main technical parameters | |
| Model | QT4-25 |
| Vibration frequency | 4500-5100 times/min |
| Vibrator power | Y132S1-2 N=6KW |
| Magnetic force | ～22KN |
| Molding cycle | 18-25 seconds |
| Oil pump | cb32 (approximately) Q=40ML/r p=10mpa |
| Oil pump motor | Y132S2-4 N=5.5KW |
| Top oil cylinder | 80×300 rod diameter 40 |
| Side cylinder | 63×250 rod diameter 32 |
| Excitation force | 22KN |
| Installed capacity | 25.7kw |
| Total weight | 4000KG |
| External dimensions | 4000×1500×2200mm |
| Working voltage | 380V 50HZ 3PHASE |
| Machine and molds packing | About 19CBM ; 4500KGS |
| Palette packing | About 3CBM ; 575KGS |
| Packing method | Machine + molds loaded into a 20GP container |
|
After-sales service |
1.Year warranty for the full set machine
2.Provide machine installation video 3.24h/7 online technical support whenever needed via WhatsApp or Wechat. |
| Human labor requirement | The machine can be easily operated by 1-2 people only. |
