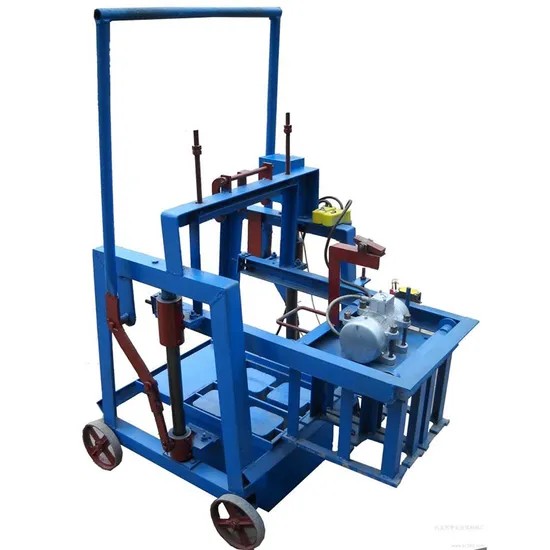

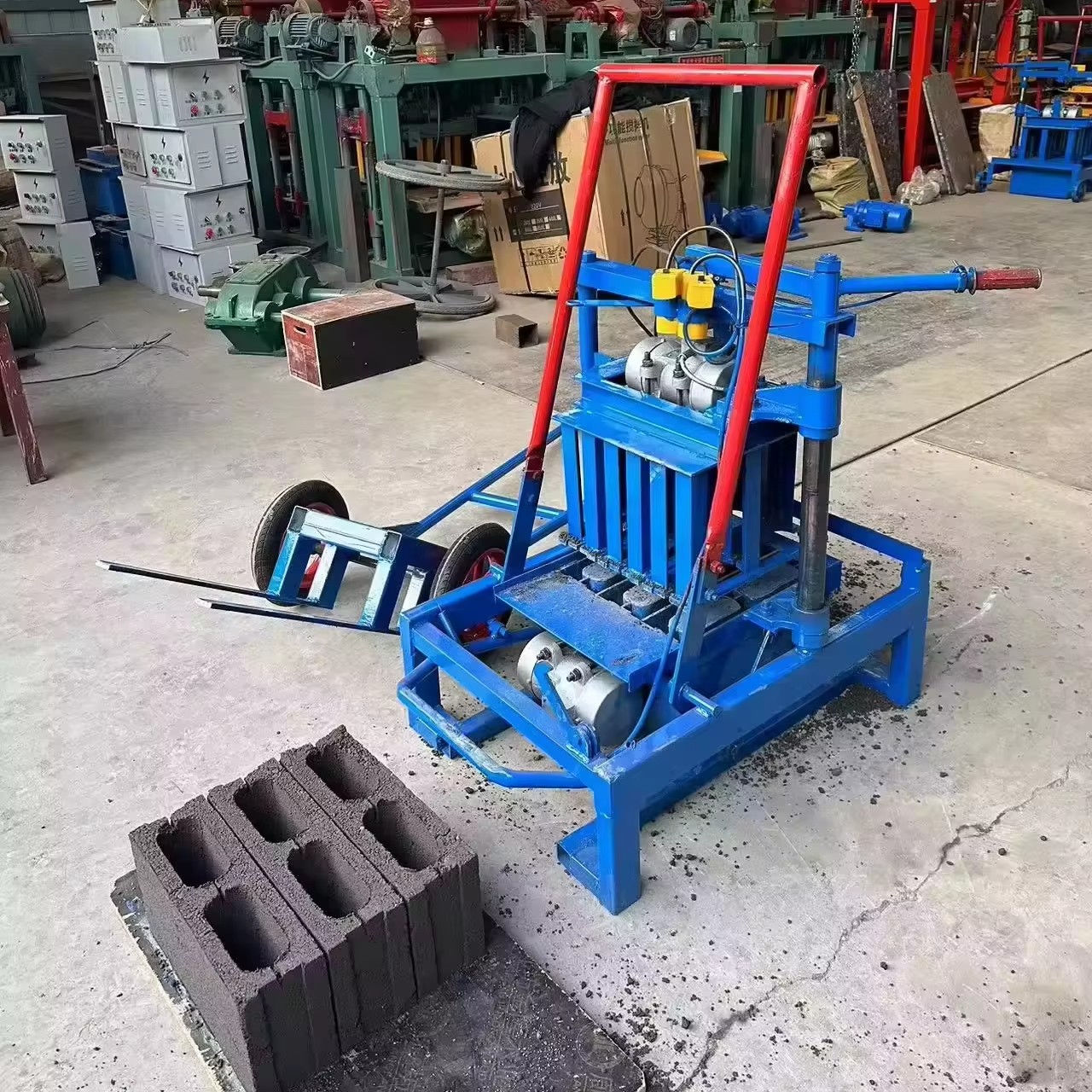

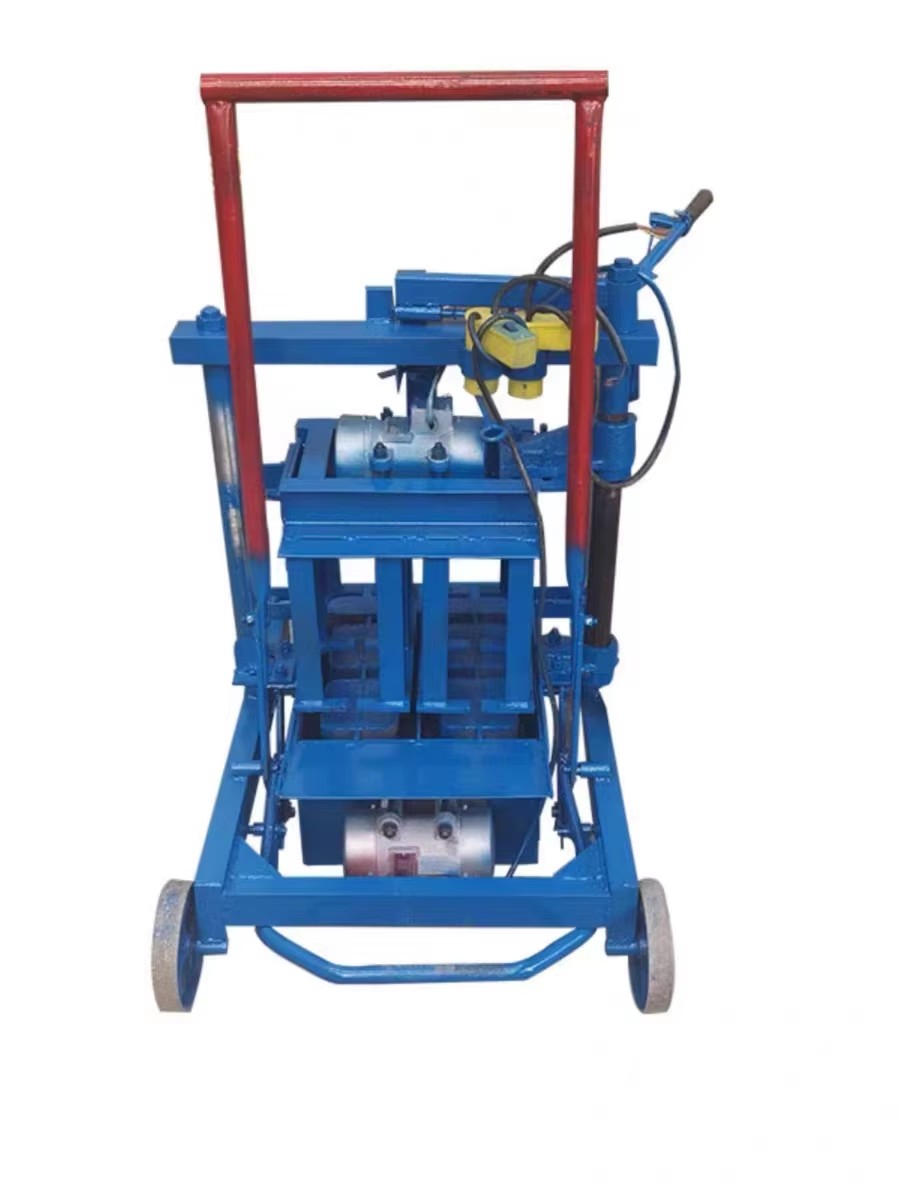

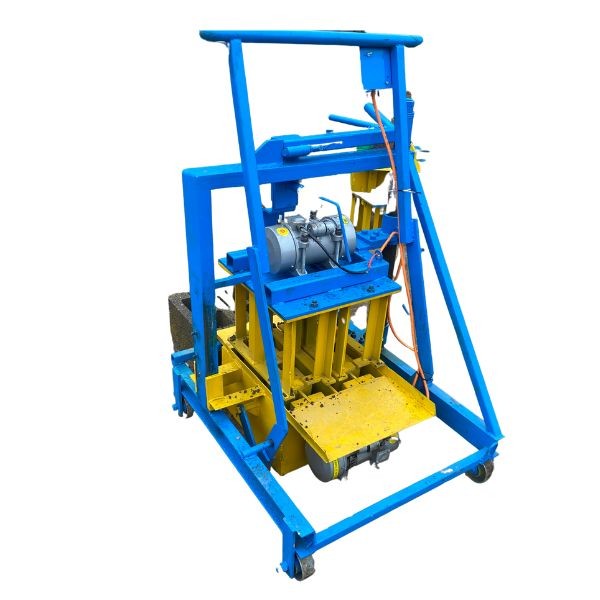

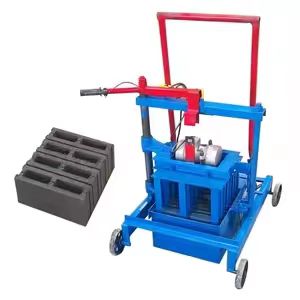

QM2-45 Mobile Block making machine
The QM2-45 is a small-scale, manual or semi-automatic block-making machine designed for startups and home building businesses. It is widely popular in African markets due to its affordability and “egg-laying” design, which allows it to lay blocks directly on the ground without the need for pallets.
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
New Products
Product Details
Key Features & Capabilities

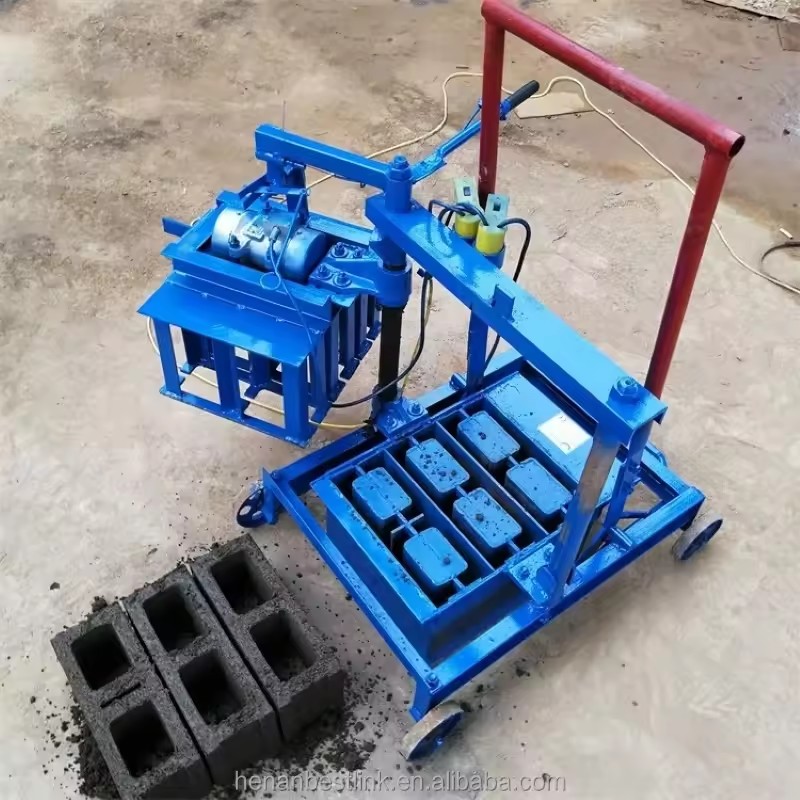

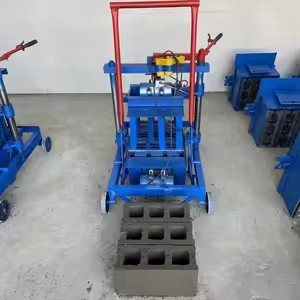

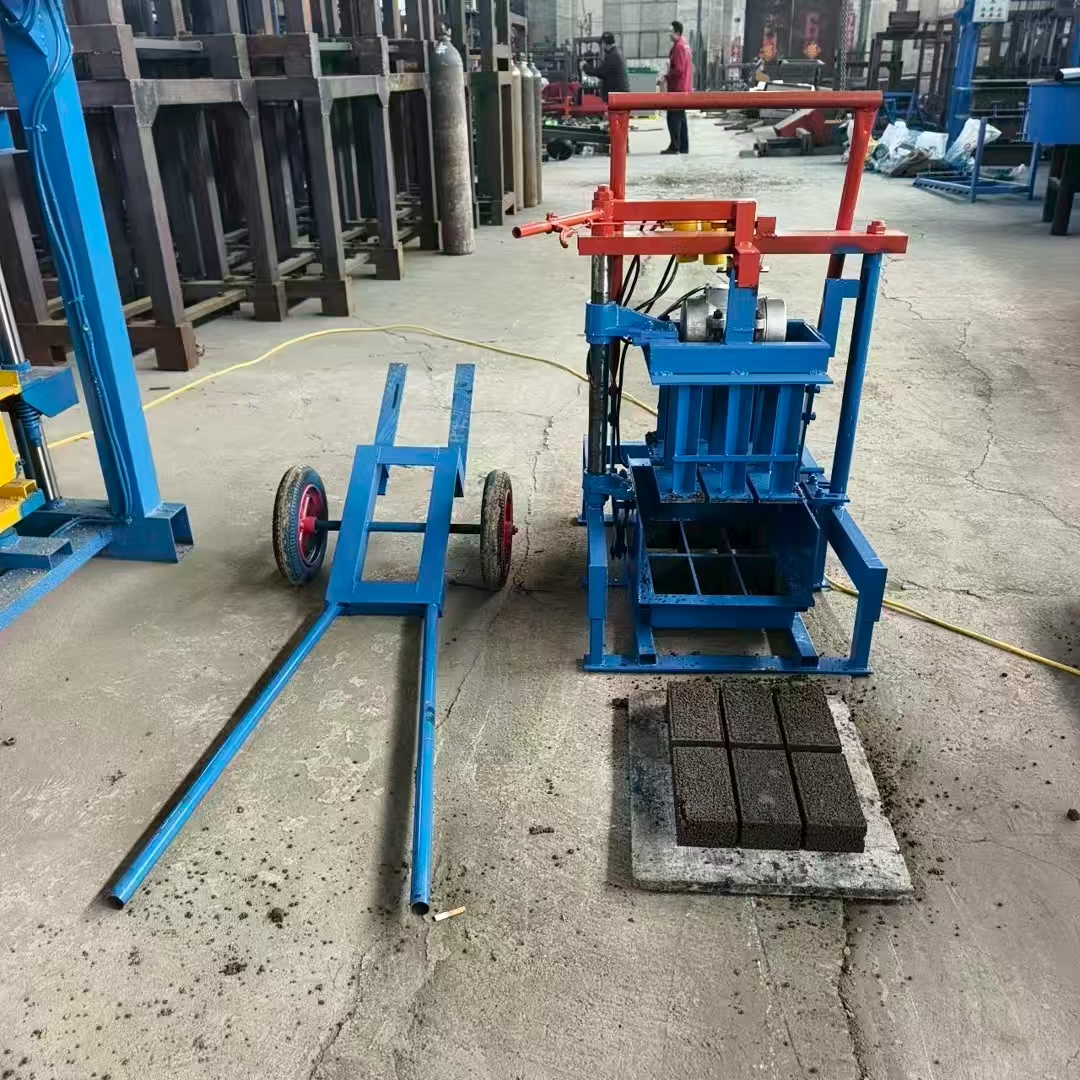

- Movable “Egg-Laying” Design: The machine moves as it works, leaving finished blocks on a flat floor. This eliminates the cost and labor of purchasing and handling wooden or plastic pallets.

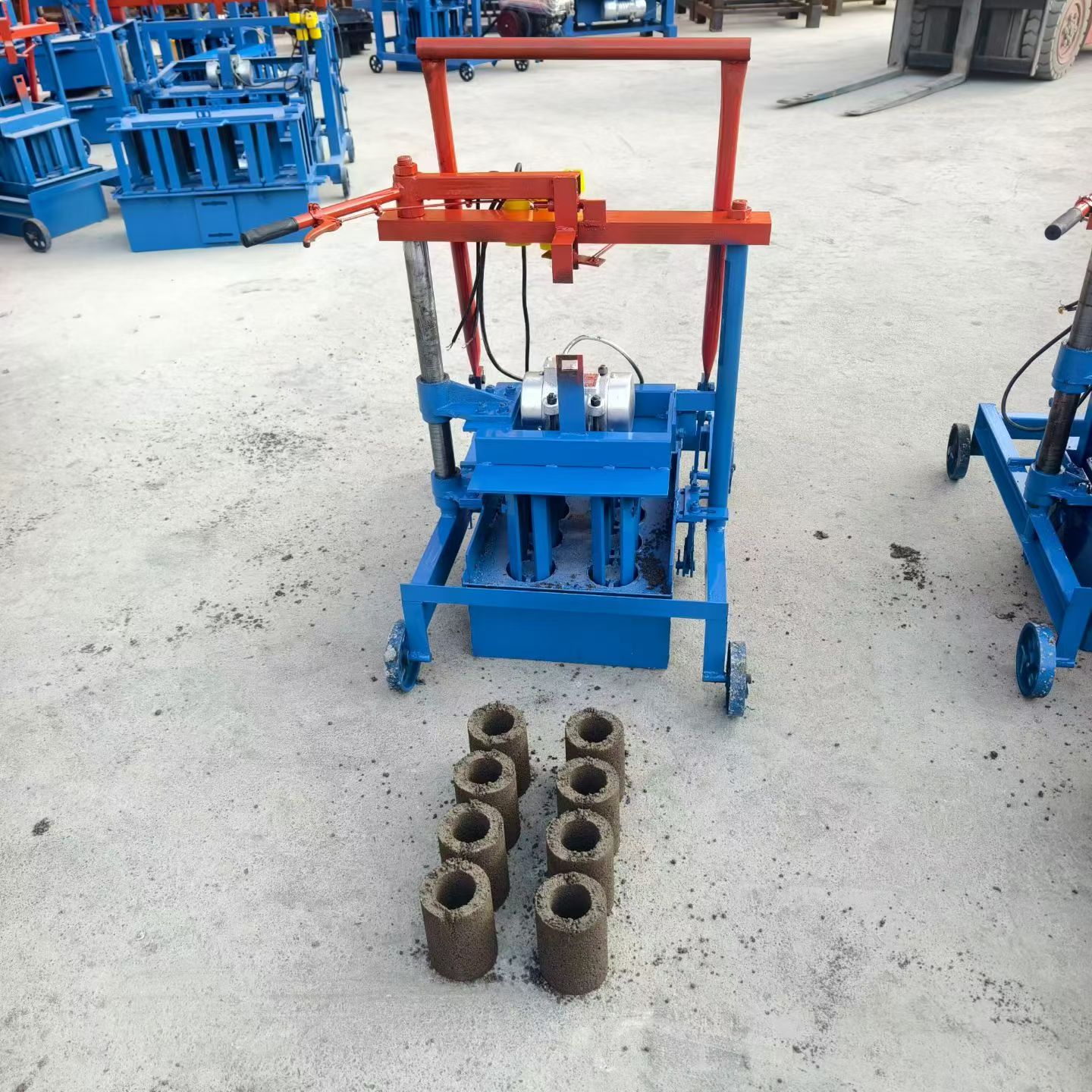

- High Versatility: By changing molds, the QM2-45 can produce various types of masonry, including:

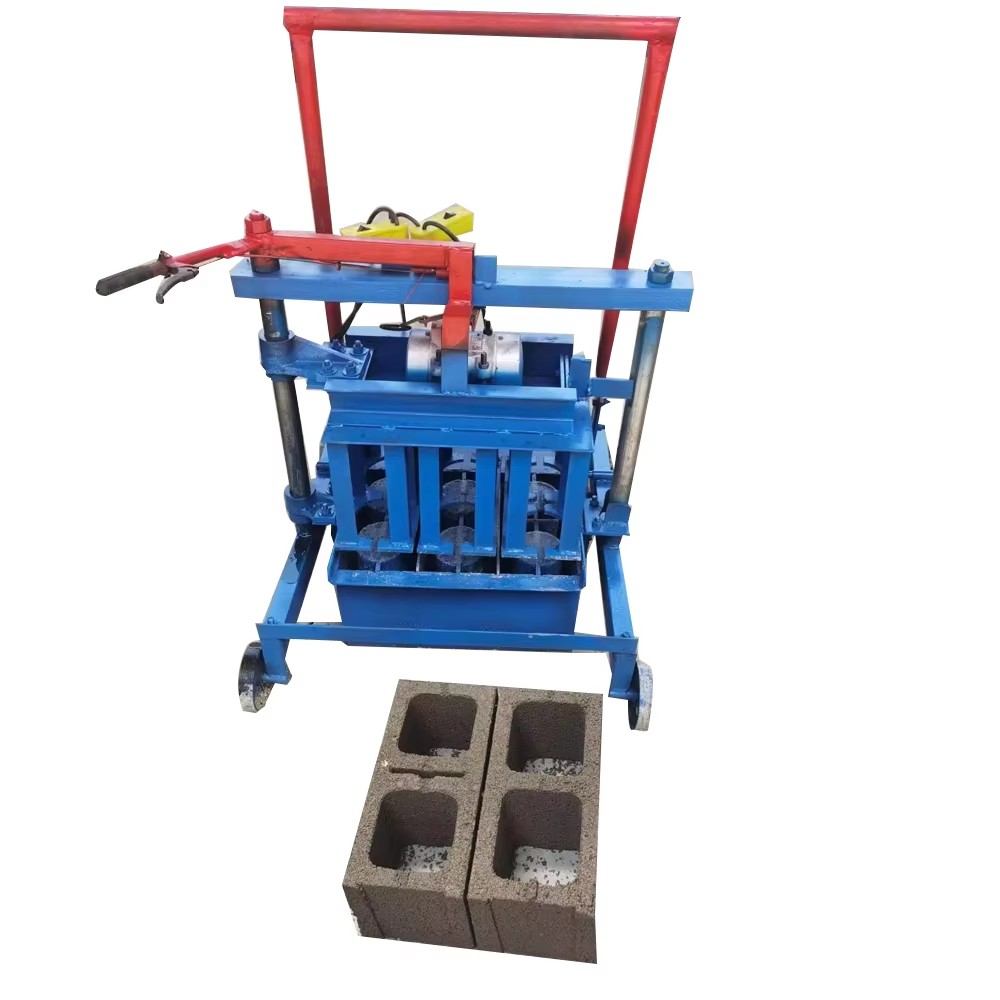

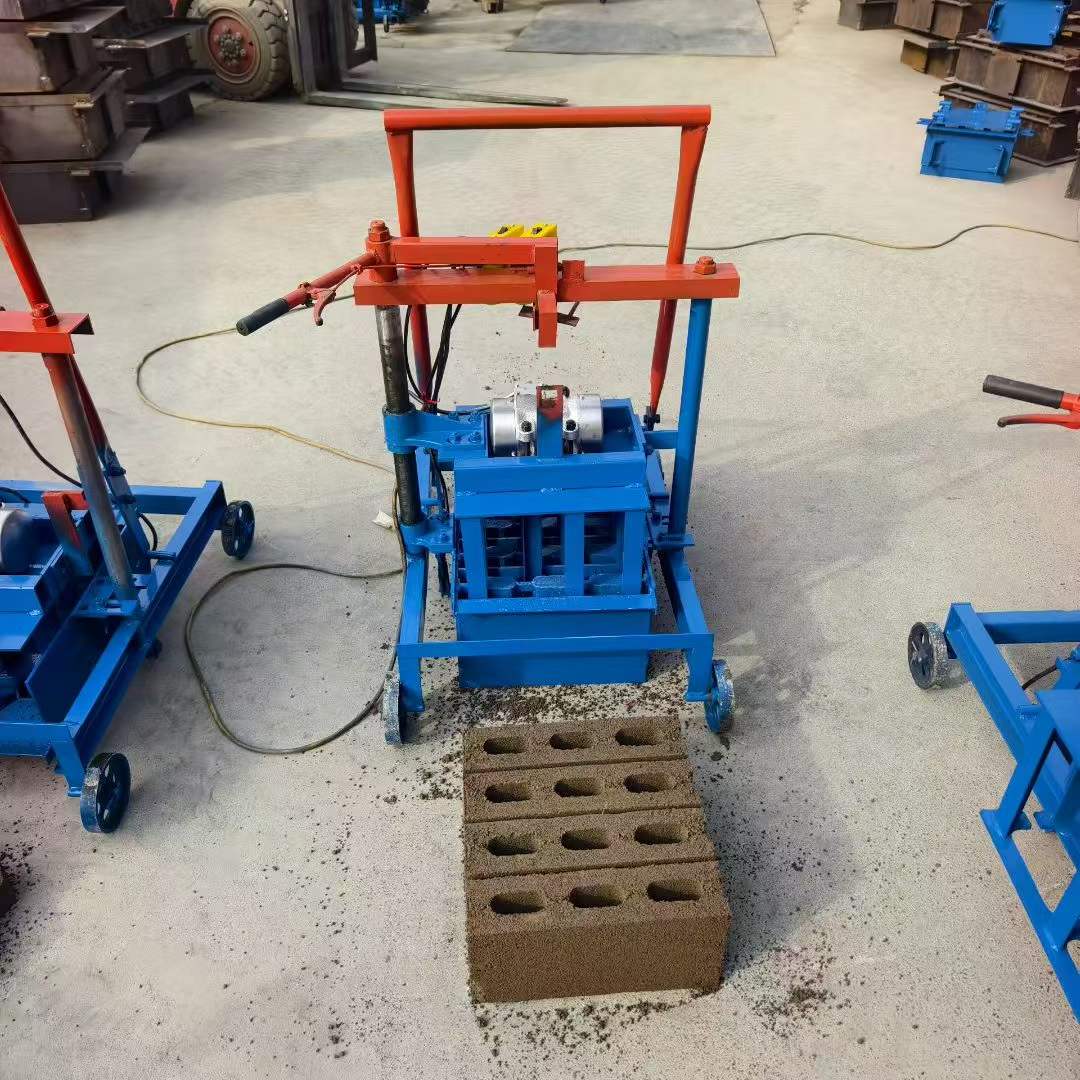

- Hollow blocks(e.g., 400x200x200)
- Solid bricks.

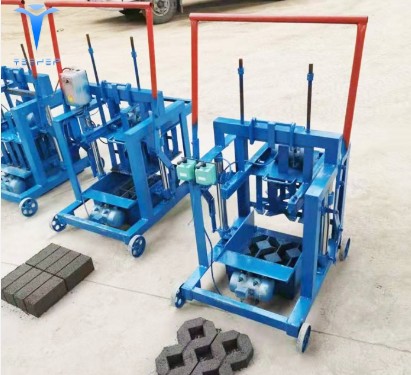

- Paving blocks
- Production Capacity: Depending on the operator and block size, it can produce between 960 and 2,000 blocks per 8-hour shift.
- Raw Materials: It processes a wide range of industrial waste and natural materials, including sand, stone dust, fly ash, coal slag, and cement.
| Technical Specifications | |
| Block machine dimensions (mm) | 1000x750x1250mm |
| Packaging dimensions (mm) | 1000x800x1050mm ; 0.84CBM |
| Net weight | 180KG |
| Packaging weight | 200KG |
| Vibration motor power | 0.55KWx2 |
| Total machine power | 1.1KW |
| Molding cycle | 45 seconds |
| Construction | Made of \(Q235\) thick steel with a high-quality reducer for longer lifespan |
|
Number of bricks produced (commonly used) |
Hollow bricks 400*200*200 (2 bricks/batch)
Hollow bricks 400*150*200 (3 bricks/batch) Hollow bricks 400*100*200 (4 bricks/batch) Standard bricks 240*115*50 (12 bricks/batch) |
| Machine output | 300-400 times/shift (depending on brick type and worker skill level) |
| Electrical voltage | 220V-380V |
| Use raw materials | It can be used with sand, gravel, cement, and can be supplemented with large amounts of fly ash, slag, steel slag, coal gangue, ceramsite, perlite, distiller’s grains, gypsum powder, feed, and other industrial materials. |
| Operator requirements | It can be easily operated by 1-2 people. |
| After-sales service | 1 Year warranty for the full set machine
Provide machine installation video 24h/7 online technical support whenever needed via WhatsApp or Wechat |
