High-Efficiency Concrete Well Ring Block Making Machine Wholesale Factory Price From China

A Well Ring Block Making Machine (also known as a concrete culvert pipe or well lining machine) is specialized industrial equipment designed to manufacture heavy-duty, large-diameter circular concrete rings. These structured components are heavily relied upon in municipal infrastructure, deep well sinking, drainage networks, and water conservation projects.

Different Types

• Static Hydraulic Type: Operates in a fixed production yard utilizing a steel pallet system. It delivers high dimensional accuracy and is ideal for premium, large-diameter rings.

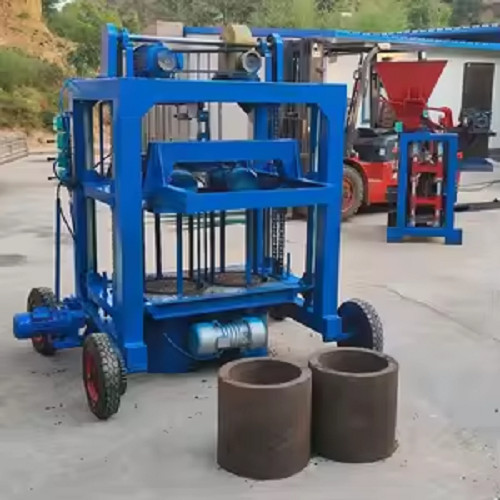

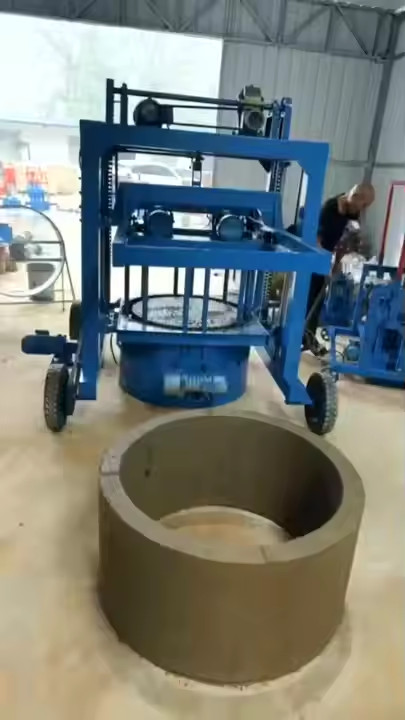

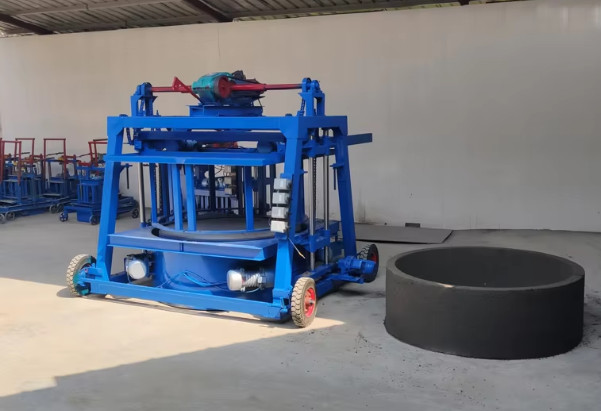

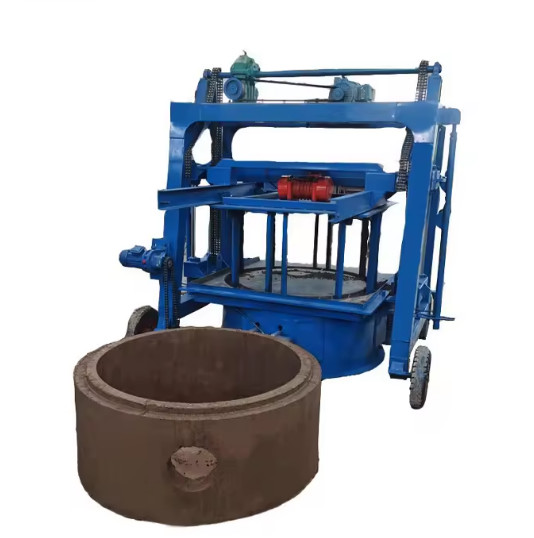

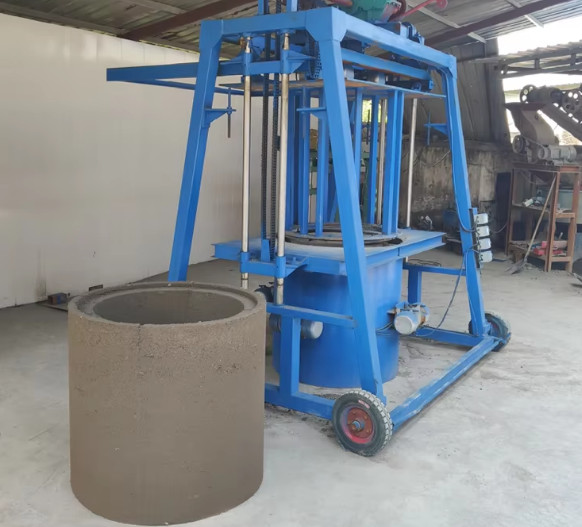

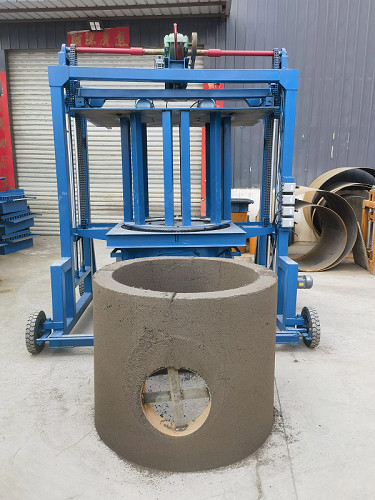

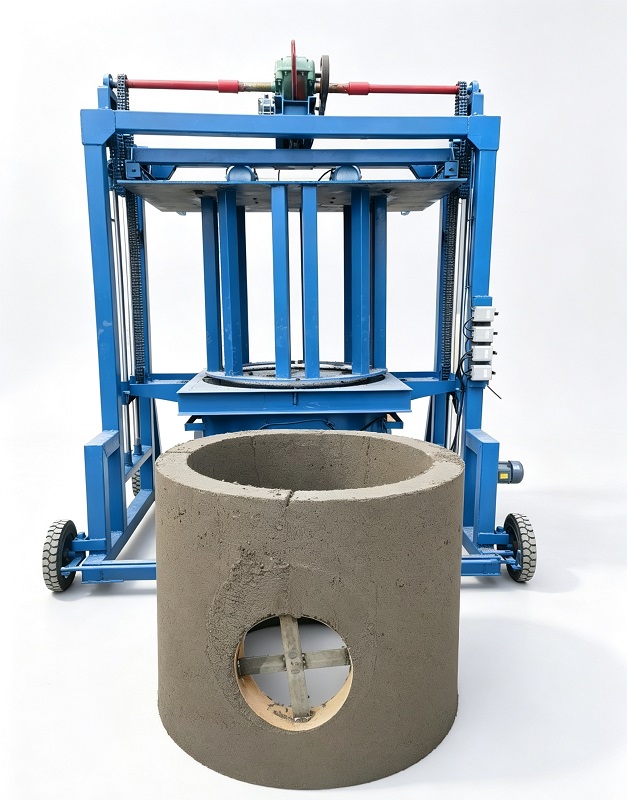

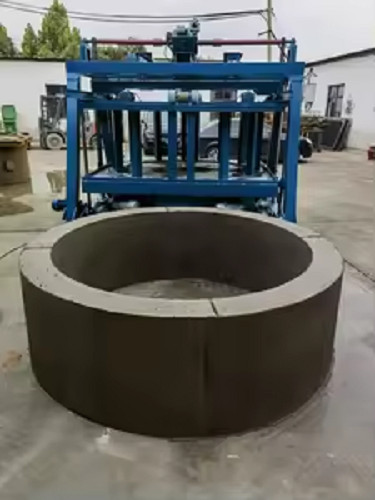

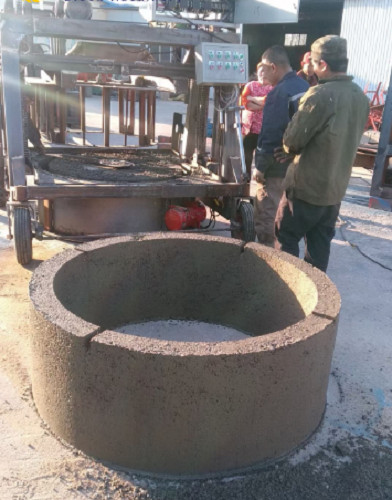

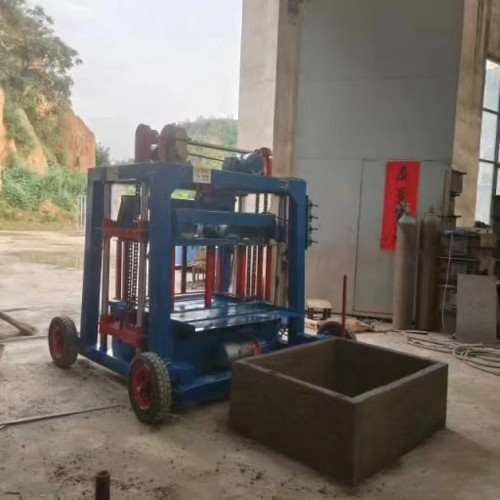

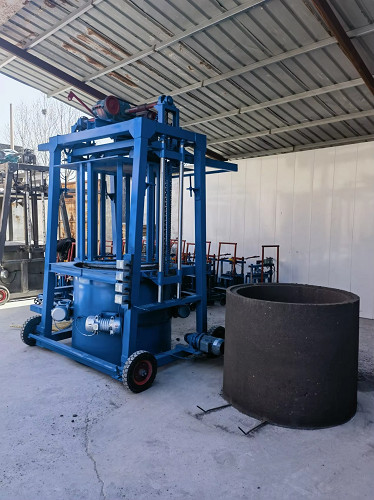

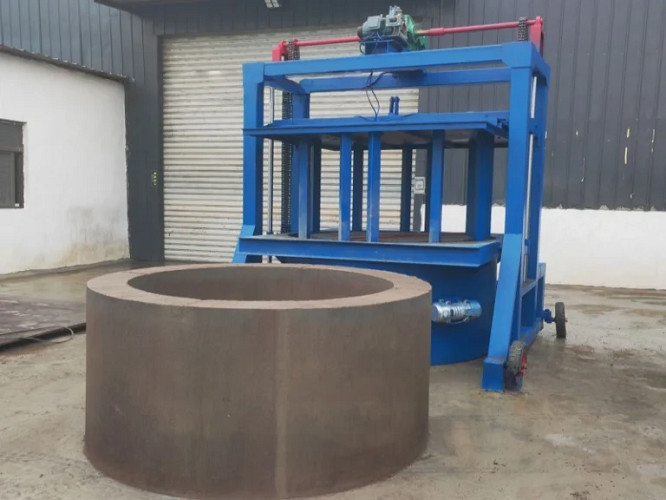

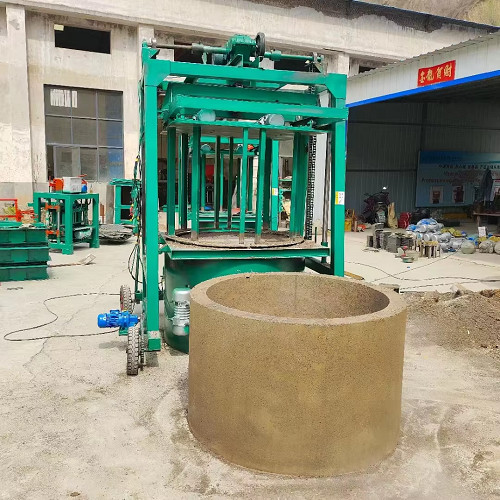

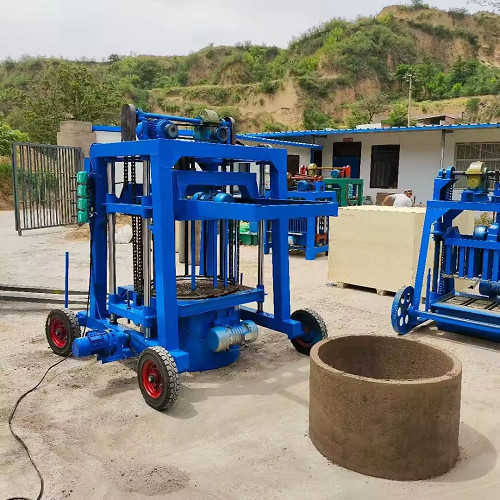

• Mobile “Egg-Laying” Type: Moves on wheels across a flat concrete floor, casting the rings directly onto the ground and leaving them behind to cure as the machine advances. It eliminates the need for expensive pallets.
• Vertical Vibration Casting Type: Uses high-frequency, low-amplitude vertical vibration combined with hydraulic pressing to achieve immediate demolding, optimizing high-volume production speeds.

Core Specifications

The engineering capabilities of these machines scale based on production needs:

Key Advantages

• High Structural Density: Employs a dual-directional compaction design (simultaneous top hydraulic pressure and bottom table vibration) to completely eliminate internal air pockets. This process creates dense walls that easily pass stringent water-permeability testing.
• Instant Demolding Efficiency: The mechanical and hydraulic design allows the outer and inner molds to lift immediately after compression. This enables a single mold set to produce dozens of rings daily without deformation.
• Interchangeable Mold Versatility: Operators can switch out the mold configurations to produce distinct joints, such as flat-joint, socket-joint, or tongue-and-groove styles, using a single machine frame.
• Automated Labour Savings: Features integrated digital batching, mixing, feeding, and pressing systems that reduce required floor oversight to just 2 to 3 technicians.

Applicable Raw Materials

These systems are designed to process highly economical, locally sourced aggregates:

• Binding Agents: Standard industrial Portland cement (Grade 42.5 or higher).
• Aggregates: Coarse sand, crushed river stone, gravel (typically under 15mm), and stone dust.
• Industrial Byproducts: Fly ash, slag, and mining tailings to drastically cut raw material expenses while maintaining structural integrity.

Application Fields

The finished well rings are vital across major civil and environmental engineering landscapes:

• Municipal Engineering: Construction of stormwater drain networks, urban sewage systems, and underground utility inspection manholes.
• Agricultural Water Conservation: Sinking deep agricultural drinking wells, irrigation water-storage shafts, and rural canal culverts.
• Civil Infrastructure: Foundation pile linings, roadside drainage channels, and soakaway pit construction.
