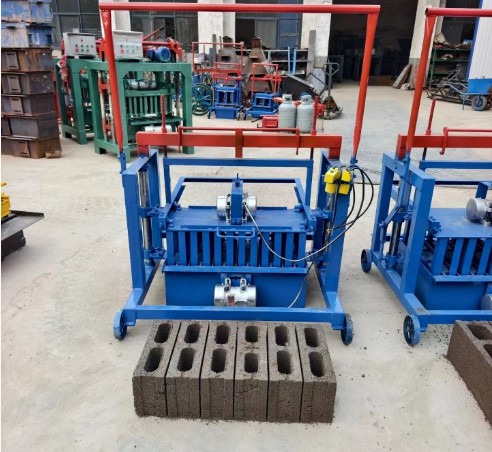

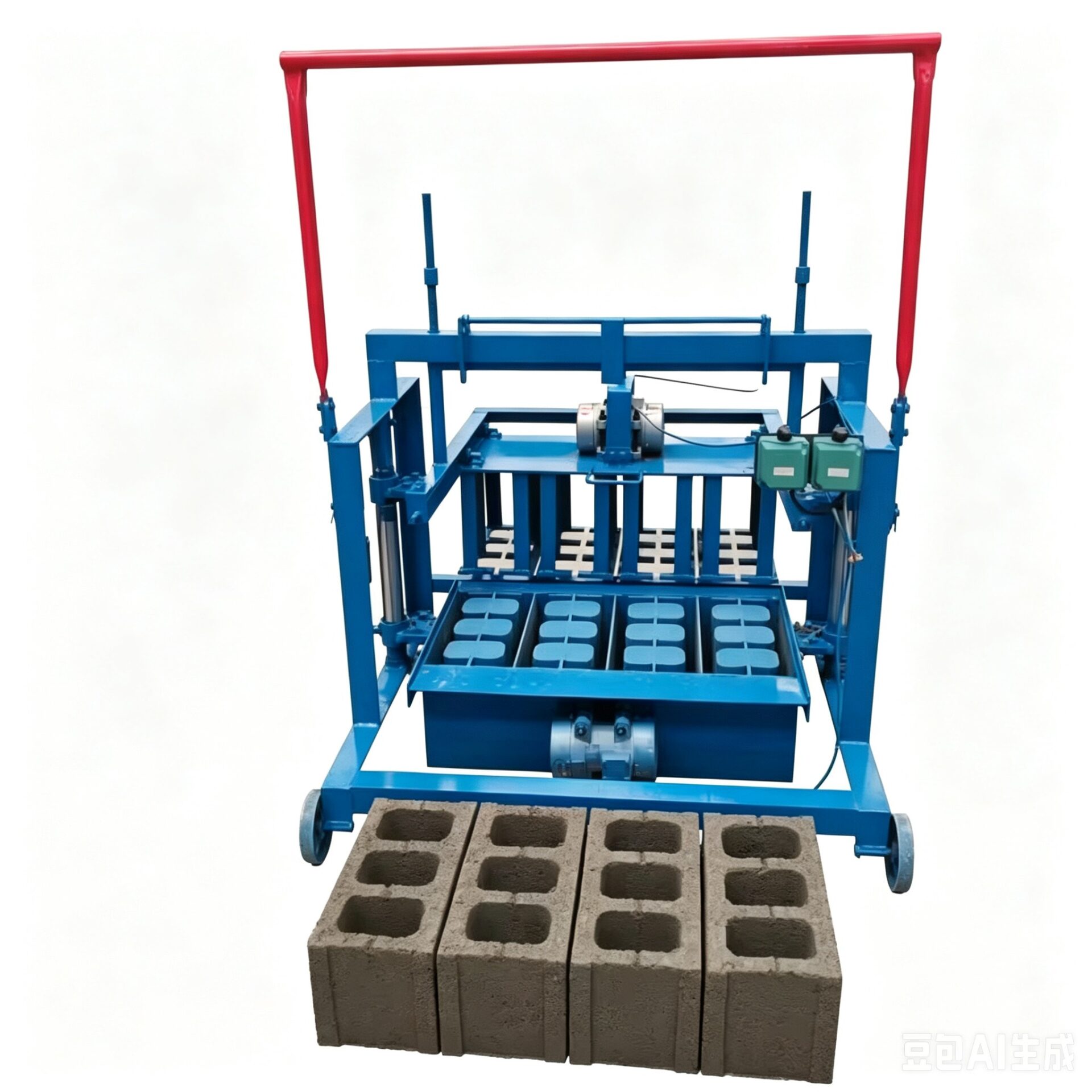

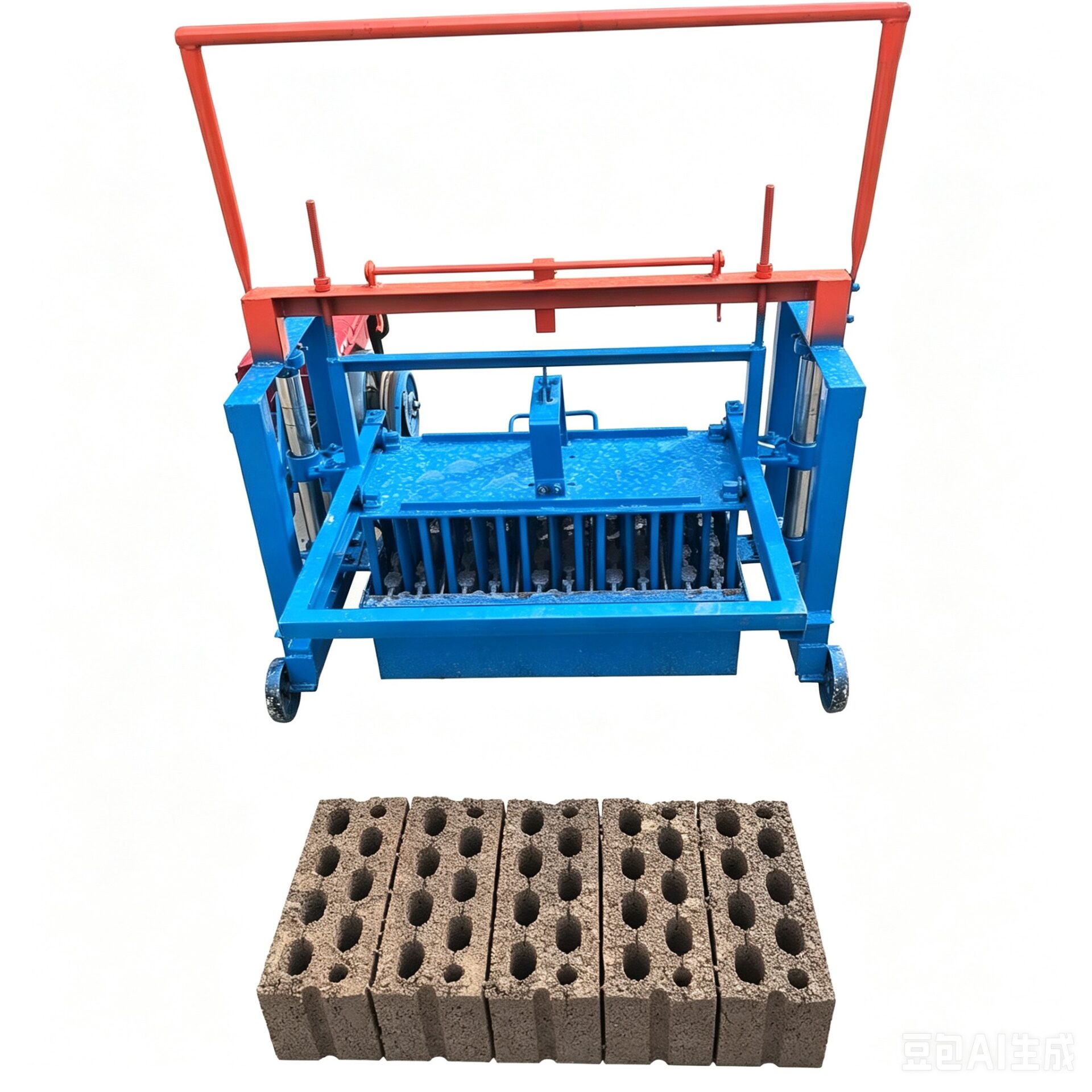

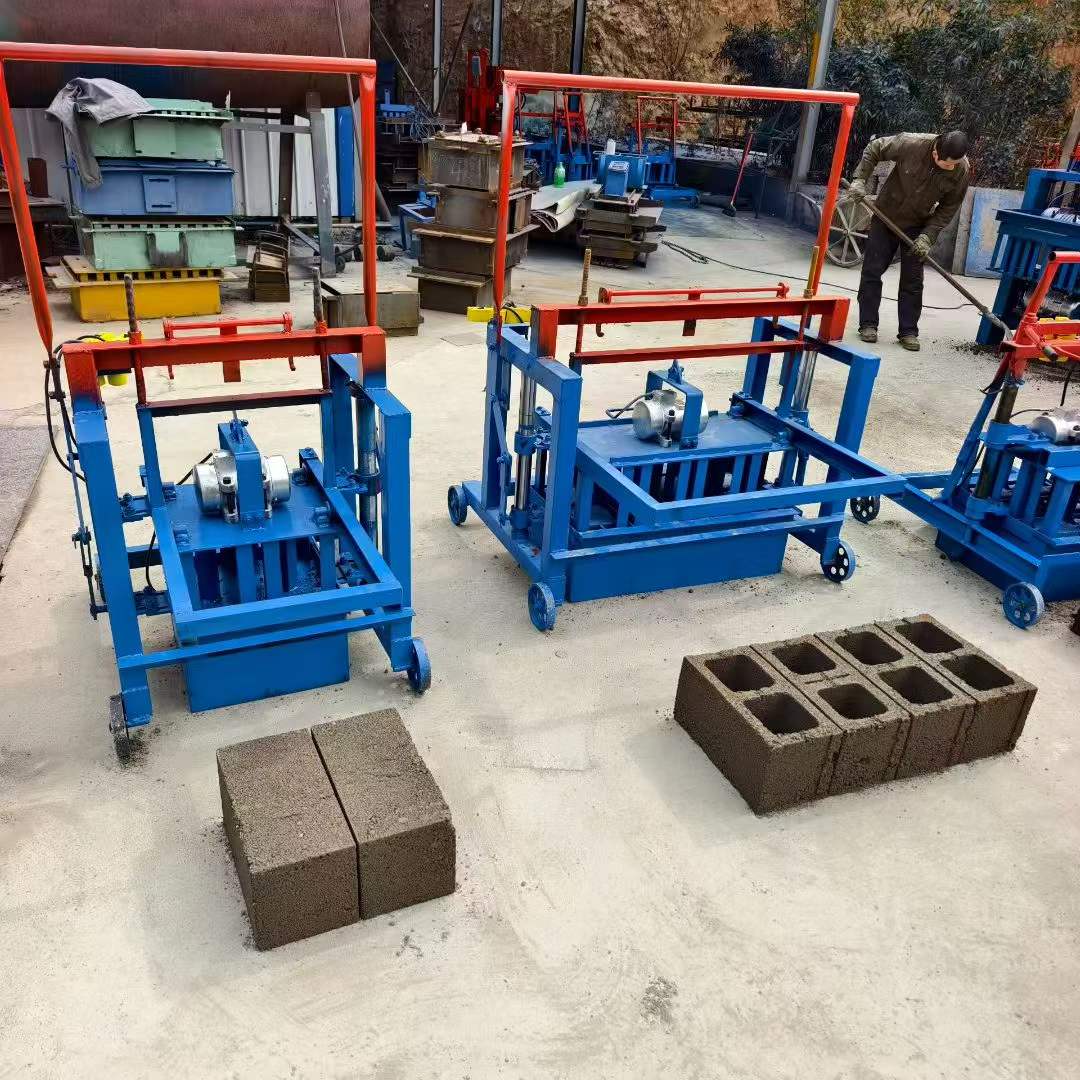

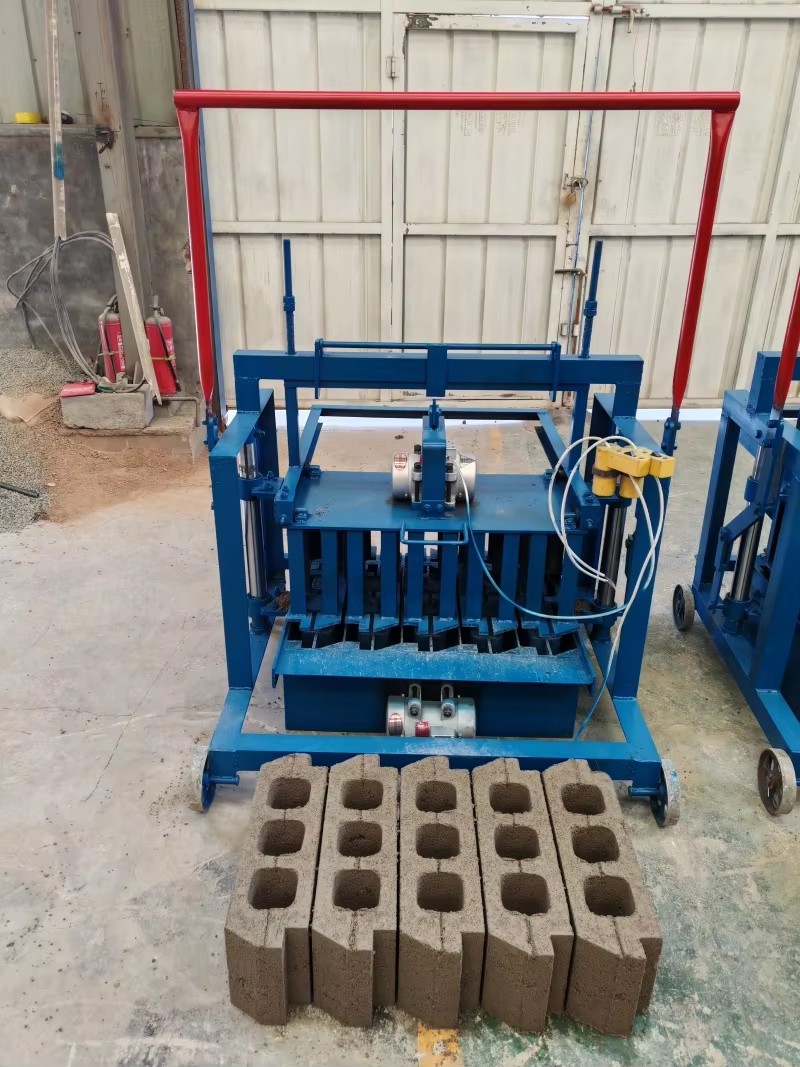

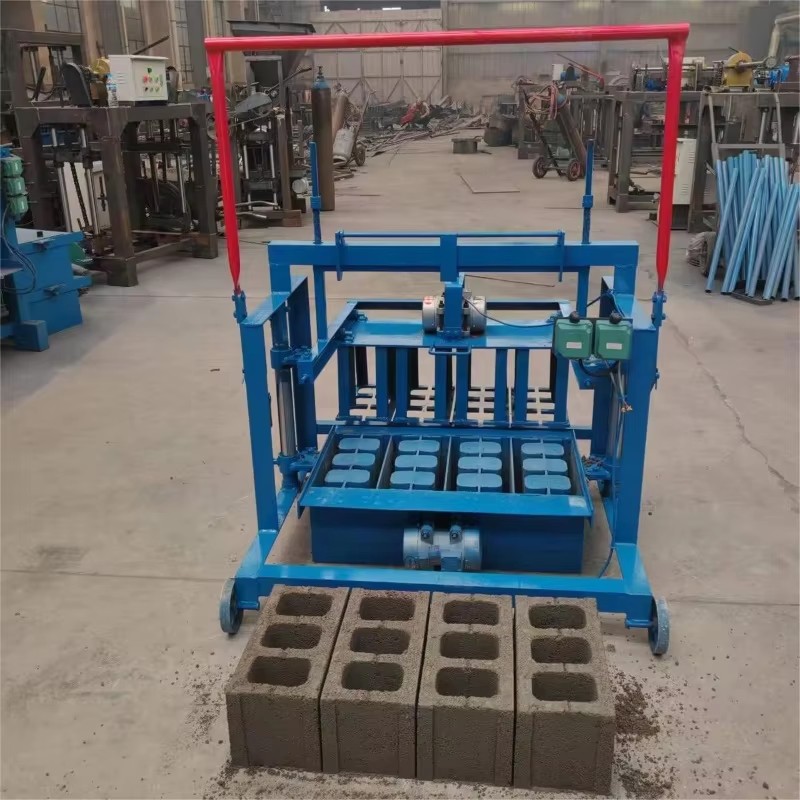

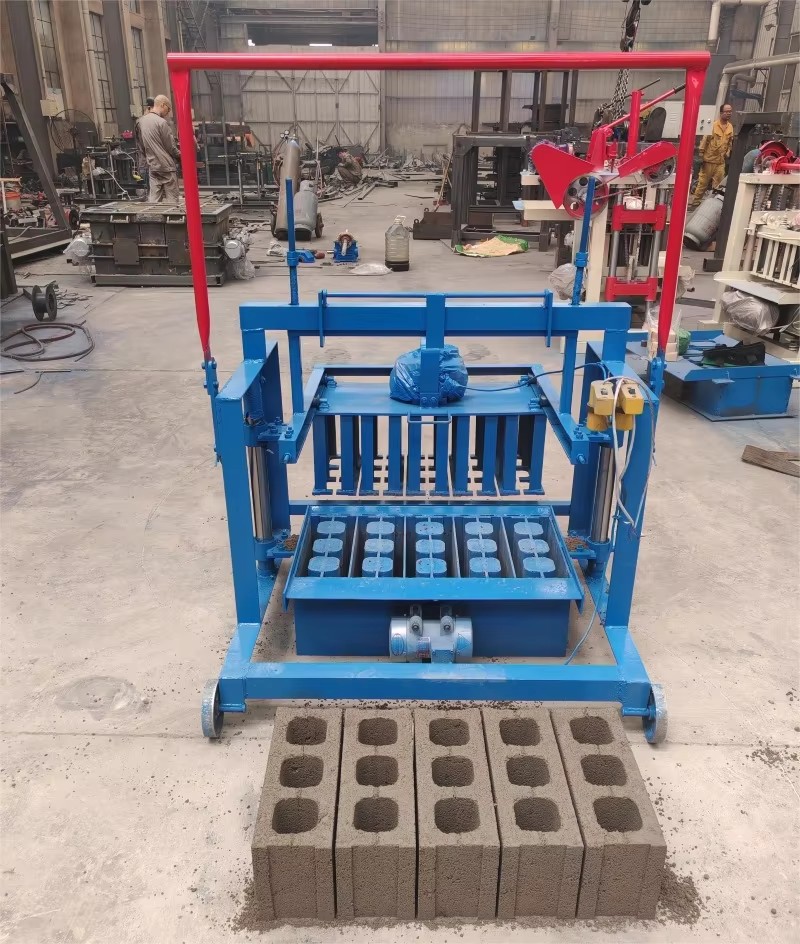

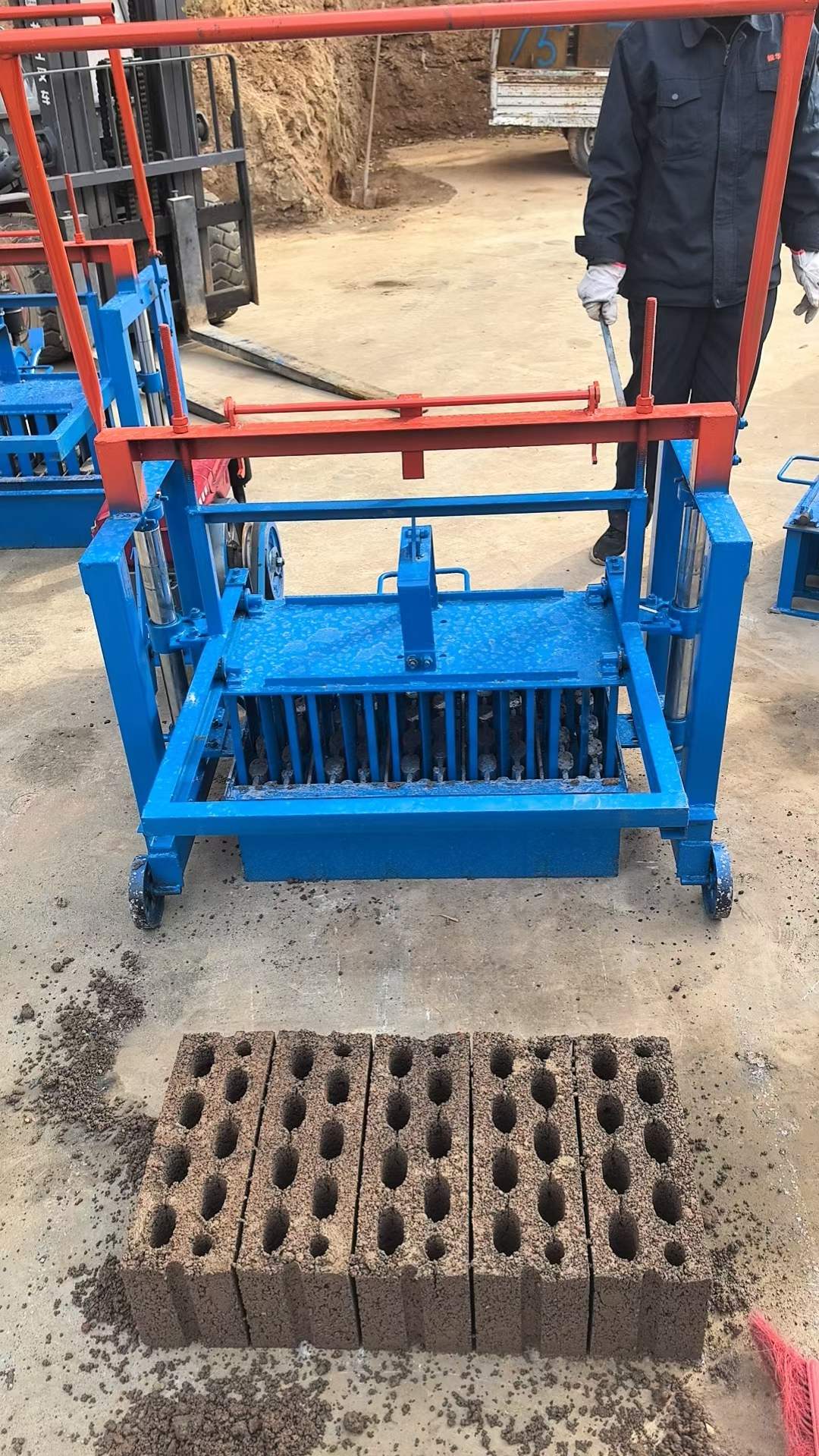

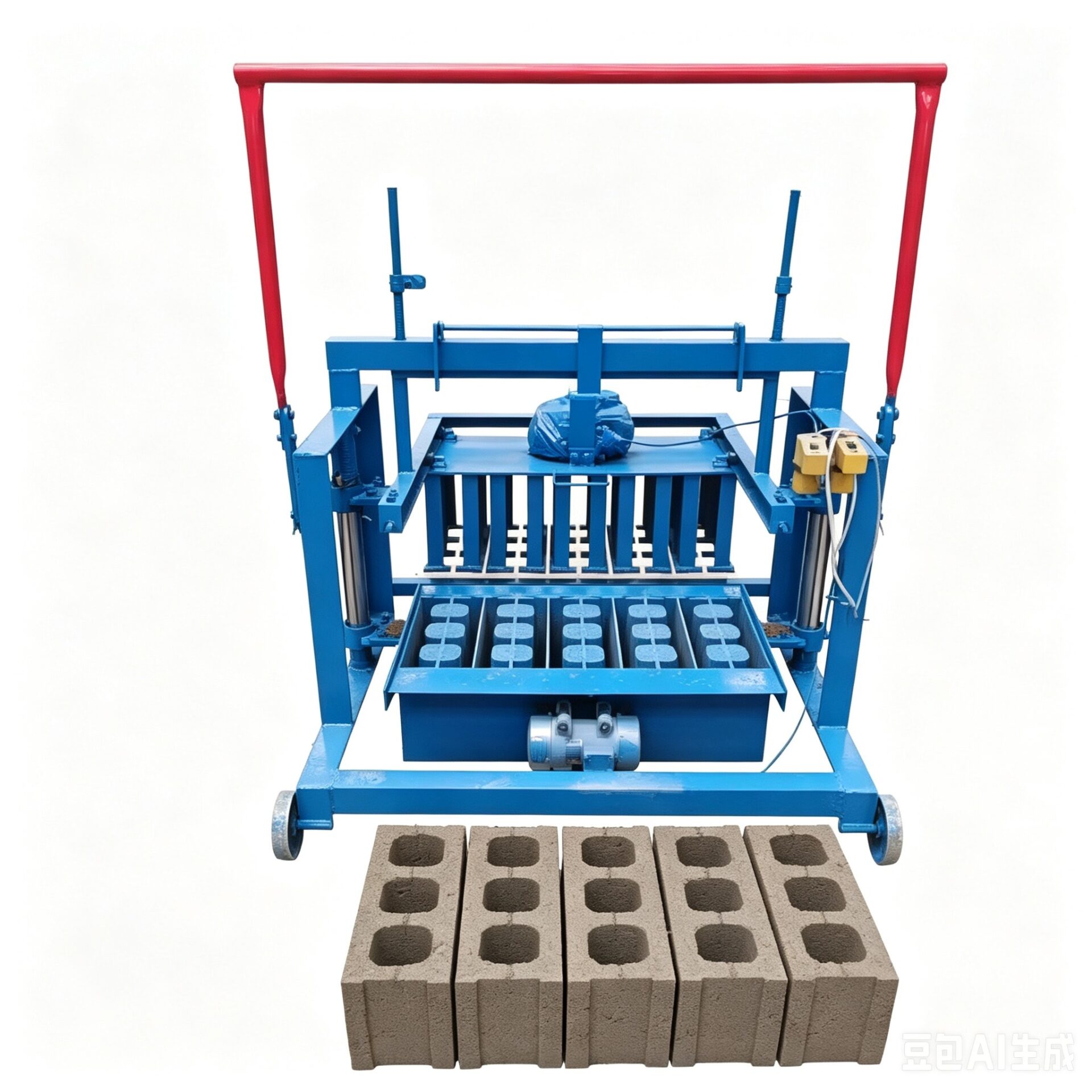

QM4-45 Mobile Block making machine

Core Specifications

• Production Method: Mobile vibration molding with mechanical demolding.
• Power Source: Available with either a Three-Phase Electric Motor(usually 13.45 Kw) or a Diesel Engine (typically 12HP–15HP) for areas with unreliable power.
• Weight: Approximately 1,200 kg to 1,500 kg.
• Cycle Time: roughly 45 secondsper mold.
• Labor Required: Usually operated by 2 workers.

Production Capacity (Per 8-Hour Shift)

The machine can produce various block types by changing the mold.

• Standard Hollow Blocks (400x200x200mm): 2,560 – 3,200 pieces.
• Smaller Hollow Blocks (400x150x200mm): Up to 4,000 pieces.
• Solid Bricks (240x115x53mm): Up to 13,000+ pieces.

Maintenance Essentials

To ensure a long machine lifespan, follow this basic schedule:

1. Daily: Clean the mold and hopper of any leftover cement dust; lubricate all moving joints and bearings.
2. Weekly: Check and tighten all bolts, as the intense vibration can loosen fasteners over time.
3. Engine Care: For diesel models, check oil and fuel levels daily; for electric models, ensure wiring is grounded and secure.

Materials Needed

A typical high-density block mixture includes:

• Cement: Portland Grade 42.5.
• Aggregates: Sand and crushed stone (10–12mm).
• Alternative Fillers: Fly ash, slag, or cinder (can reduce costs by up to 25%). [1]
