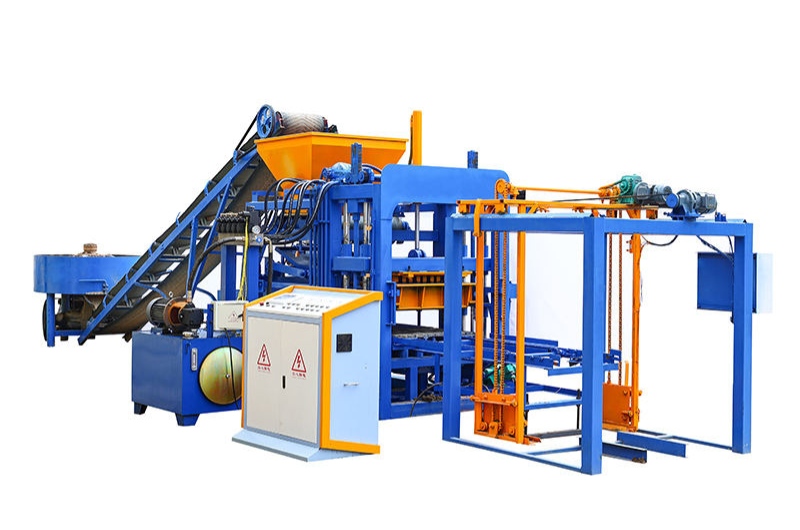

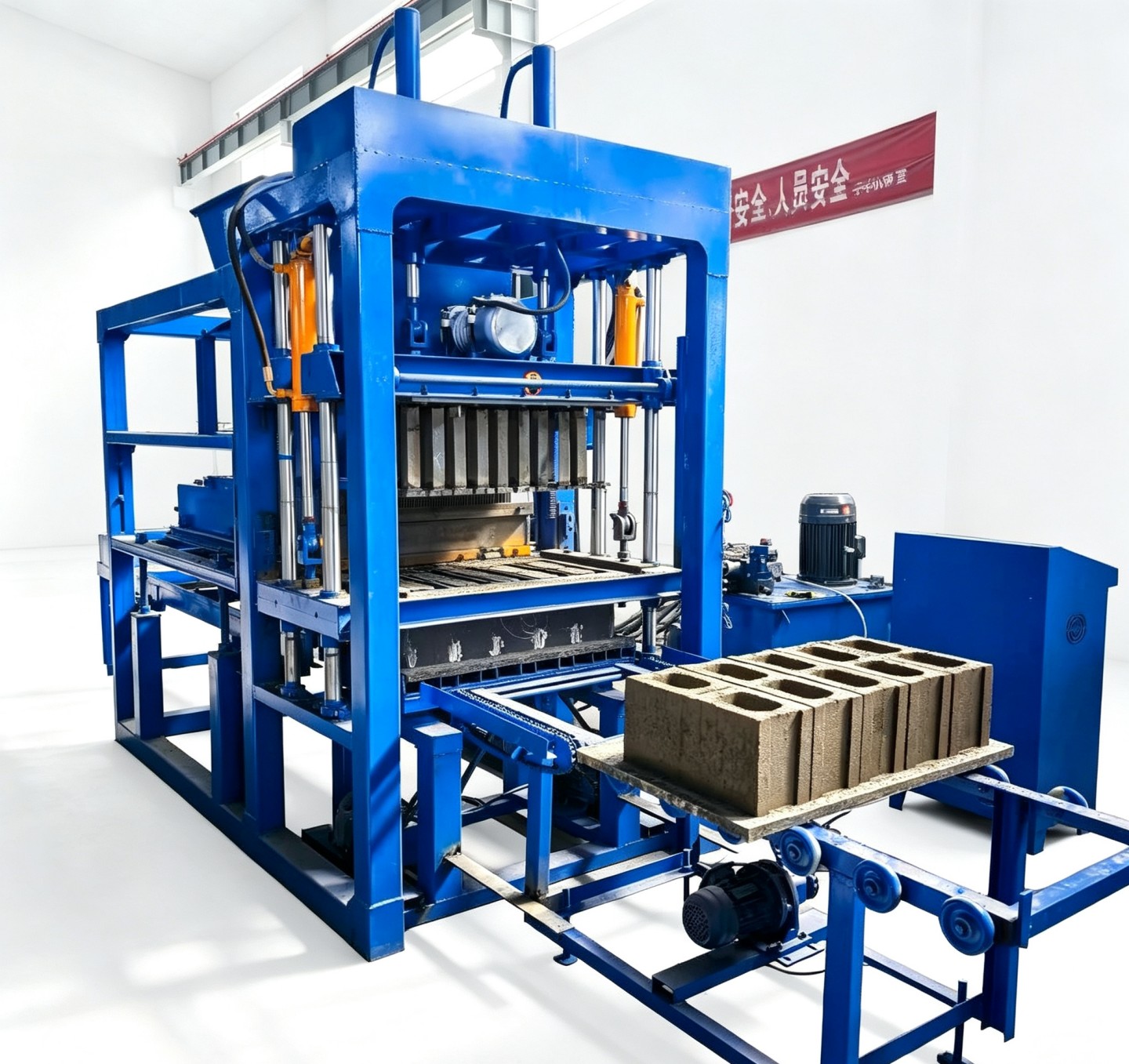

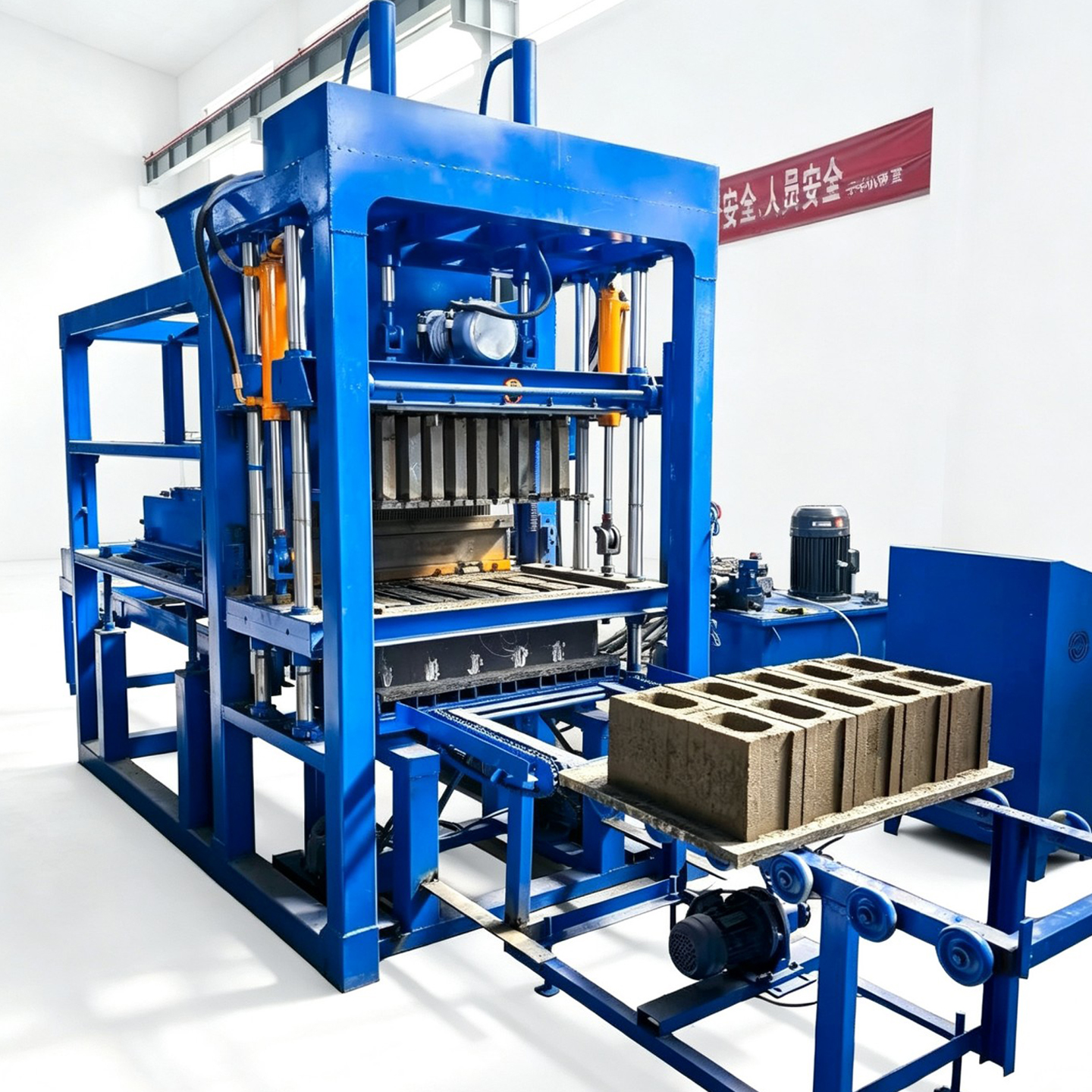

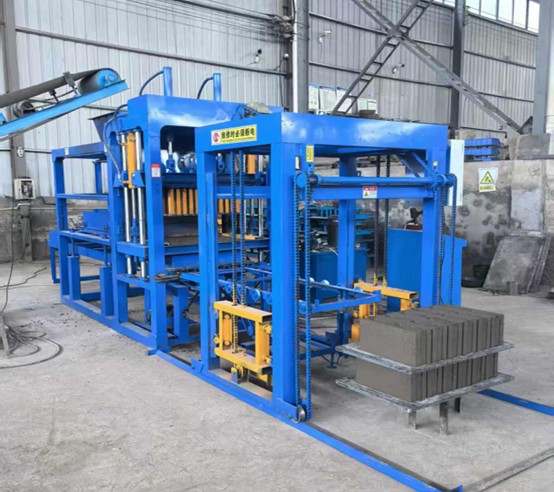

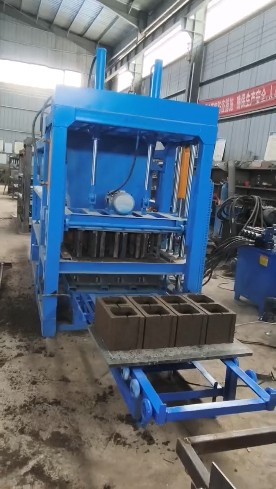

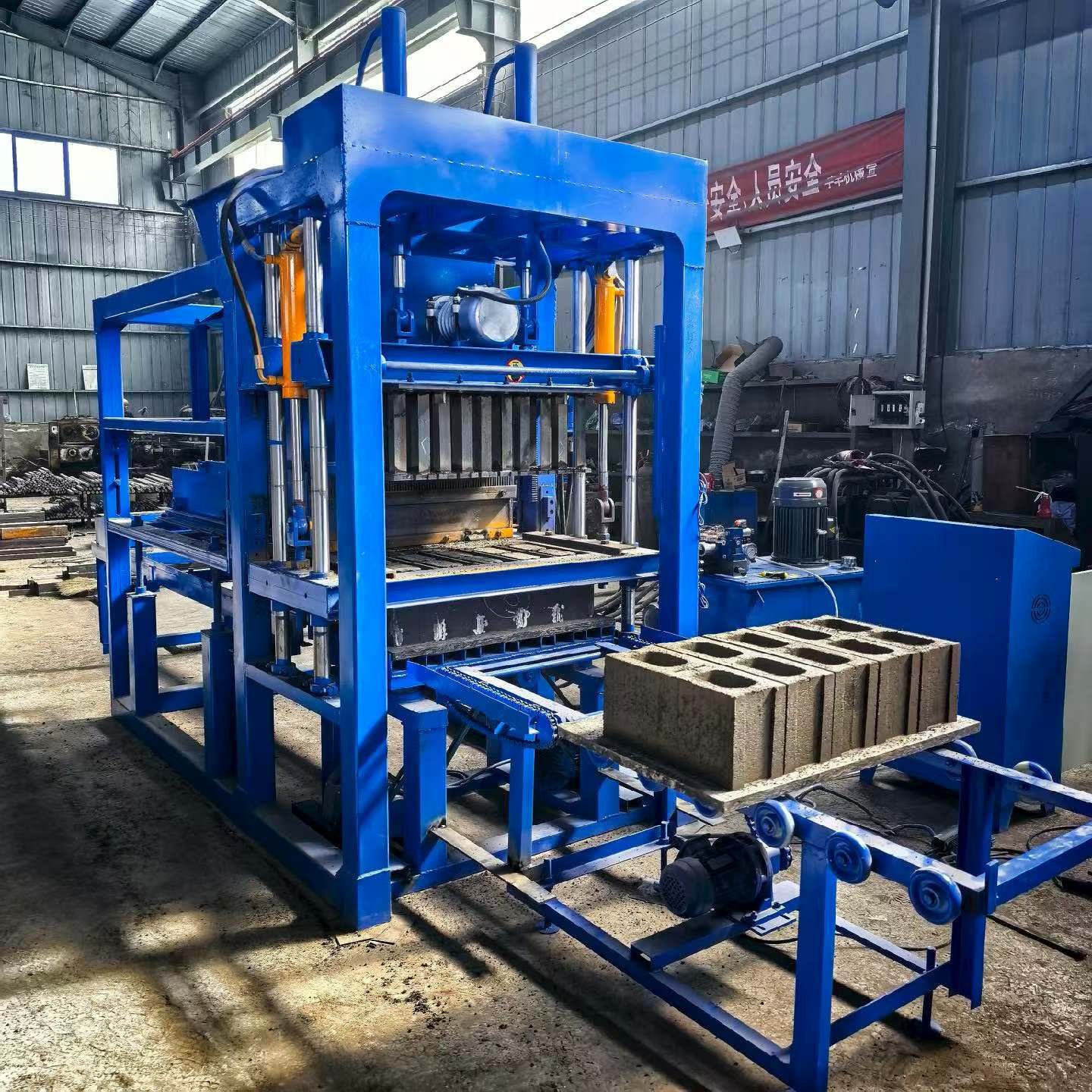

QT4-15 Fully automatic hydraulic block making machine
The QT4-15 is a versatile, fully automatic hydraulic block making machine designed for medium-to-large-scale construction projects. It uses a combination of high-pressure hydraulics and intense vibration to produce concrete products with high density and strength.
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
New Products
Product Details
Production Capacity (per 8-hour shift)

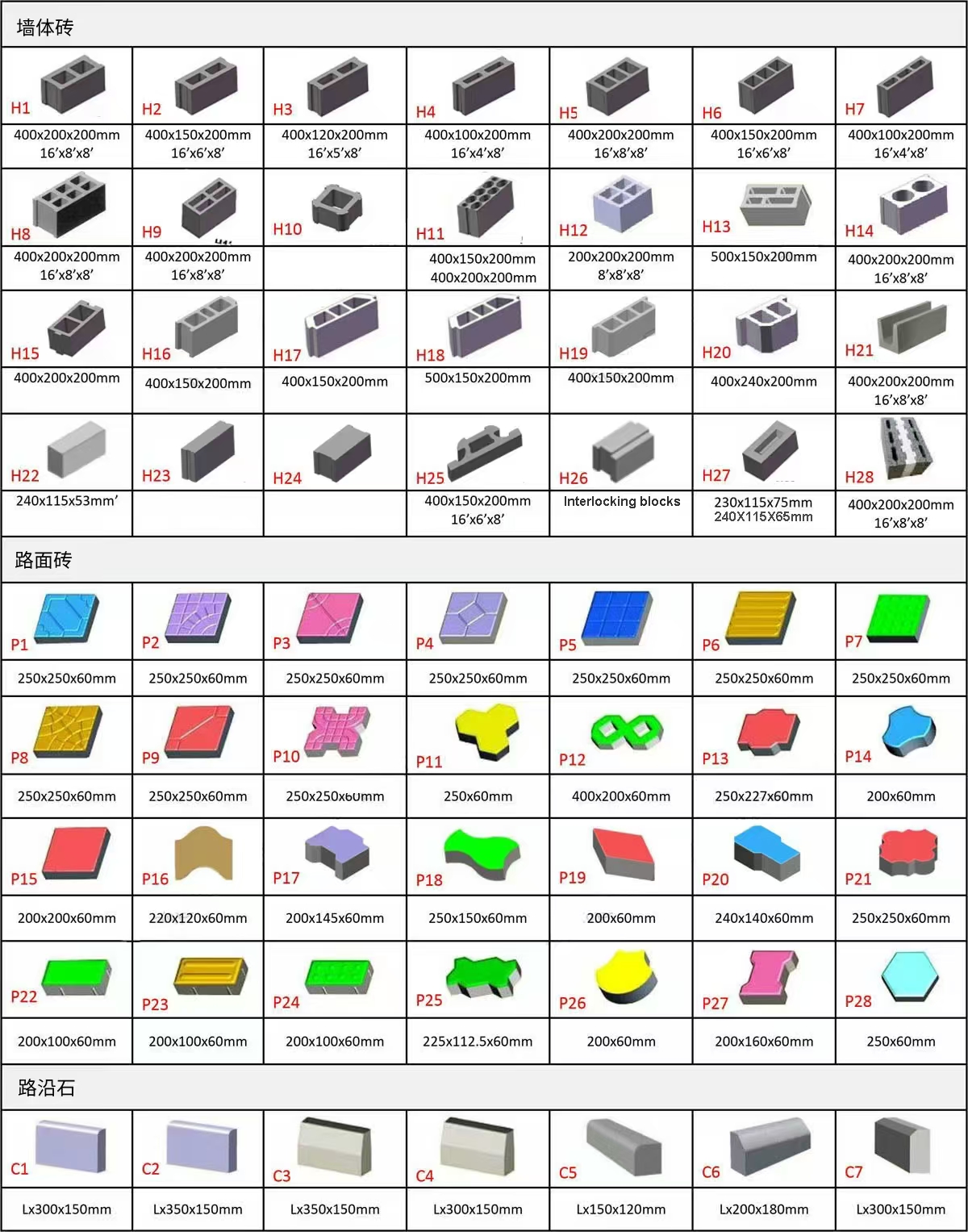

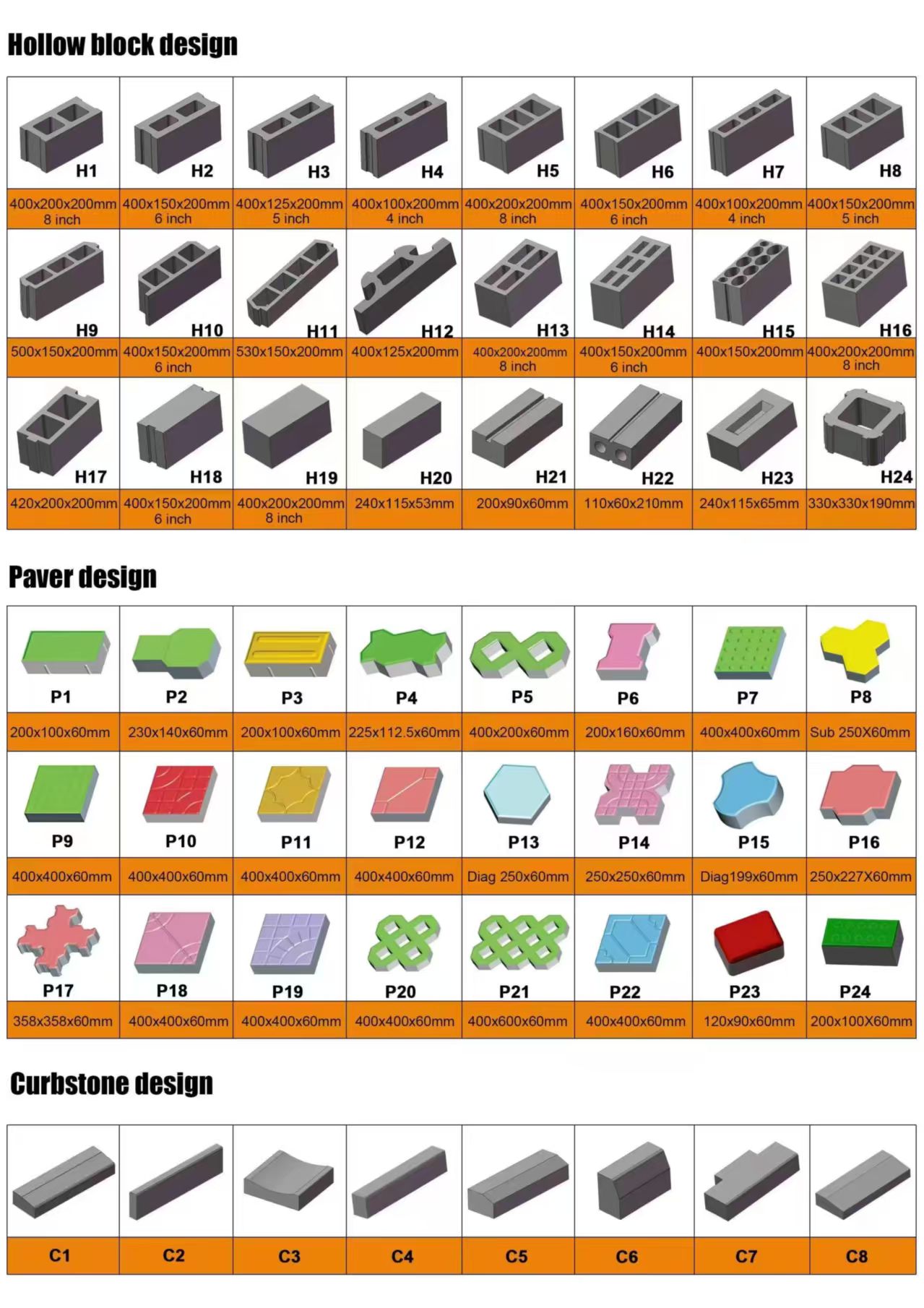

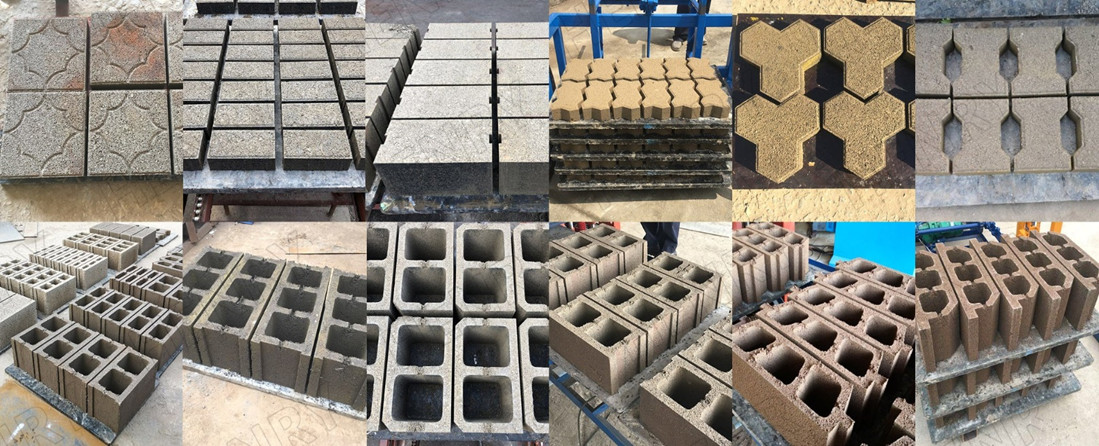

The machine is capable of producing a wide range of products by simply changing the mold.

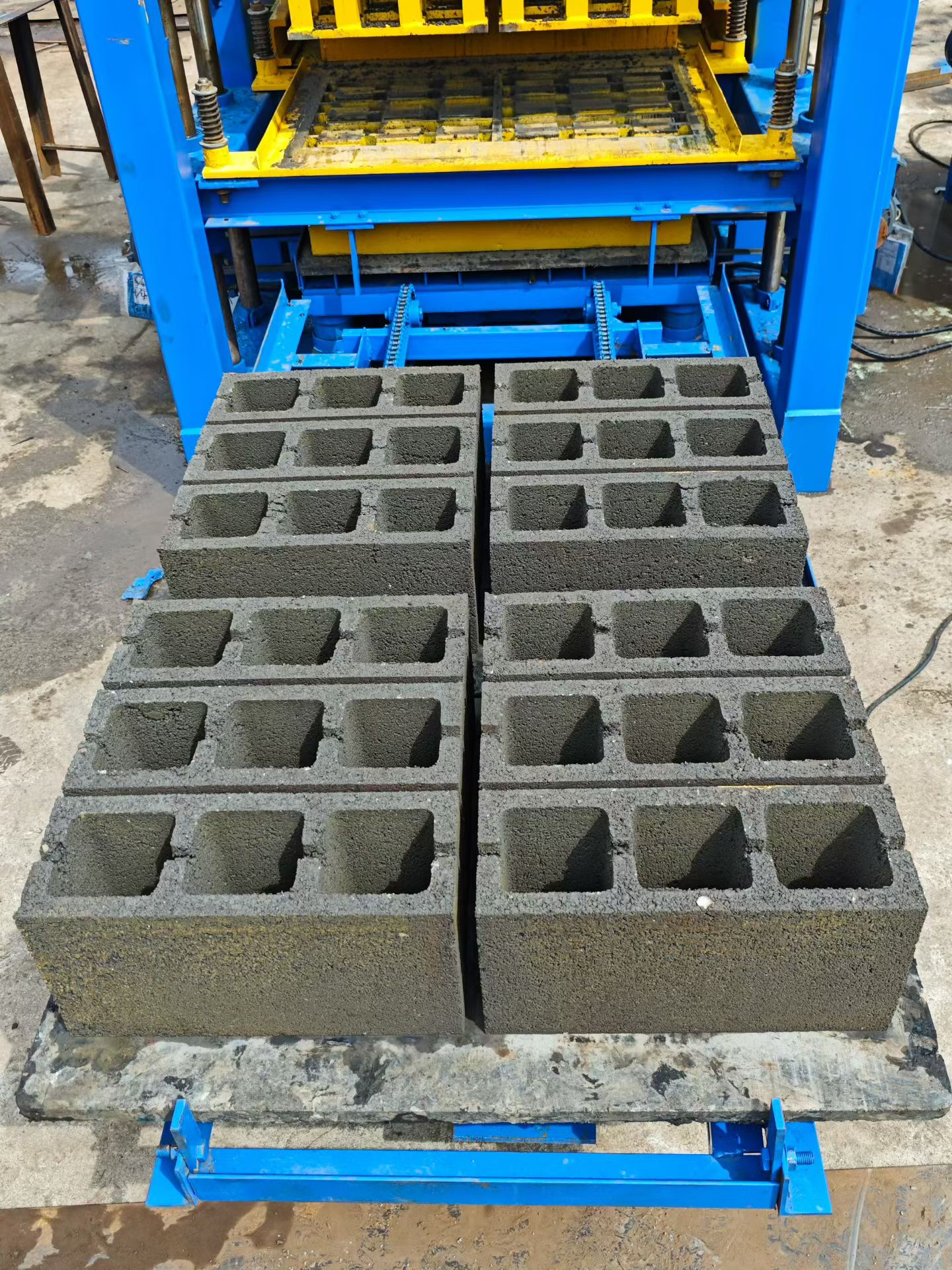

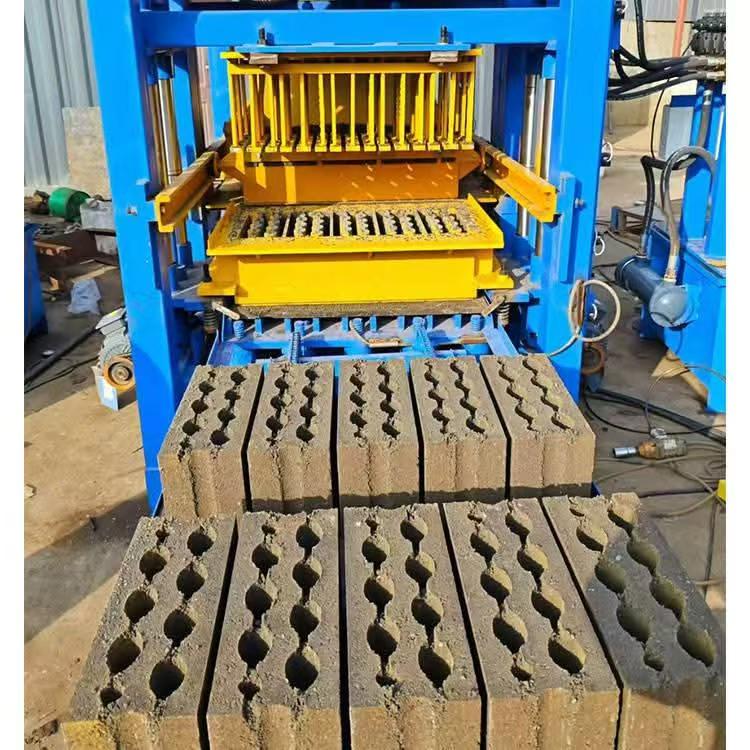

Hollow Blocks (400x200x200mm): ~5,000 to 8,000 pieces.
Solid Bricks (240x115x53mm): ~34,000 to 46,000 pieces.

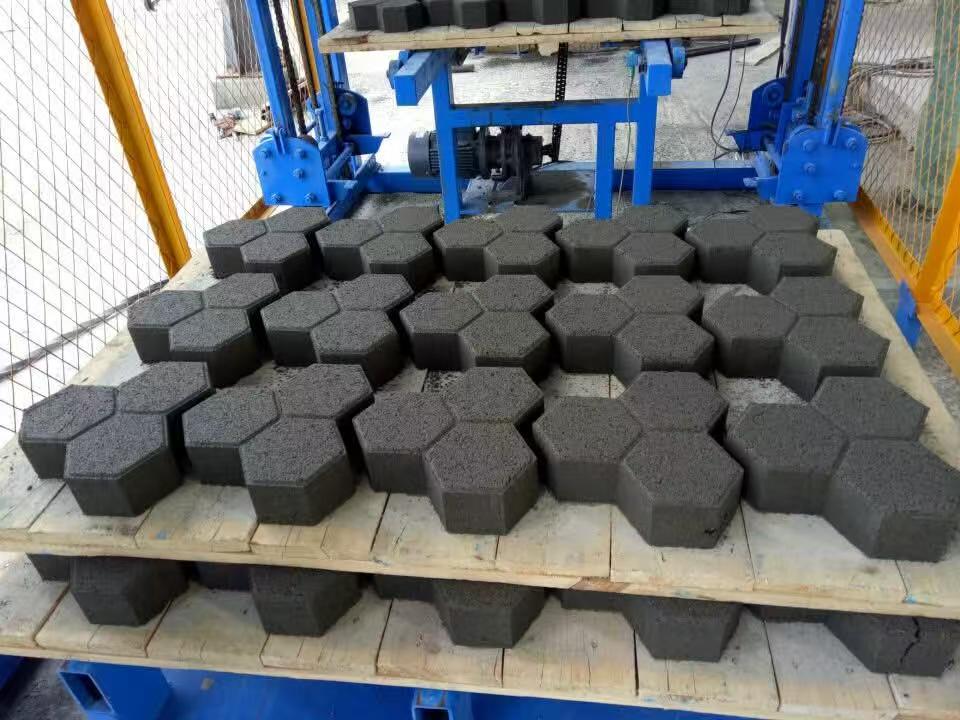

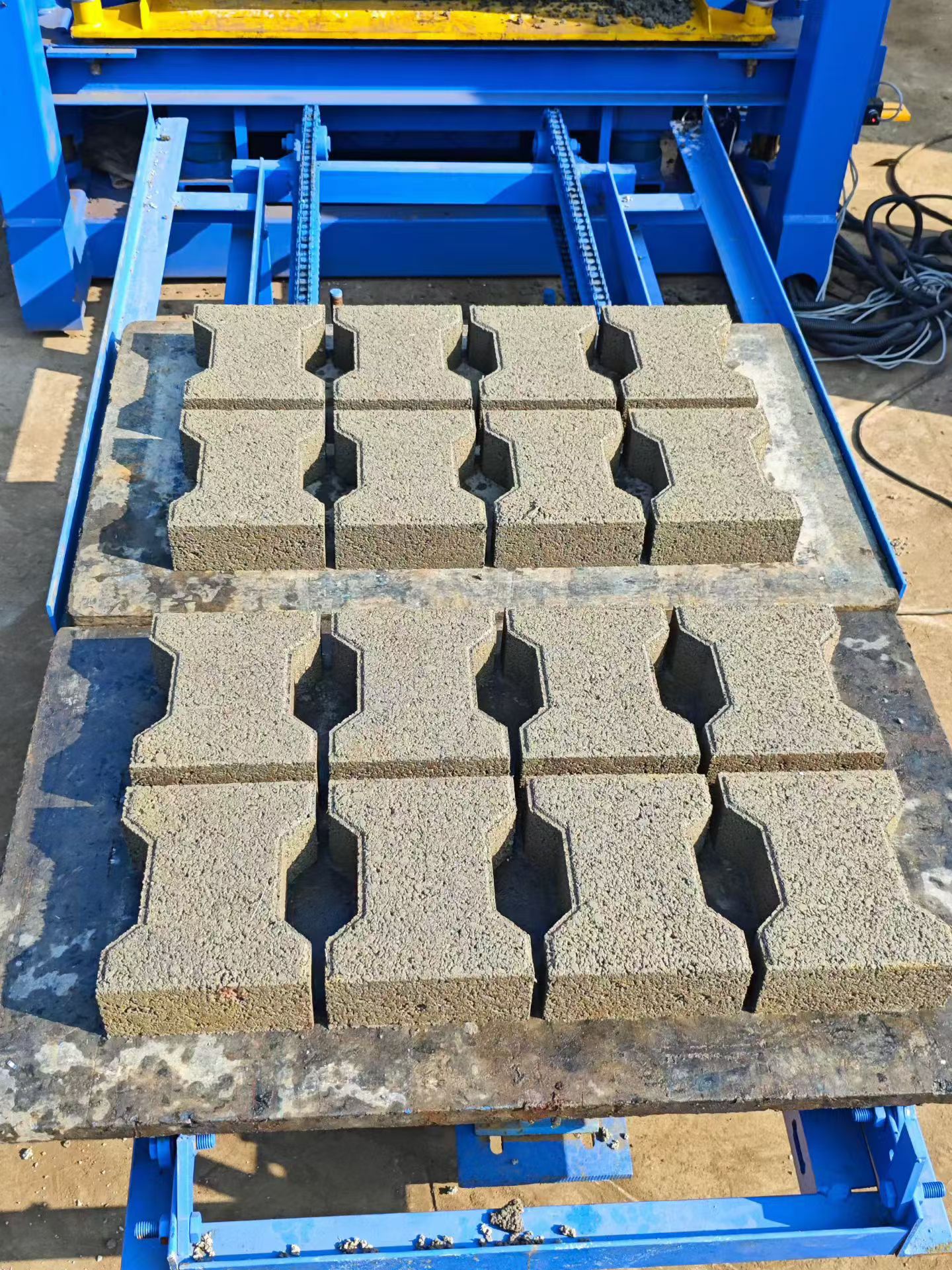

Paver Blocks (Holland style): ~16,000 to 20,000 pieces.
Cycle Time: 15 to 25 seconds per molding cycle.
Advanced Features
- High Compaction:Uses dual-coupled vibration and high hydraulic pressure to achieve block densities of approximately 3 g/cm³.

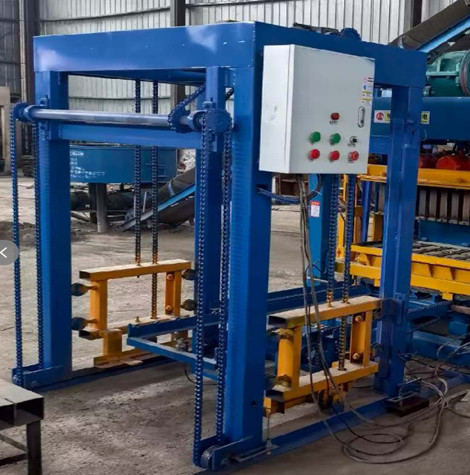

- Automatic Stacking:Often integrated with an automatic stacker to reduce manual labor costs.
- Waste Recycling:Capable of using industrial waste like fly ash, slag, and construction rubble as raw materials.
- Fault Diagnosis:The PLC control system includes real-time signal analysis and malfunction warnings for easier maintenance
| Main technical parameters | |
| Model | QT4-15 |
| Vibration frequency | 4500-5100 times/min |
| Vibrator power | Y132S1-2 N=6KW |
| Magnetic force | ～22KN |
| Molding cycle | 18-20/Seconds |
| Oil pump | cb32 (approximately) Q=40ML/r p=10mpa |
| Oil pump motor | Y132S2-4 N=5.5KW |
| Top oil cylinder | 80×300 rod diameter 40 |
| Side cylinder | 63×250 rod diameter 32 |
| Hydraulic system rated pressure | 6.3-9mpa |
| Excitation force | 22KN |
| Installed capacity | 25.7kw |
| Total weight | 4500KG |
| Machine’s external dimensions | 4000×1500×2200mm |
| Working voltage | 380V 50HZ 3PHASE |

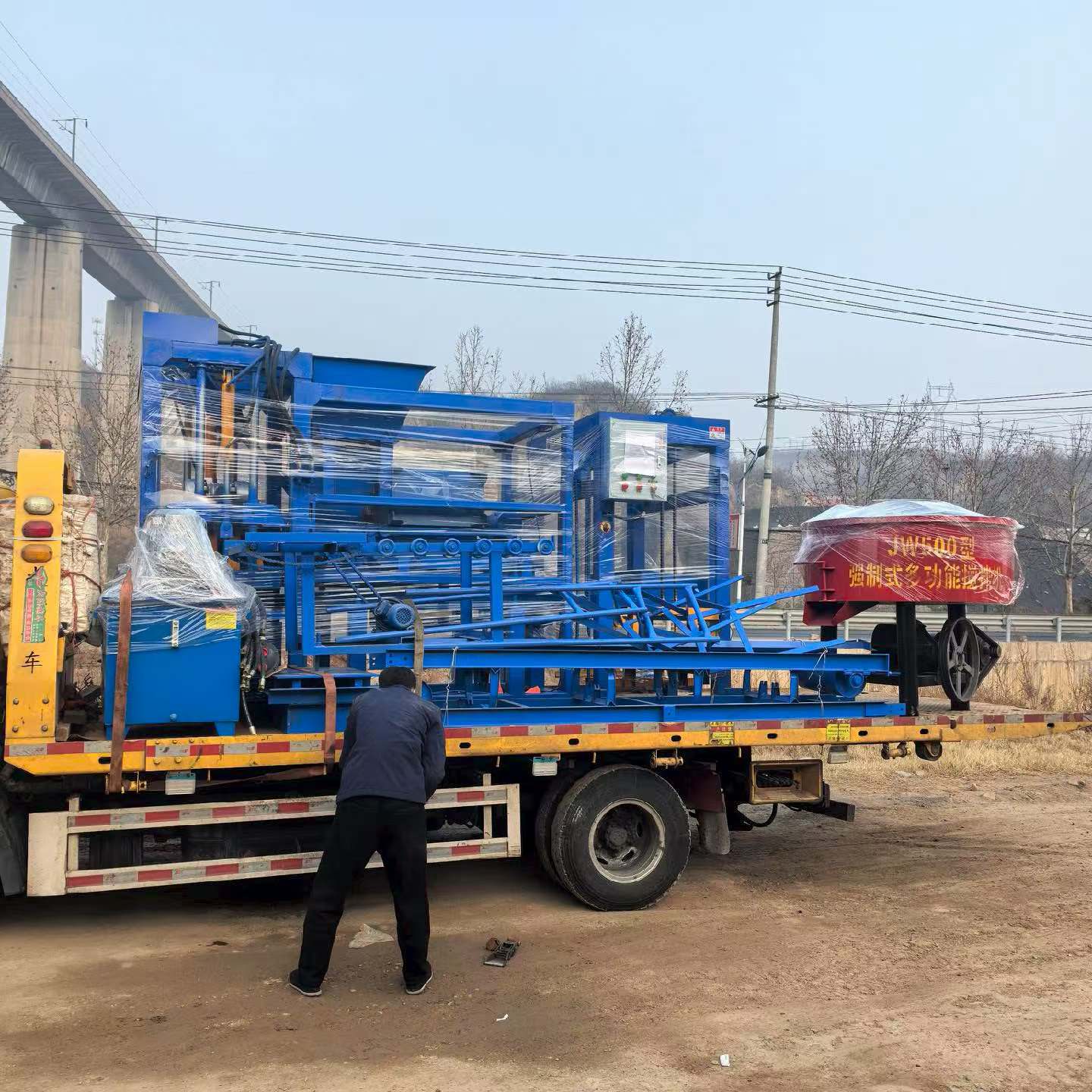

| Machine and molds packing | About 26CBM ; 4600KGS |
| Extra Palette packing | About 12CBM ; 1150KGS |
| Extra molds weight | About 600KG |
|
After-sales service |
1.Year warranty for the full set machine
2.Provide machine installation video 3.24h/7 online technical support whenever needed via WhatsApp or Wechat |
| Human labor requirement | The machine can be easily operated by 1-2 people only. |
