Integrated 2in1 Fiber laser cutting machine with aside rotary for both plate sheet metal and pipe or tube

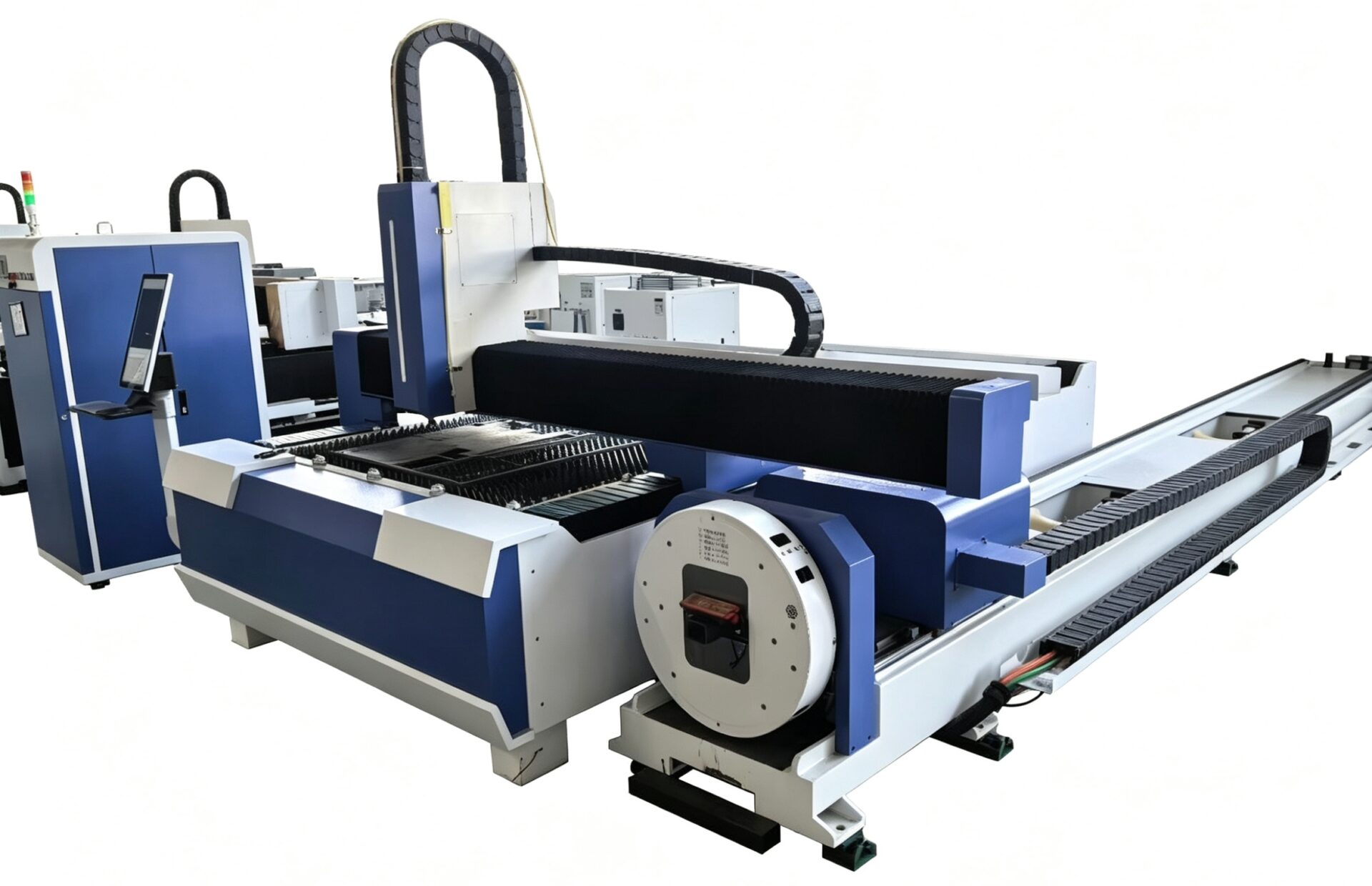

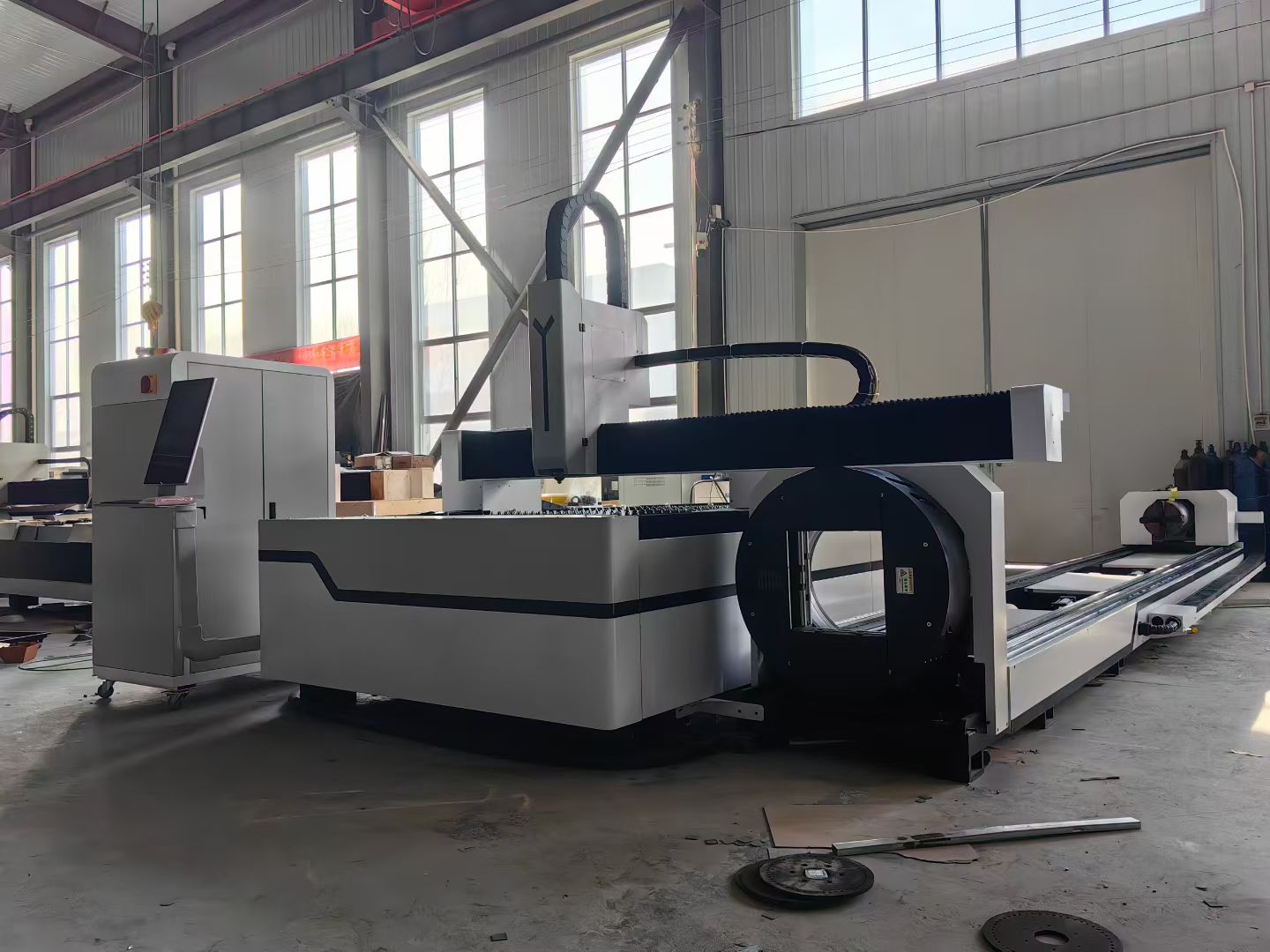

A 3015 fiber laser cutting machine with an aside (side) rotary axis is a highly integrated versatile, “two-in-one” industrial system designed to process both flat sheet metal and metal pipes/tubes on a single machine footprint.

The “3015” designation specifies a standard working bed size of 3000 mm × 1500 mm (roughly 10 ft × 5 ft).

Below is an overview of the technical specifications, component configurations, and functional features typically found in the English-export versions of these machines.

Core System Configuration

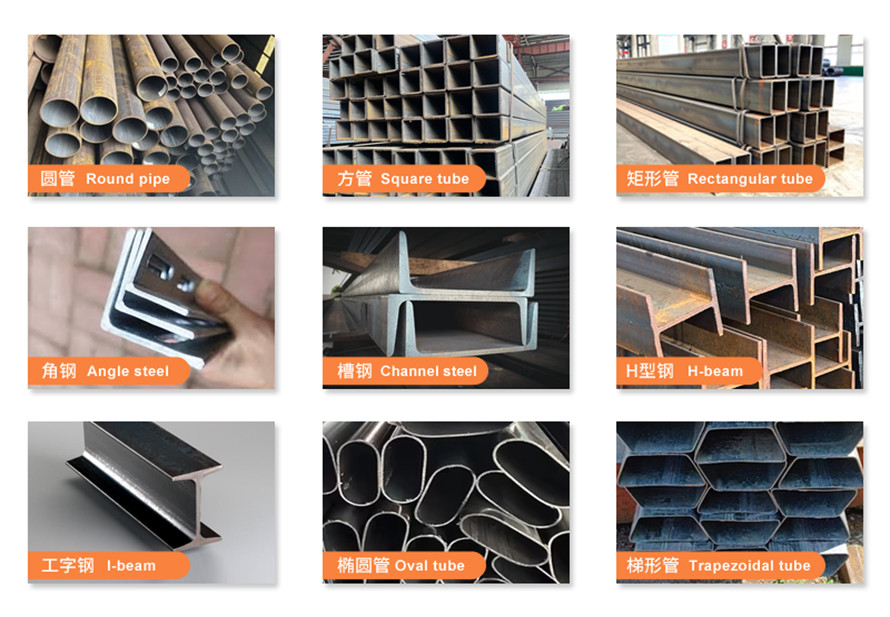

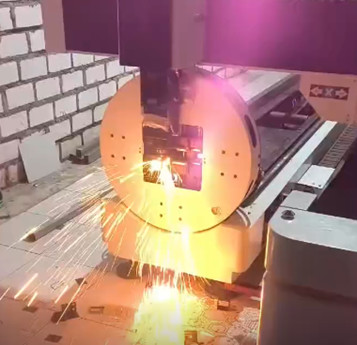

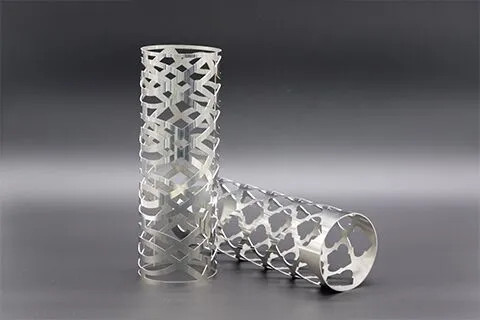

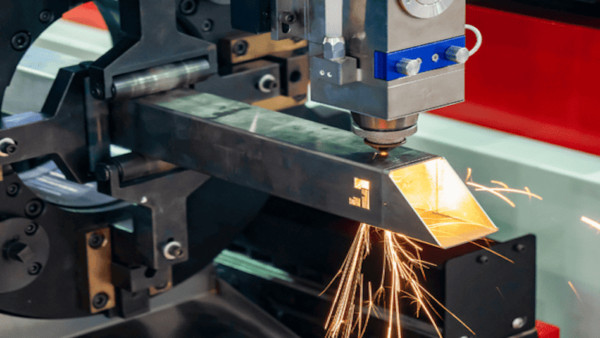

• Dual Functionality: The main bed handles sheet metal, while the independent rotary chuck mounted to the side (aside) handles cylindrical, square, rectangular, and oval profiles.

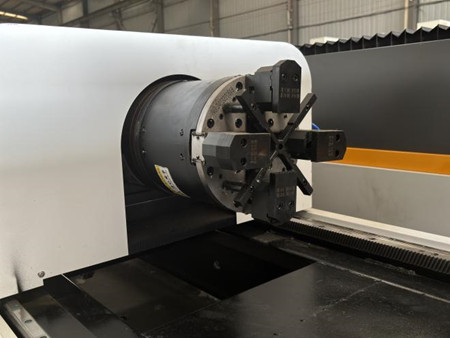

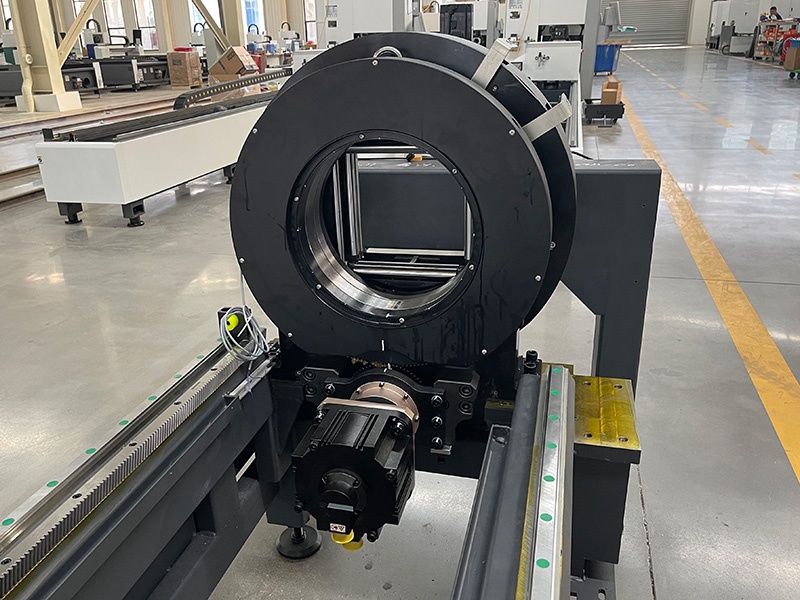

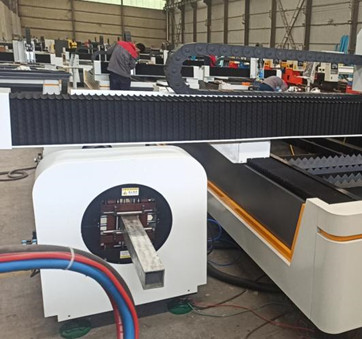

• Aside Rotary Device: Typically supports tube lengths of 3000 mm or 6000 mm, with clamping diameters ranging from 20 mm to 220 mm. It uses a self-centering electric chuck system to keep pipes securely positioned without manual calibration.
• Laser Power Options: Usually configurable from 1.5 kW to 12 kW+ using prominent industry brands like Raycus or Maxphotonics.

Key Technical Specifications

A standard production model typically features the following metrics:

Material Compatibility & Performance

Fiber laser variations of the 3015 are highly optimized for high-reflectivity and dense metallic plates, ensuring clean, burr-free cuts without the need for secondary surface polishing.

Structural Safety & Automation Add-ons

1. Fully Enclosed vs. Open Type: Open-type platforms offer rapid material loading and lower hardware costs. Fully enclosed beds incorporate specialized viewing windows, negative-pressure zonal dust extraction, and optical pollution protection to meet strict safety environments.
2. Auto-Focus Sensor Heads: Premium packages utilize automated focusing systems that mechanically shift the focal point based on software material recipes, minimizing manual setup times when changing sheet thicknesses.
3. Heavy-Duty Welded Base: Structural beds undergo stress-relief high-temperature annealing heat cycles (≈600℃)

Key Structural Variations to Consider

• Open Frame vs. Fully Enclosed:
  • Open Frame: Offers easy overhead or side forklift loading for both sheet and tube.
  • Fully Enclosed: Includes a protective viewing enclosure and ventilation zoning to isolate fumes and protect operators from stray laser radiation.
• Exchange Table (Shuttle Bed):
  • Can be ordered with dual shuttle tables that exchange within 15 seconds. This allows an operator to safely unload cut pieces and load a raw sheet while the machine actively cuts inside
