Fully Enclosed 1530 2040 Fiber Laser Cutting machine with MAX / RAYCUS 1.5KW-30KW Source For thick Metal Cutting

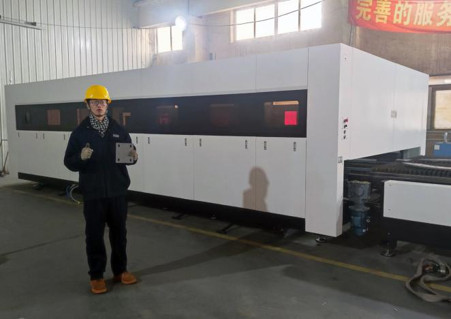

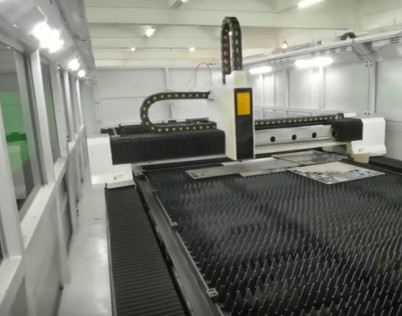

An enclosed fiber laser cutting machine is a fully covered industrial laser system designed to cut metals with high precision. Enclosed fiber laser cutting machines utilize highly concentrated, optical-fiber-delivered light to melt and vaporize metals. Their heavy-duty, protective enclosures protect operators from mechanical injury, shield eyes from intense radiation, and integrate automated dust extraction. They are ideal for high-precision, industrial-scale metal manufacturing.

Common Models and Dimensions

Most industrial manufacturers categorize models by their working area size. Standard configurations include:

• Medium Size (Model 3015): Working area of 3000x1500mm. Machine dimensions are roughly 4.8 x 2.3 x 2.2 meters.
• Large Size (Model 4020): Working area of 4000 x 2000 mm. Machine dimensions are roughly 5.8 x 2.8 x 2.2 meters.
• Extra Large Size (Model 6025): Working area of 6000 x 2500 mm. Machine dimensions are roughly 8.5 x 3.3 x 2.3 meters.
• Note: Enclosed models typically feature a dual exchange platform (shuttle table), which adds to the total operational length.

Core Specifications

• Laser Power: Ranges from 1kW to 30kW+ depending on material thickness needs.
• Laser Source: Raycus, MAX, IPG
• Cutting Head: Raytools or BOCI.
• Positioning Accuracy: ±0.03 mm/m.
• Repositioning Accuracy: ±0.02 mm.
• Maximum Speed: Up to 140 m/min or higher on high-end acceleration models.
• Cooling System: High-capacity industrial water chiller

Key Advantages

• Operator Safety: The protective enclosure blocks harmful laser radiation (OD4+ or OD6+ windows).
• Fume Extraction: Fully enclosed design traps dust and smoke, venting them through a filtration system.
• High Efficiency: Dual shuttle tables allow unloading finished parts and loading new sheets while cutting.
• Component Protection: The cover prevents external dust from damaging the guide rails, racks, and gears.

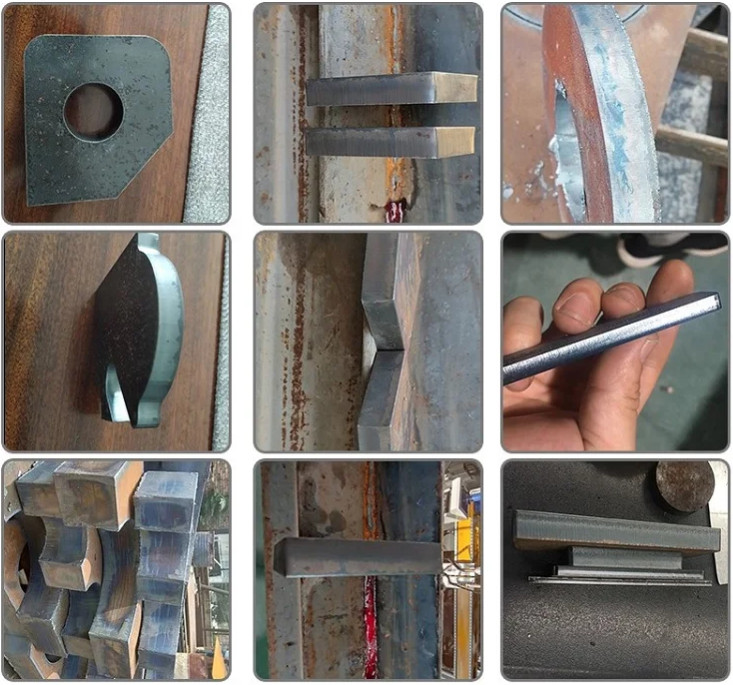

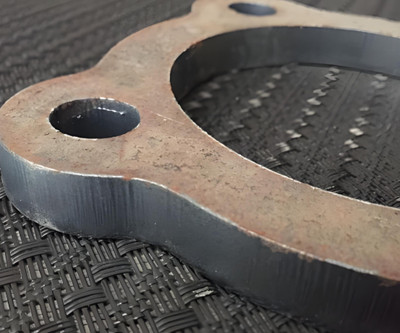

Application Materials

Fiber lasers are optimized to cut highly reflective and standard metals:

• Carbon Steel / Mild Steel
• Stainless Steel
• Aluminum and Aluminum Alloys
• Brass and Copper
• Galvanized Steel
• Titanium

Application Fields

• Aerospace and Aviation: Precision components and lightweight structural panels.
• Automotive Manufacturing: Chassis parts, car doors, and body frames.
• Sheet Metal Fabrication: Custom enclosures, brackets, and HVAC ductwork.
• Elevator Manufacturing: Stainless steel doors, wall panels, and structural frames.
• Kitchenware and Appliances: Refrigerator panels, stoves, and commercial food equipment.
• Agricultural Machinery: Heavy-duty structural frames for tractors and harvesters
