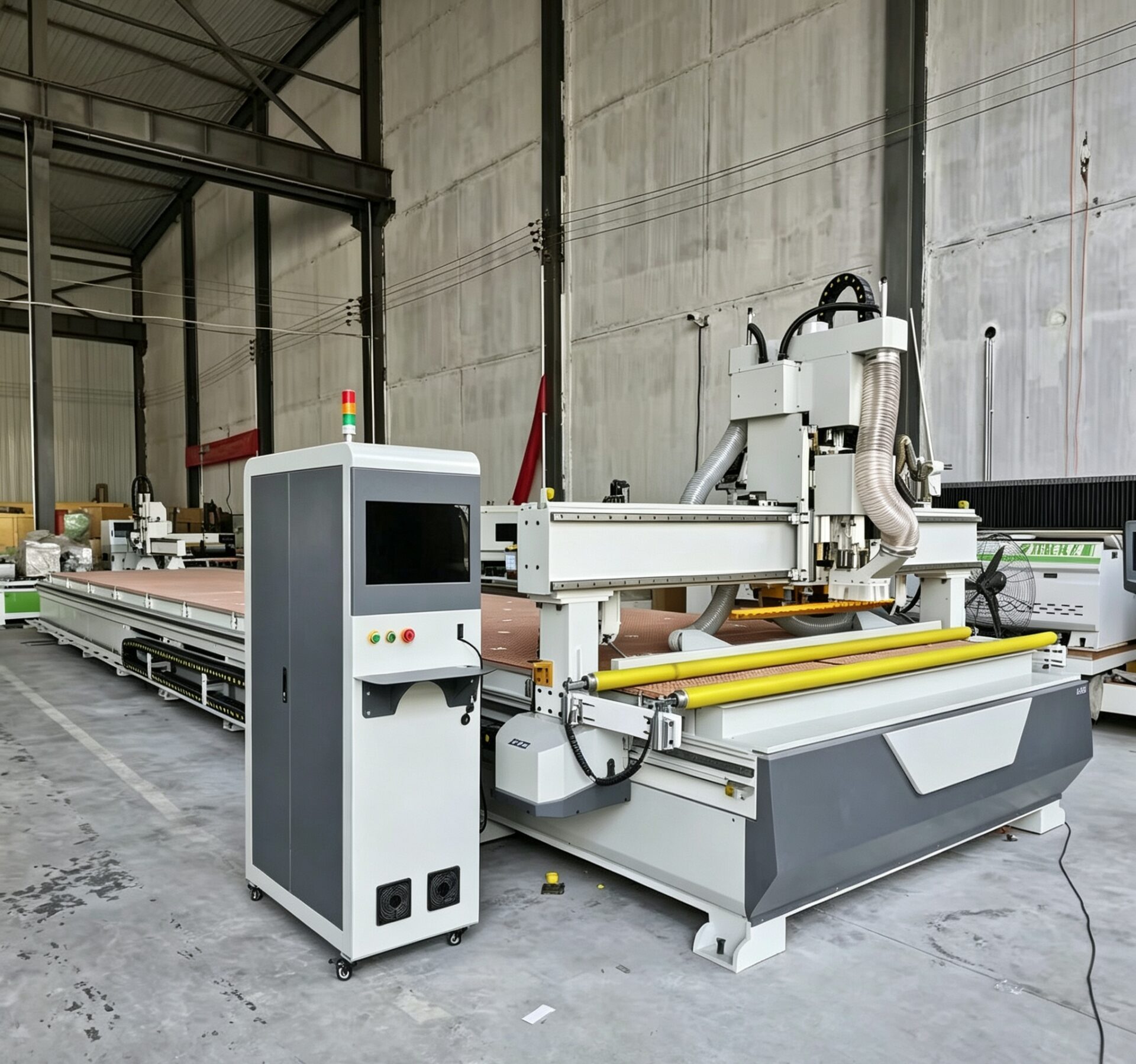

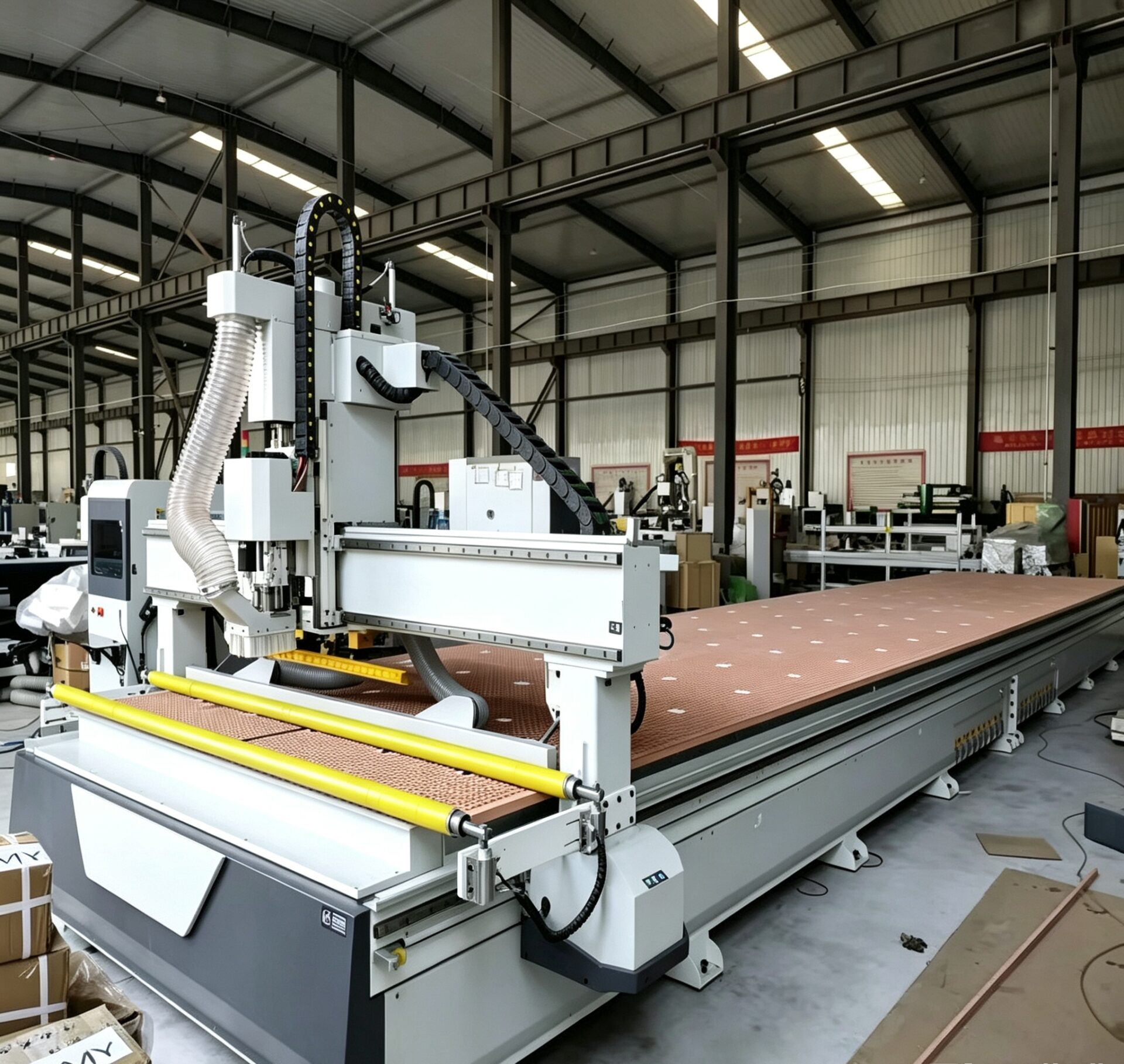

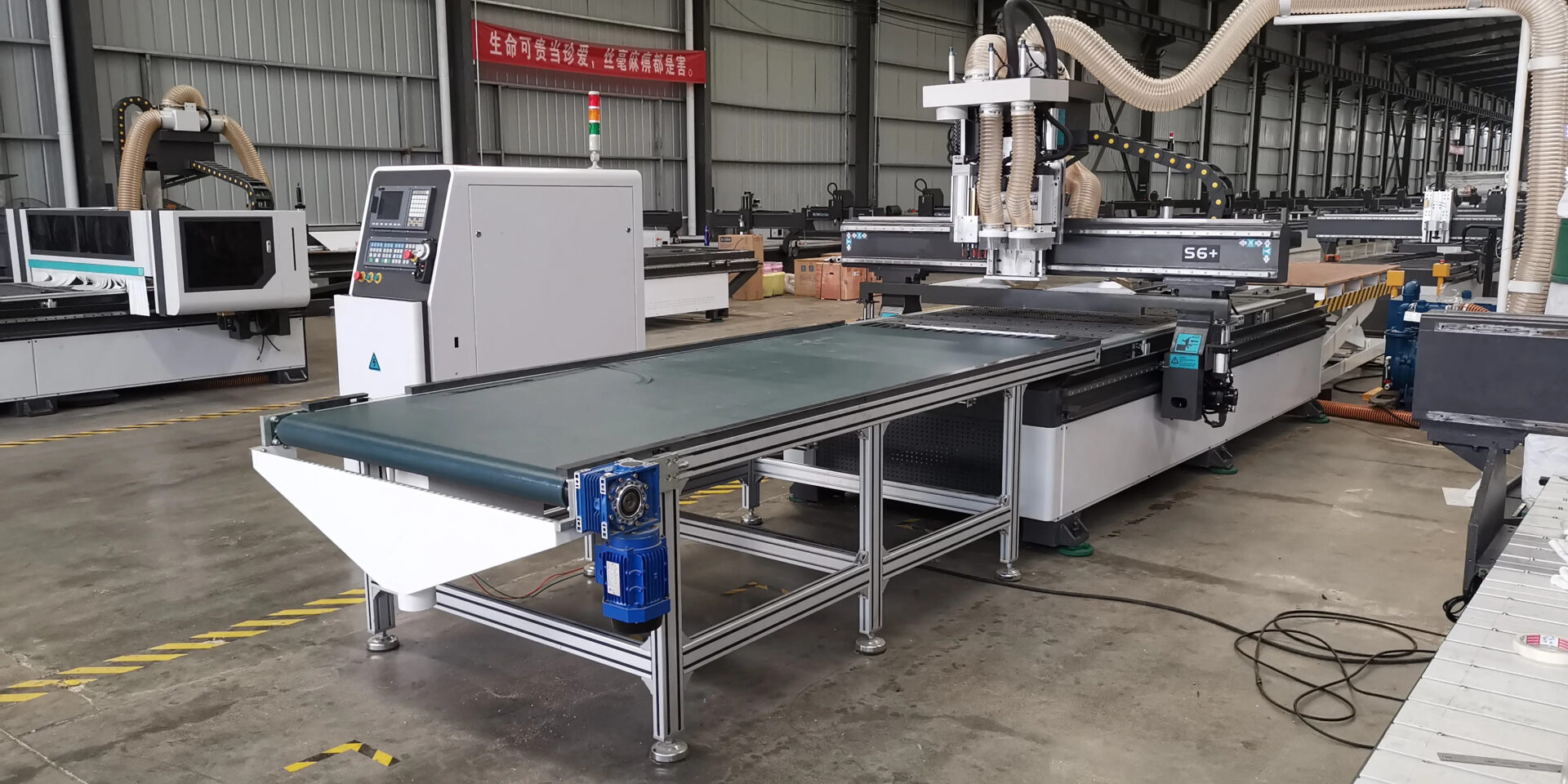

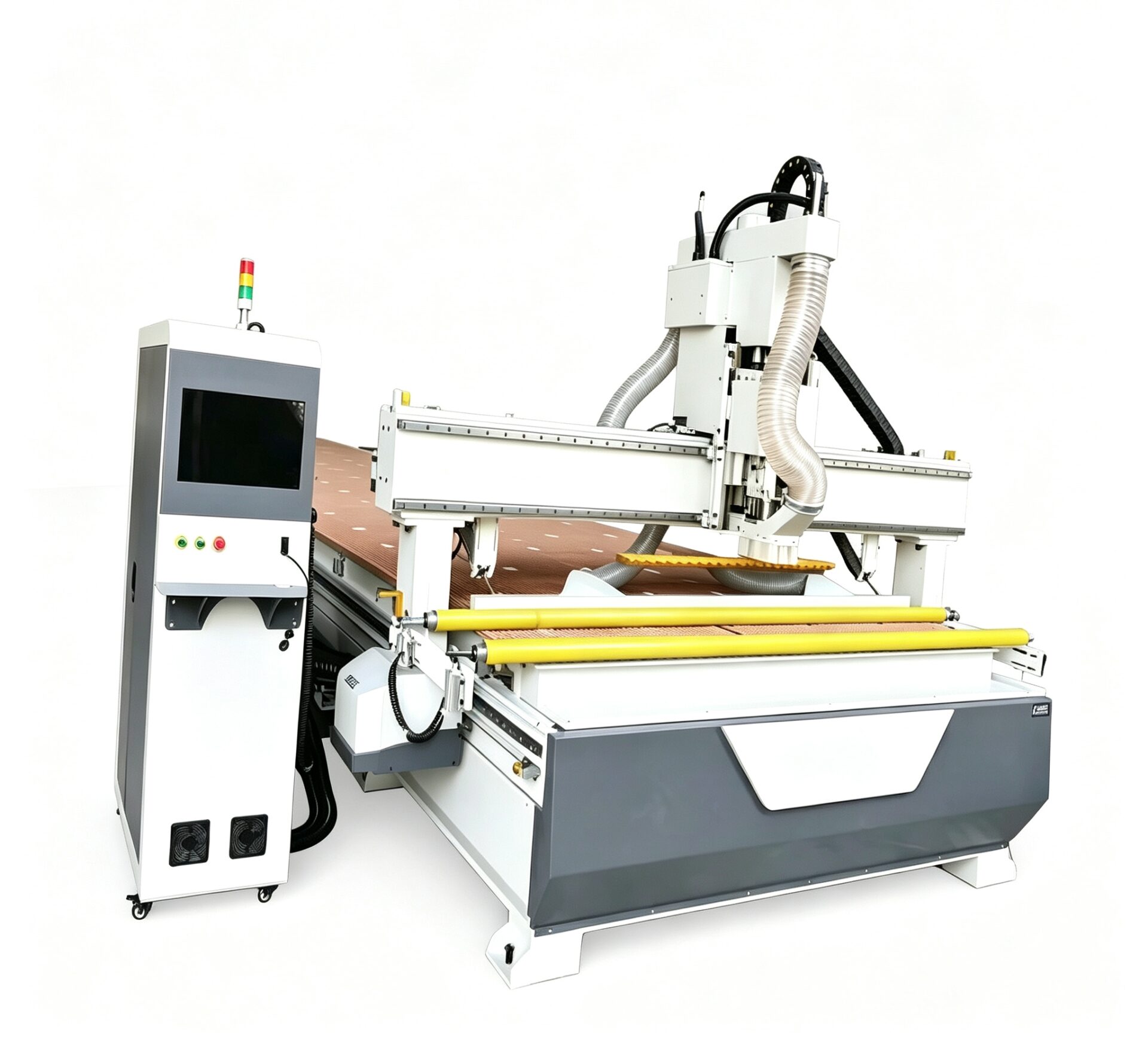

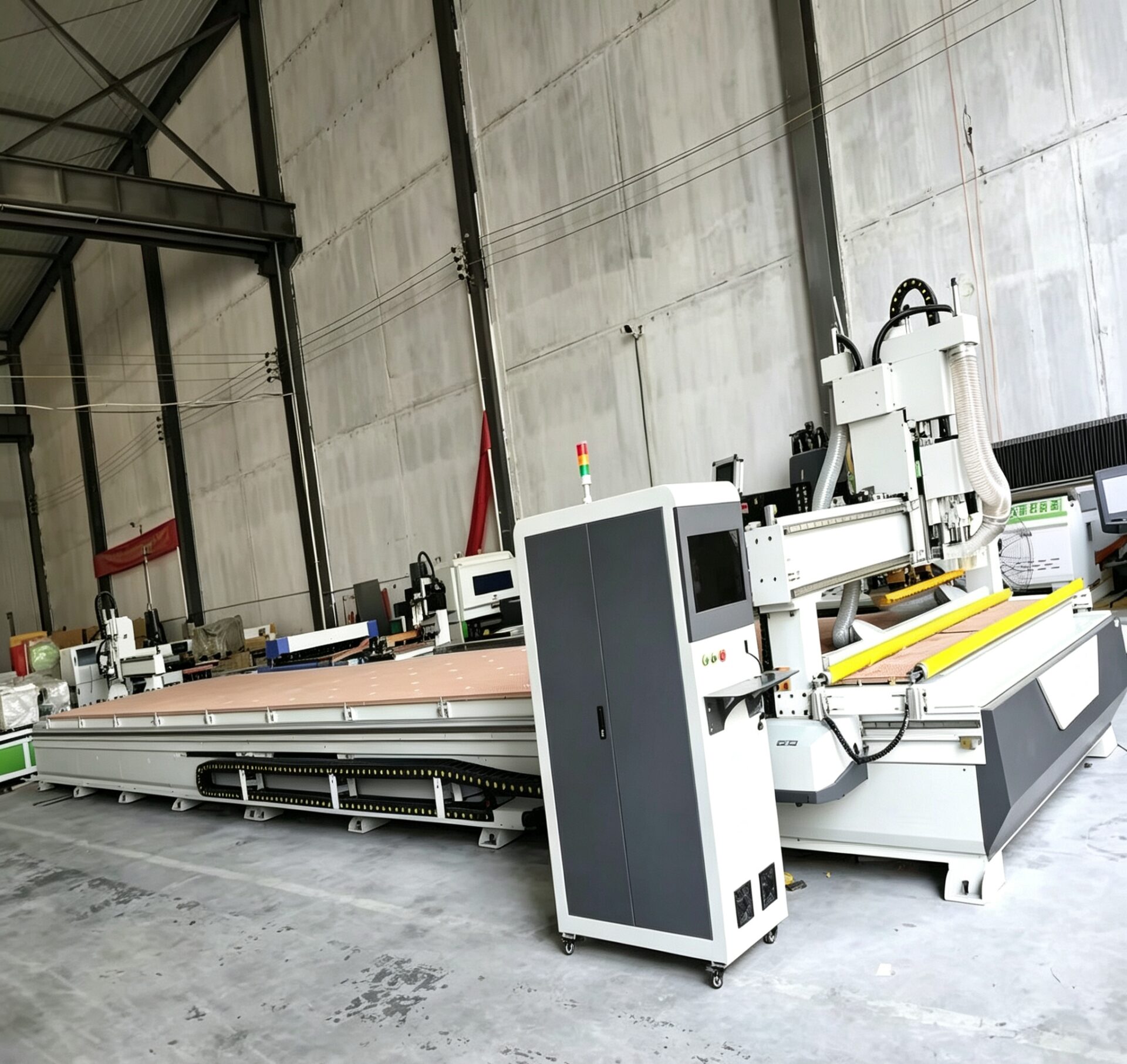

Advanced Features ATC CNC Router machine for Huge Production Projets Direct Sales from Factory

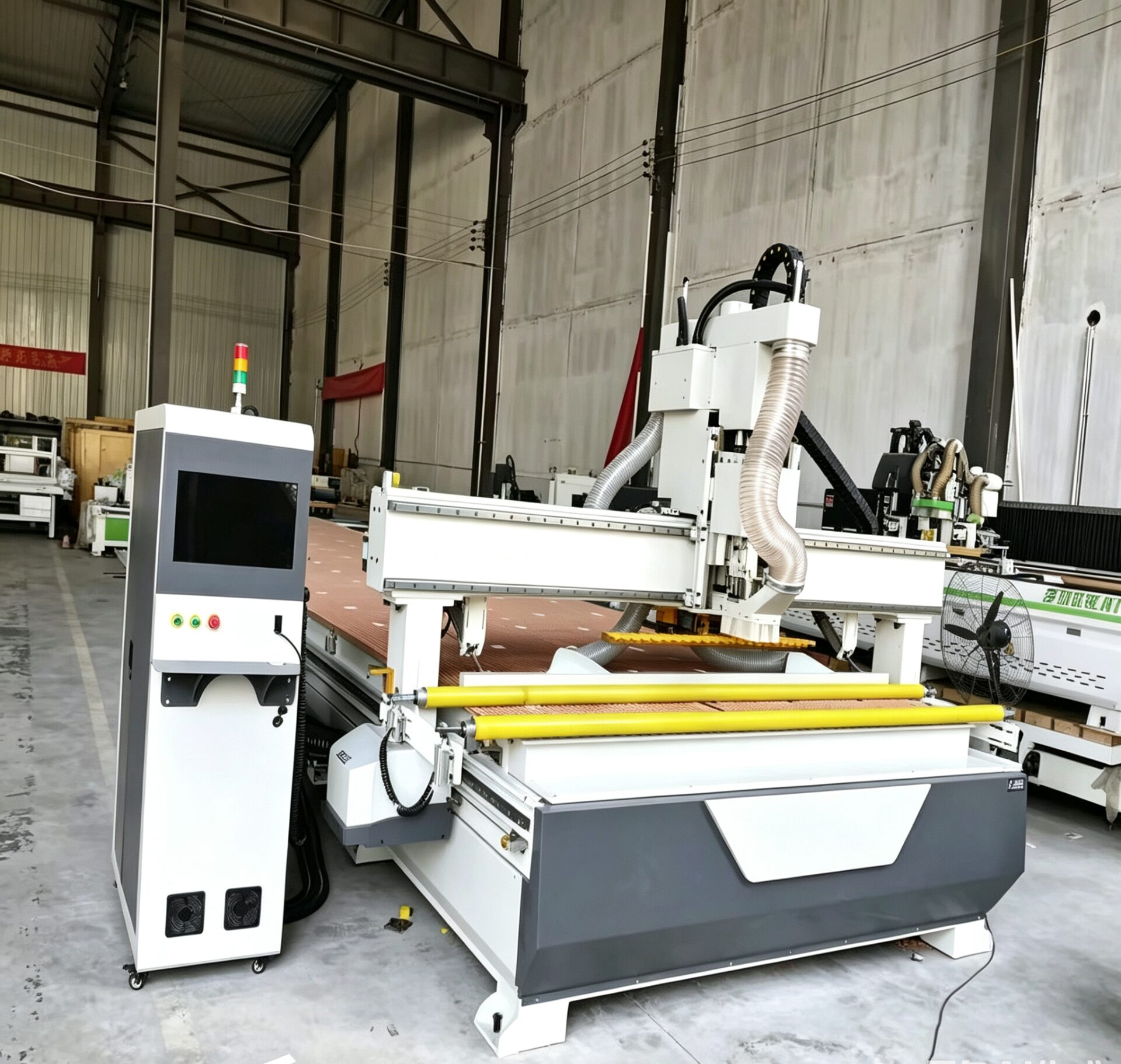

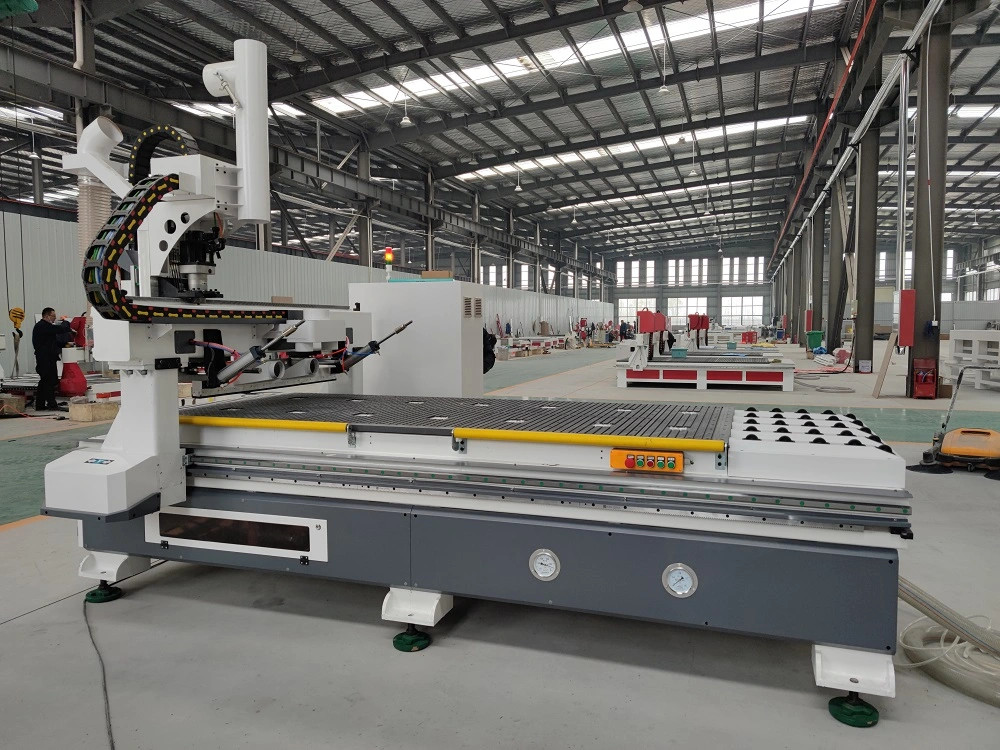

An ATC (Automatic Tool Changer) CNC router is an advanced, industrial-grade machine that automatically swaps between various cutting tools during a single machining program without human intervention. It drastically reduces non-productive downtime and labor costs, making it ideal for precision, multi-step production.

Different Dimensions and Sizes of ATC CNC Router machine

ATC CNC Router machines are commonly categorized by their processing work area (the actual area the machine can cut). Jinan Somba Trading Co.,Ltd manufactures and supplies following dimensions:

• 1325 (1300 × 2500 mm / 4 × 8 ft): The most popular and standard industrial size. Perfect for full-sheet nesting, such as plywood, MDF, or acrylic.
• 1530 (1500 × 3000 mm / 5 × 10 ft): Ideal for mid-to-large panel processing and custom kitchen cabinet factories.
• 2030 (2000 × 3000 mm): Designed for high-volume production lines to accommodate oversized panels.
• Desktop and Mini: Compact footprints often with a 2 × 3 ft or 4 × 4 ft work area for hobbyists or small workshops
• Z-Axis Clearance: Typically ranges from 200 mm to 400 mm (8 to 16 inches) for 3D modeling

Note : Any other dimensions not mentioned above, can be customized without any problems.

Main Control Systems used on ATC CNC Router machine

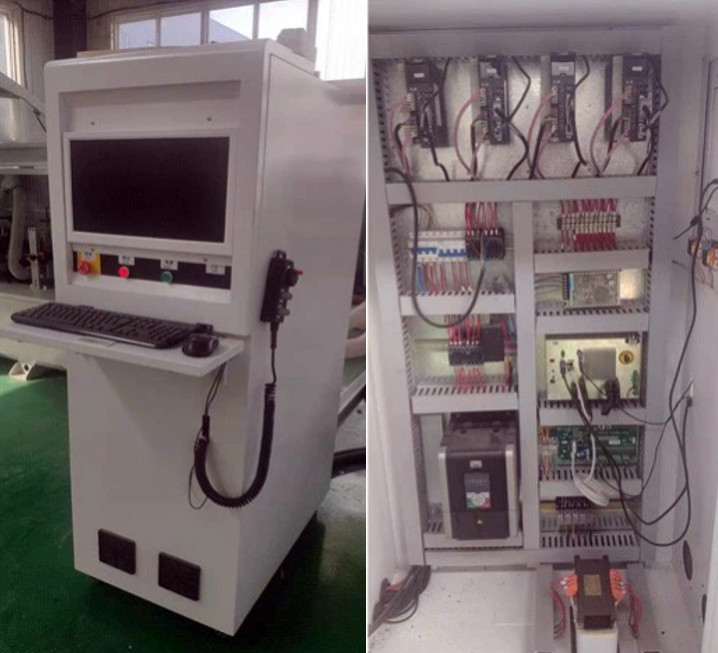

ATC routers rely on industrial-grade bus controllers capable of handling multi-axis movements and tool offsets. Common controllers include:

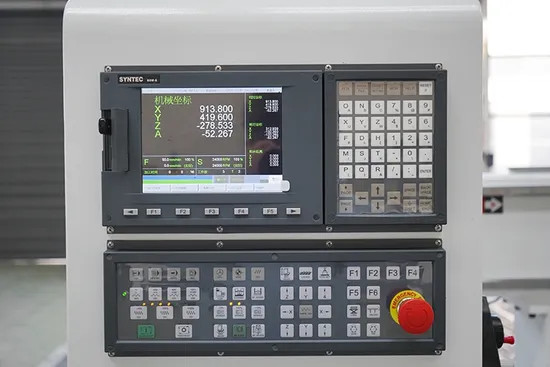

• Syntec: Highly popular for furniture and cabinet making.
• LNC: Delivers high-speed and high-precision contour control.
• Mach3/Mach4: Often used for custom, retrofitted, or entry-level industrial setups.
• SIEMENS: Premium CNC controllers chosen for heavy-duty, high-tolerance production.

Key Advantages of ATC CNC Router machine

An ATC CNC Router machine has several advantages that differs it from standard model 1325 CNC Router machine.

• Maximized Efficiency: Tool changes take only 3 to 15 seconds without stopping the spindle.
• Reduced Human Error: Eliminates the risk of setting incorrect tool lengths or damaging parts manually.
• High Precision: Automated tool length calibration ensures pinpoint cutting accuracy up to ± 0.01 mm.
• Multi-Tool Capability: One operator can manage complex, layered designs spanning cutting, grooving, drilling, and pocketing in a single workflow

Models and Types

ATC CNC routers are mainly categorized by their tool-changing mechanism and axis configurations:

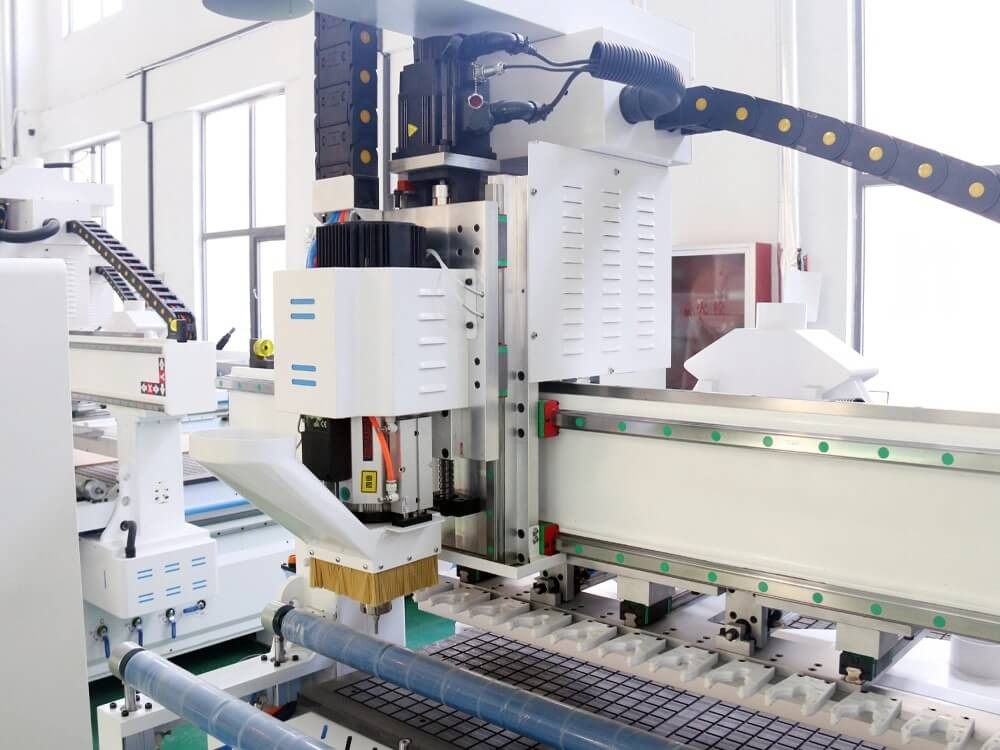

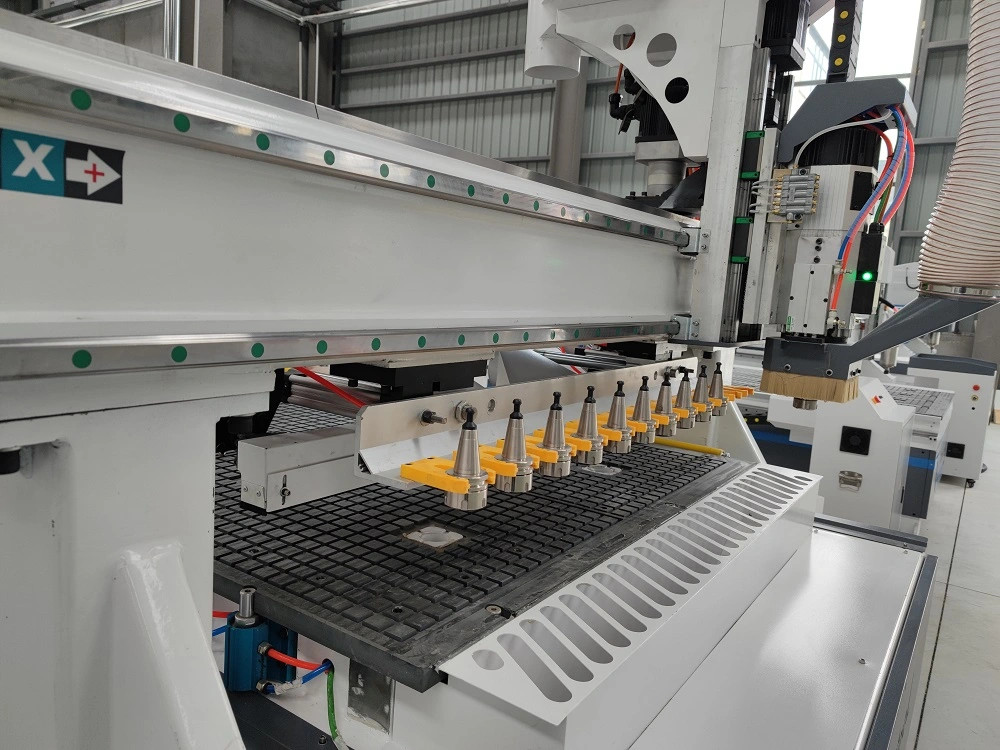

• Linear ATC CNC Router: Tools are arranged in a straight line at the back or side of the machine bed. It features a simple structure, fast changing speed, and lower cost.

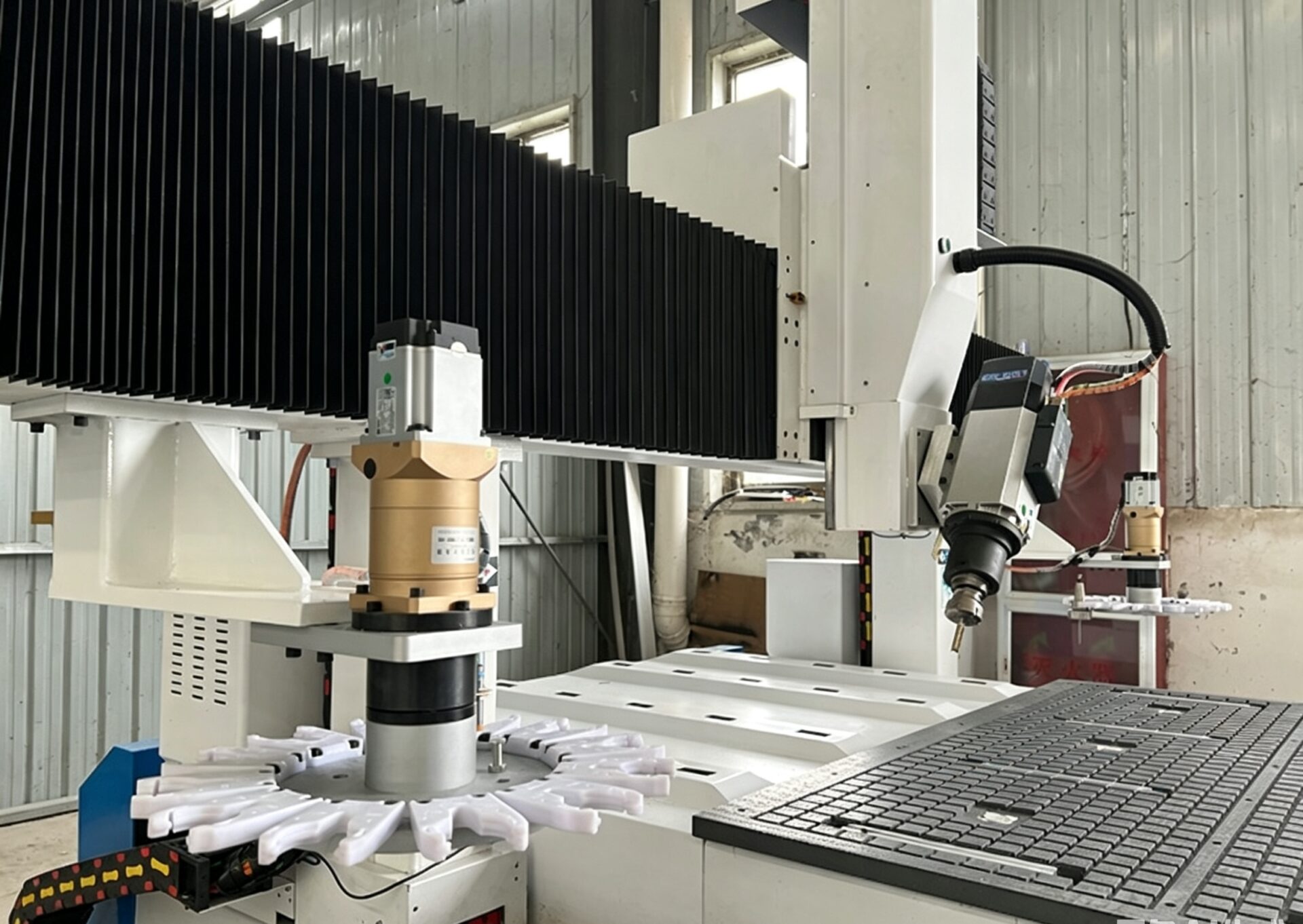

• Carousel (Disc) ATC CNC Router: Tools are placed in a rotating circular drum (revolver) attached to the gantry or near the spindle. This setup saves space, holds more tools, and offers the fastest tool exchange times.
• 4-Axis ATC CNC Router: Equipped with a spindle that can rotate ±90 degrees, allowing for side carving, drilling, and complex 3D surface machining.
• 5-Axis ATC CNC Router: The ultimate configuration for simultaneous multi-axis machining, used for complex industrial molds and aerospace components.

Industrial Applications and Used Materials

ATC CNC routers are widely deployed across various manufacturing and fabrication sectors:

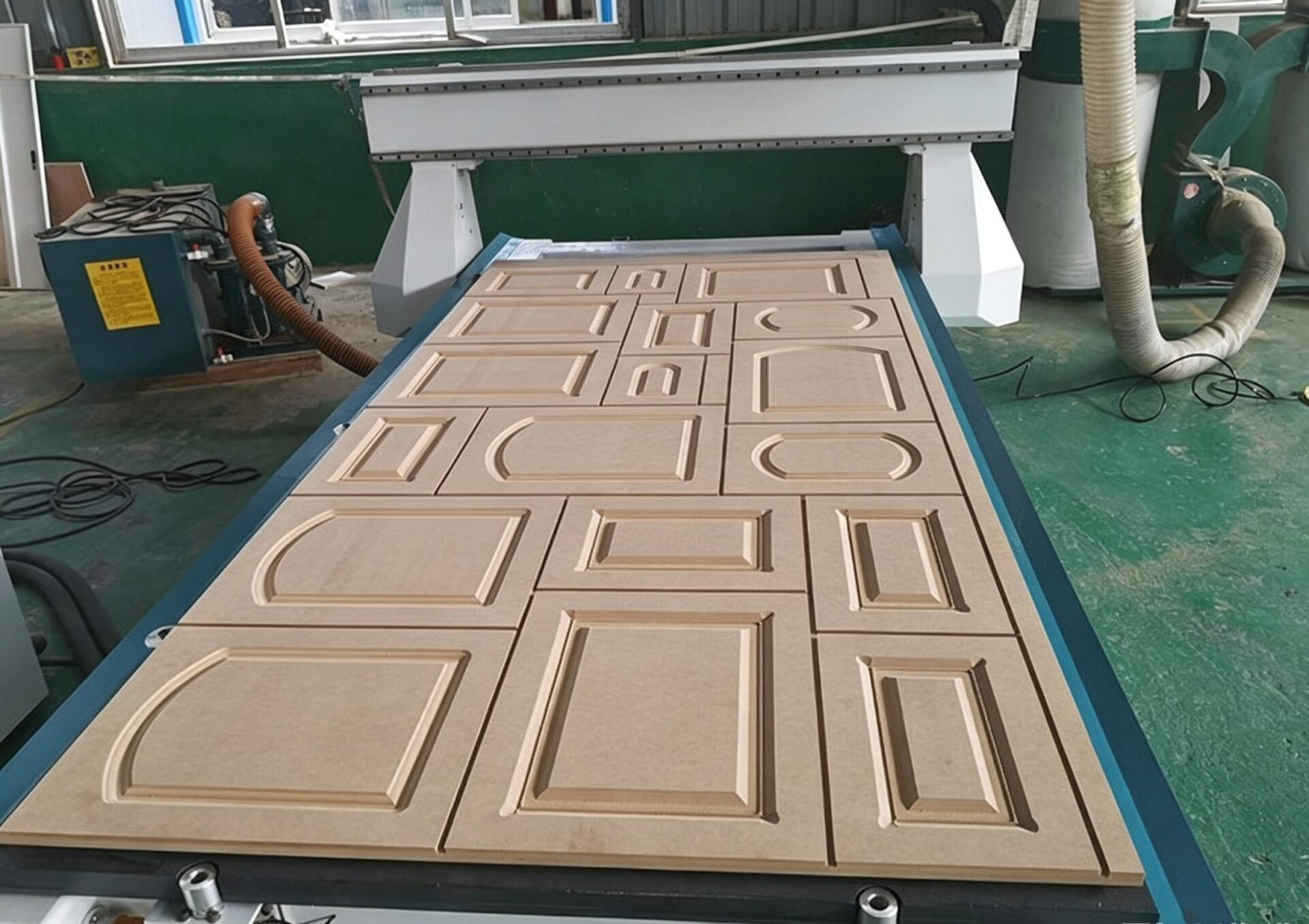

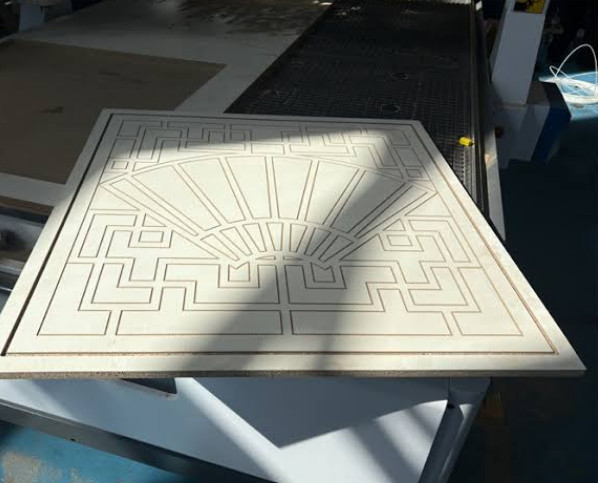

Cabinetry and Furniture: Fabricating custom kitchen cabinets, wardrobes, office desks, and panel furniture.

Sign making and Advertising: Cutting acrylic, PVC, foam, aluminum-plastic panels, and wooden commercial signs.

Molds and 3D Sculptures: Machining automotive foam molds, wooden castings, resin shapes, and complex artistic reliefs.

Musical Instruments: Precision milling for acoustic and electric guitars, violins, and intricate piano components.
