High Quality 1325 CNC Woodworking Router machine with Economical Price Factory Price

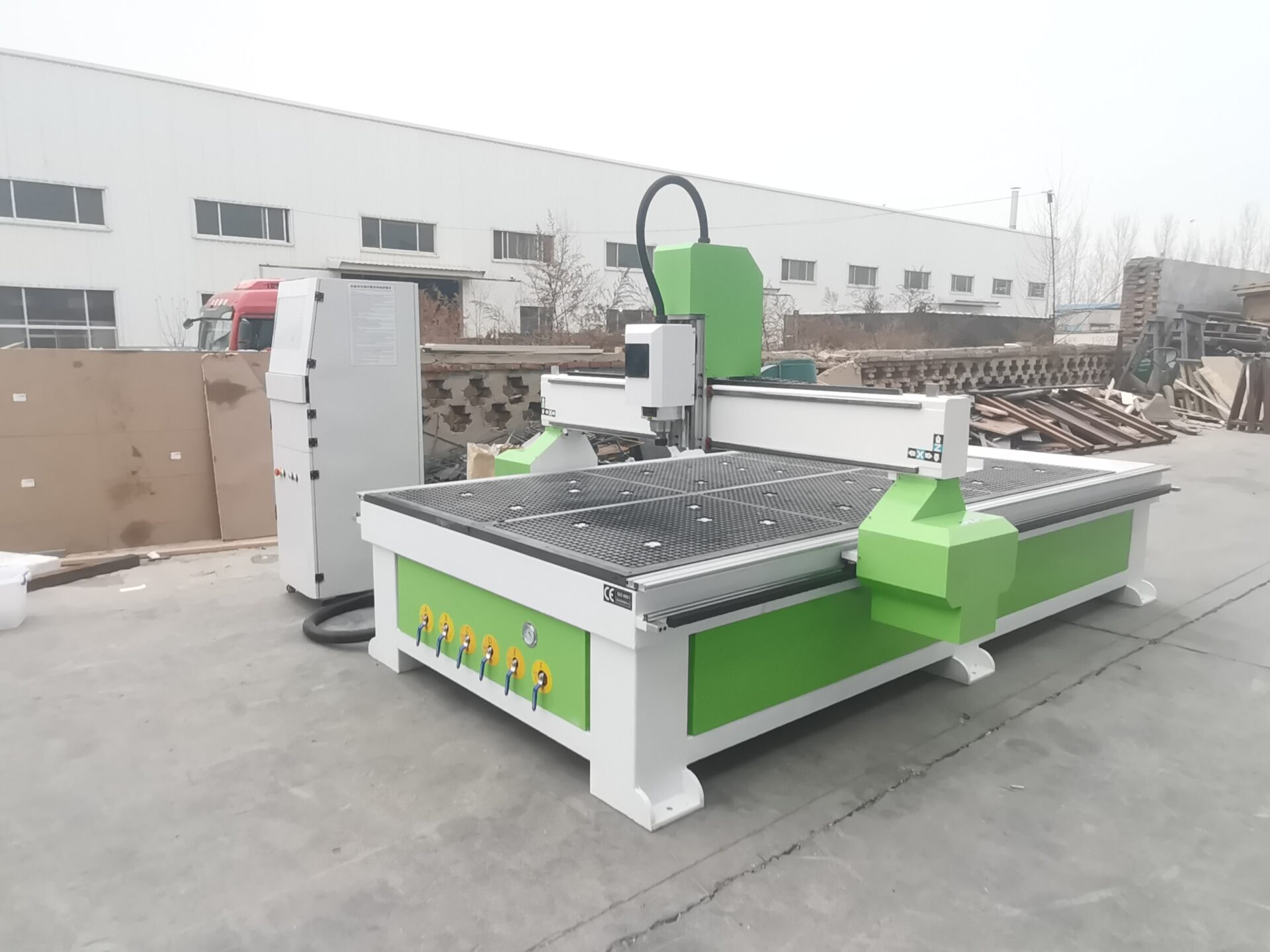

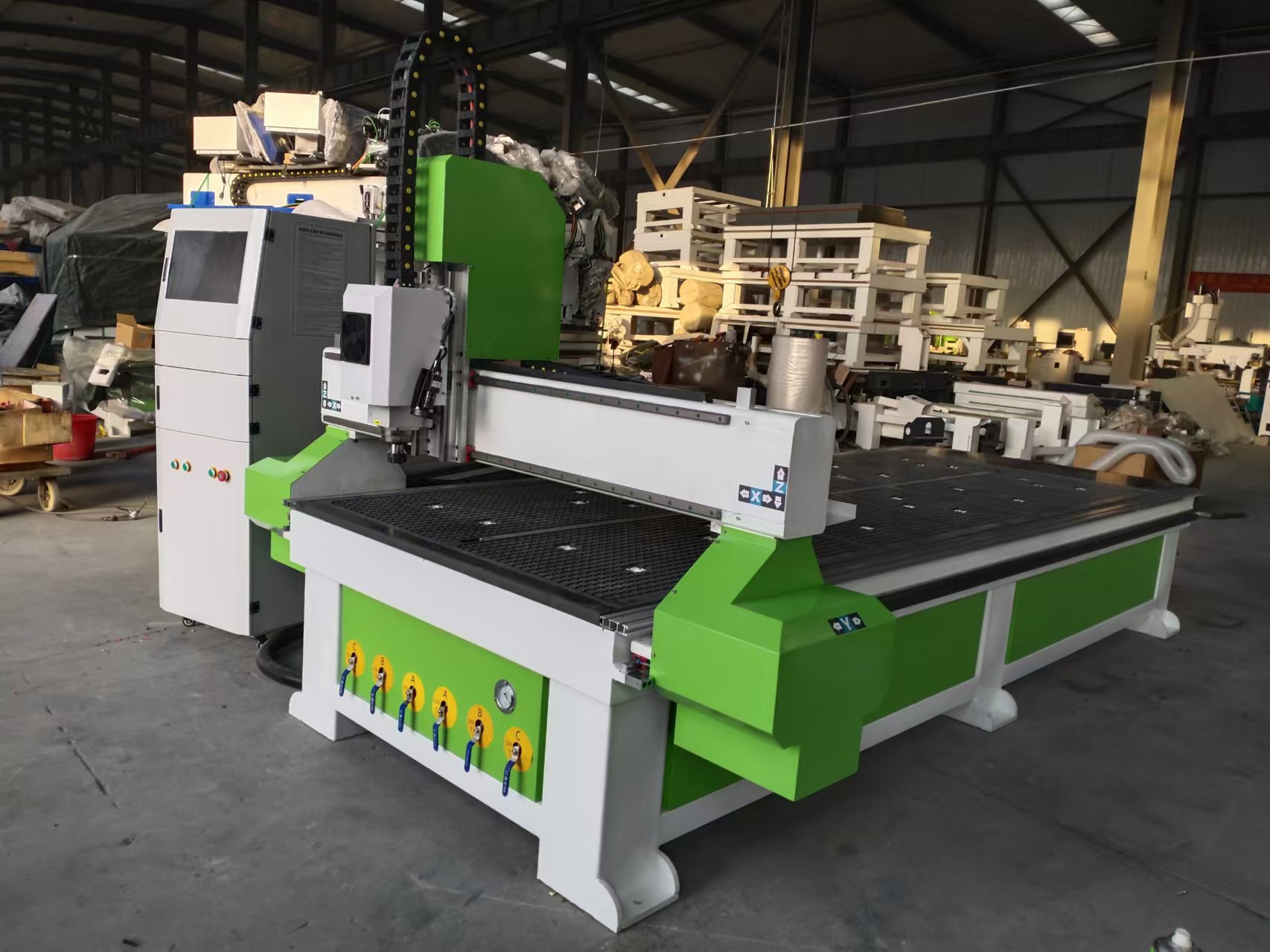

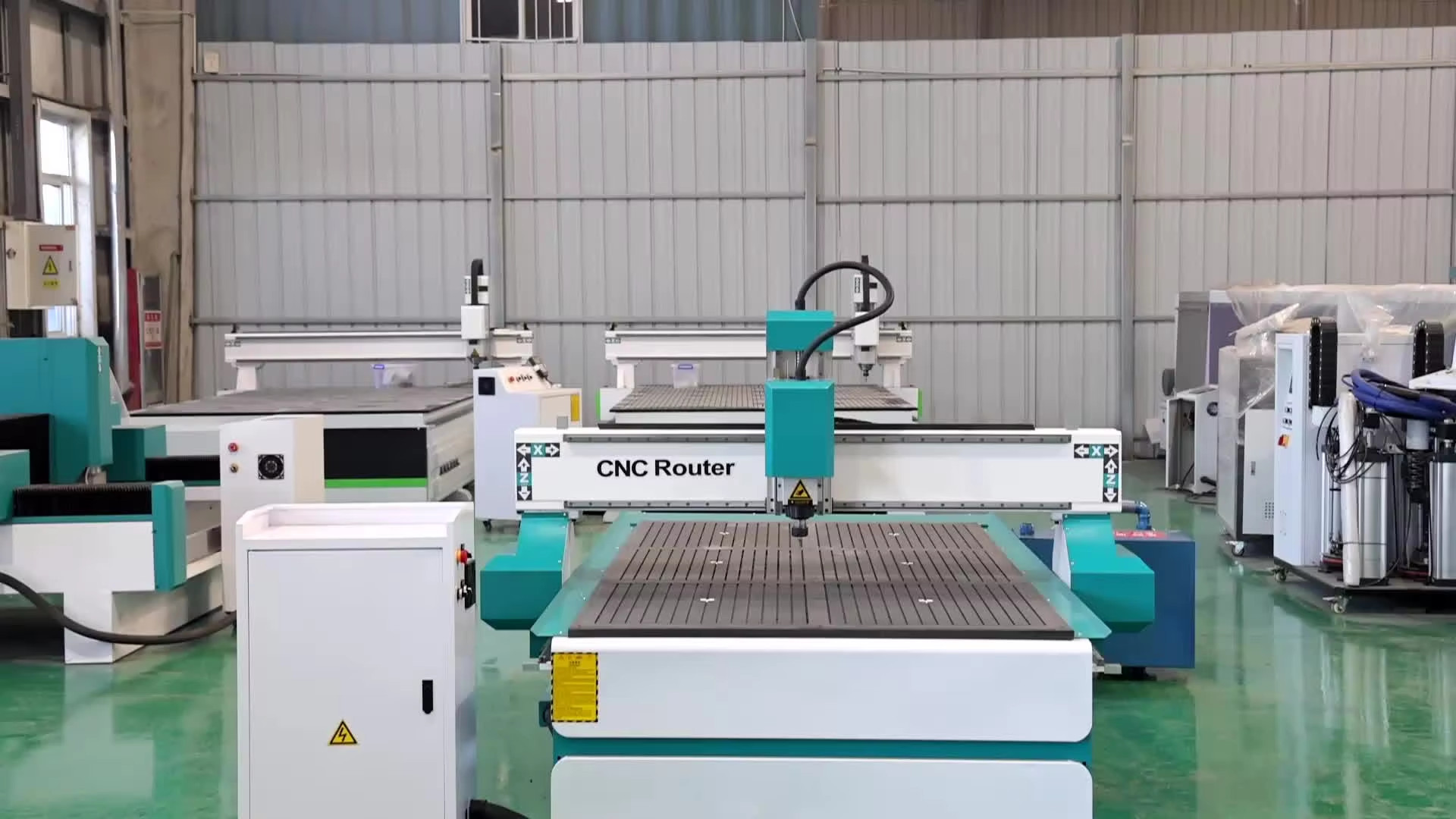

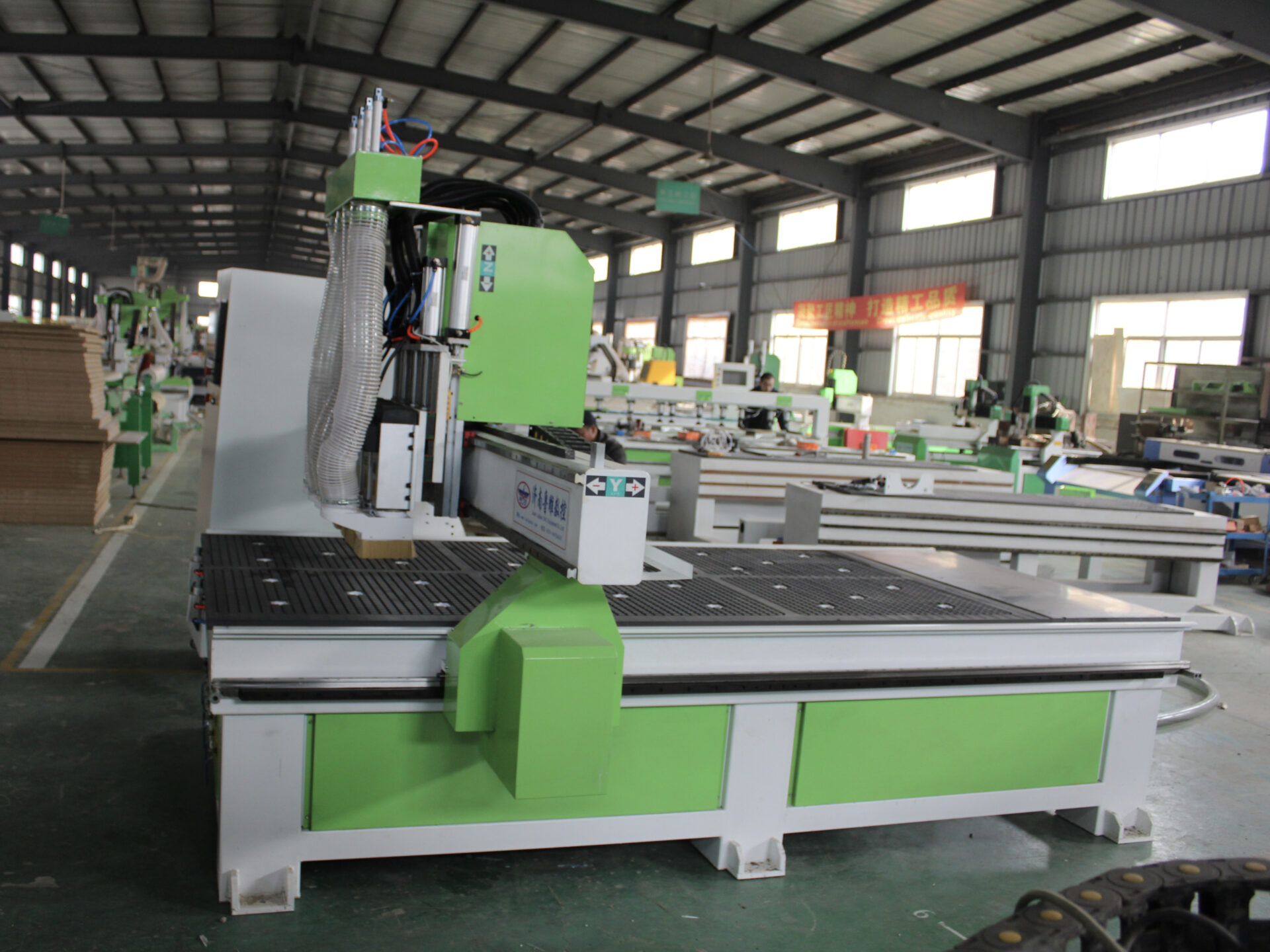

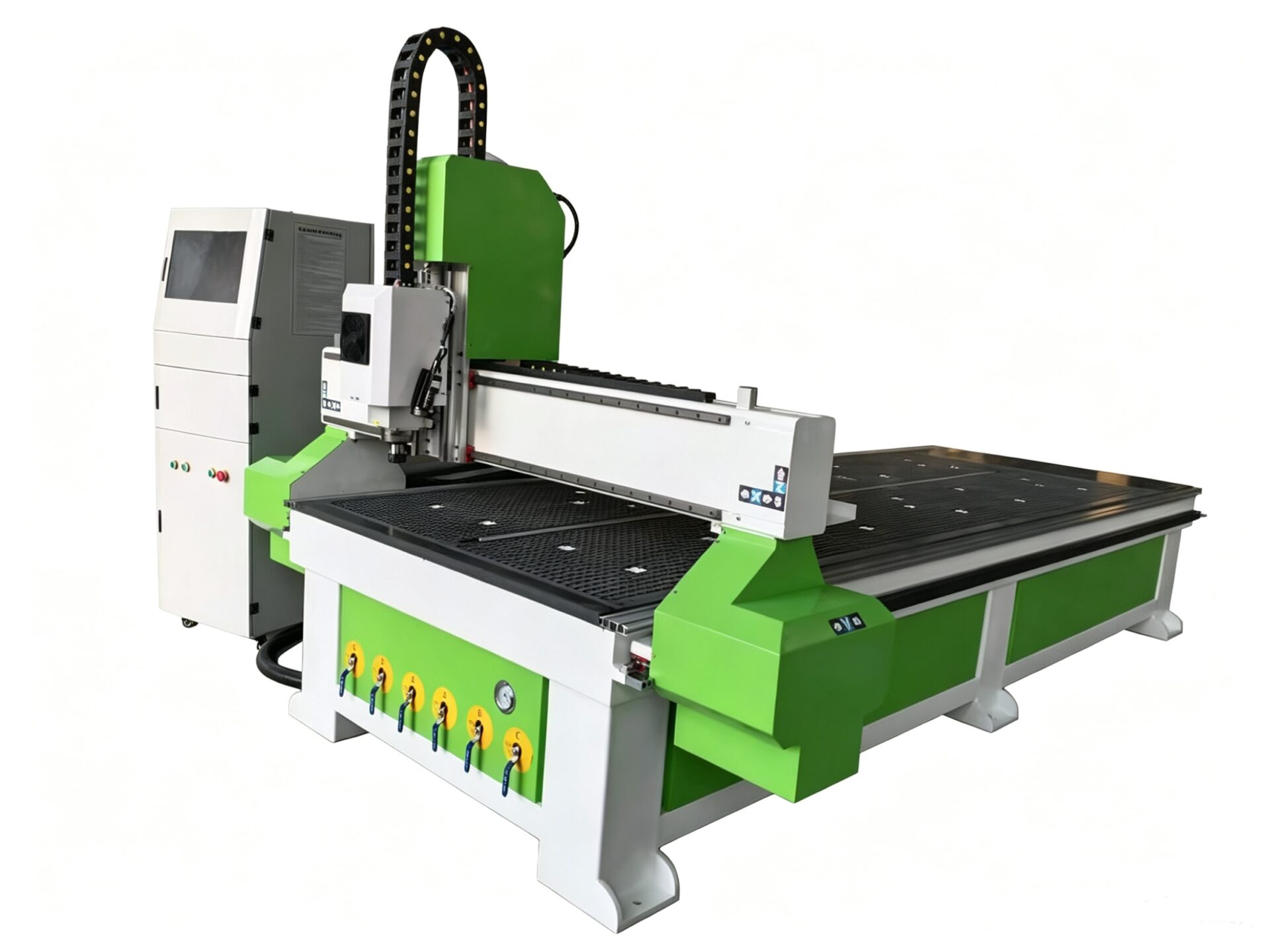

The 1325 CNC Router is the most widely used industrial computer-controlled cutting machine for handling standard full-size material sheets. The designation “1325” explicitly represents its physical working bed dimensions: 1300mm in width by 2500mm in length (which perfectly accommodates a standard 4×8foot sheet of material). It translates computer-generated G-code into precise multi-axis mechanical movements to mill, cut, and engrave materials at a commercial scale

Key Specifications and Features

• Standard Working Area: 1300×2500×200mm (fits standard 4ft × 8ft sheets of plywood, MDF, or acrylic).

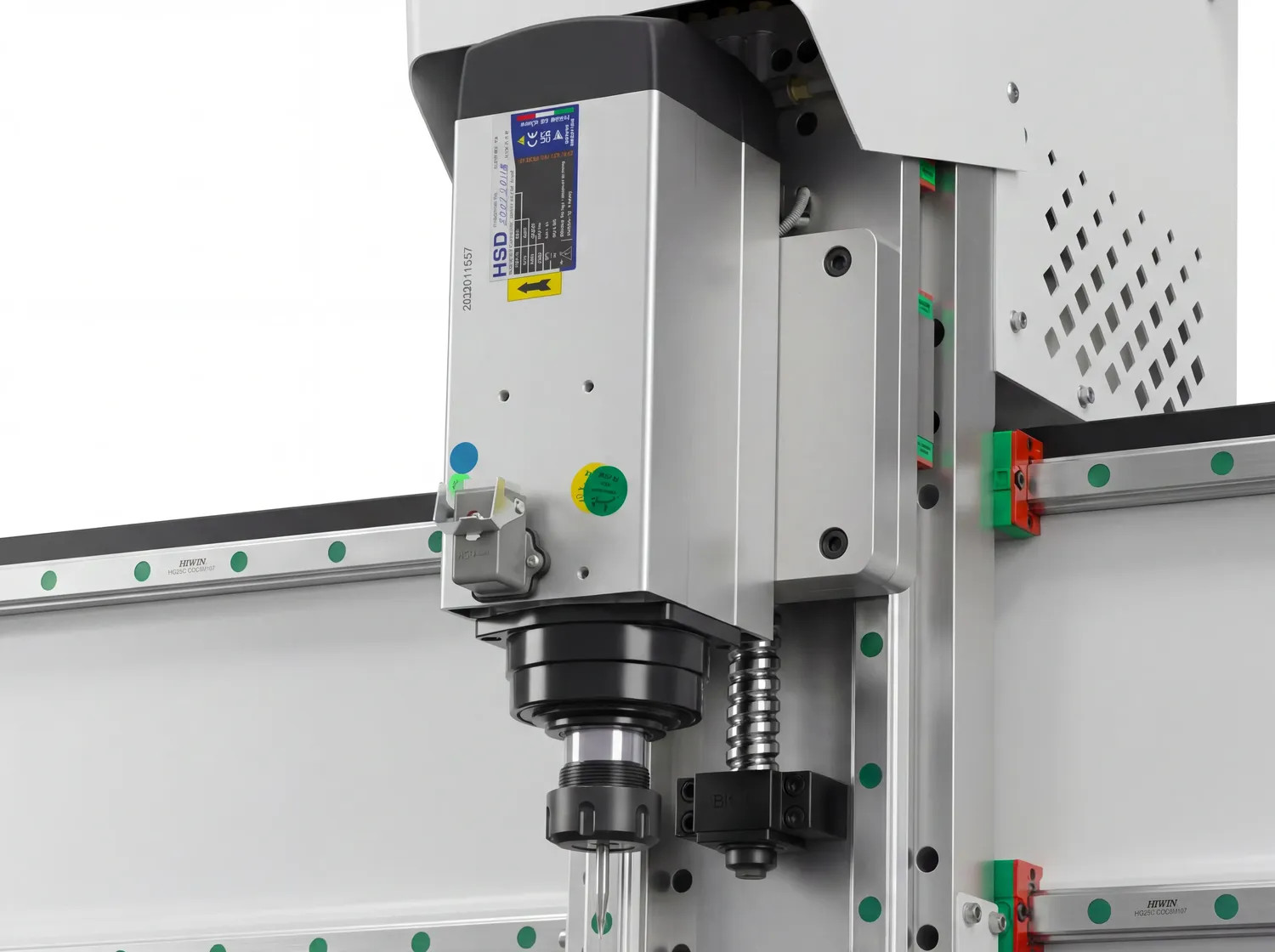

• Spindle Power: Typically equipped with 3.2kw up to 6kw spindles (water or air-cooled) for speeds up to 24,000RPM.
• Drive System: Utilizes stepper or servo motors and drivers.

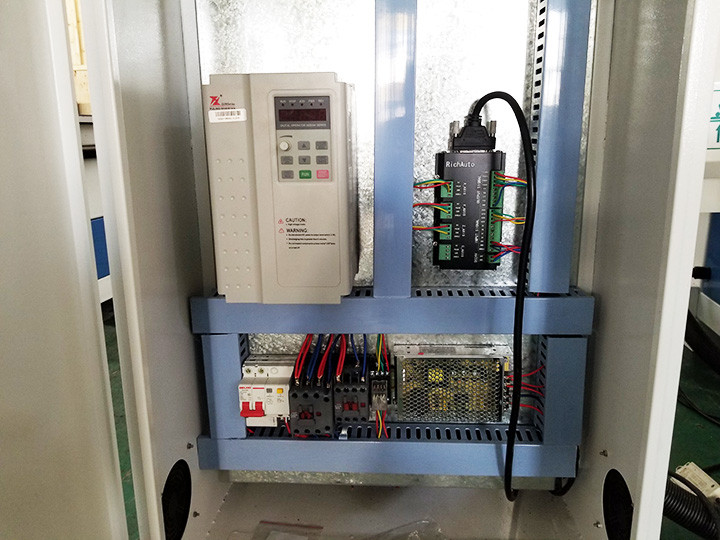

• Control Systems: Often operated via DSP controllers (like Richauto A11), computer-integrated NCStudio, or Mach3 systems that accept standard G-code.

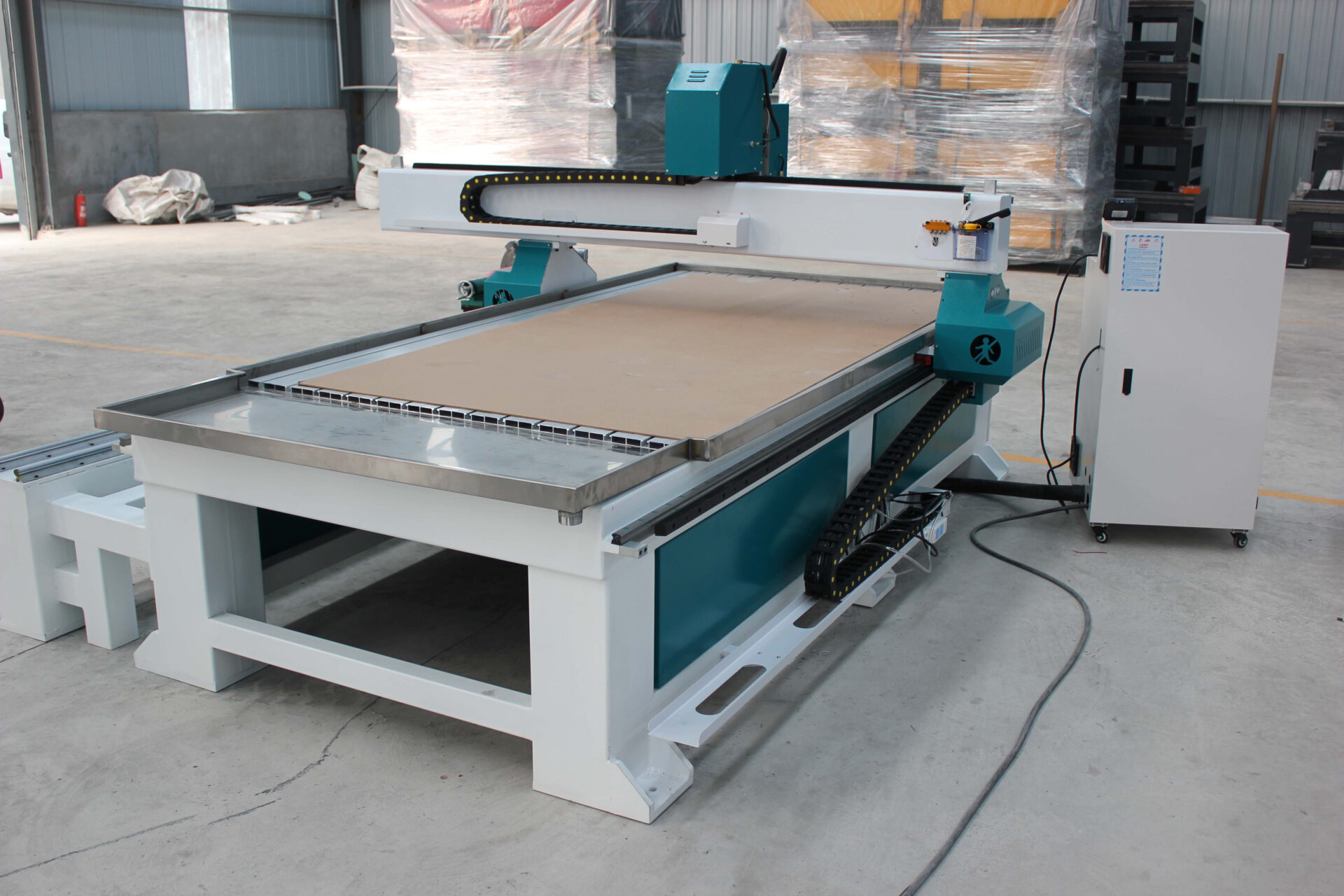

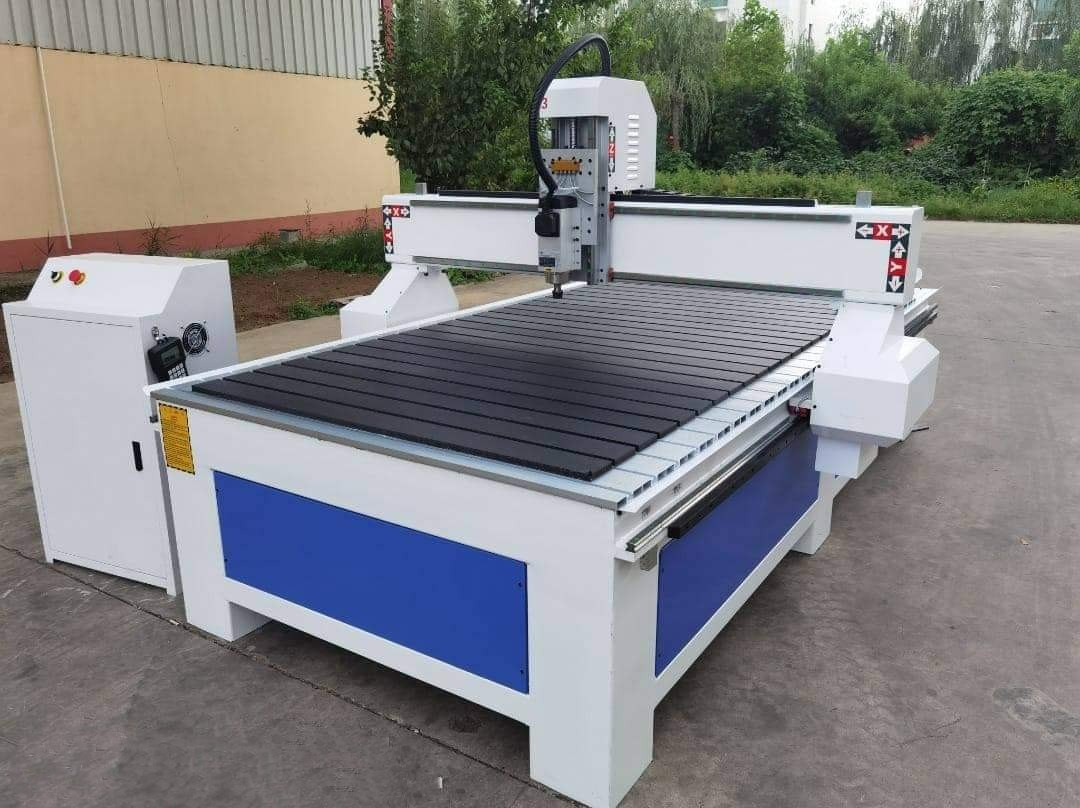

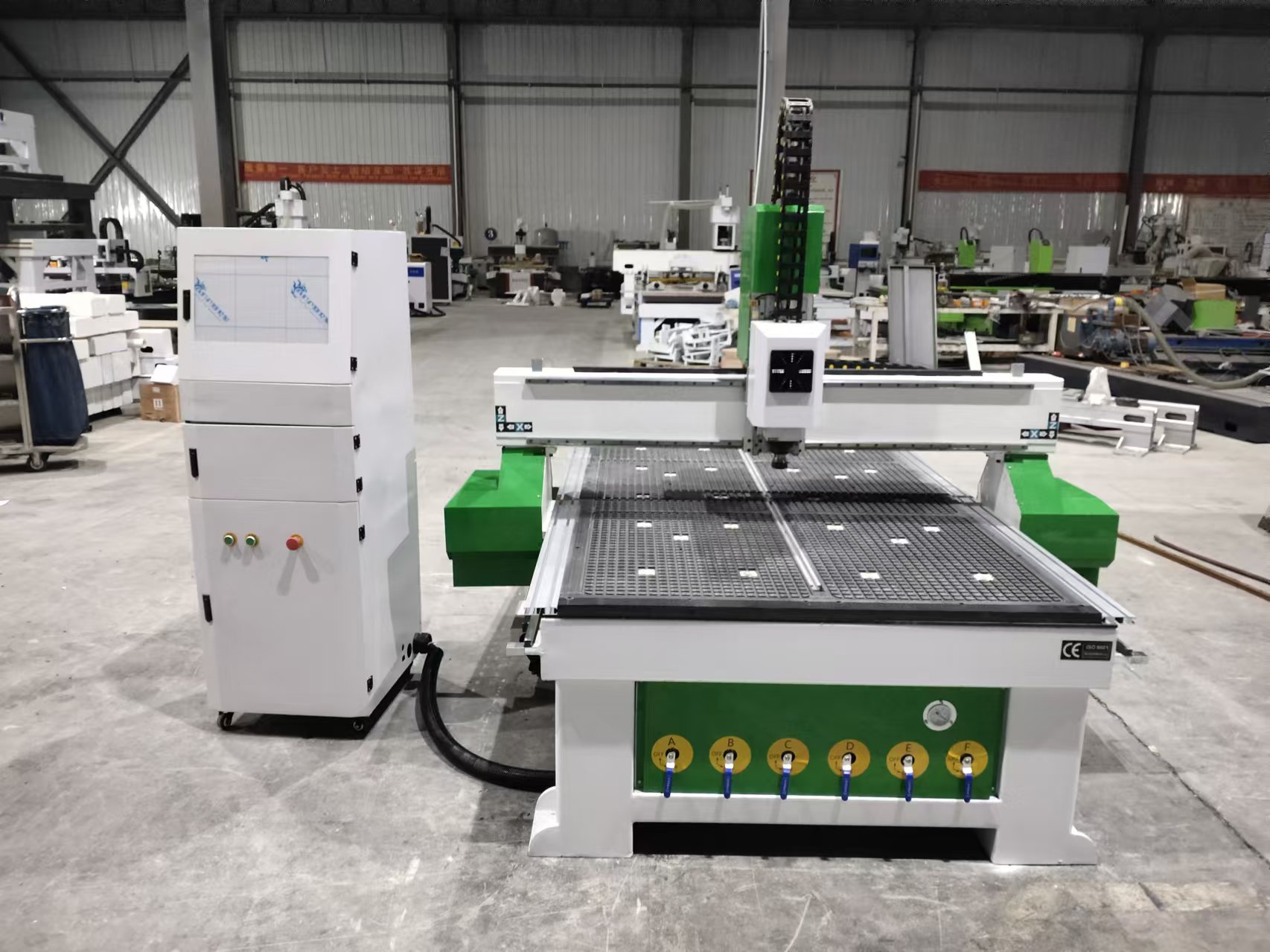

• Table Design: Usually features either an aluminum T-slot table (for clamping irregularly shaped parts) or a multi-zone vacuum bed (for holding down large flat sheets).

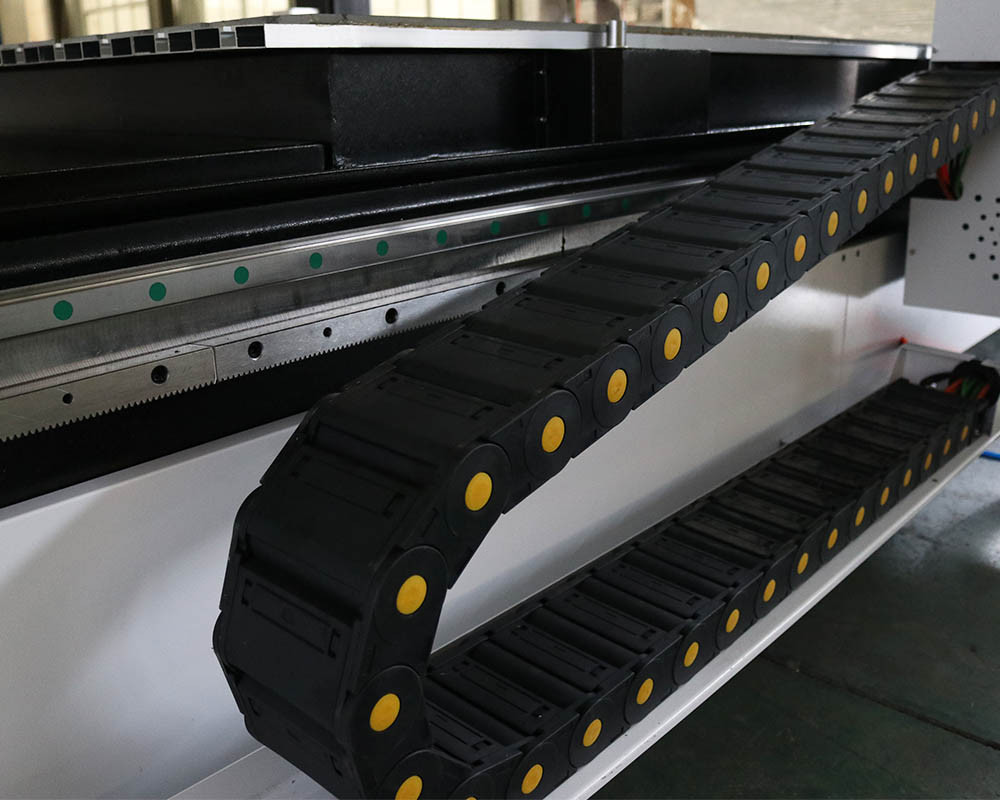

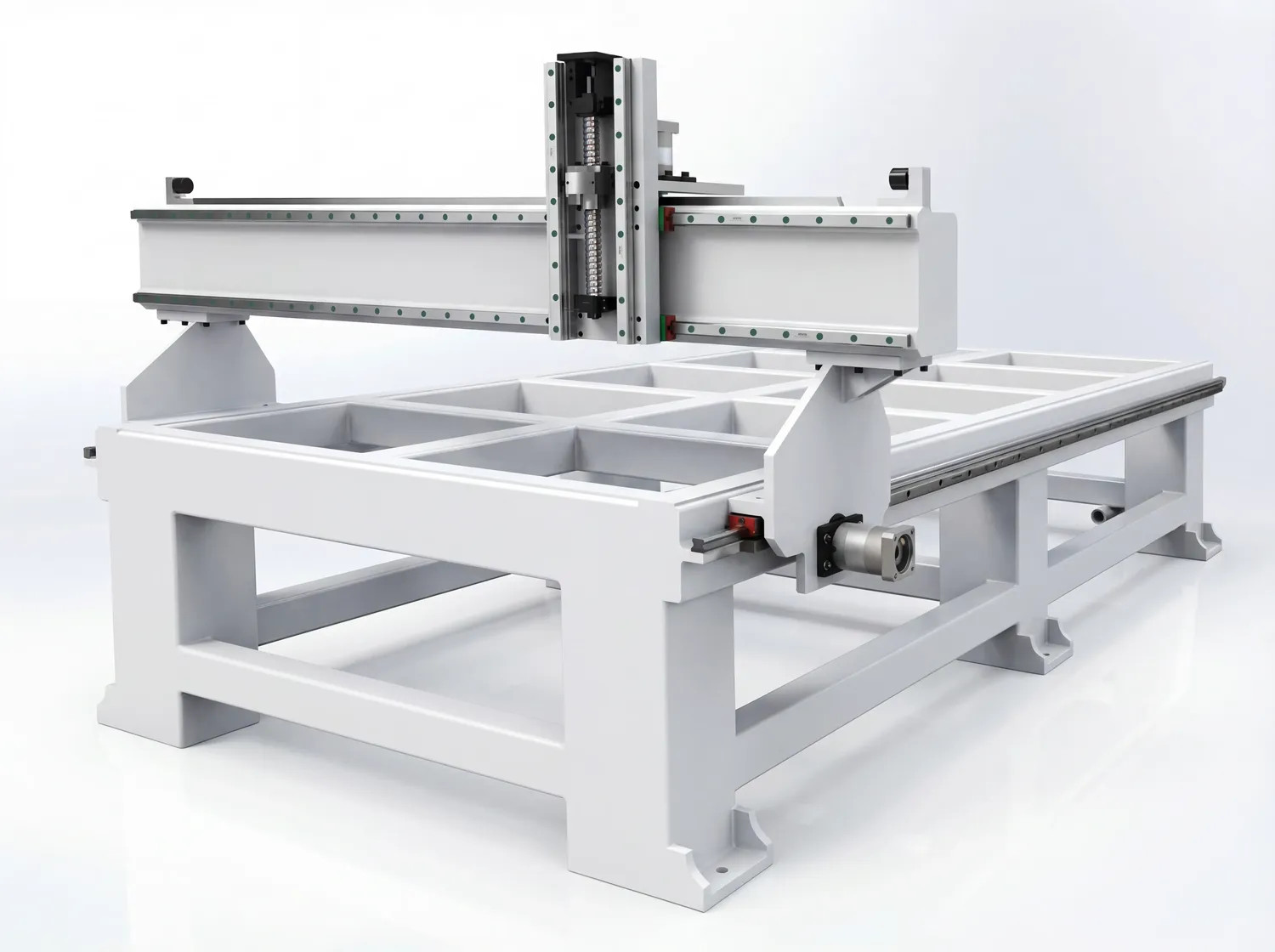

• Transmission Mechanics: Helical rack-and-pinion precision gears for the X and Y axes coupled with a highly accurate TBI ball screw drive system for the Z-axis vertical plunge.
• Linear Guiderails: Heavy-duty square linear guide rails (frequently sourced from premium brands like HIWIN).

Common Variations and Upgrades

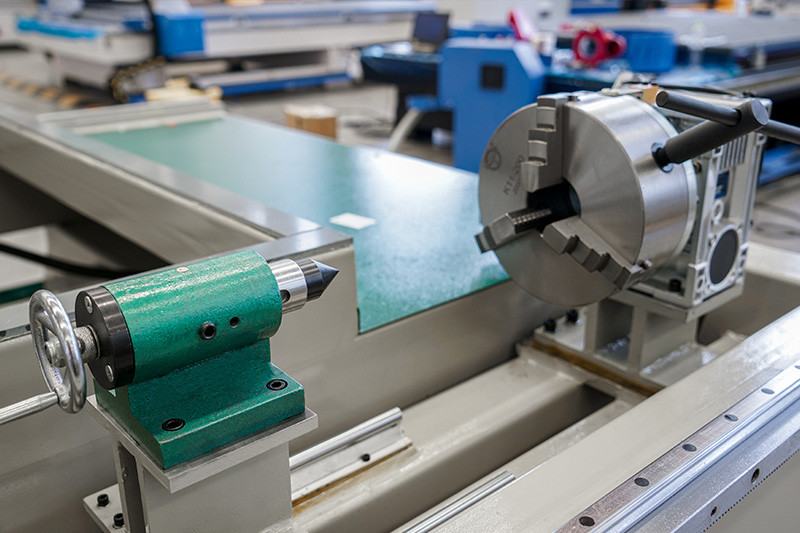

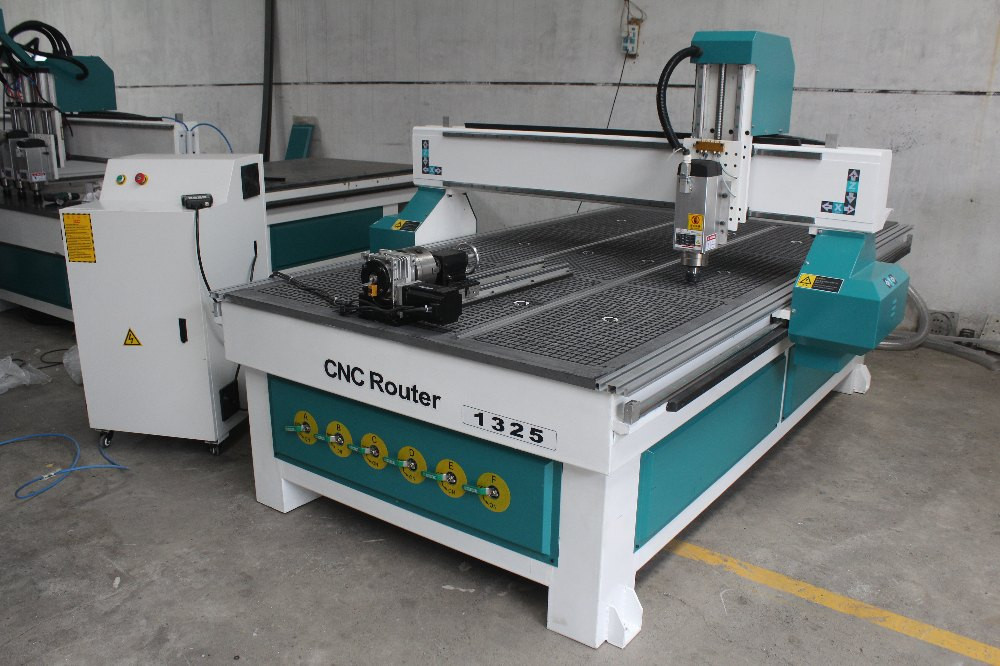

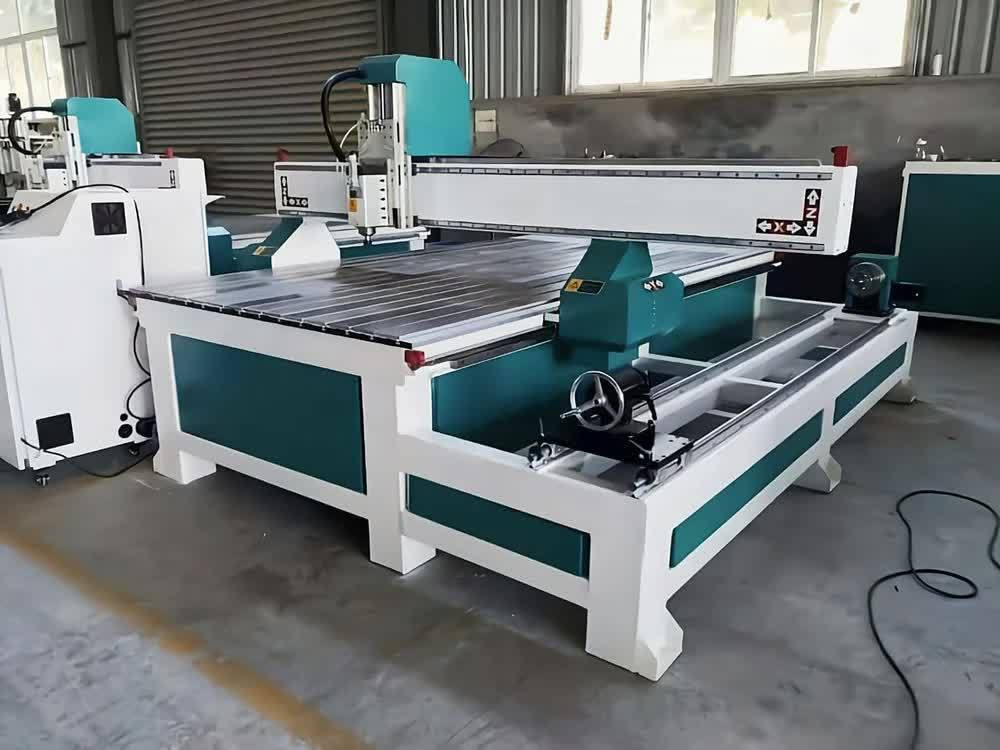

• 4-Axis (Rotary): Many 1325 models are configured with a 4th-axis rotary device along the length of the table, allowing them to carve 3D cylinders such as：stair railings, Roman columns, chair and table legs

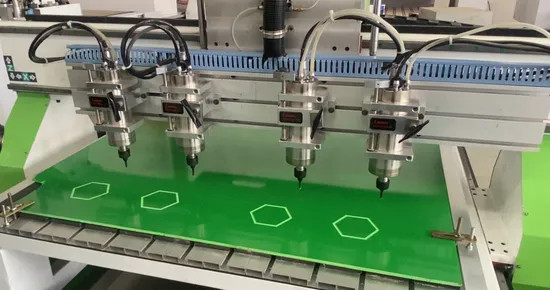

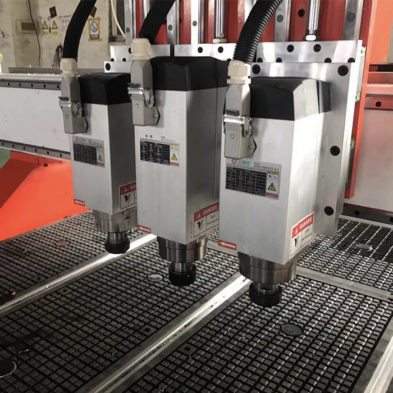

• Multi-Spindles Configuration: Sometimes, the CNC Router machine can be featured with multiple individual spindles working simultaneously to carve out identical duplicate parts, vastly scaling up factory throughput.

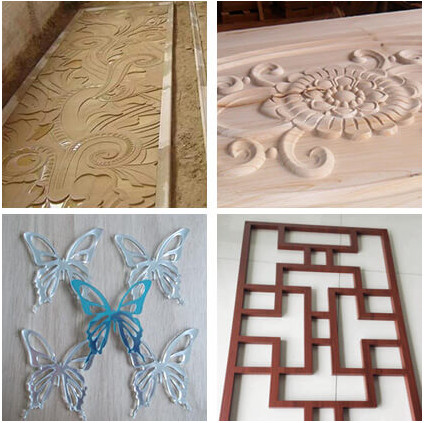

Main applications fields

The 1325 is a true workhorse, versatile enough to handle both 2D cutting and complex 3D carving:

• Cabinet and Furniture Manufacturing: Cutting, shaping, and drilling solid wood, MDF, and plywood for cabinets and furniture.
• Signage and Advertising: Engraving and cutting 3D lettering, logos, and custom displays out of acrylic, PVC foam, and soft metals (like aluminum).
• Arts and Crafts: Milling custom 3D molds, musical instruments, and decorative panels.
