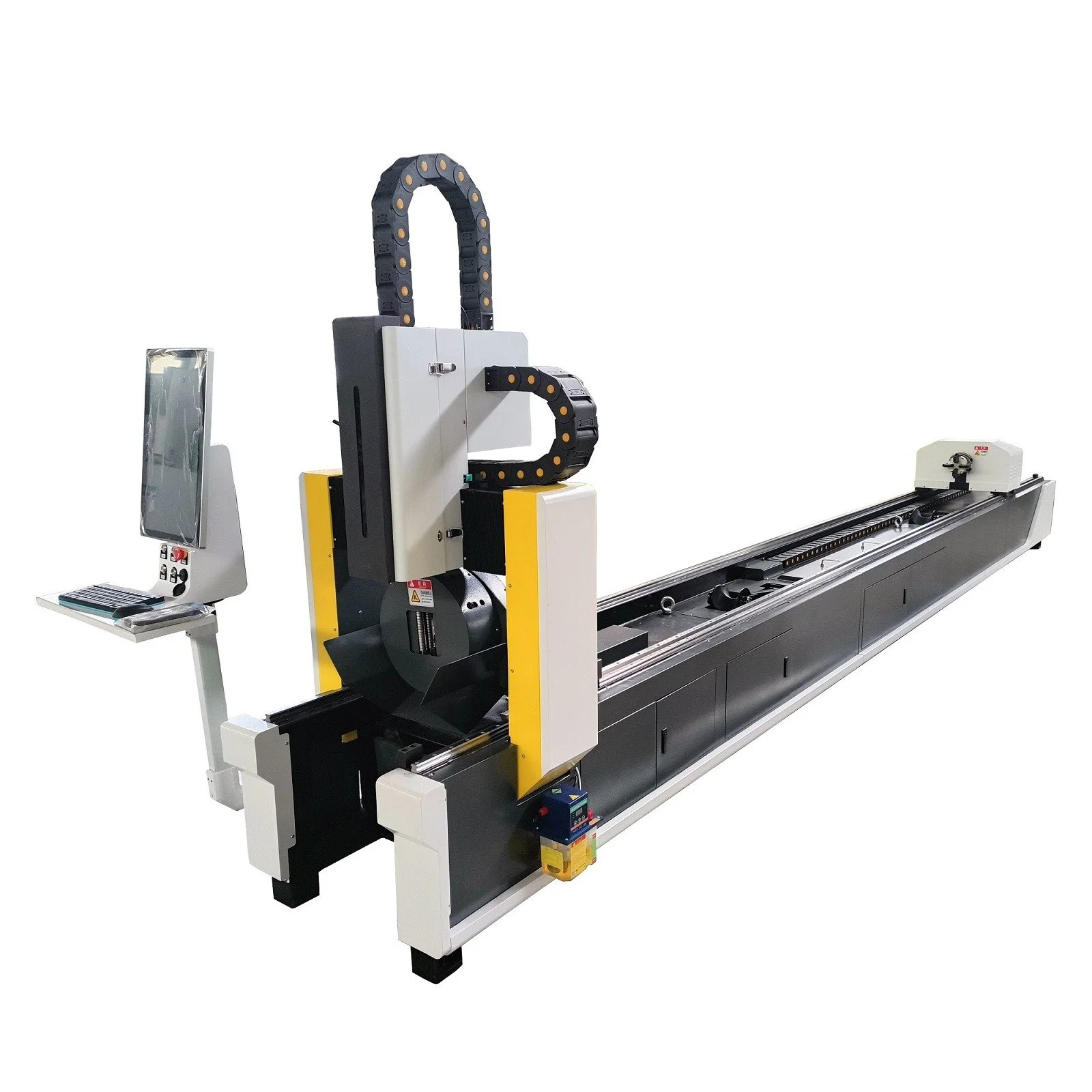

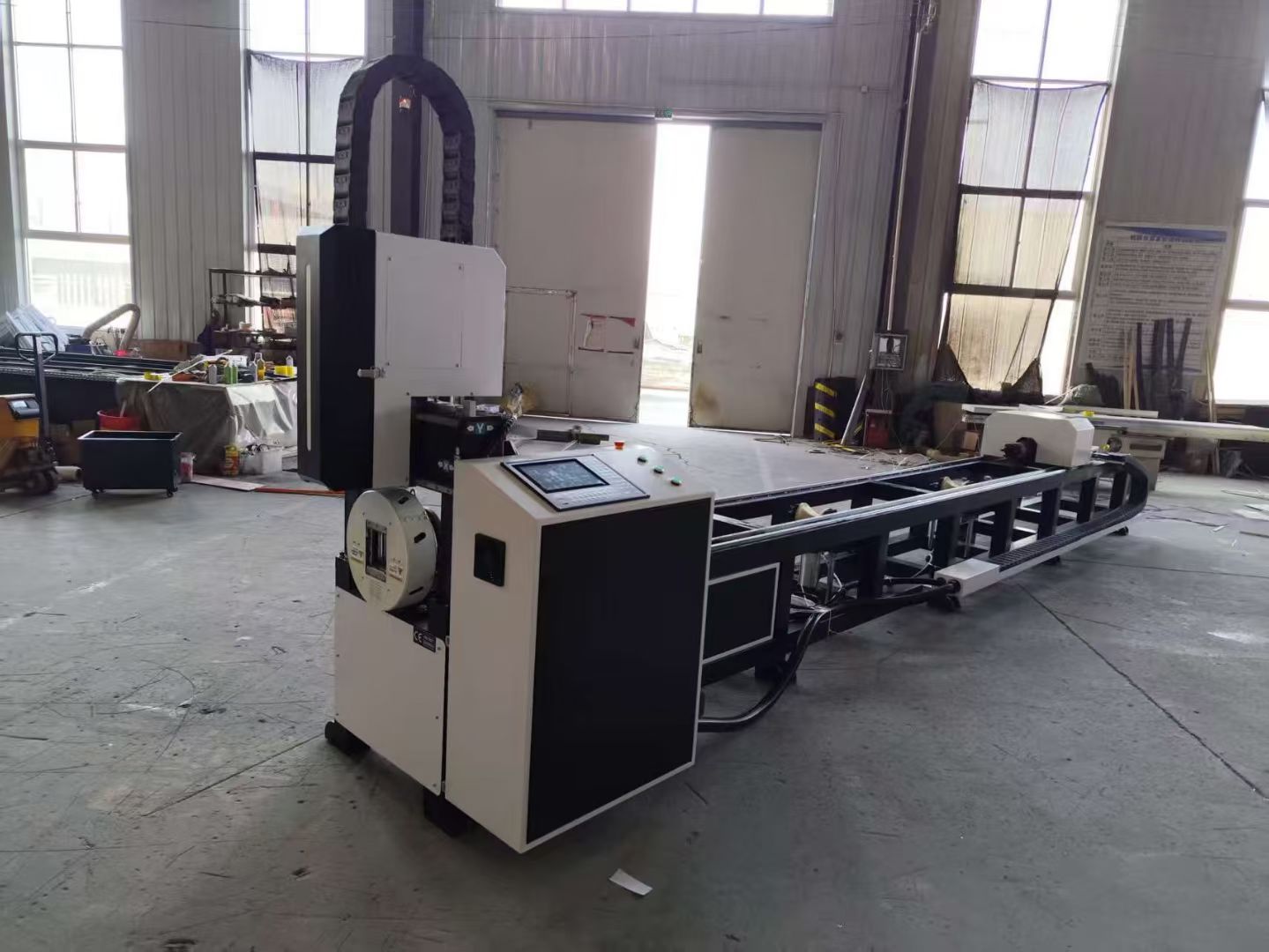

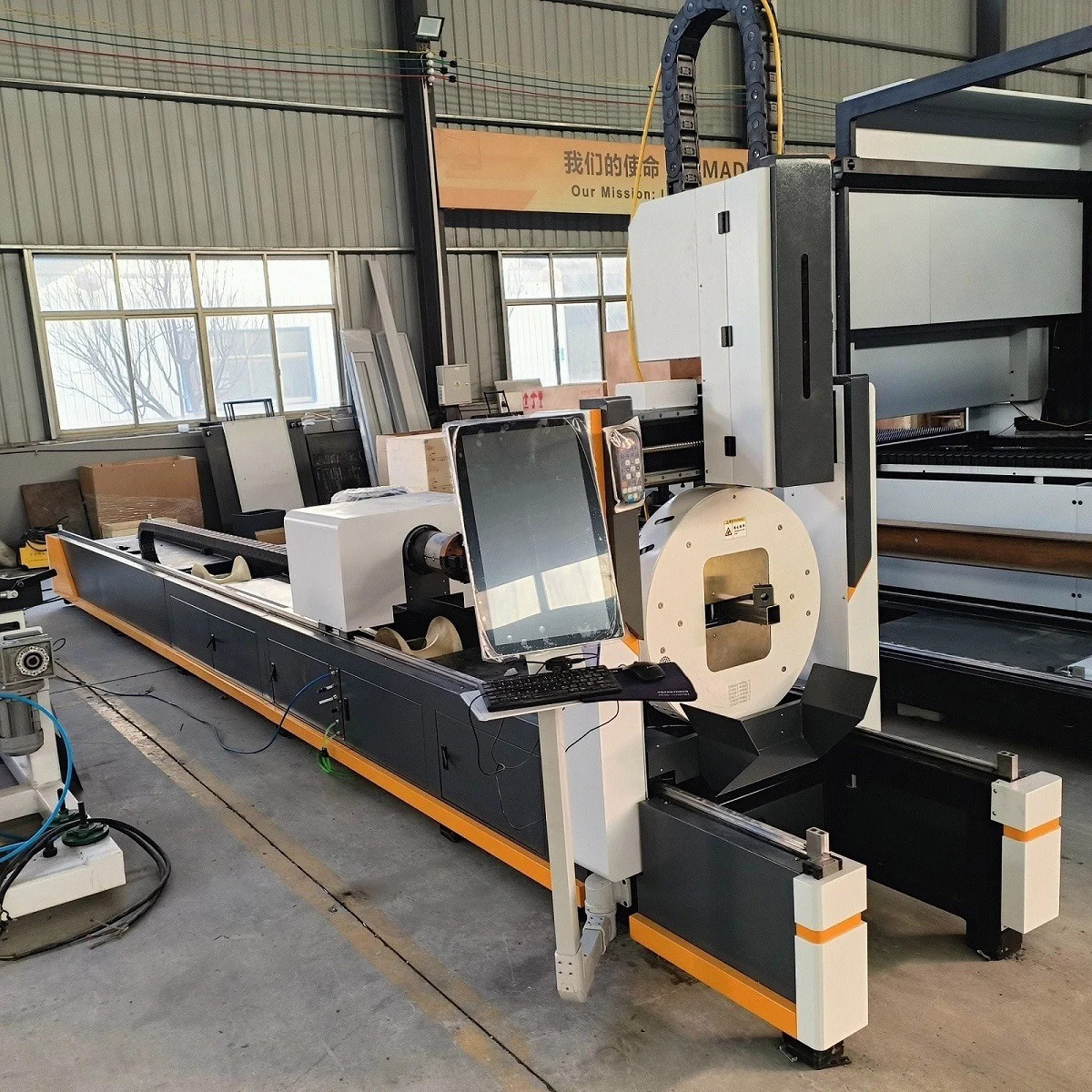

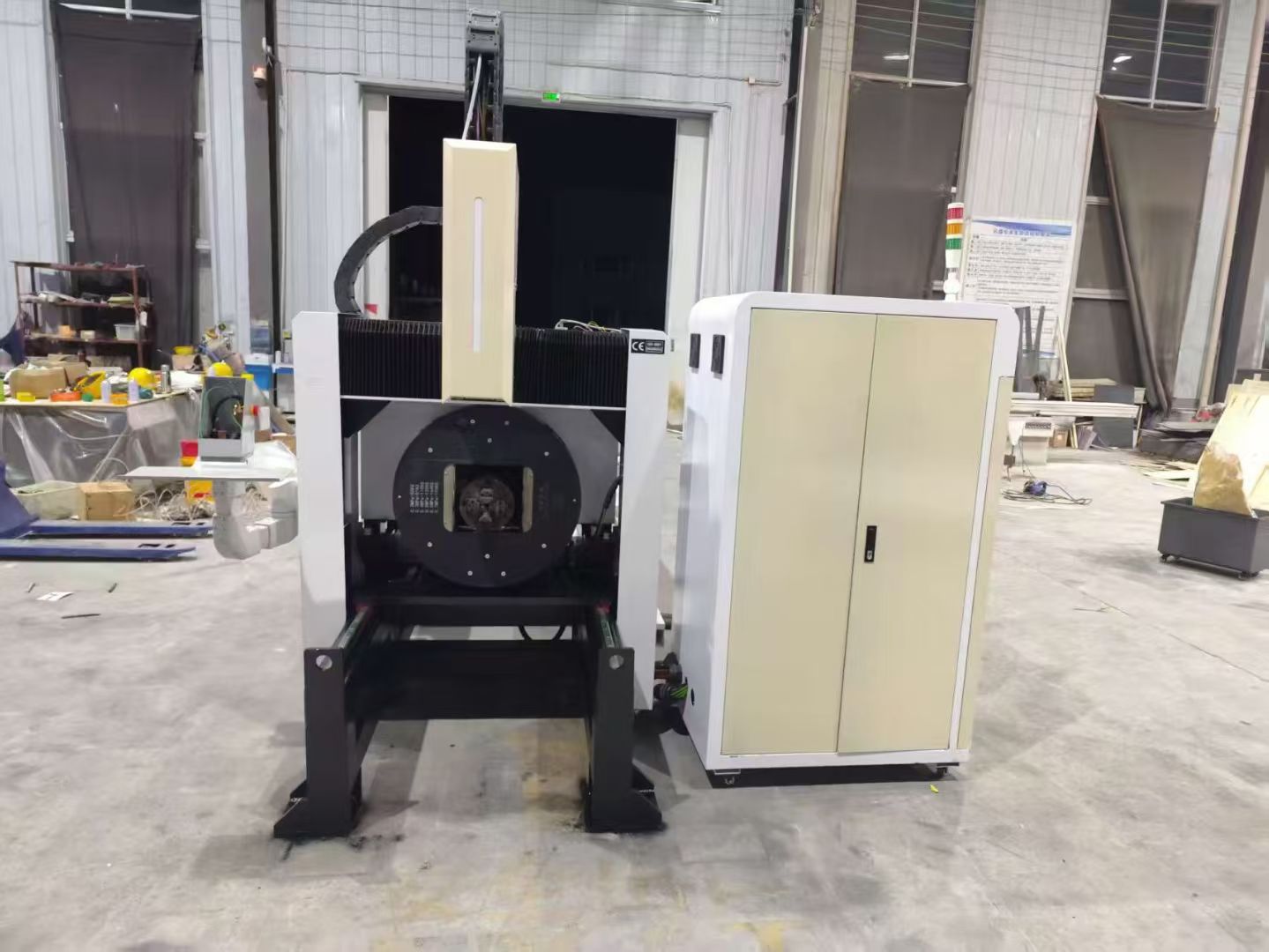

6-12 meters Length Tube and Pipe cutter Fiber laser machine
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
New Products
Product Details
A tube and pipe laser cutting machine is an advanced CNC industrial system engineered to perform high-speed, precise laser cutting on circular, square, rectangular, and special-shaped metal profiles. By combining Fiber laser power with rotating chuck systems, these machines eliminate traditional secondary processes like sawing, drilling, and deburring into a single automated operation.
Below is an overview of the technical specifications, component configurations, and functional features typically found in the English-export versions of these machines.
Core Capabilities and Benefits
- High Versatility: Automatically processes various cross-sections, including round, square, oval, H-beam, L-beam, and U-shaped channels.
- Intelligent Control: Utilizes specialized software (e.g., TubePro) for real-time adaptive centering, which automatically compensates for minor material deviations or bending.

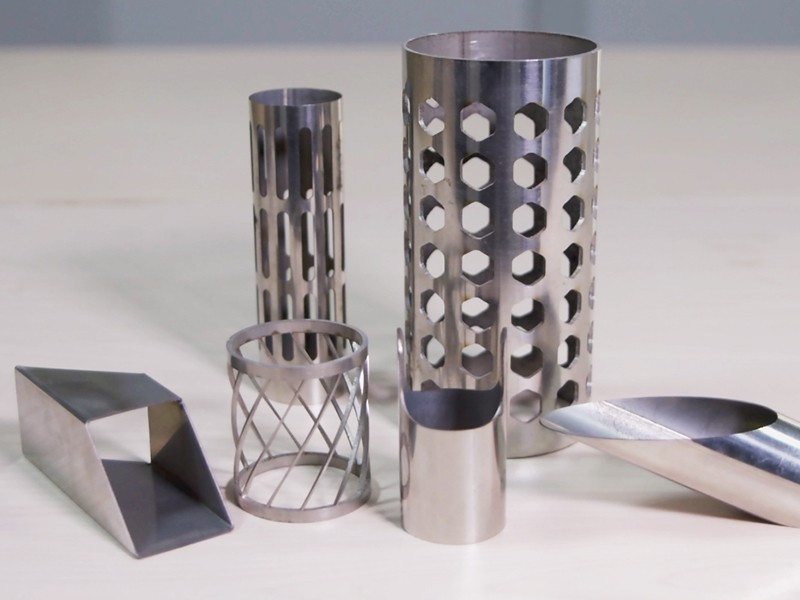

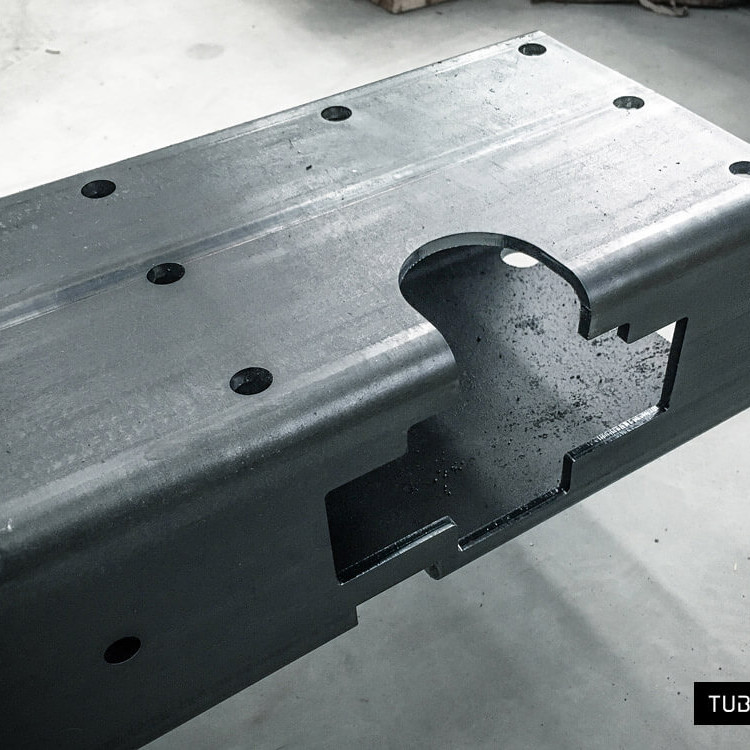

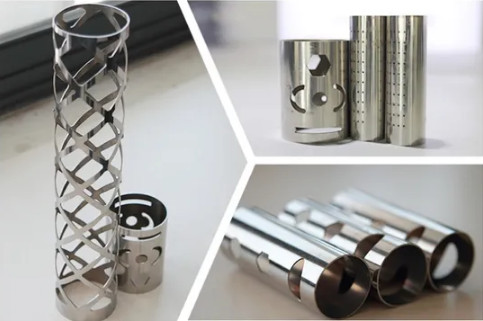

- Complex Geometry: Executes intricate designs including hole piercing, slotting, vertical cuts, and 3D angle bevel can cut up to 50 degrees for seamless welding preparation.
- Zero Mechanical Distortion: The contactless nature of the laser ensures the tube wall faces no physical deformation during processing
| DETAILED PARAMETERS OF THE MACHINE | |
| Model | JST Fiber Laser Cutting Machine |
| Tube Length | 6000 mm / 12000mm |
| Rotary Pipe Diameter | 20 mm to 220 mm (Up to 320 mm optional depending on customer’s requirements |
| Beam structure | Aluminum profile beam, processed by CNC machine tools, with high precision and good stability. |
| Laser source power | 1.5KW-20KW |
| Laser source brand | MAX / RAYCUS |
| Laser head | Raytools auto focus laser head / BOCI laser head |

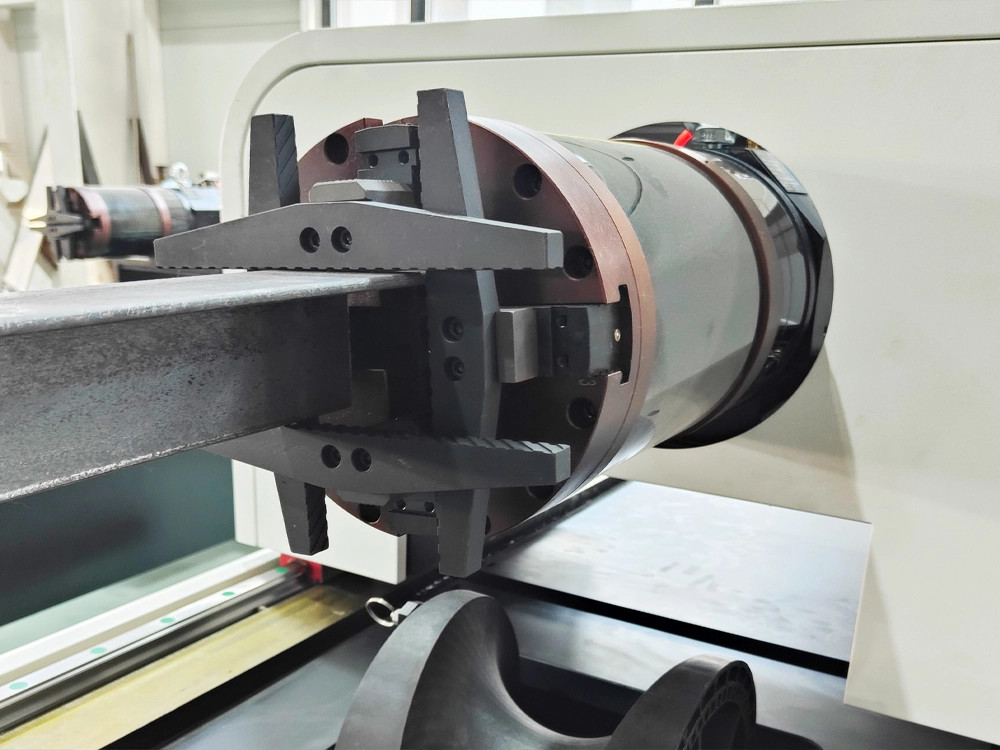

| Chuck Configurations | Double pneumatic chucks |
| Control system | CypCut / TubePro |
| Motor and driver | Japan Fuji servo motor and drive |
| Reducer | Japan Shimpo reducer |
| Guide rail | High quality Taiwan brand 25mm guide rail |
| Rack | Taiwan YYC or Taiwan J&T rack (Taiwan) |
| Main electrical components | Schneider Electricals |
| Water cooler | 1.5KW-20KW S&A or HANLI water cooler |
| Air circuit | Japan SMC proportional valve |
| Pneumatic Road | Japan SMC proportional valv |
| Lubrication system | Full automatic lubrication system |
| Performance Indicators | Maximum acceleration 1.2G; maximum operating speed 100m/min ; Machine accuracy: 0.05mm |
| Working Voltage | 380V 50/60HZ 3phase |
| Repositioning Accuracy | ±0.01 mm to ±0.02 mm |
| Maximum Acceleration | 1.2G to 1.5G |
| Max Linkage Speed | 120 m/min to 140 m/min |
| Air compressor | 15KW-22KW Air compressor included |
| Machine weight | 2200KGS |
| Martials | Carbon steel, Stainless steel, Aluminum, Brass, Copper, Galvanized steel |
|
After-sales service |
1. 2 Year warranty for the full set machine
2. Provide machine installation video 3. English machine installation and operating guide 4. 24h/7 online technical support whenever needed via WhatsApp or Wechat |
