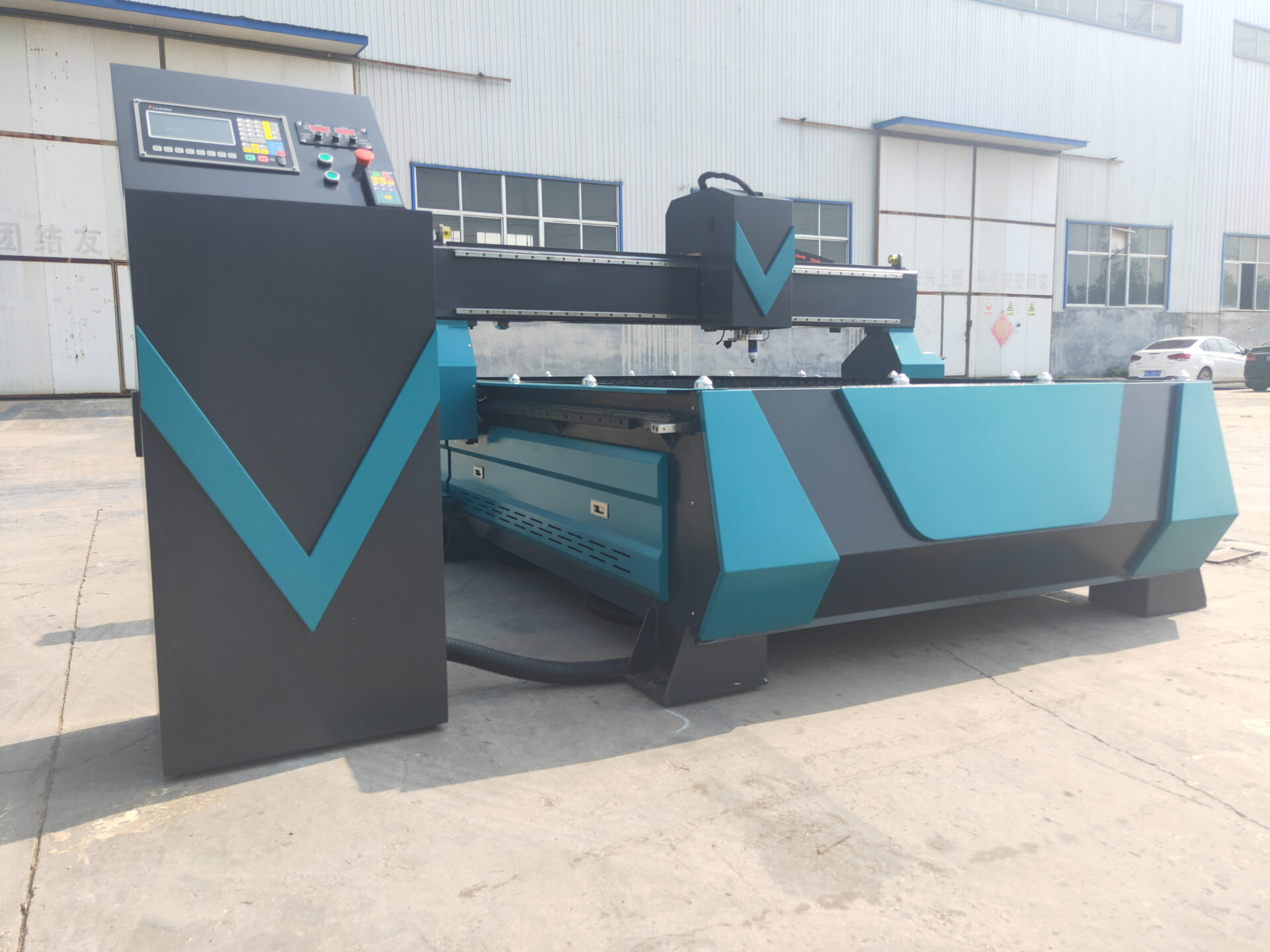

Desktop Type 1530 Plasma Cutting machine for metal materials

The 1530 Desktop Plasma Cutting Machine is an industrial-grade CNC (Computer Numerical Control) system. The “1530” designation refers to its physical working area of 1500mm×3000 mm, making it ideal for processing standard sheet metals while maintaining a highly accessible, space-saving footprint.

Core Specifications

• Effective Cutting Area: 1500mm (Width) x 3000 mm (Length)
• Cutting Thickness: 0.5 mm up to 30 mm (Highly dependent on the amperage of the plasma generator)
• Max Travel Speed: 10,000 mm/min to 18,000 mm/min
• Cutting Speed: 50 mm/min up to 7000 mm/min (based on material thickness)
• Drive Motors: High-torque stepper motors or AC Panasonic/Yaskawa servo motors.
• Guide Rails: Linear square guide rails (HIWIN or PMI) for smooth movement.
• Plasma Power Source: Typically equipped with 63A, 120A, 200A and 300A generators (brands like China Huayuan or USA Hypertherm)
• Torch Height Control (THC): Automatic arc-voltage height sensor to maintain the optimal distance between the torch and warped material, ensuring precision and preventing torch crashes
• Working Voltage: 3-phase 380V (or custom 220V/440V), 50/60Hz

Control System

• Controllers: Often utilizes industry-standard systems like Starfire, Fangling (F2100B), or Start
• Software: Usually bundled or compatible with FastCAM or StarCAM nesting software
• File Format: Accepts standard G-code and reads DXF/DWG formats directly from CAD/SolidWorks
• Features: Built-in libraries of standard geometric shapes (Macros), automatic nesting to reduce material waste, and coordinate memory storage so the machine can recover its exact cutting path after a power outage

Dimensions and Structure

• Machine Dimensions: Roughly 1850mm (Width) x 3800mm (Lenth) x 1500mm (Height)
• Machine Weight: Approx. 1000 kg to 1300 kg (depending on the weight of the water table)

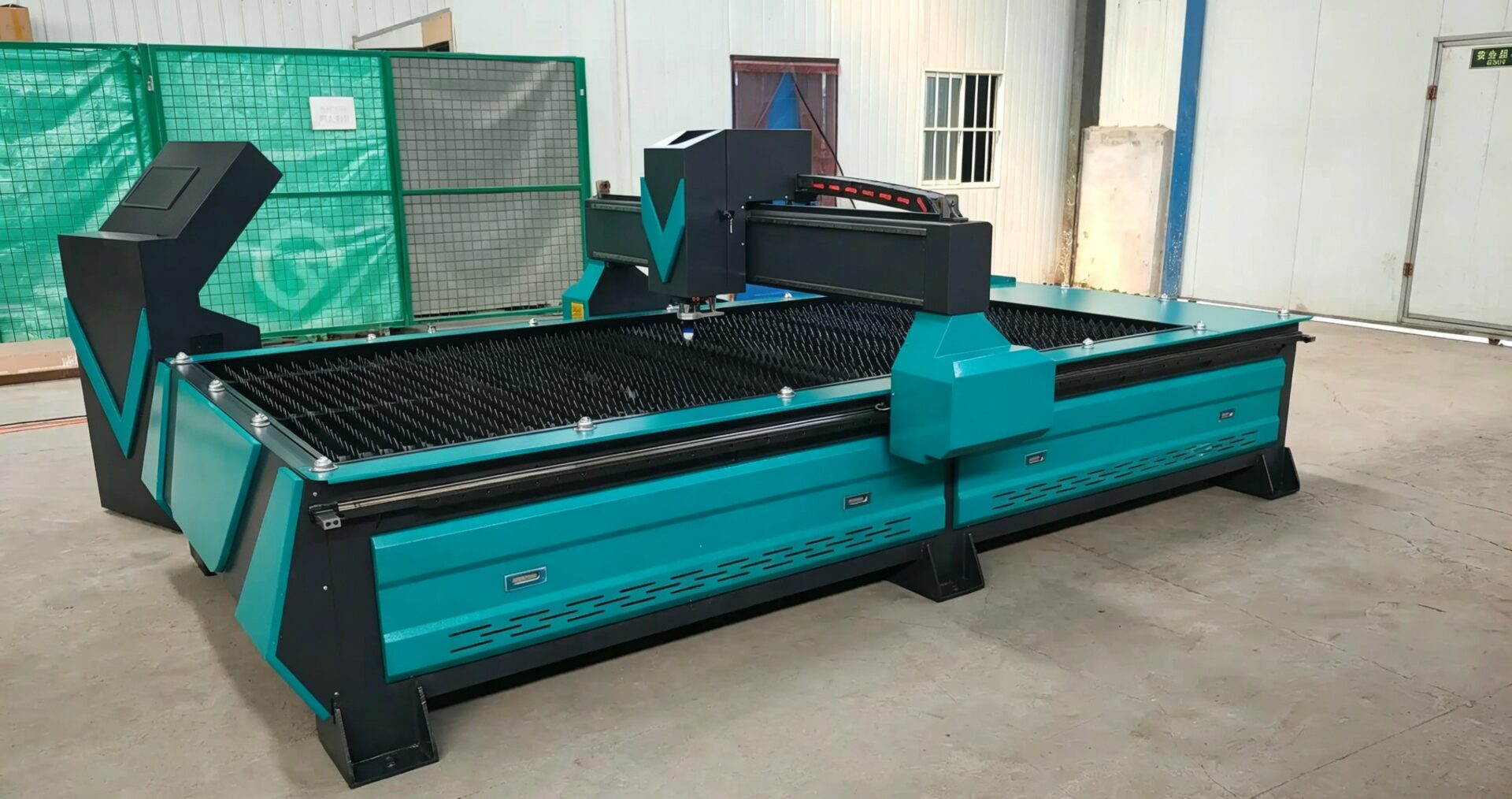

• Table Design: Heavy-duty square tube welded frame with a sectional water table (to minimize fumes) or a down-draft exhaust table

Applicable Materials

This machine can process any conductive metal:

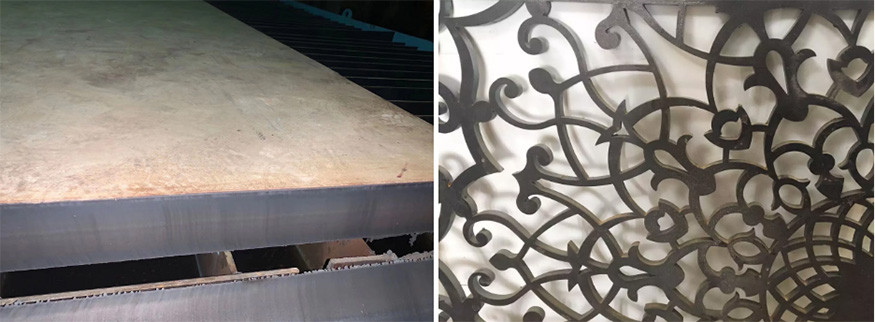

• Carbon Steel / Mild Steel: The most common material; cuts smoothly up to thick plates.
• Stainless Steel: Requires precise gas setting (often nitrogen or mixed gas) to prevent edge discoloration.
• Aluminum: Cuts quickly but leaves minor dross; optimal with specialized plasma torches.
• Galvanized Sheet / Copper / Brass: Easily handled using adjusted cutting speeds and voltages

Application Fields

The 1530 size is the industry standard for versatile sheet metal fabrication across numerous sectors:

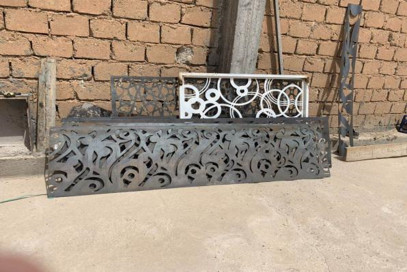

• Advertising and Signage: Cutting intricate metal letters, custom logos, logos, and decorative panels.
• Automotive and Shipbuilding: Fabricating chassis parts, custom car brackets, motorcycle frames, and ship plate sections.
• Machinery Manufacturing: Creating structural brackets, agricultural equipment components, and industrial enclosures.
• HVAC Fabrication: Mass-producing ductwork, ventilation bends, and custom metal fittings.

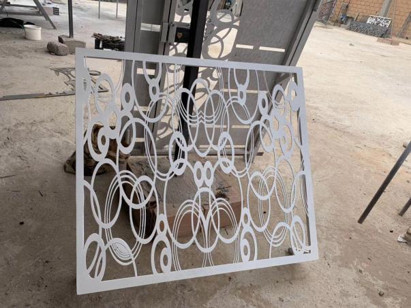

• Architectural Ironwork: Manufacturing custom gates, security screens, steel staircases, and artistic metal facades
