Product Details

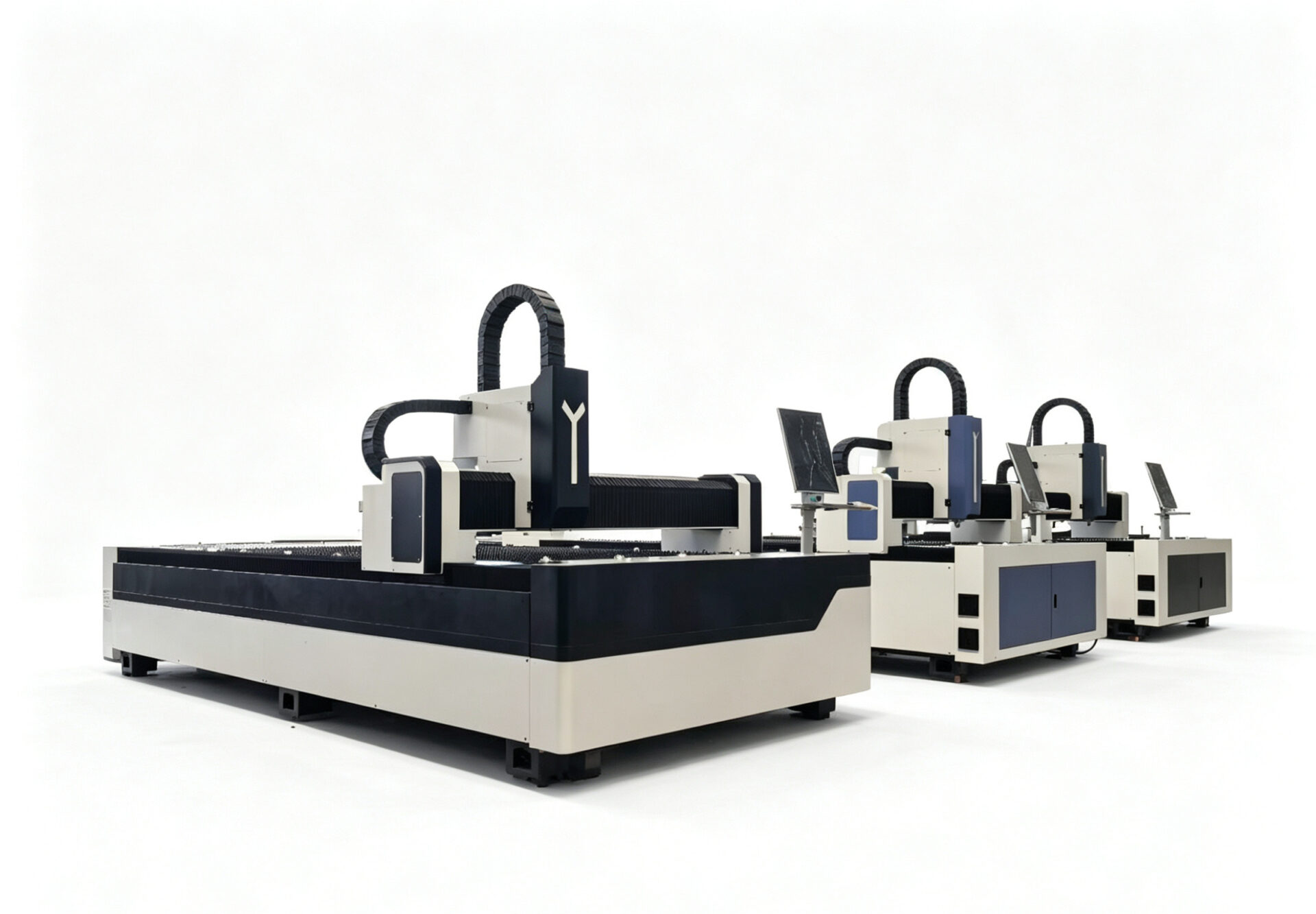

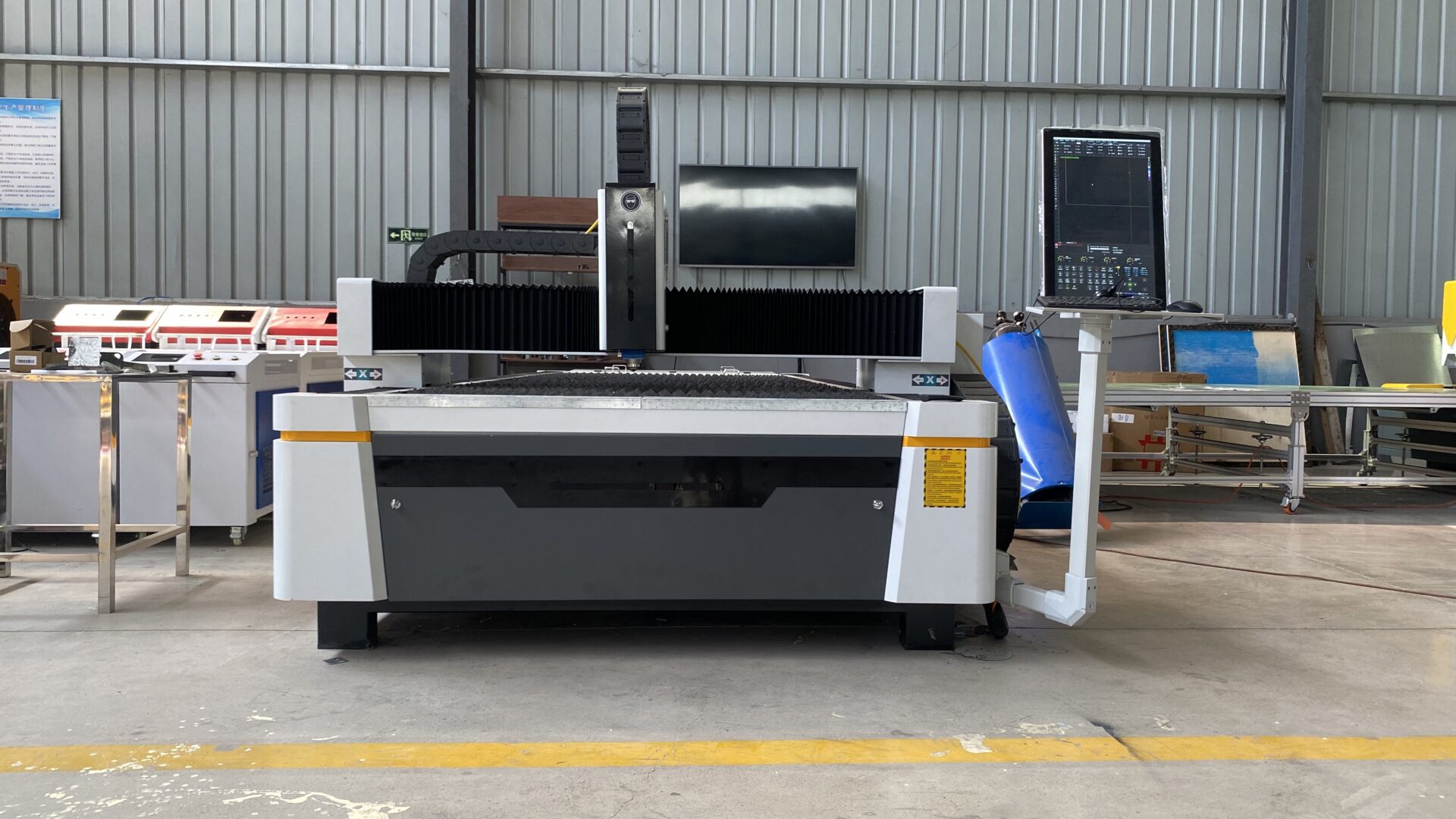

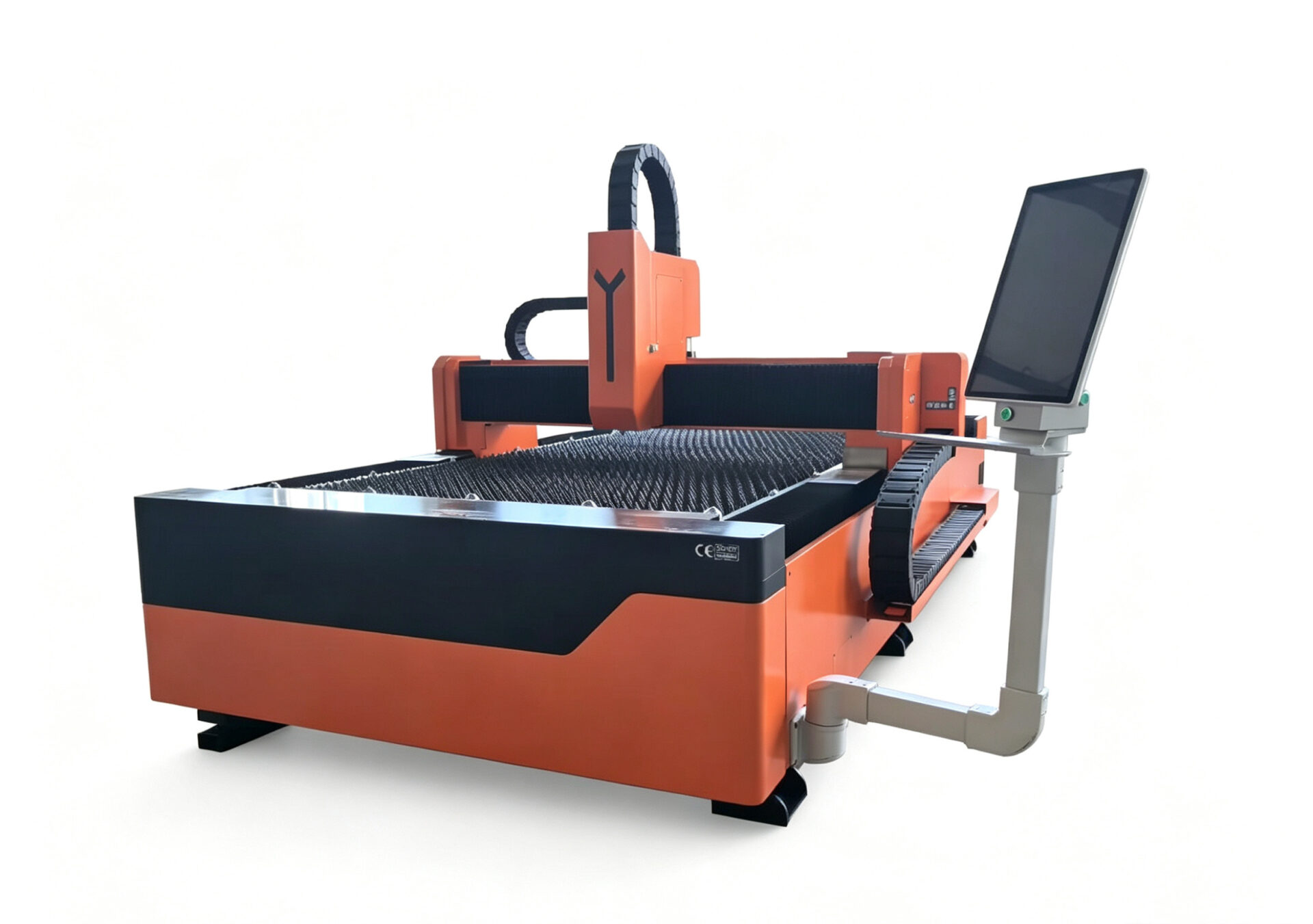

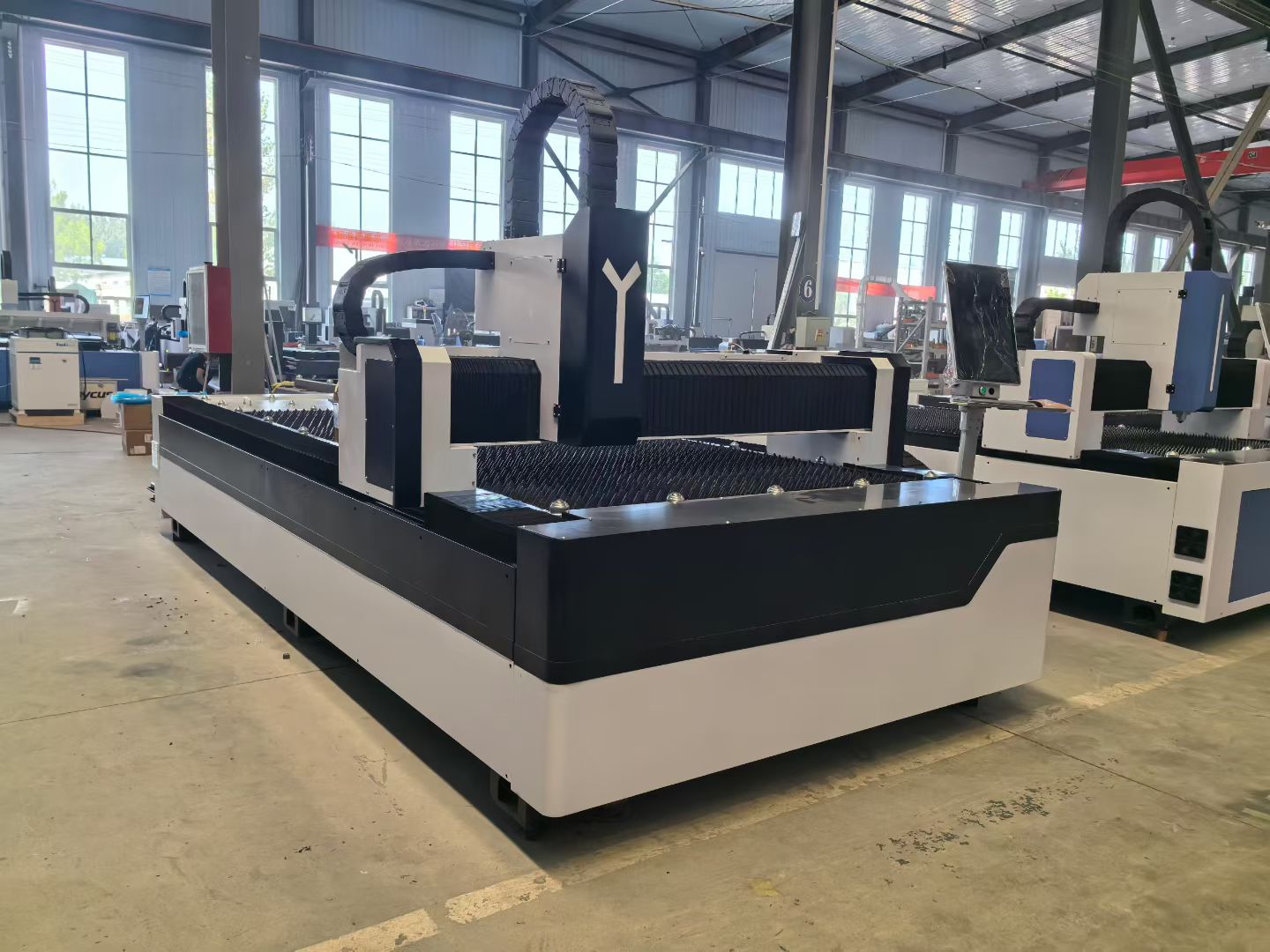

The term 3015 in a laser cutting machine designates the industry-standard sheet metal processing bed dimension of 3000 mm × 1500 mm (approximately 10 ft × 5 ft).
These industrial CNC machines are primarily built as high-precision fiber laser systems tailored for sheet metal fabrication.
Core Technical Specifications
- Working Area: 3000 mm × 1500 mm flatbed. Optional rotary axis attachments are available for processing cylindrical pipes and tubes.
- Laser Power Spectrum: Generally, ranges from 1500W (1.5 kW) up to 20,000W (20 kW) depending on manufacturing requirements.
- Kinematics & Speed: Uses gantry double-drive rack & pinion mechanics paired with precision servo motors, reaching rapid movement speeds of 80 m/min to 150 m/min.
- Accuracy: Features industrial mechanical positioning accuracy down to ±0.03 mm/m and a repeatability precision of ±0.02mm.
English Version Software & Control Ecosystem
Industrial 3015 cutting systems rely on computerized English numerical control interfaces. The primary software platforms pre-configured for global markets include:
- CypCut / HypCut (Shanghai Bochu): The standard English-language software suite featured on a majority of 3015 machines. It handles automated graphic processing, advanced visual nesting to maximize material utilization, and laser trajectory control.
- Global CAD/CAM File Formats: Native English software versions seamlessly process standard vector files including DXF, AI, PLT, DWG, and CNC code generated from third-party suites like AutoCAD, SolidWorks, or Illustrator.
| DETAILED PARAMETERS OF THE MACHINE | ||
| Model | JST Fiber Laser Cutting Machine | |
| Machine working area | 1500x3000mm / 2000x4000mm / 2000x6000mm etc… | |
| Beam structure | Aluminum profile beam, processed by CNC machine tools, with high precision and good stability. | |
| Bed structure | Heavy-duty bed, welded with large square tubes.
The bed is stable, high precision and does not deform. |
|
| Laser source power | 1.5KW-20KW | |

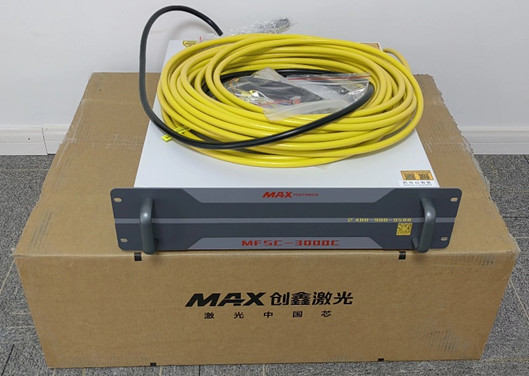

| Laser source brand | MAX / RAYCUS | |

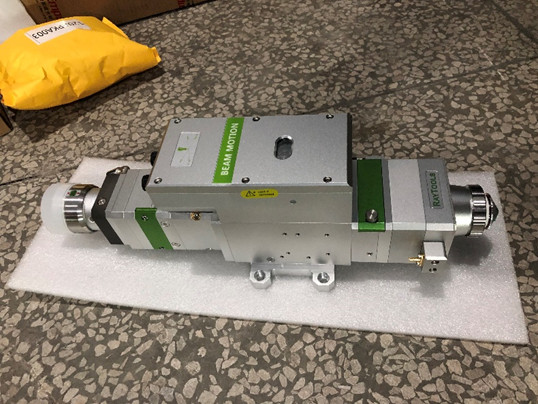

| Laser head | Raytools auto focus laser head | |

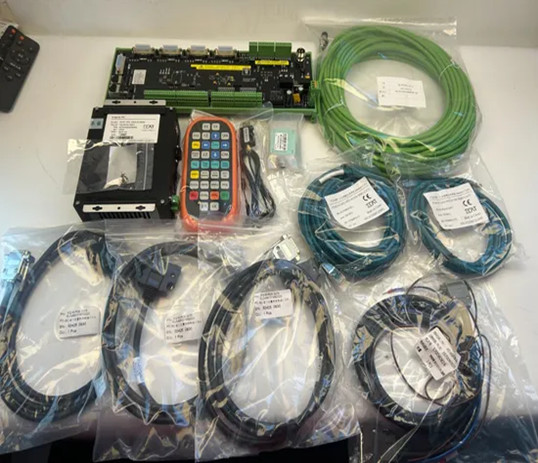

| Control system | Cypcut / HypCut / Raytools | |
| Motor and driver | Japan Fuji servo motor and drive | |
| Reducer | Japan Shimpo reducer | |
| Guide rail | High quality Taiwan brand 25mm guide rail | |
| Rack | Taiwan YYC or Taiwan J&T rack (Taiwan) | |
| Main electrical components | Schneider Electricals | |

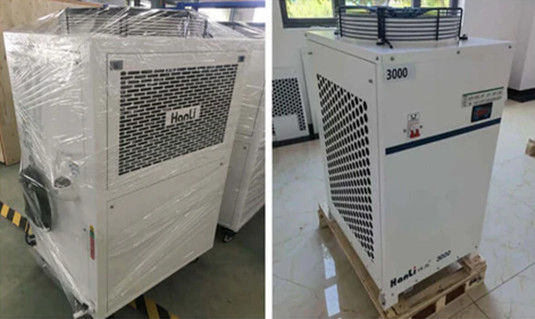

| Water cooler | 1.5KW-20KW S&A or HANLI water cooler | |
| Air circuit | Japan SMC proportional valve | |
| Pneumatic Road | Japan SMC proportional valv | |

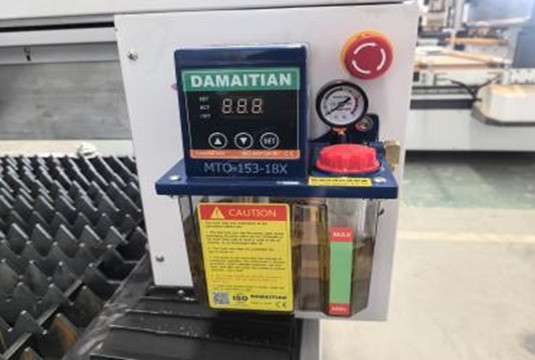

| Lubrication system | Full automatic lubrication system | |
| Performance Indicators | Maximum acceleration 1.2G; maximum operating speed 100m/min ; Machine accuracy: 0.05mm | |
| Working Voltage | 380V 50/60HZ 3phase | |

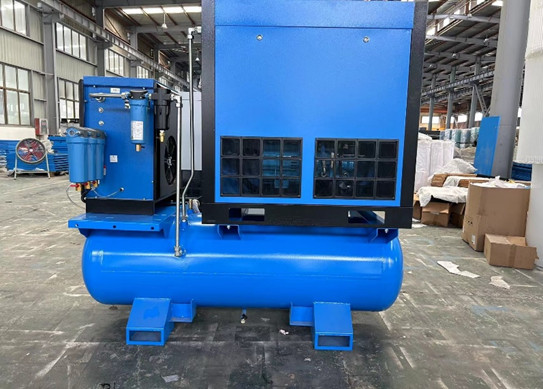

| Air compressor | 15KW-22KW Air compressor included | |
| Machine dimensions | 4500x2250x1900mm ; 19CBM | |
| Machine weight | 2200KGS | |
|
Including spare parts along with the machine (free of charge) |
Name | Quantity |
| Nozzles | 20pcs | |
| Protective lense | 10pcs | |
| Ceramic ring | 3pcs | |
| Hexagon wrenches | 1set | |
| Cotton swabs | 1pack (50pcs) | |
| Goggles | 1pc | |
|
After-sales service |
1. 2 Year warranty for the full set machine
2. Provide machine installation video 3. English machine installation and operating guide 4. 24h/7 online technical support whenever needed via WhatsApp or Wechat |
|
|
Extra spare parts if client needs to add more (Extra paid by client ) |
Name | Unit pric |
| Nozzles | 3USD / pcs | |
| Protective lense | 3USD / pcs | |
| Ceramic ring | 5USD / pcs | |

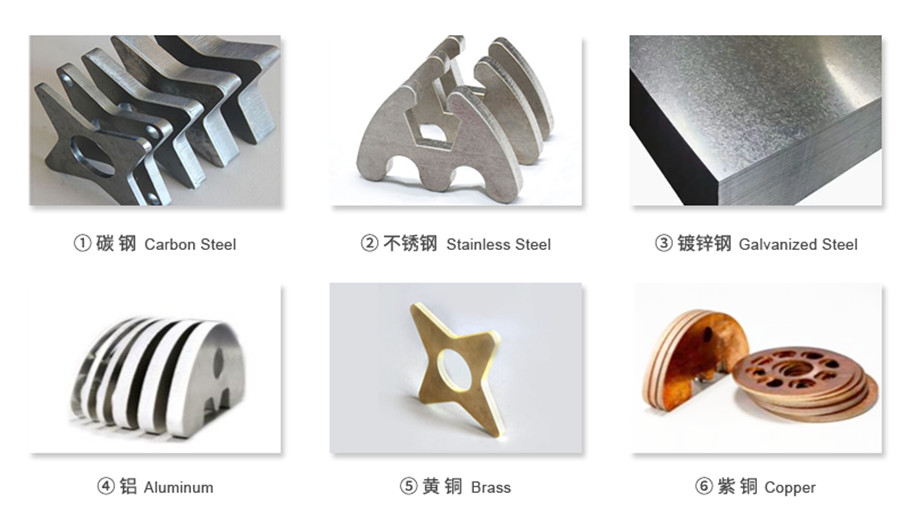

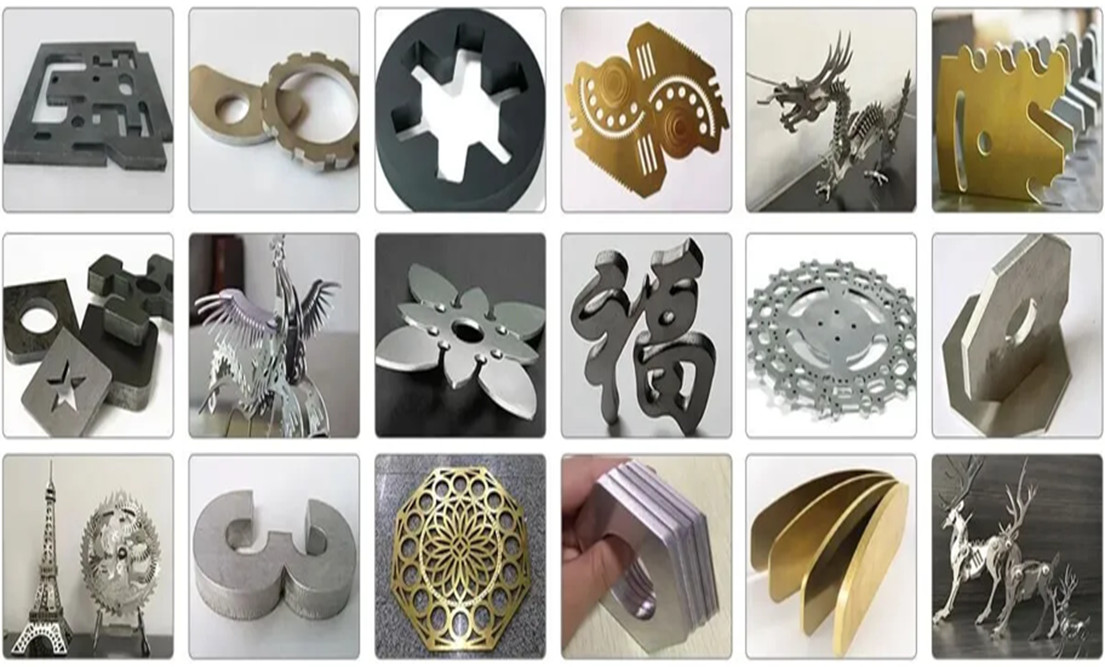

Material Compatibility & Performance
Fiber laser variations of the 3015 are highly optimized for high-reflectivity and dense metallic plates, ensuring clean, burr-free cuts without the need for secondary surface polishing.
Structural Safety & Automation Add-ons
- Fully Enclosed vs. Open Type: Open-type platforms offer rapid material loading and lower hardware costs. Fully enclosed beds incorporate specialized viewing windows, negative-pressure zonal dust extraction, and optical pollution protection to meet strict safety environments.
- Auto-Focus Sensor Heads: Premium packages utilize automated focusing systems that mechanically shift the focal point based on software material recipes, minimizing manual setup times when changing sheet thicknesses.
- Heavy-Duty Welded Base: Structural beds undergo stress-relief high-temperature annealing heat cycles (≈600℃)
