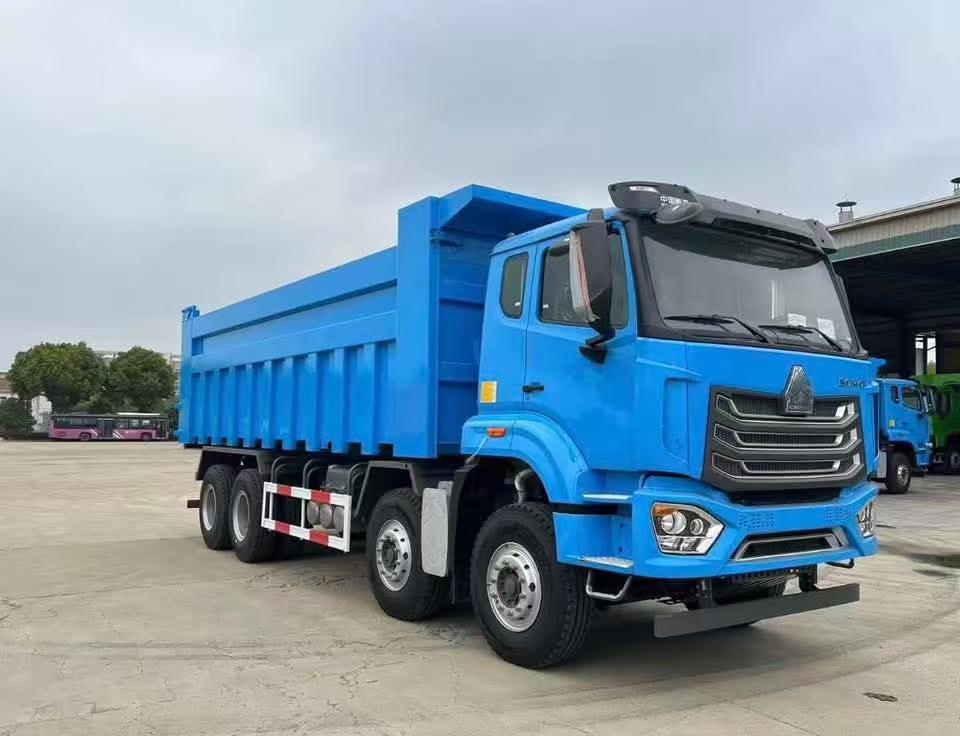

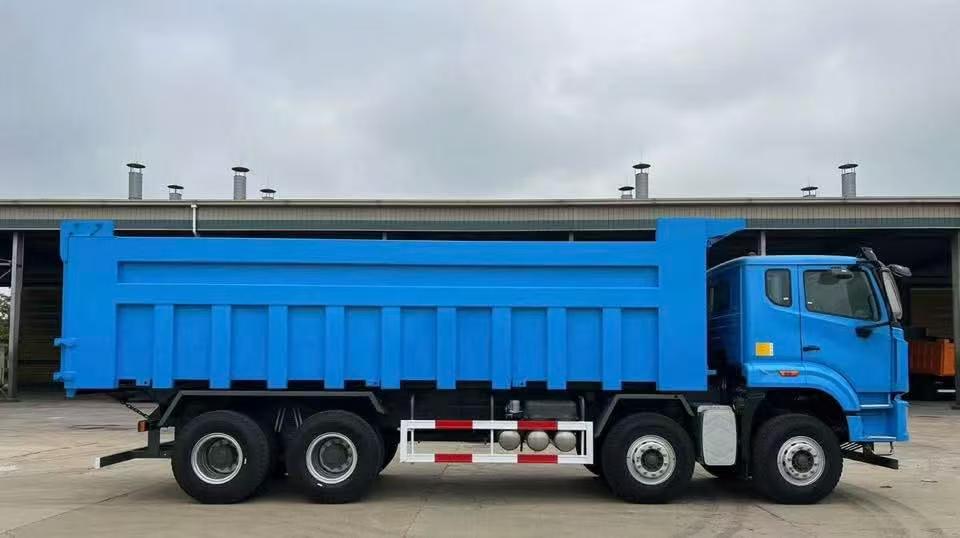

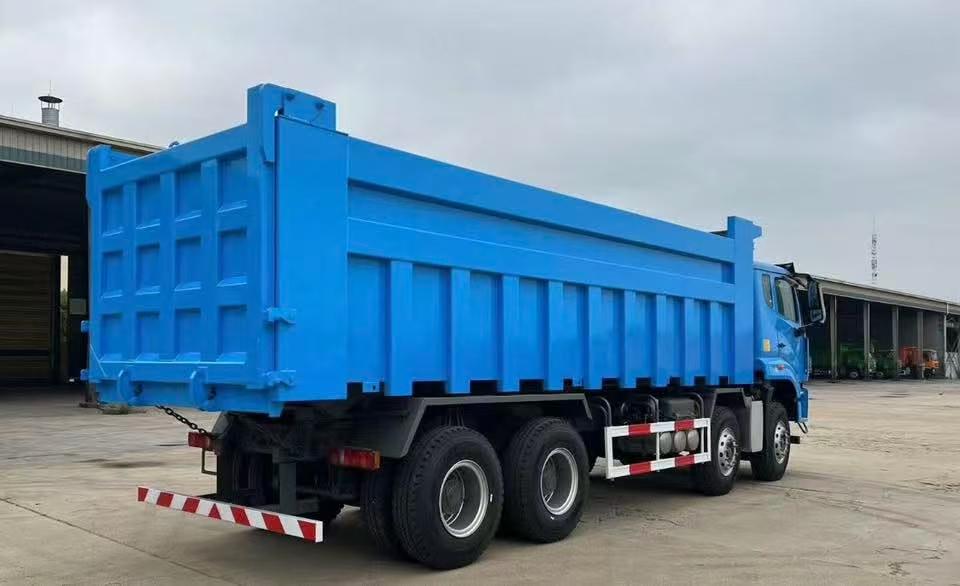

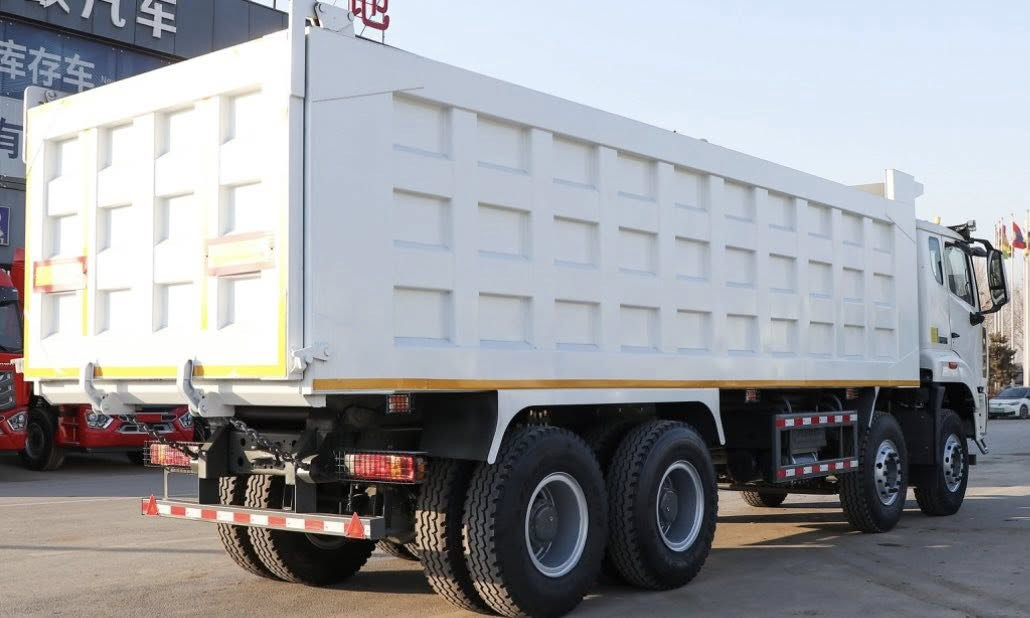

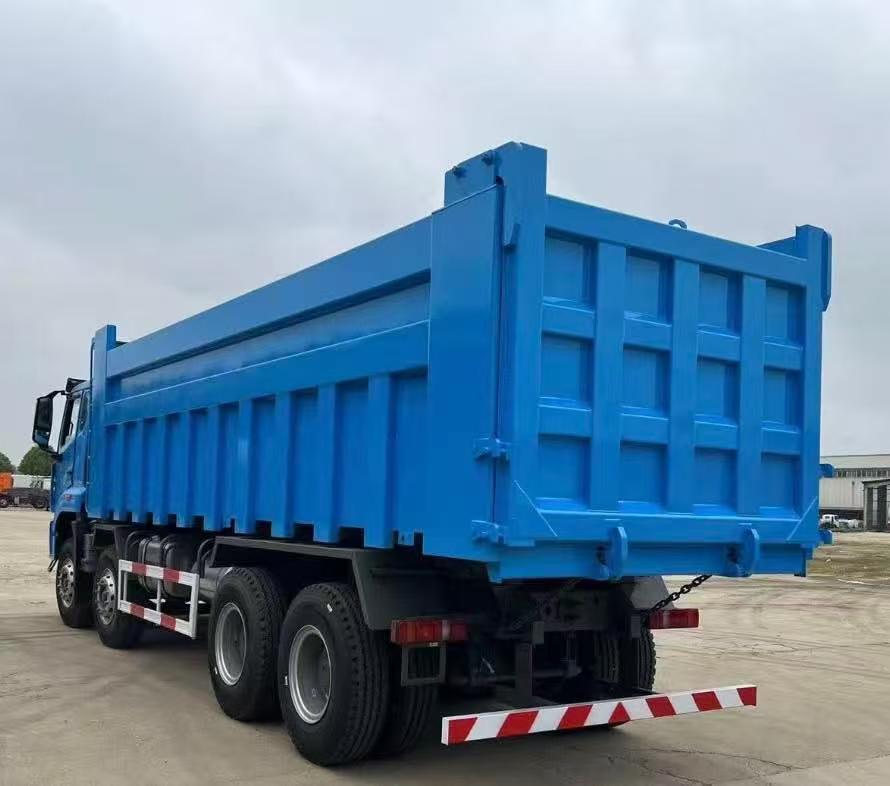

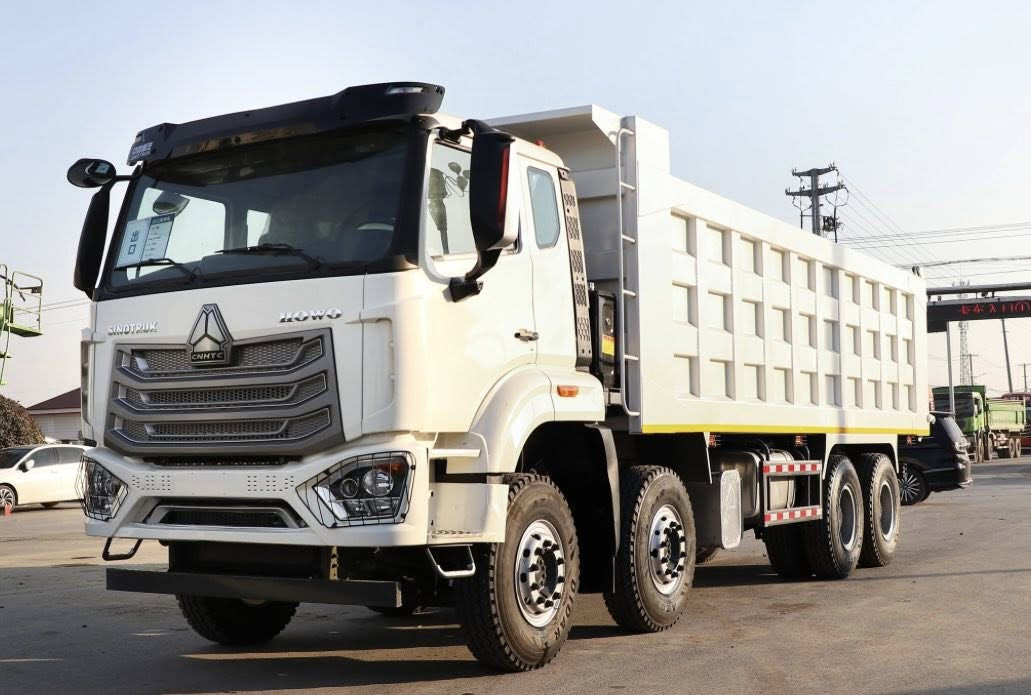

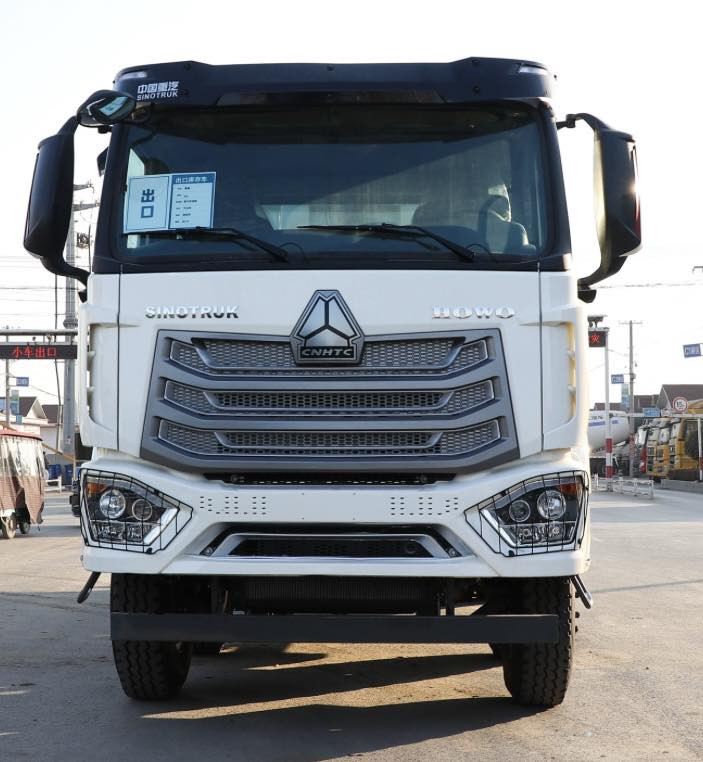

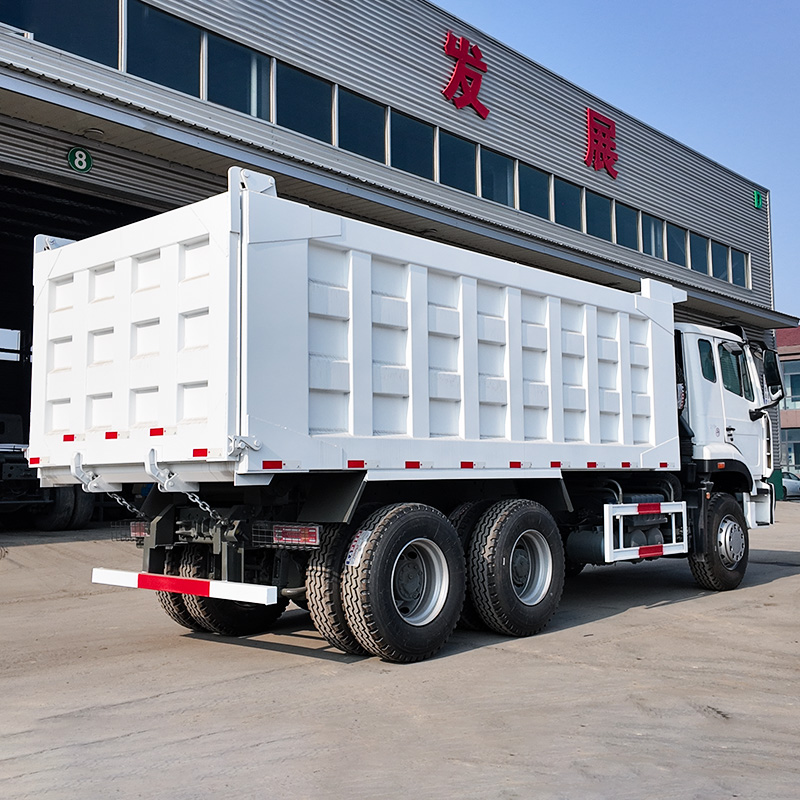

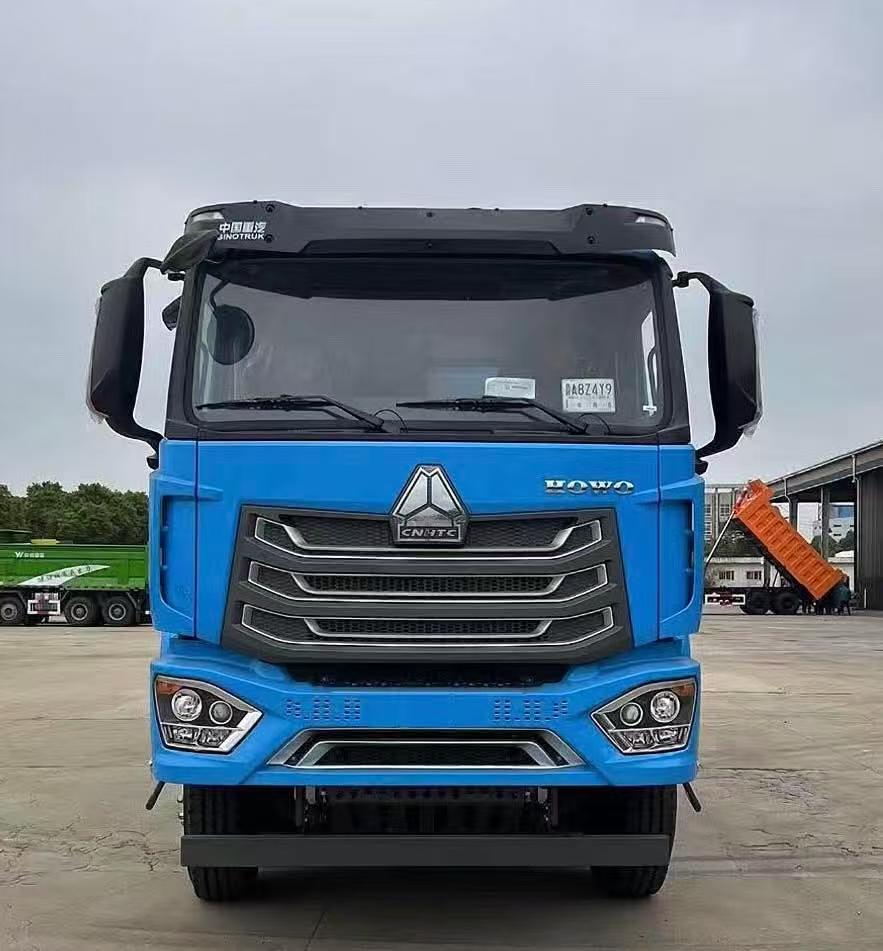

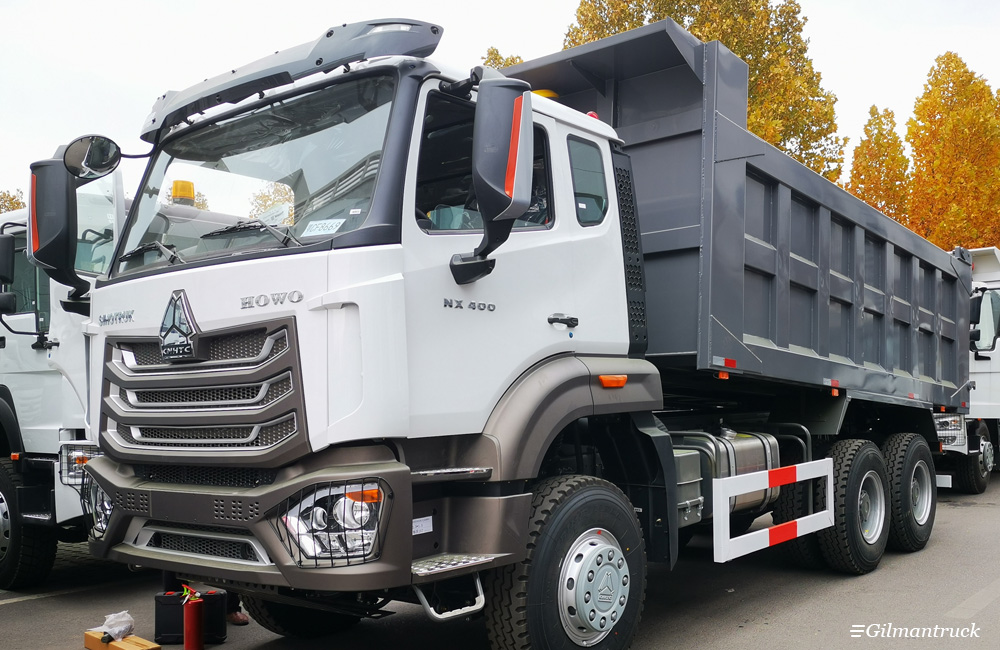

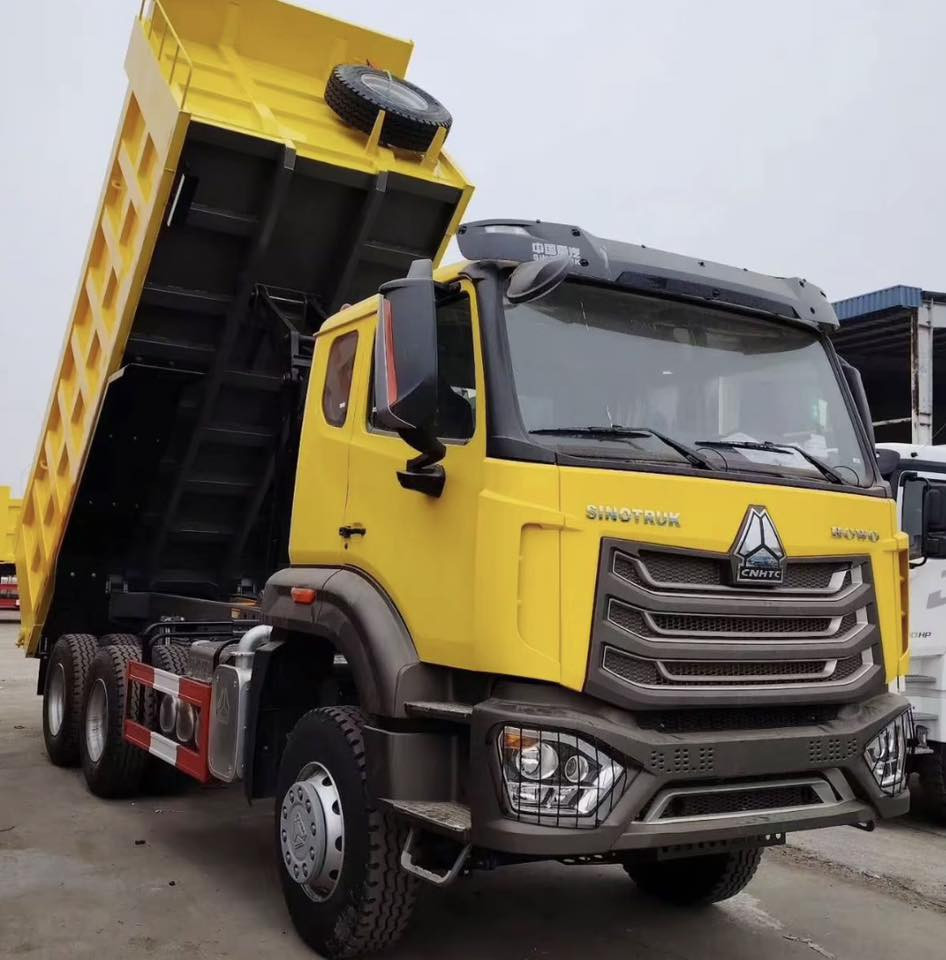

The Howo NX is a premium heavy-duty dump truck by Sinotruk, built for rugged construction, mining, and bulk material hauling. It merges the classic, tough chassis of the Howo series with modern, European-inspired cabin comfort, making it a reliable workhorse for heavy-duty projects.
Key Specifications
- Engine: Ranges from 340 HP to 400 HP (often utilizing Weichai or Sinotruk MC-series diesel engines).
- Drive Configurations: Commonly available in 6×4 and 8×4 axle setups for varying payload capacities.
- Transmission: Typically equipped with a Sinotruk 10-speed or 12-speed manual transmission.
- Axles: Heavy-duty hub-reduction drive axles (e.g., 16-ton capacity) with inter-wheel and inter-axle differential locks.
Standout Features

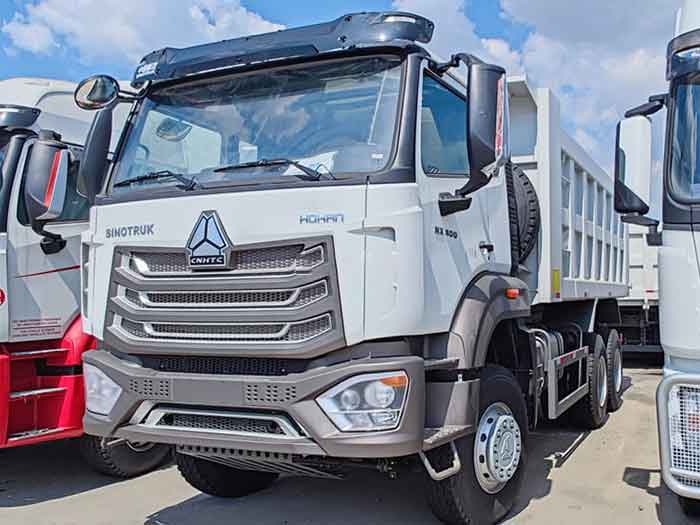

- Upgraded Cab: Features the H77L cab with a modern instrument panel, 4–point air suspension, and air-cushioned seating. It is designed with a 700mm extra-wide bed for operator comfort on long hauls.
- Enhanced Safety: Equipped with ABS, engine exhaust brakes, and sturdy high-steel bumpers.
- Heavy-Duty Chassis: Reinforced double-layer frames and wear-resistant radial tires (e.g., 12.00R20) allow it to navigate tough, off-road construction sites.
Pricing & Sourcing
New Howo NX dump trucks generally range from $40,000USD to $70,000USD depending on the axle configuration, engine power, and payload capacity for fully Brand New Truck.
However, most of clients prefer to go for highly refurbished type due to the lower cost which is mostly between$25,000USD to $35,000USD depending on Truck’s engine horse power and type. For example 6×4 371hp or 8×4 420hp etc…
| Technical Specifications | |
| Product name | SINOTRUCK HOWO NX DUMP TRUCK |
| Cabin | H77L cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. High steel bumper, Inter-cooler Protection. |
| Drive Wheel | 10; 12 |
| RHD/LHD | LHD or RHD depending on client’s requirements |
| Drive | 6X4 ; 8X4 |
| Load Capacity | Up to 60 Tons which is about 60000KGS |

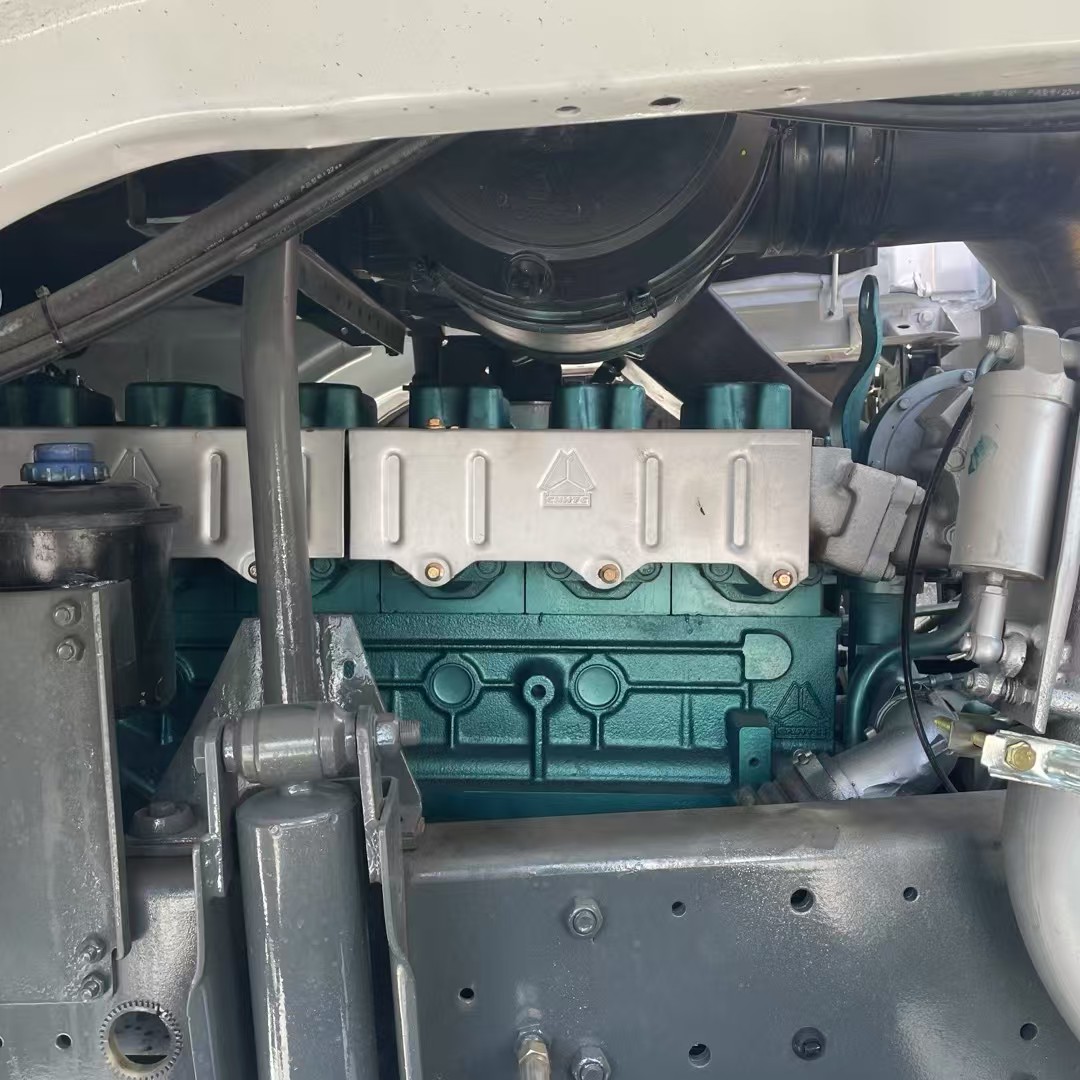

| Horsepower | Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 340 to 430 horsepower (HP) 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement:9.726L |
| Transmission | HW19710, 10F & 2R, with HW50 Direct PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Engine | WP10.380E22 |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Gear box | Sinotruk Transmission |
| Front axle | VGD95, 1*9500 KGS |
| Steering with double T-cross section beam | |
| Rear axle | MCP16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Front suspension:11semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Fuel tank | 300L |
| Frame | Double deck frame (8+5/300) |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Tire | 12.00R20, Radial (steel wire) Tires . 10+1 Pics |

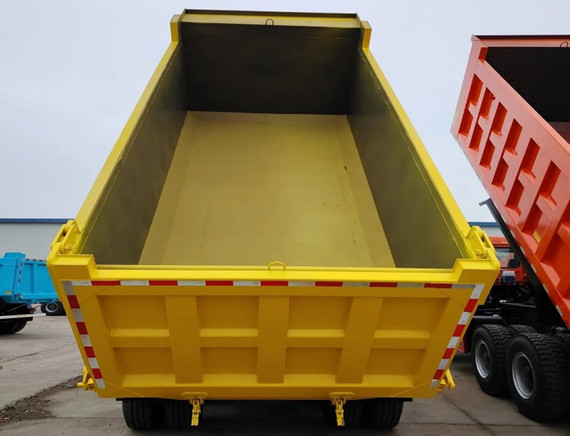

| Others | Cargobox:5.4 meter field shaped box |

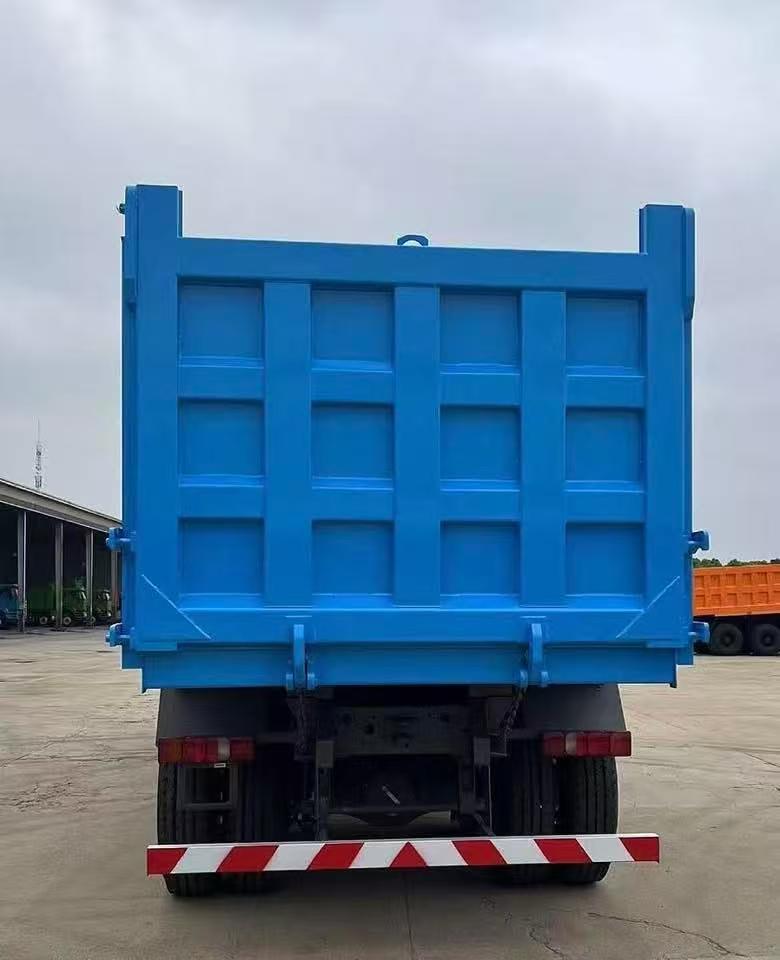

| Cargo Box dimensions | 5400×2300×1450 ; 18CBM |
| Overall dimensions | 8600*2550*3450 mm ; 75.65CBM |
| Weight | 14 Tons which is about 12700KGS |
| Color | Optional (White, Red, Blue, Yellow, Green, Black etc…) |
