Powerfull Bulldozer Designed for Engineering and Mining Heavy Duty Works

A bulldozer is a large, powerful heavy-equipment tractor equipped with a heavy metal blade for pushing, excavating, and leveling materials. By distributing its weight over continuous tracked treads or large tires, it excels in moving earth, rock, and debris across rough, muddy, or uneven terrain.

Core Specifications and Categories

Bulldozers are generally classified into three size categories, each tailored for specific operational needs:

• Small (Compact) Dozers: Typically 70 – 105 HP and 10,000 – 20,000 lbs in operating weight. Ideal for tight spaces, landscaping, and residential grading.
• Medium Dozers: Typically 106 – 250 HP and 20,000 – 50,000 lbs. The workhorse for commercial site prep, utility work, and light earthmoving. [
• Large (Heavy) Dozers: Ranging from 300 to over 850 HP with operating weights exceeding 100,000 lbs. Built for mining, highway construction, and bulk material handling.

Top Brands and Models

Several key manufacturers dominate the global heavy machinery industry:

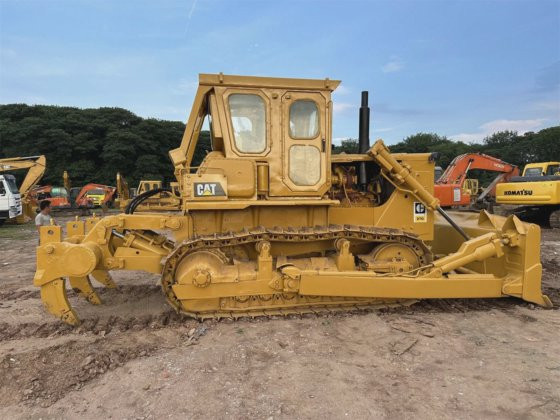

• Caterpillar (CAT): The industry standard for heavy-duty earthmoving. Popular models range from the versatile CAT D6 (215 HP, 50,700 lbs) to the massive CAT D11 (850 HP, 235,500 lbs) used in bulk mining.
• Komatsu: Known for advanced technology and massive power. Notable models include the mid-sized Komatsu D39EXi-24 (105 HP) and the heavy-duty Komatsu D155AX-6.
• John Deere: Renowned for exceptional site development. Key models include the 750 P-Tier (175 HP) and the 1050 K (350 HP).

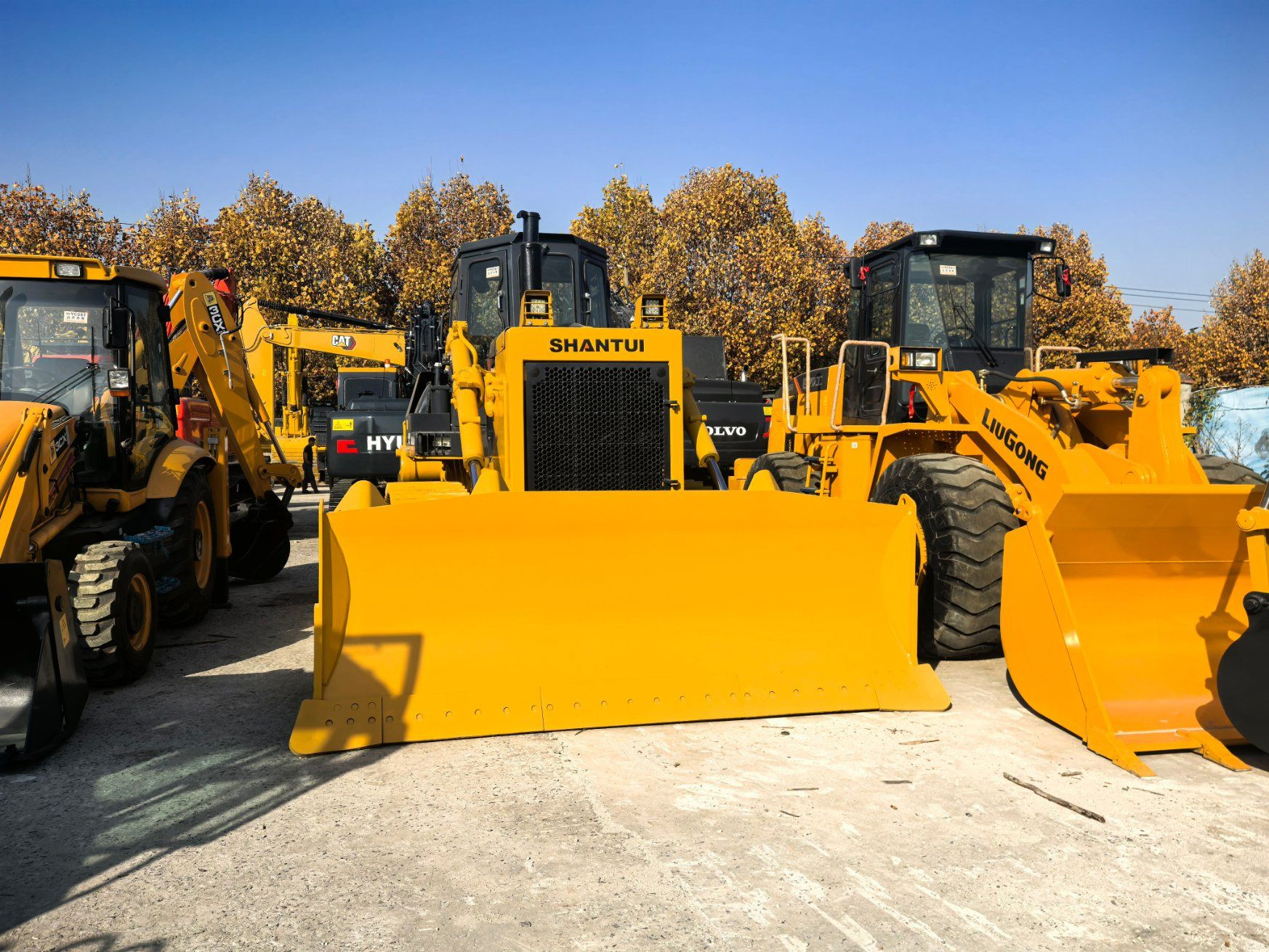

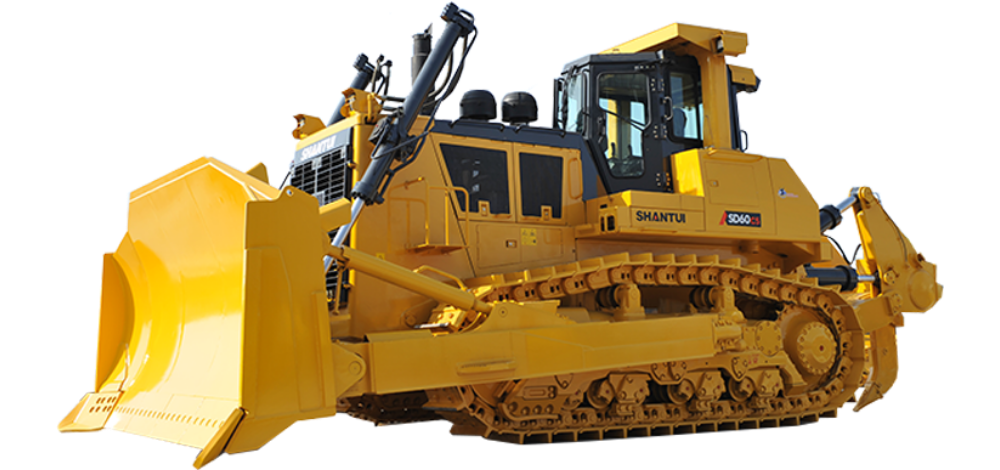

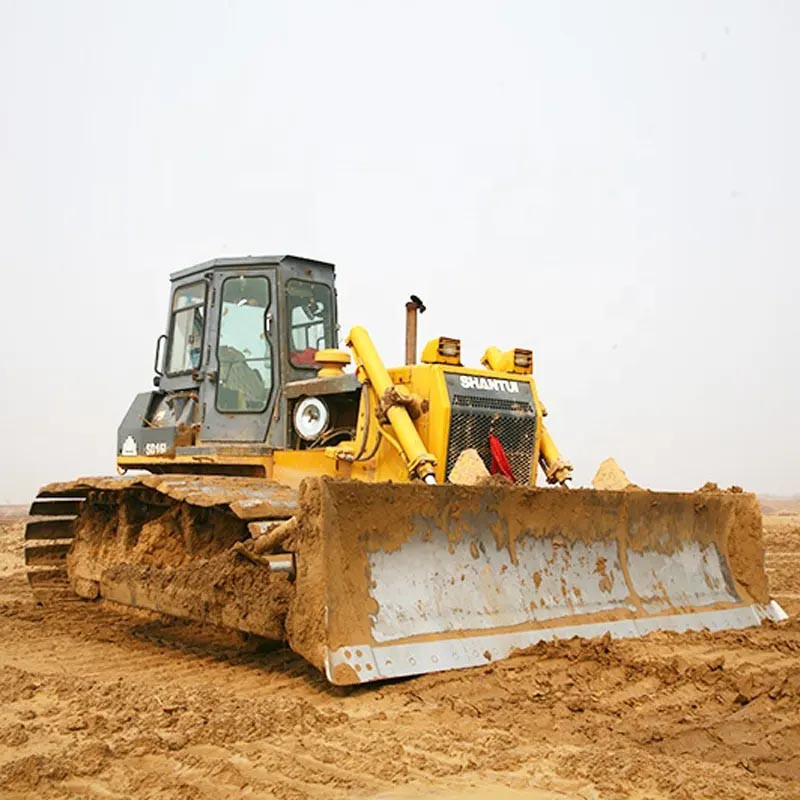

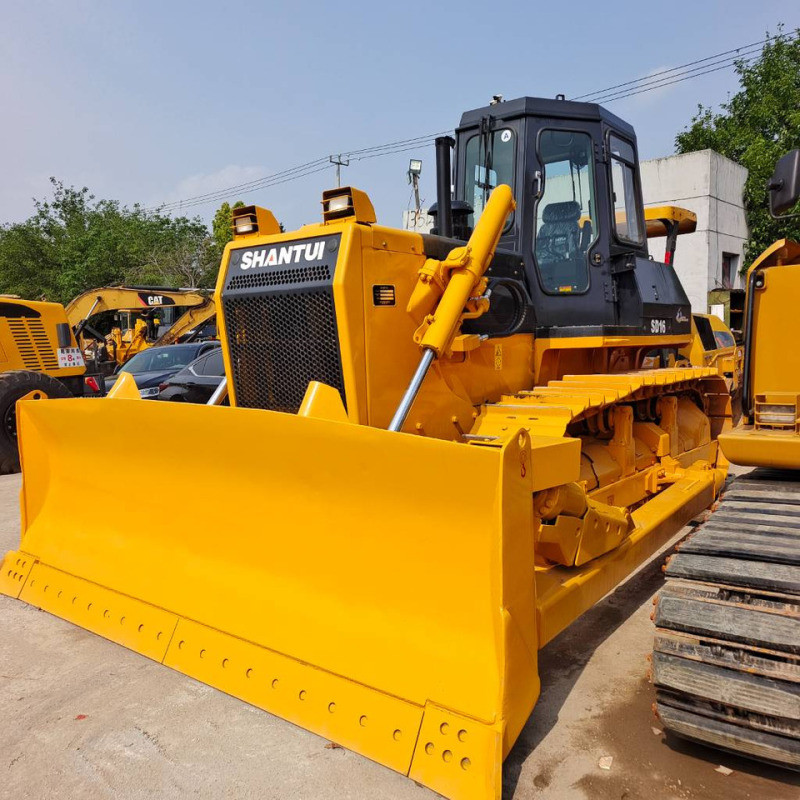

• Shantui: A major global player, particularly popular in developing infrastructure. Models like the SD16 and the high-capacity SD32 are widely utilized worldwide.

Key Advantages of Bulldozers

• Superior Traction: Crawler dozers (tracked) distribute weight evenly, making it nearly impossible to get stuck in soft soil, clay, or steep slopes.
• Heavy Lifting & Pushing Power: High torque and weight-to-power ratios allow dozers to push massive loads of 10 to 30 cubic yards per pass without needing to load a truck.

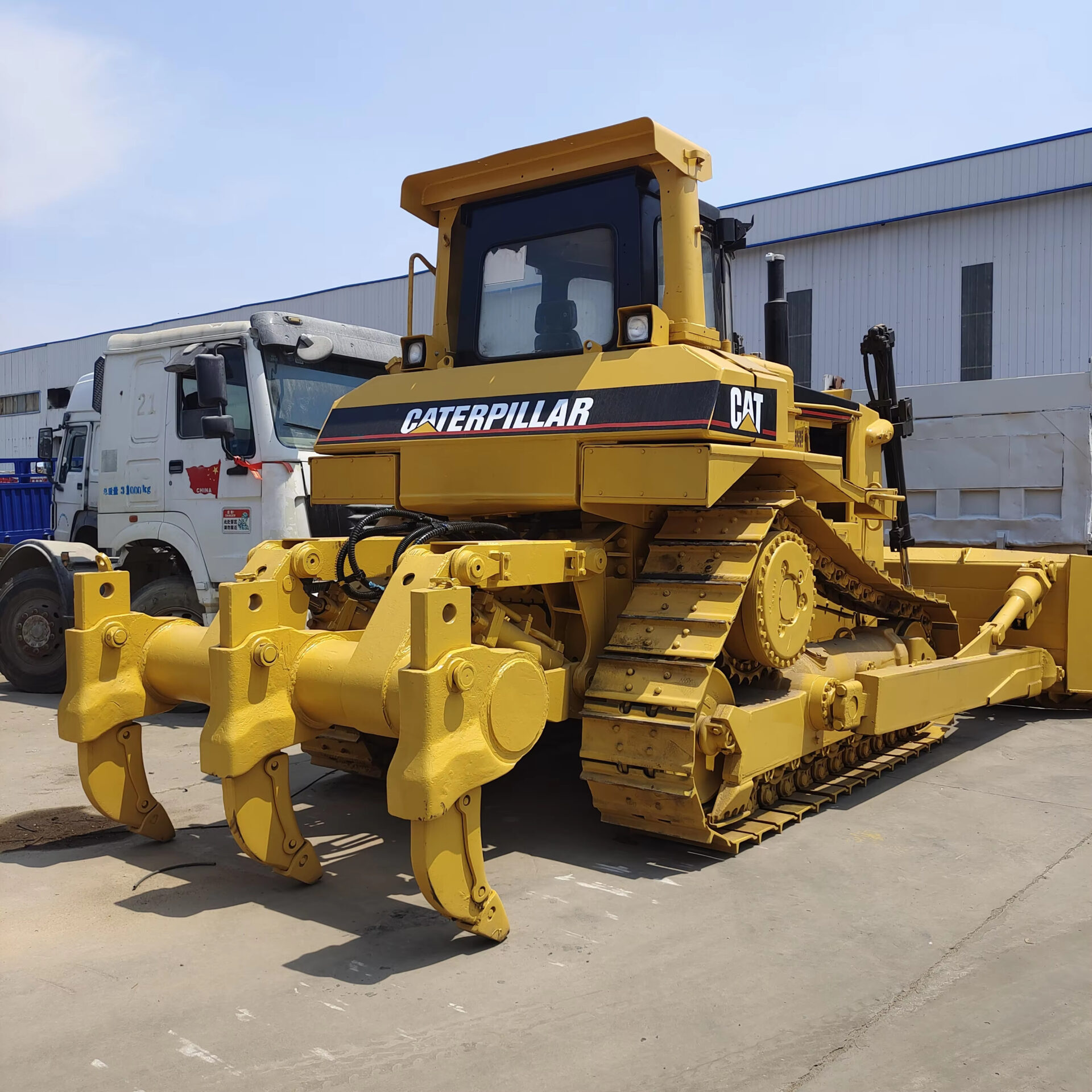

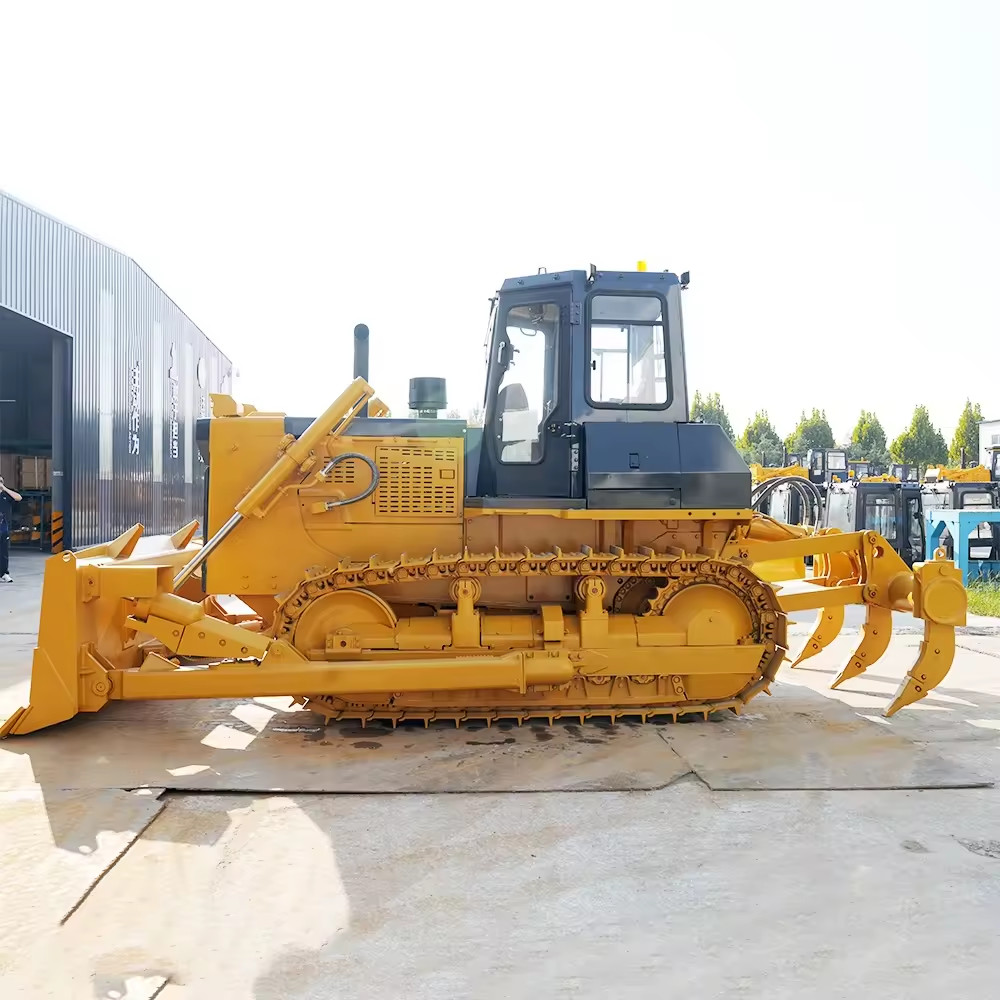

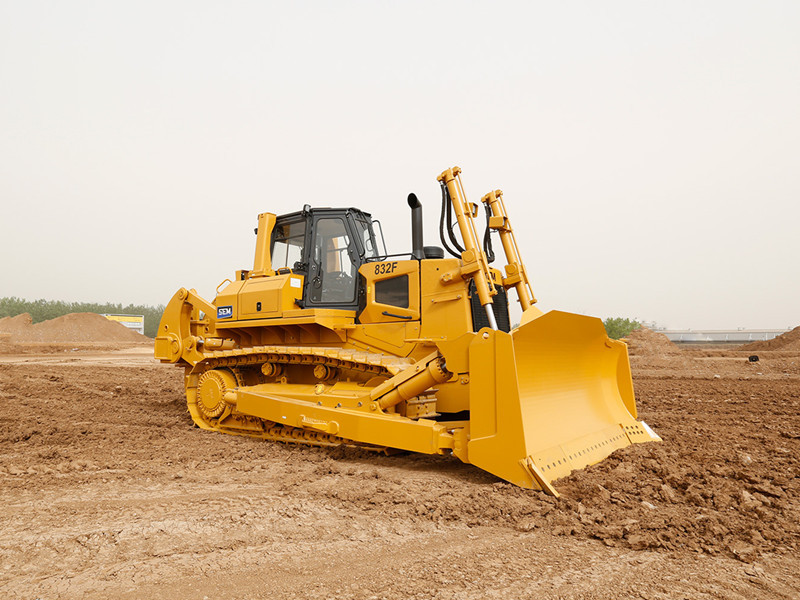

• Versatility: With rear-mounted rippers (giant claws used to break up highly compacted or rocky earth), and interchangeable blades, they adapt easily to different ground conditions.
• Cost-Effectiveness: Dozers can move large quantities of earth efficiently over short distances (up to 100 meters) far more affordably than operating a fleet of trucks

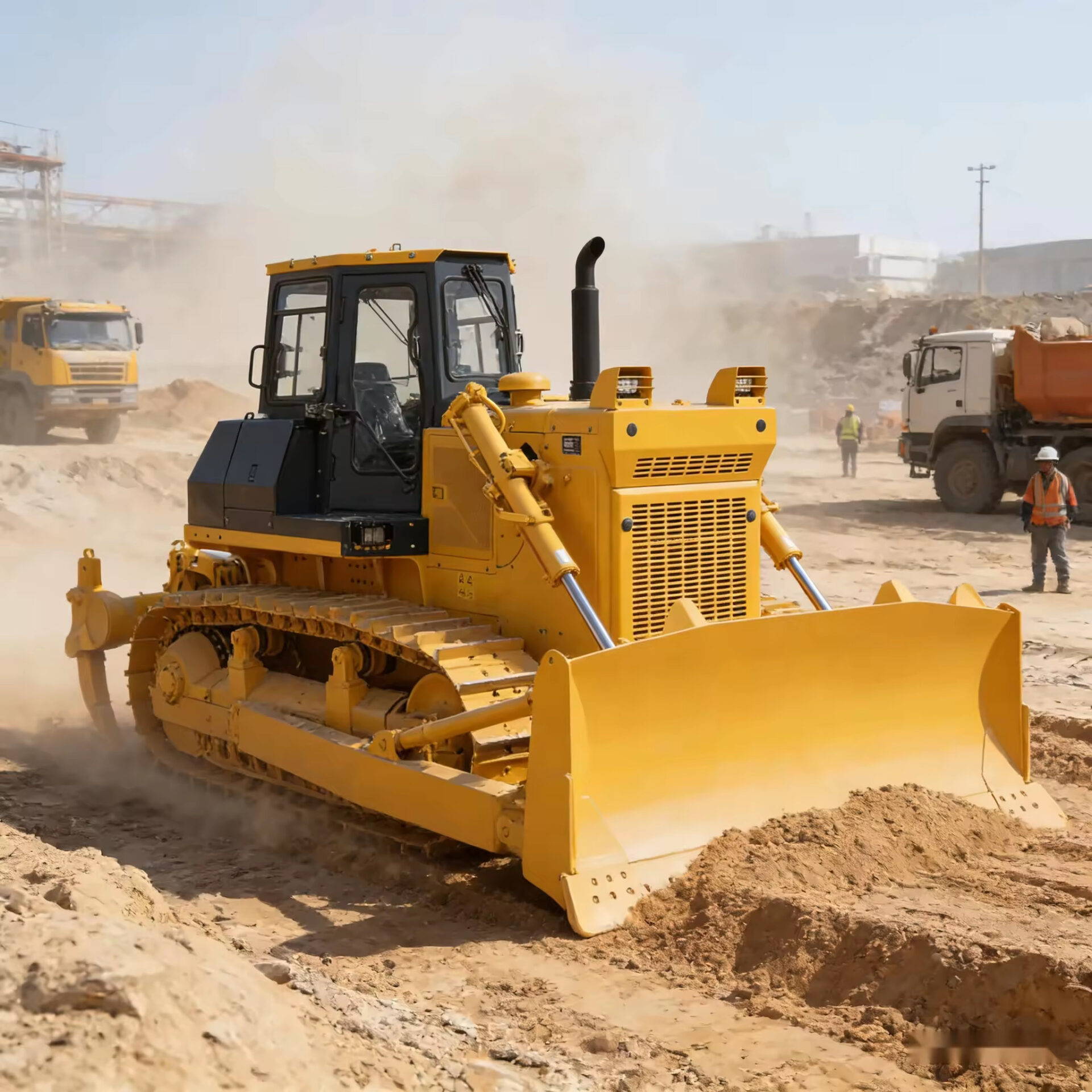

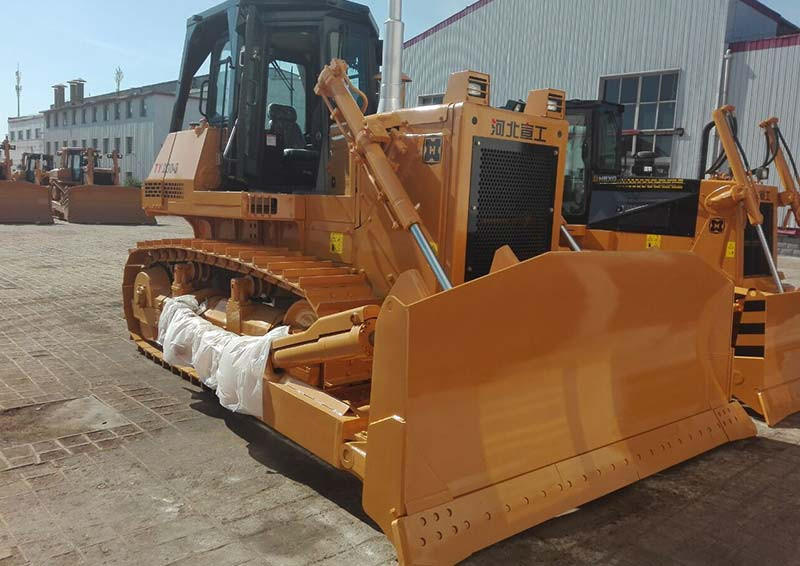

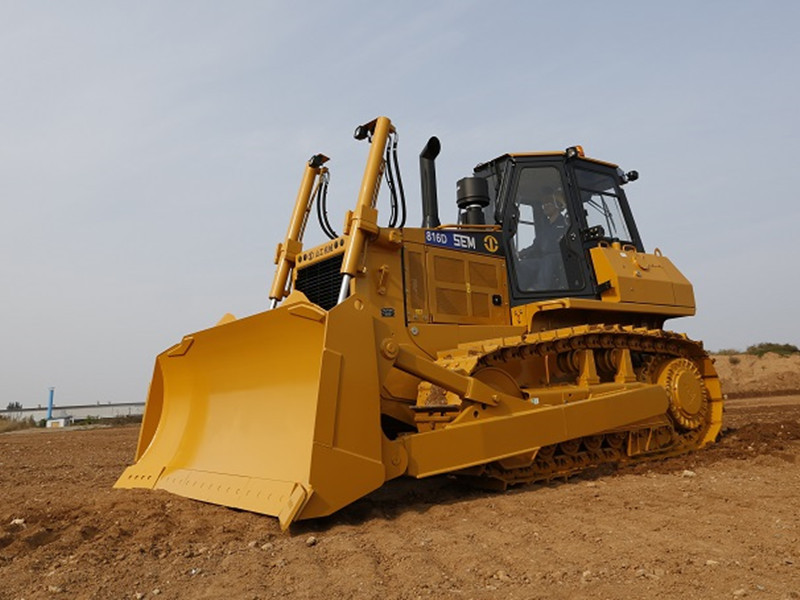

The Front Blade: Controlled by hydraulic cylinders, the blade cuts into the earth and pushes materials forward. Blades vary by task:

• S-Blade (Straight): Short, wings-free blade ideal for fine grading and stripping.
• U-Blade (Universal): Tall, highly curved blade with large side wings built for maximum material carrying capacity over long distances.
• S-U Blade (Semi-Universal): A combination of both, featuring small side wings for general earthmoving.
• VPAT Blade (Variable Power Angle Tilt): Allows the operator to lift, angle, and tilt the blade mechanically for precise reshaping and grading.

Common Applications

Bulldozers are indispensable to several key industries:

• Construction: Site preparation, leveling ground, cutting foundations, and clearing construction debris.
• Mining and Quarrying: Pushing overburden, building heavy-duty haul roads, and managing large volume stockpiles.
• Forestry and Land Clearing: Removing tree stumps, pushing over brush, and preparing uncultivated land for development.
• Landscaping and Civil Engineering: Shaping slopes, backfilling trenches, and fine grading topsoil for roads and landscaping.
