Heavy Duty 6X4 / 8X4 Howo TX Dump Truck From China

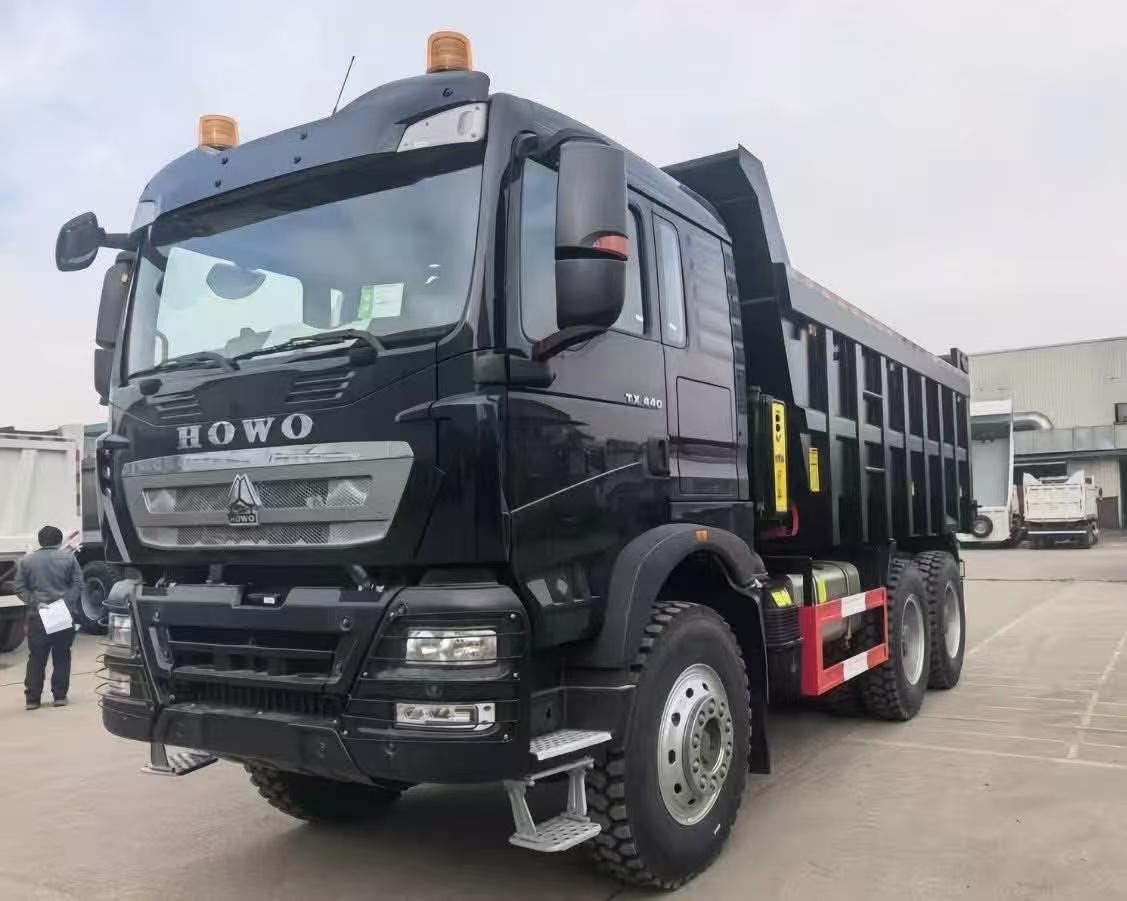

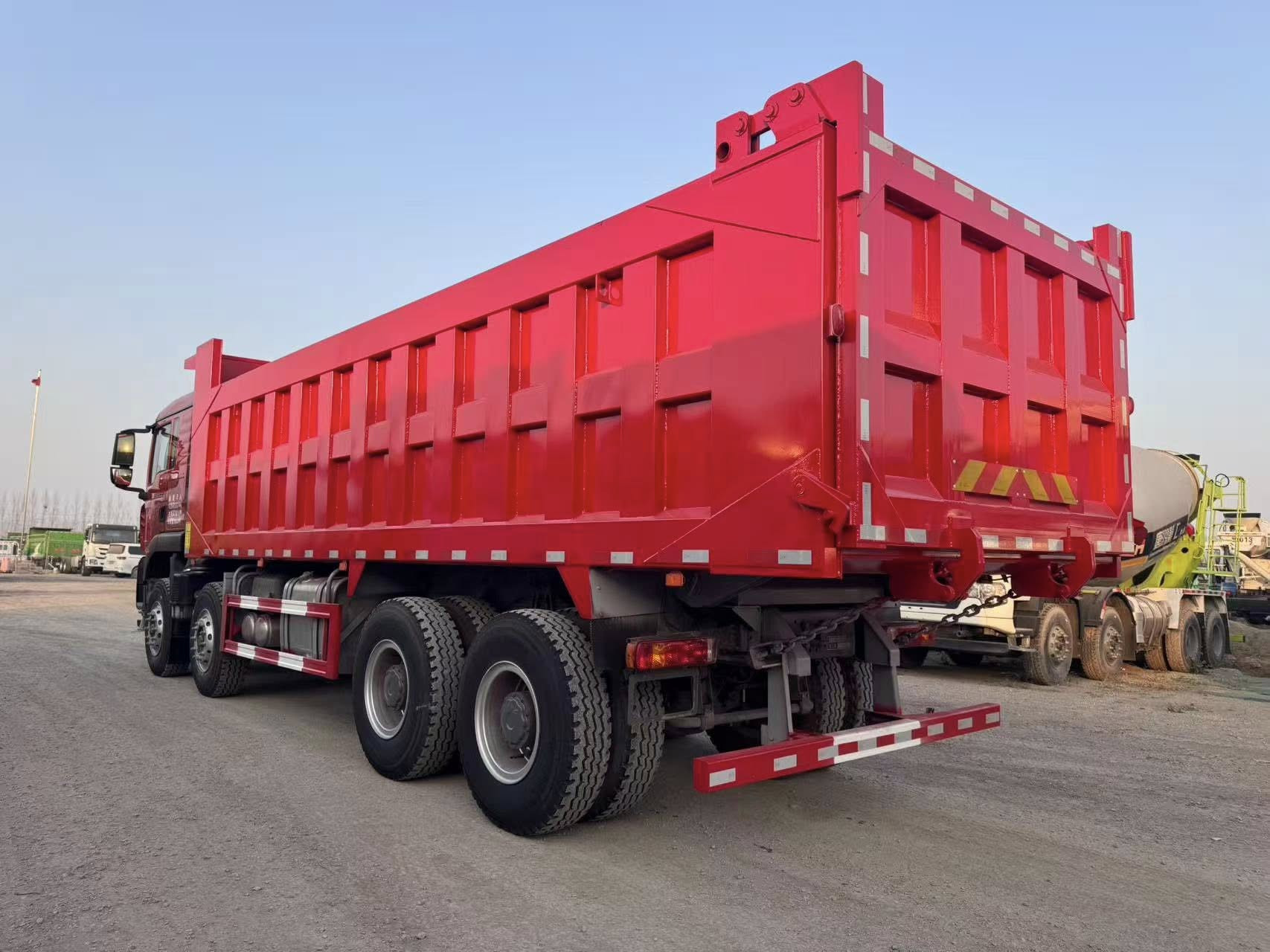

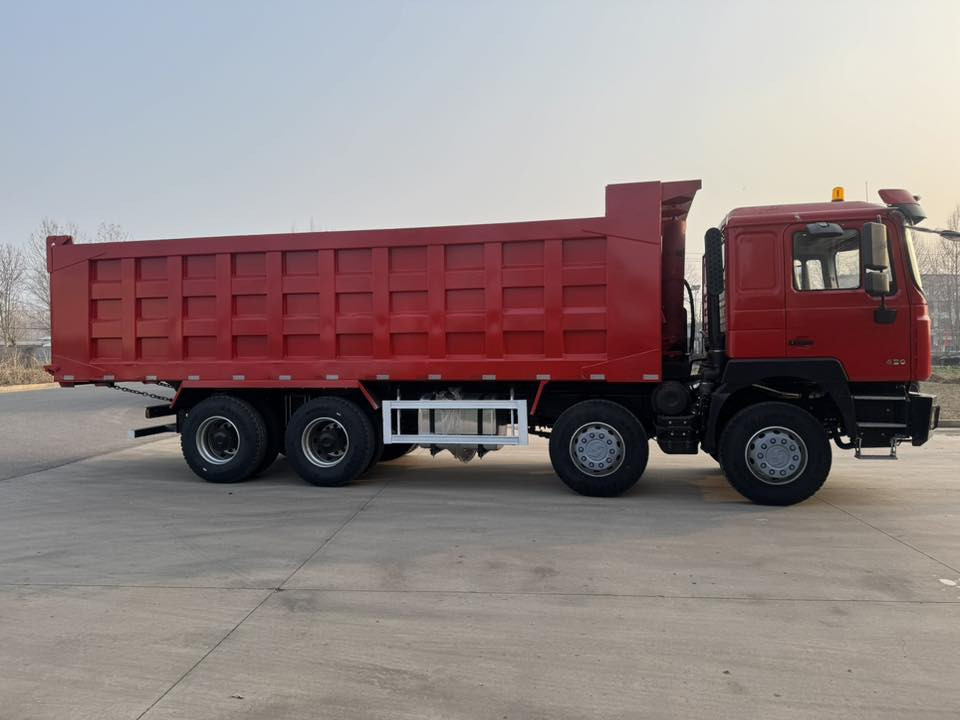

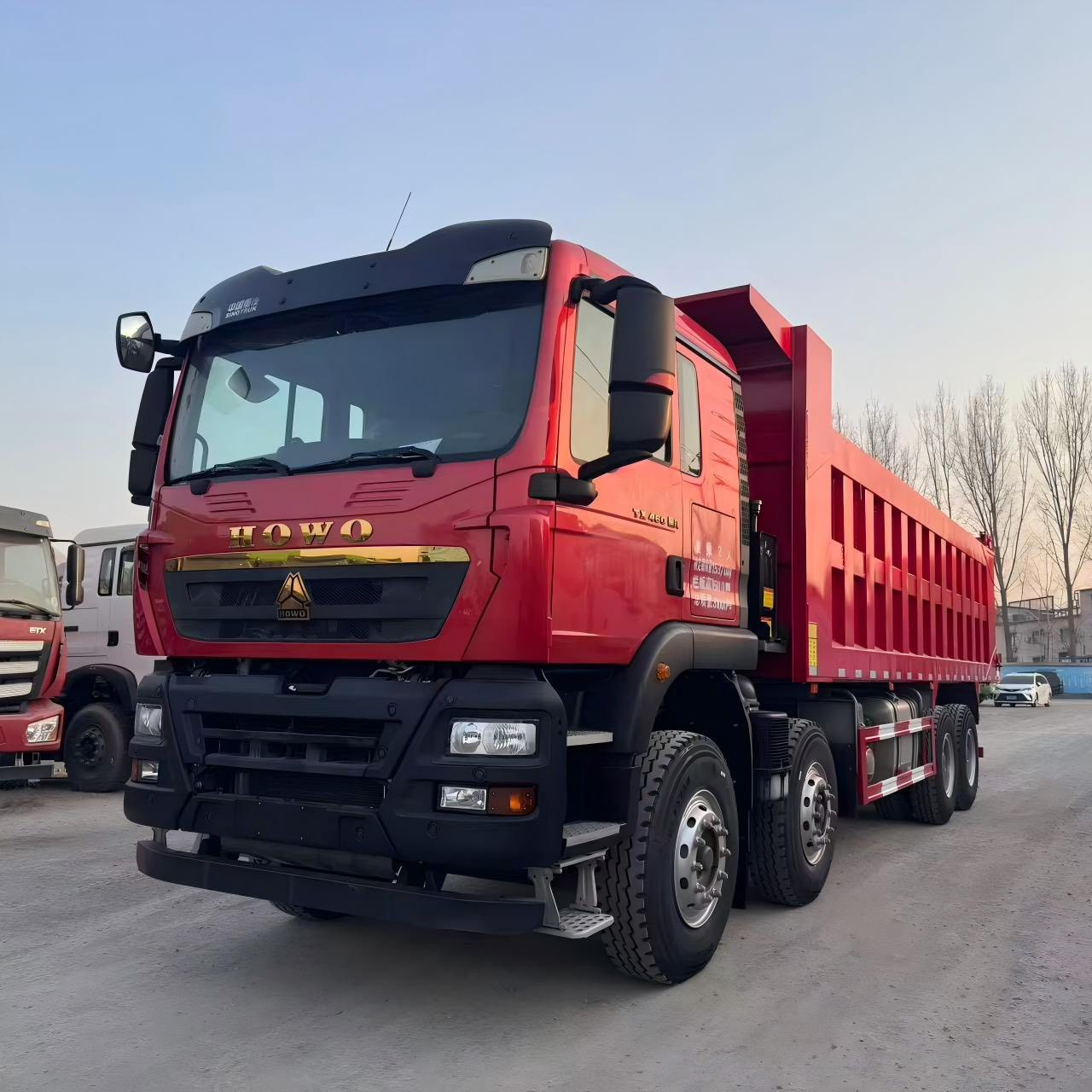

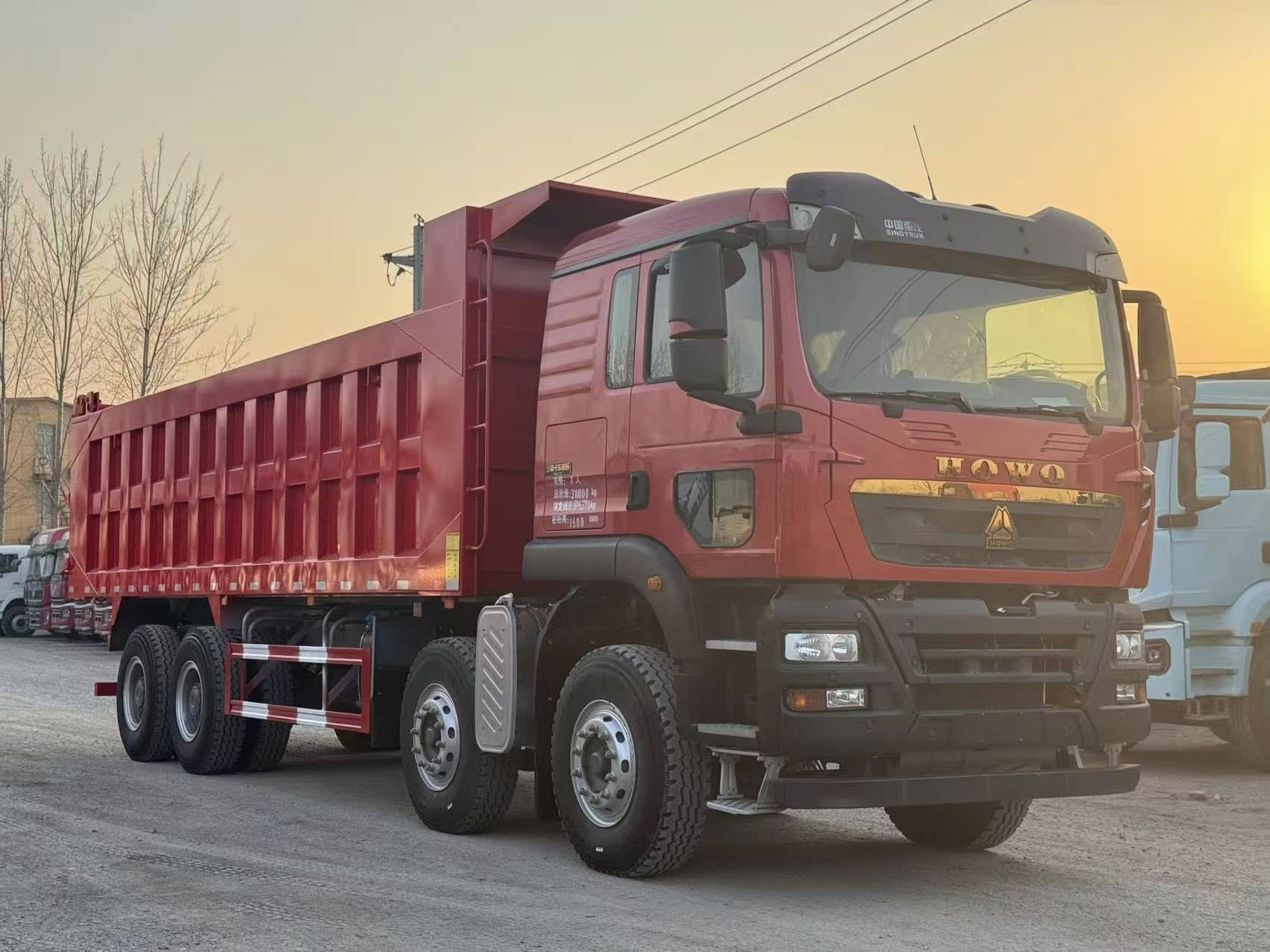

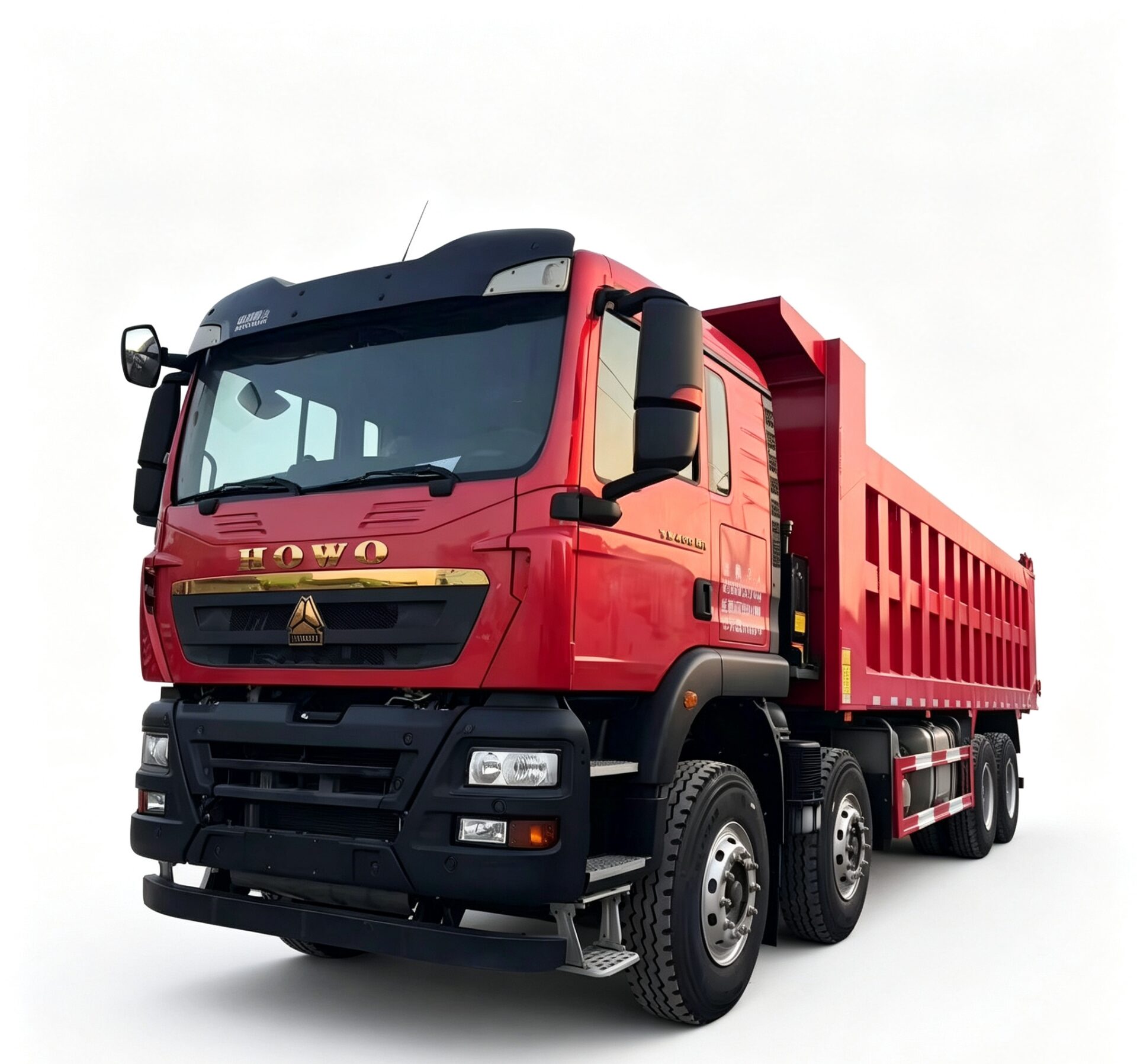

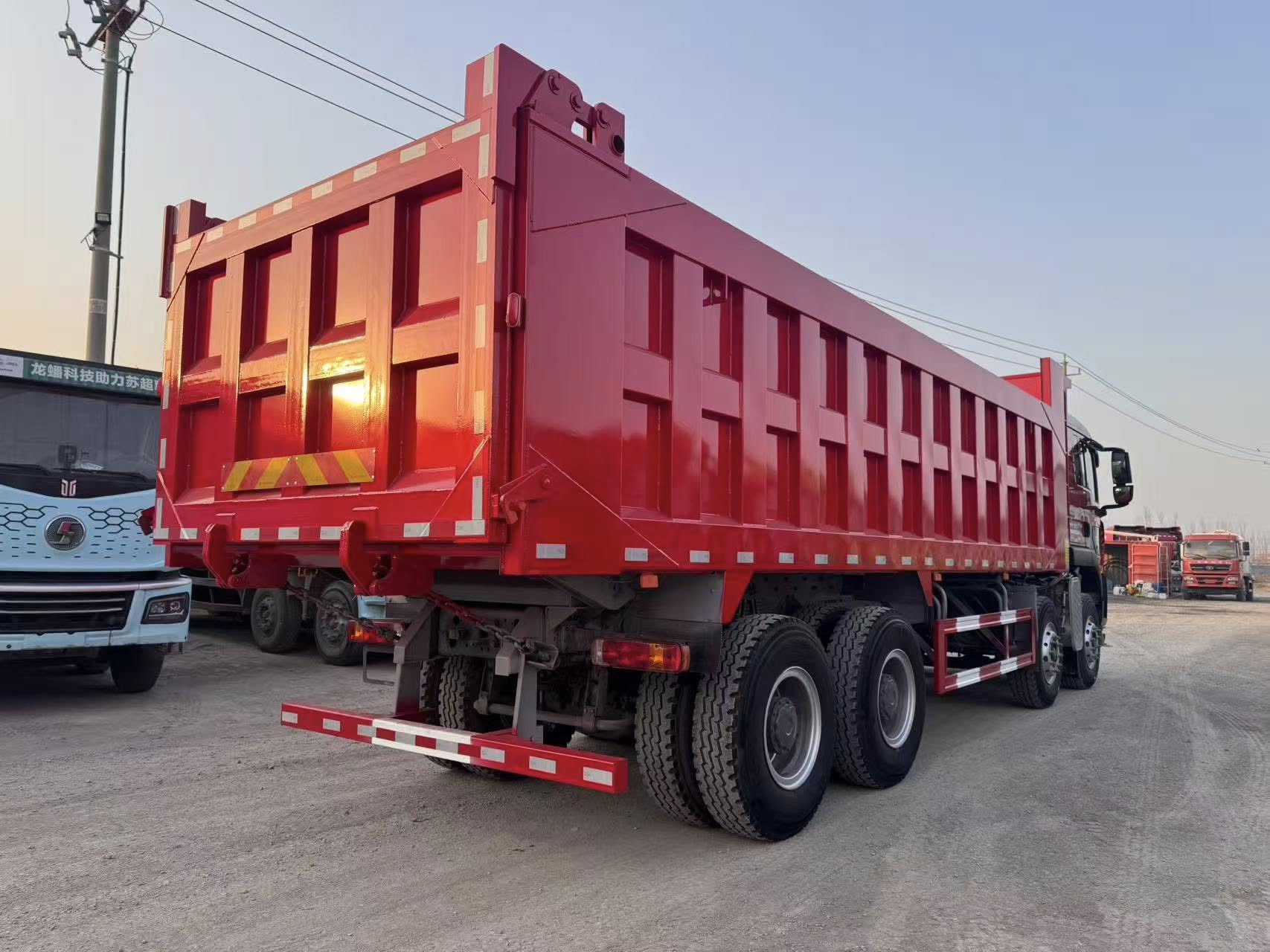

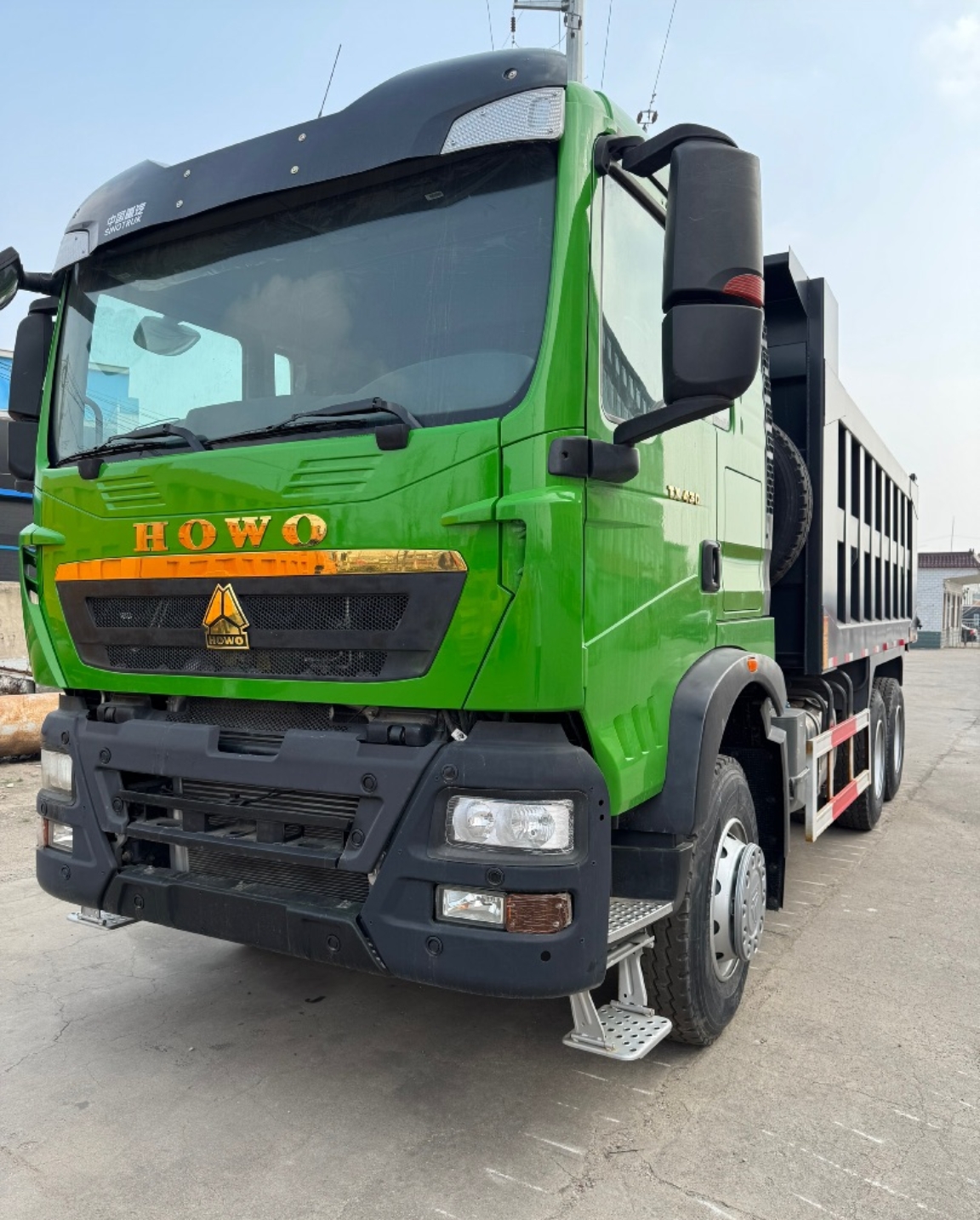

The Sinotruk Howo TX 6×4 / 8×4 Dump Truck is a premium, heavy-duty commercial vehicle specifically engineered for demanding environments like mining, infrastructure, and large-scale construction projects. This 12-wheel, 4-axle workhorse blends advanced German axle technology with efficient powertrain options to maximize load capacities up to 35–60 tons.

Core Technical Specifications

The global export version typically ships with the following standard configurations:

• Drive Type: 6×4 or 8×4 layout featuring dual front steering axles and dual rear drive axles.
• Engine Options: Equipped with high-performance Weichai WP10 /WP8 or Sinotruk WD615 series Euro II to Euro V diesel engines, outputting between 336 HP to 430 HP
• Transmission: HW19710 or HW19712L 10/12-speed manual gearboxes with double countershafts and direct-coupled Power Take-Off (PTO) extractors.

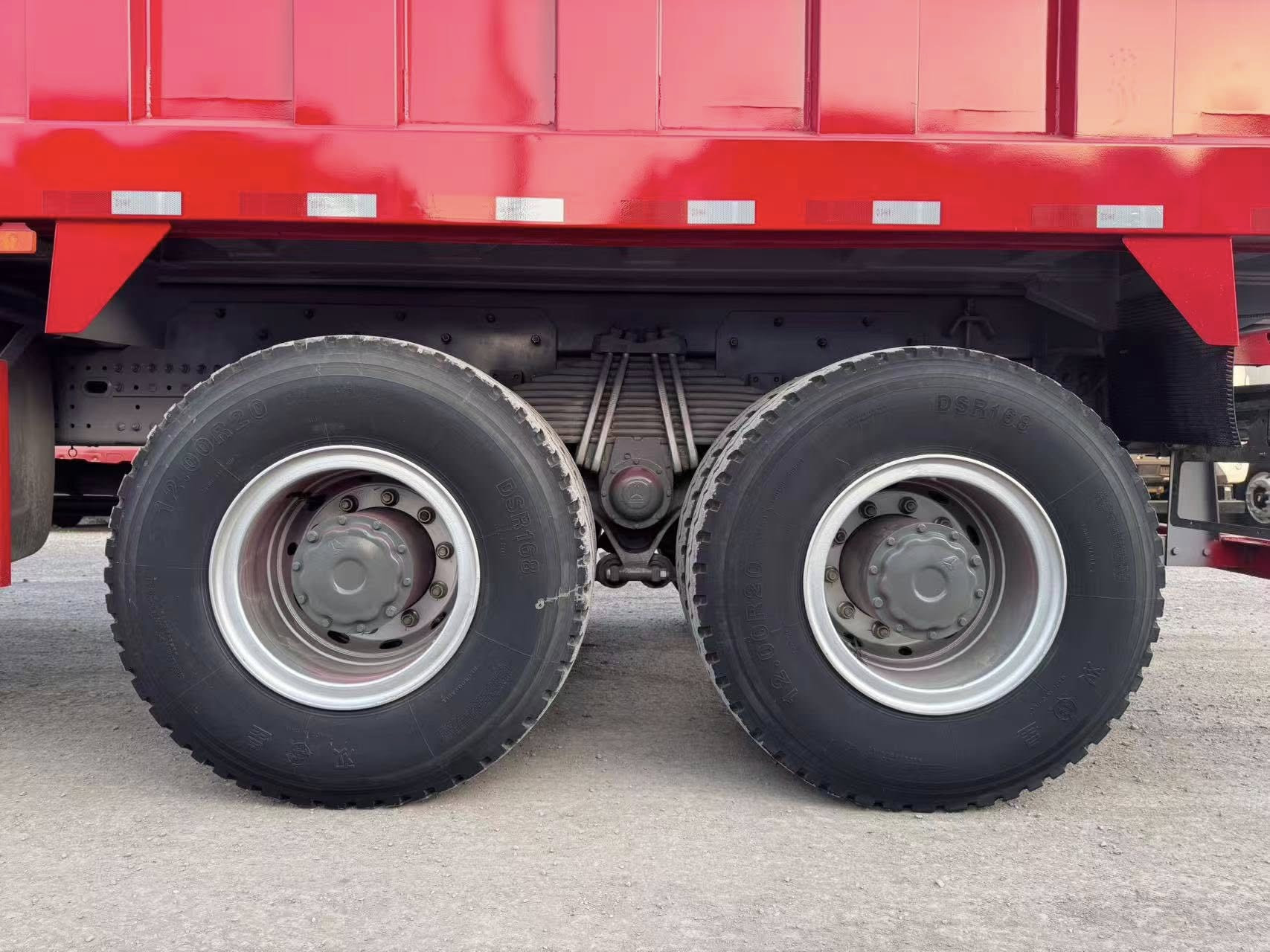

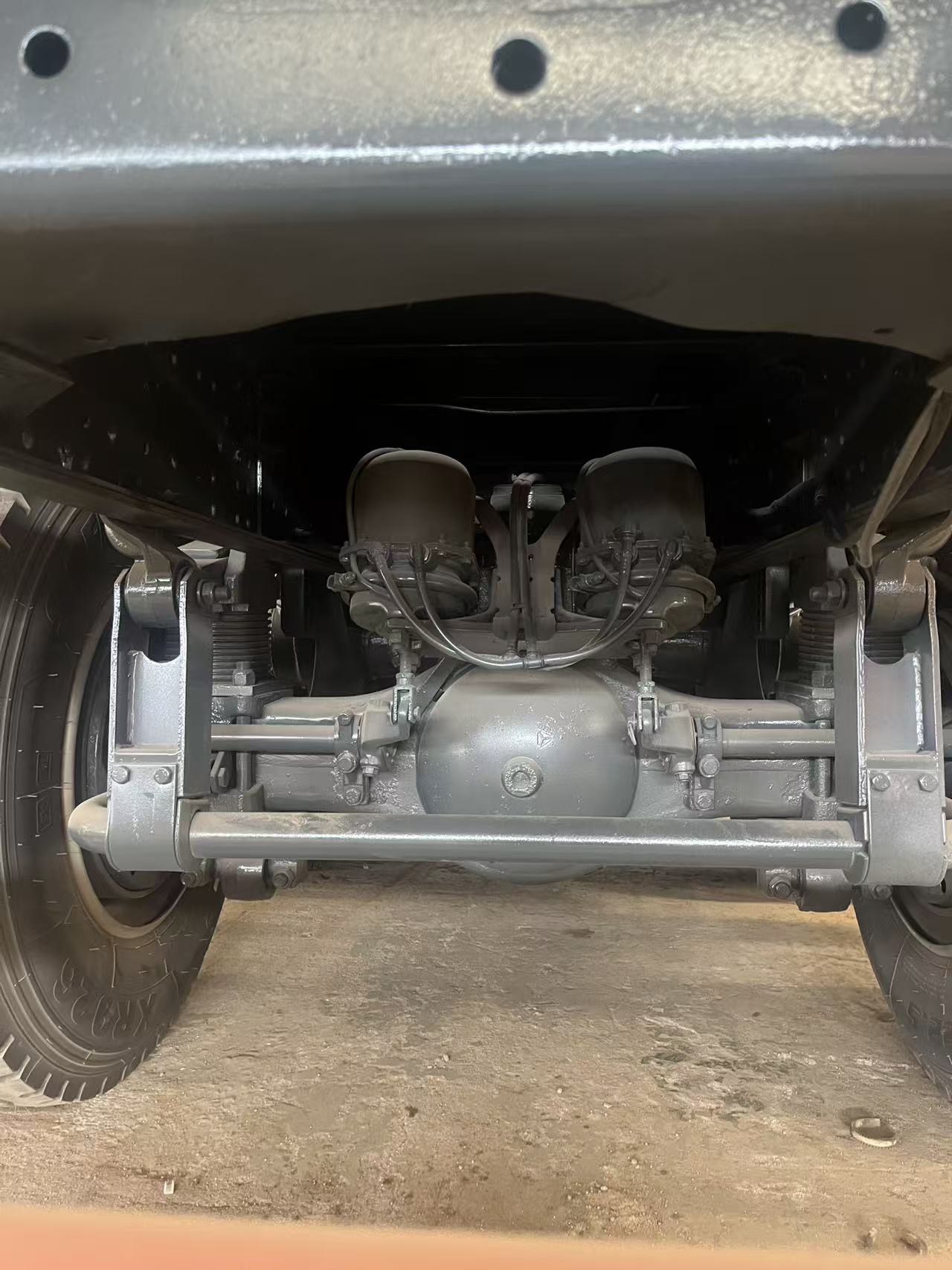

• Axles: V series front steering axles and reinforced MCX16ZG / MCP16 16-ton double rear reduction axles featuring inter-wheel and inter-axle differential locks.
• Chassis & Frame: High-strength double-layer steel frame (8+4mm) or (8+8mm) supported by heavy-duty multi-leaf springs.

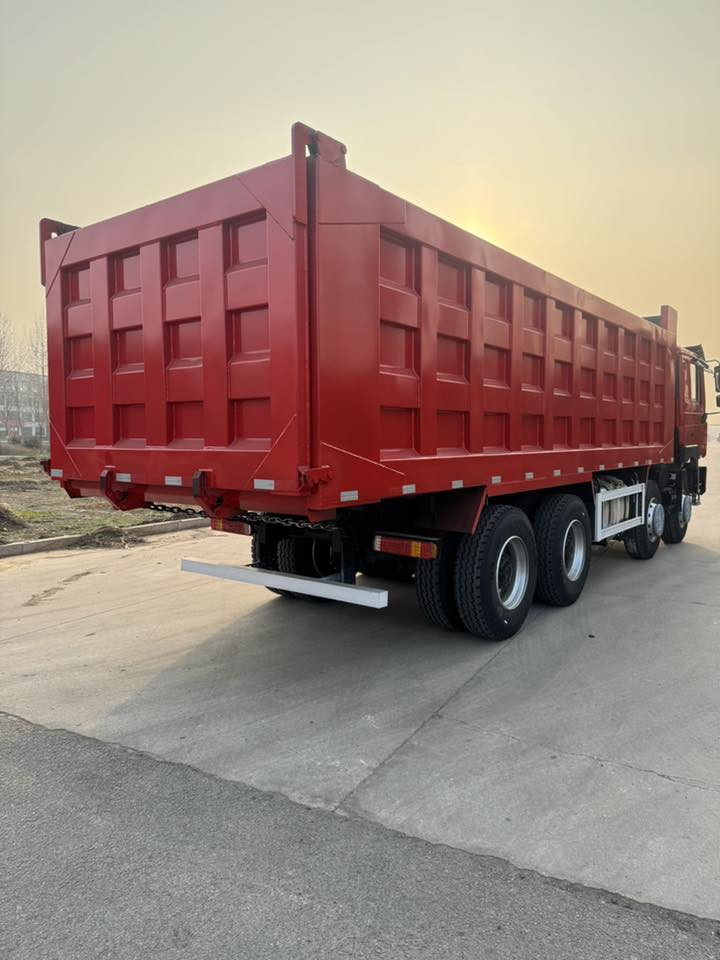

Cargo Box Volume: Heavy-duty tipper bodies ranging from 18 to 35 cubic meters (25- 35m3) with front-lifting hydraulic cylinders.

Key Product Highlights

• Precision Fuel Saving: Features an advanced Bosh High Pressure Common Rail System operating at up to 1600 bar for optimal fuel atomization and reduced consumption.

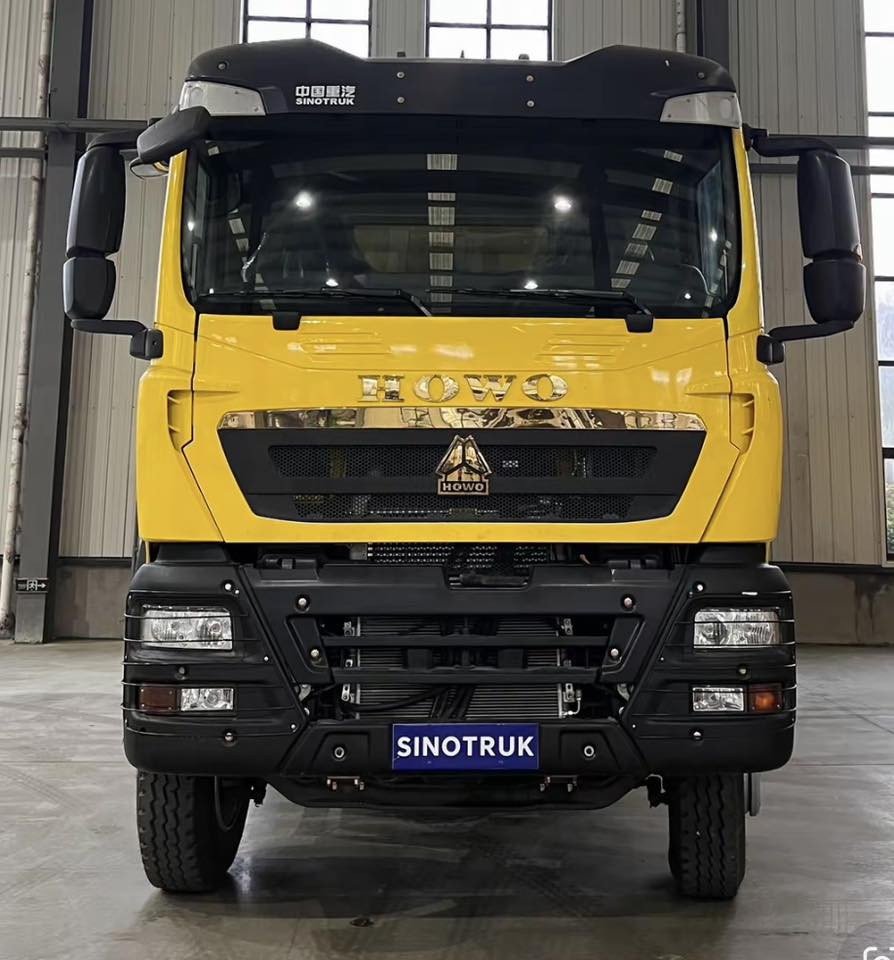

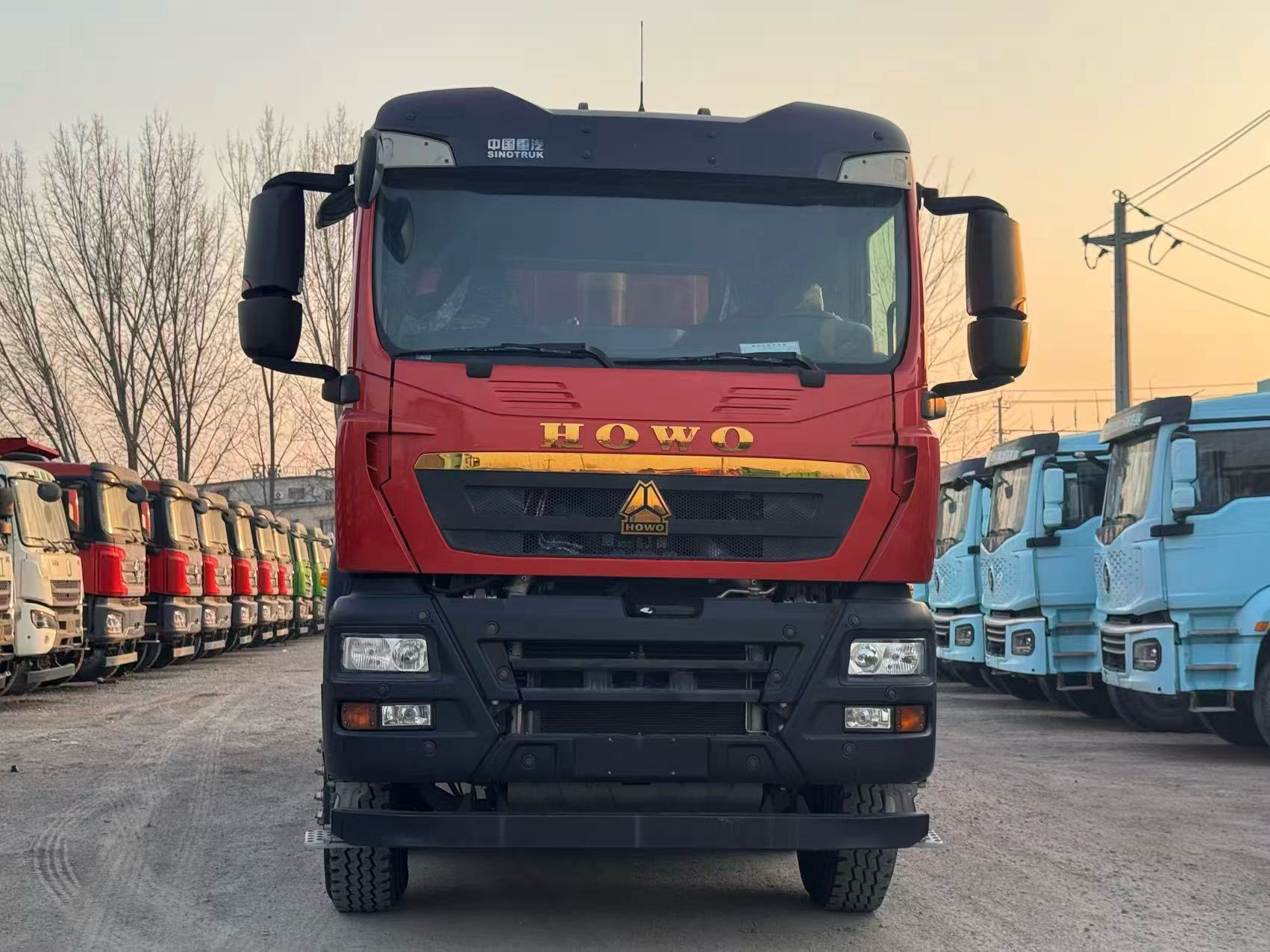

• TX-M / TX-F Comfort Cabin: Implements European safety collision standard cabins equipped with a 4-point fully floating air suspension, a single sleeper bunk, an adjustable air-suspension driver’s seat, and air conditioning

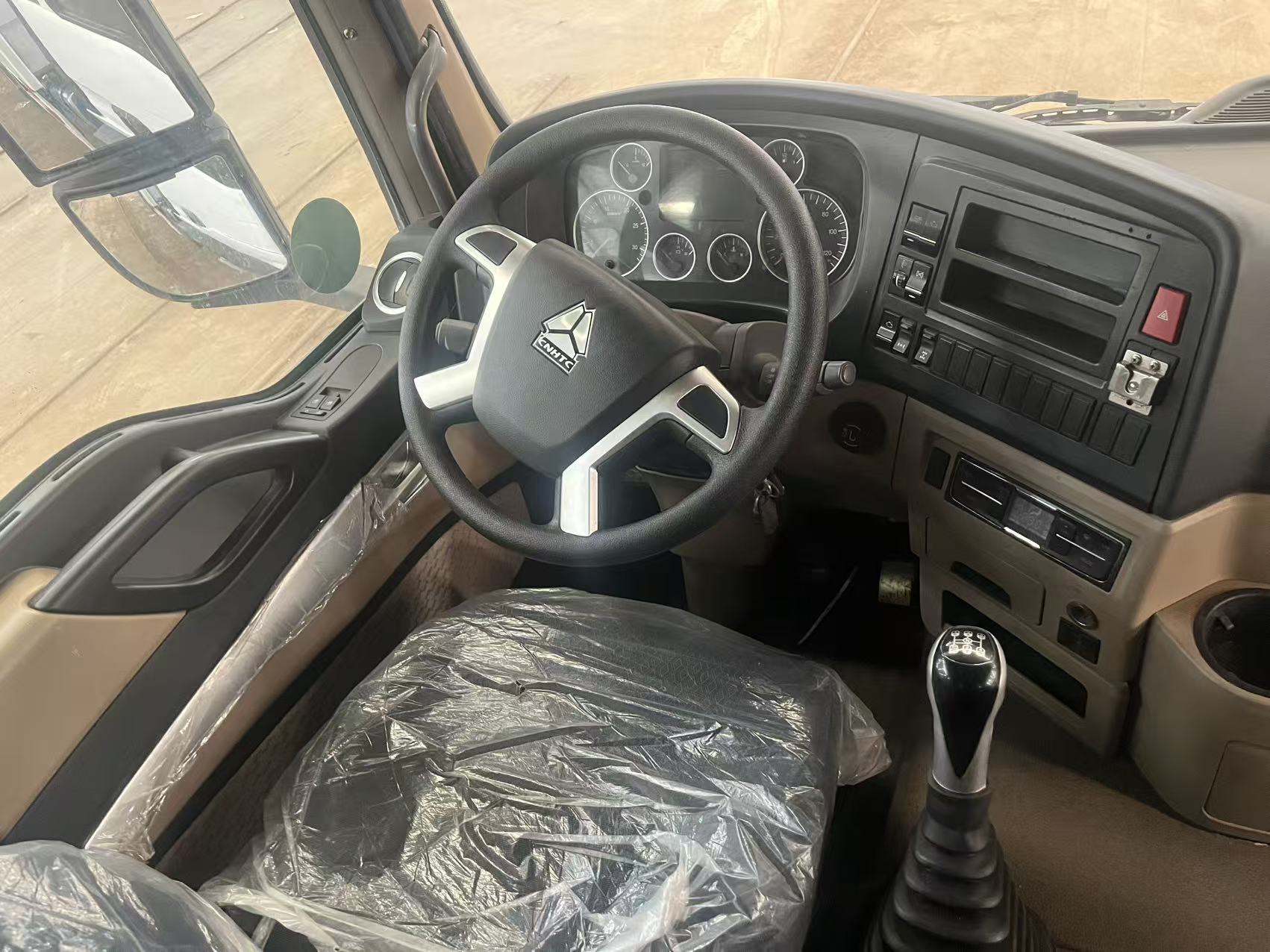

• Ergonomic Controls: Outfitted with a pneumatically adjustable multi-function steering wheel that integrates cruise control, Bluetooth connectivity, and multimedia settings.
• Heavy Terrain Tires: Utilizes standard 11.00R20 or 12.00R20 radial mixed-pattern tires optimized for muddy construction sites and rugged mining roads.

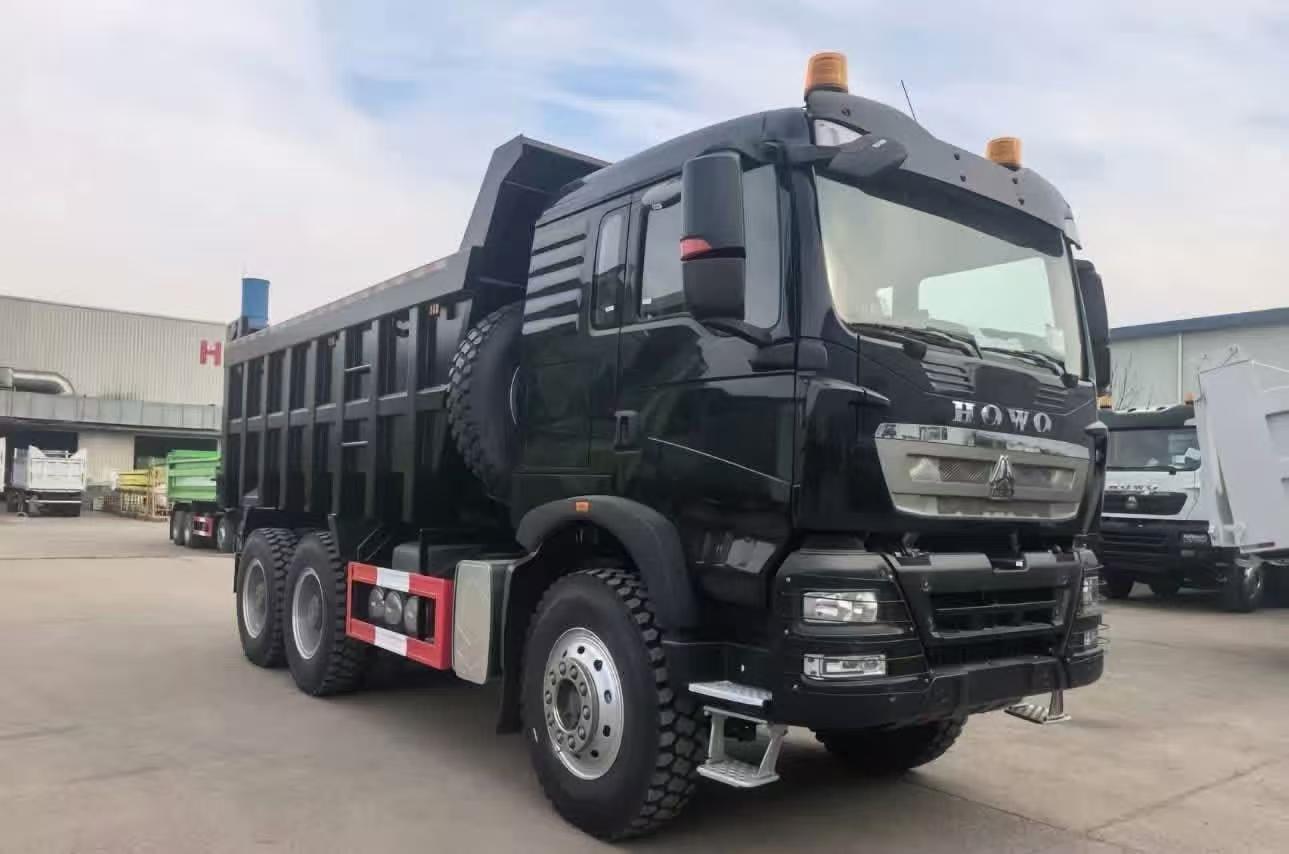

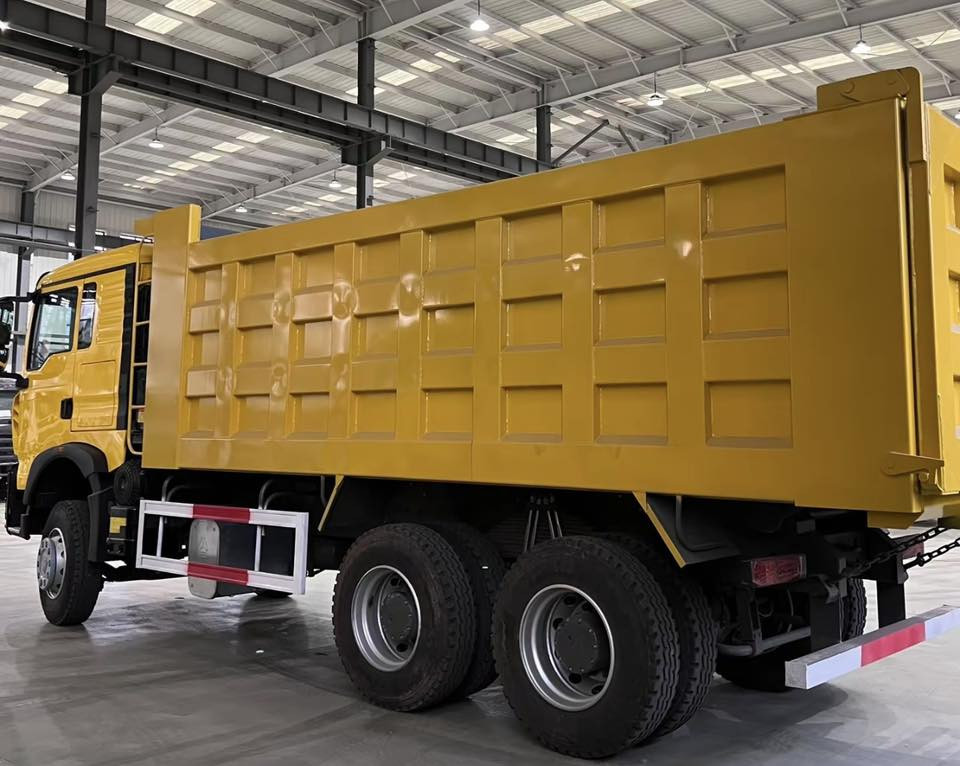

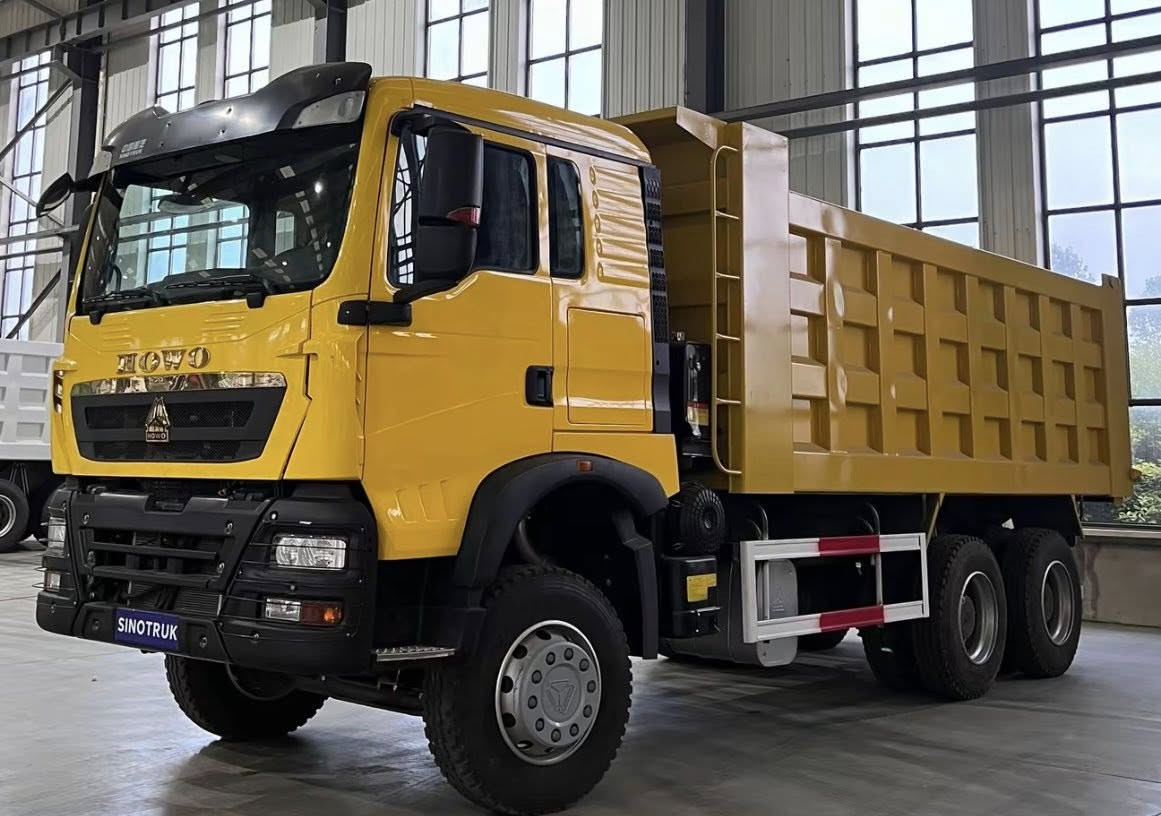

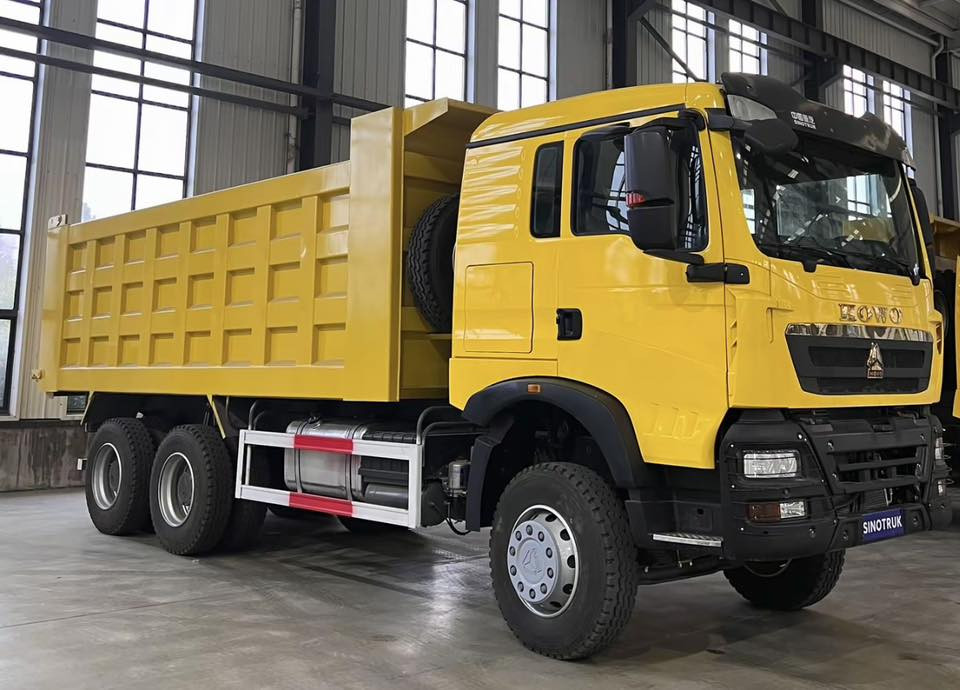

The Sinotruk HOWO 6×4 dump truck is a heavy-duty, 10-wheel, 3-axle tipper designed for construction and mining, typically featuring 336-420HP engines, a 16-20CBM cargo volume, and a 25-30 ton payload capacity. Known for durability, it uses a 10-speed gearbox (HW19710) and robust HC16 axles, often with Euro 2 to Euro 5 emissions.

Key Specifications & Features

• Engine: Commonly equipped with Sinotruk 336HP, 371HP, or 380HP/420HP engines (Weichai optionals).
• Drive Type: 6×4 (four wheels driven, two wheels in front).
• Capacity: 25,000 kg (25 ton) maximum load is typical.
• Transmission: HW19710 (10 forward speeds, 2 reverse).
• Cargo Body: Available in various sizes, typically (5,600X2,300X1,500mm or similar, offering 16-20m3capacity.
• Suspension: Leaf springs with transverse stabilizer.
• Cab: HW76 or HW70 cabin (with or without sleeper).

Common Applications

• Construction: Transporting sand, cement, and concrete.
• Mining: Short-range earthwork transportation and ore hauling.
• Infrastructure: Heavy materials handling

Advantages

• High Bearing Capacity: Known for robust chassis suitable for poor road conditions.
• High Performance: Powerful engine, often with advanced emission standards (Euro5).
• Versatile: Suitable for both, and versatile in, different working conditions.

Common Components

• Front Axle: VGD95 or HF9.
• Rear Axle: HC16 (Double reduction, hub reduction).
• Tires: 12.00R20 radial tires are standard, with options for 315/80R22.5
