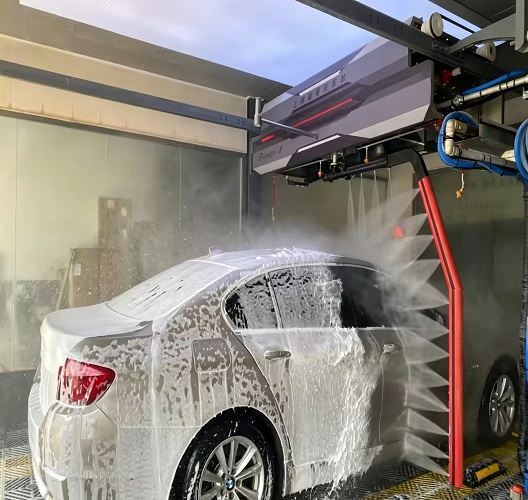

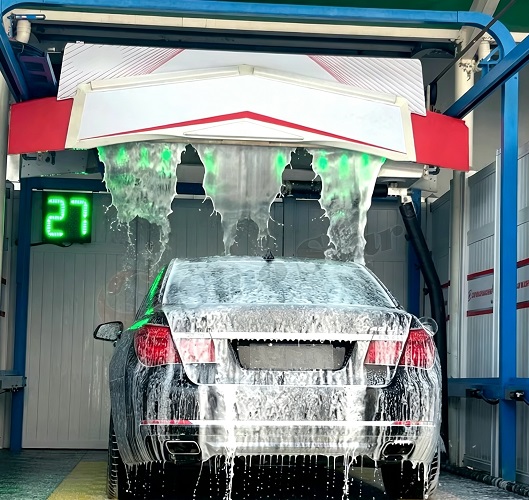

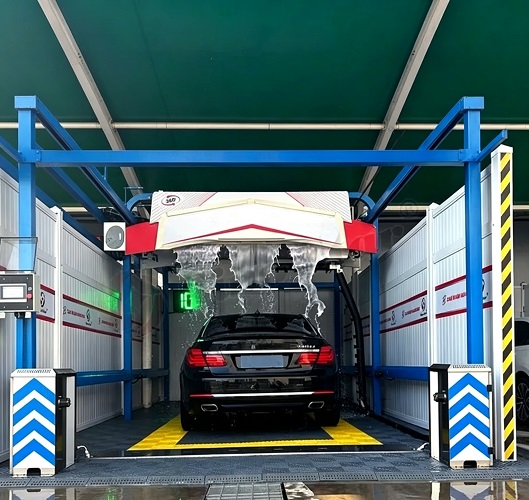

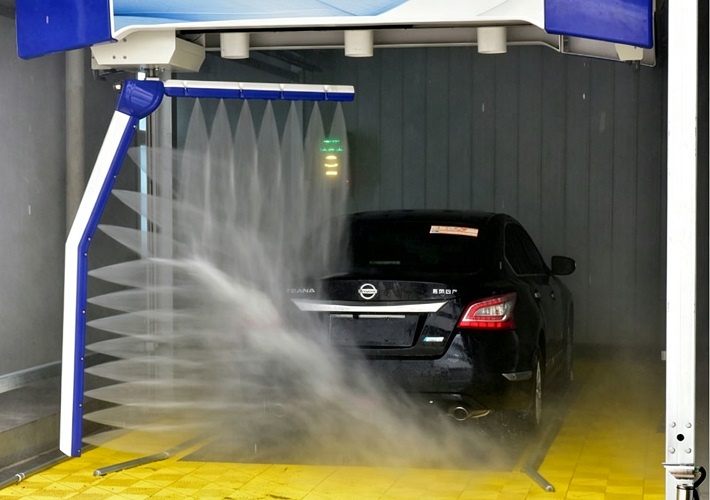

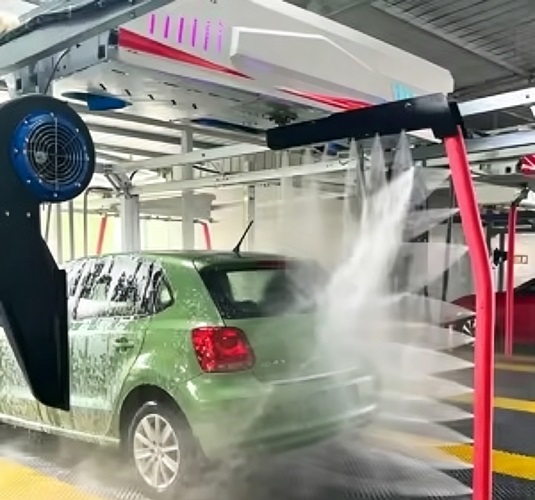

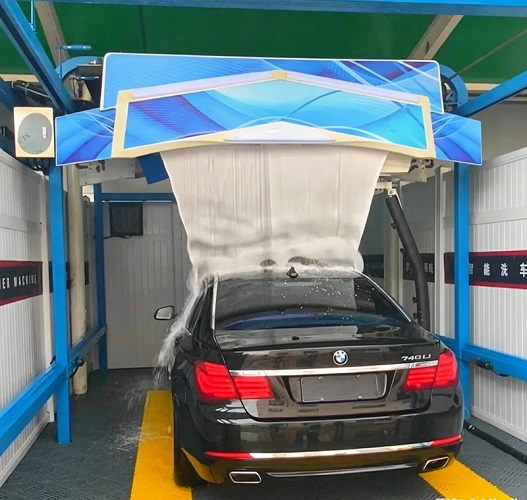

High Speed Fully Automatic / Touchless Car Washing Machine

A fully automatic car washing machine is an intelligent, computer-controlled system that cleans vehicles end-to-end from pre-soaking and high-pressure washing to foaming, polishing, and air-drying with no manual intervention. It provides a rapid, consistent, and highly efficient vehicle cleaning solution.

Key Advantages

• High Efficiency: Cleans a complete vehicle in 2 to 5 minutes, significantly reducing customer wait times.
• Labor Savings: Operates automatically via payment terminals or RFID scanners, eliminating the need for constant manual labor.
• Consistent Quality: Computer-programmed cycles ensure the exact same level of cleaning, rinsing, and waxing for every vehicle.
• Eco-Friendly Water Management: Modern systems integrate water recycling units that filter and reuse up to 80% of the water.
• Paint Safety: Advanced closed-cell foam brushes and touchless systems prevent scratches and swirl marks on car paint.

Core Specifications

While hardware varies, a standard high-quality Automatic Car Washing Machine incorporates the following technical parameters:

• Frame and Structure: Constructed from corrosion-resistant, hot-dip galvanized steel to withstand moisture and chemical exposure.
• Control System: PLC (Programmable Logic Controller) system featuring user-friendly interfaces, fault self-checking, and anti-collision/obstacle avoidance mechanisms.
• Water Pressure: High-pressure pumps generally operating between 40 bar to 120 bar.
• Drying System: High-velocity, contour-following air blowers (typically ranging from 4 to 6 fan motors, each around 5.5 kW) designed to prevent water spots.
• Power Requirements: Commonly runs on standard industrial three-phase power (e.g., AC 380V/50Hz/3P with a 22KW power capacity).

Major Application Fields

• Commercial Car Wash Stations: Dedicated businesses looking to maximize vehicle throughput and daily revenue.
• Gas Stations and Service Hubs: Offered as a premium add-on service to attract fuel customers and boost profit margins.
• Automobile Dealerships (4S Shops): Used to quickly clean customer cars post-service or prep new vehicles for delivery.
• Logistics and Corporate Fleets: Installed by rental car agencies, taxi companies, and delivery services to maintain brand image.
• Large Parking Lots: Integrated into shopping malls or airport parking garages as a convenient automated amenity.
